FCST01178
FCST
FCST01178
Product Overview

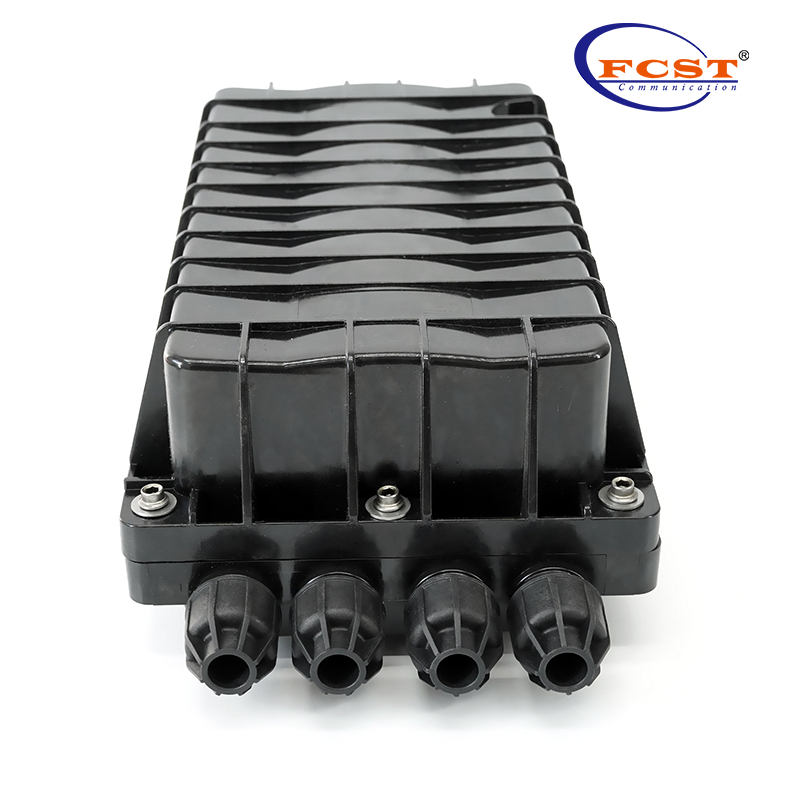

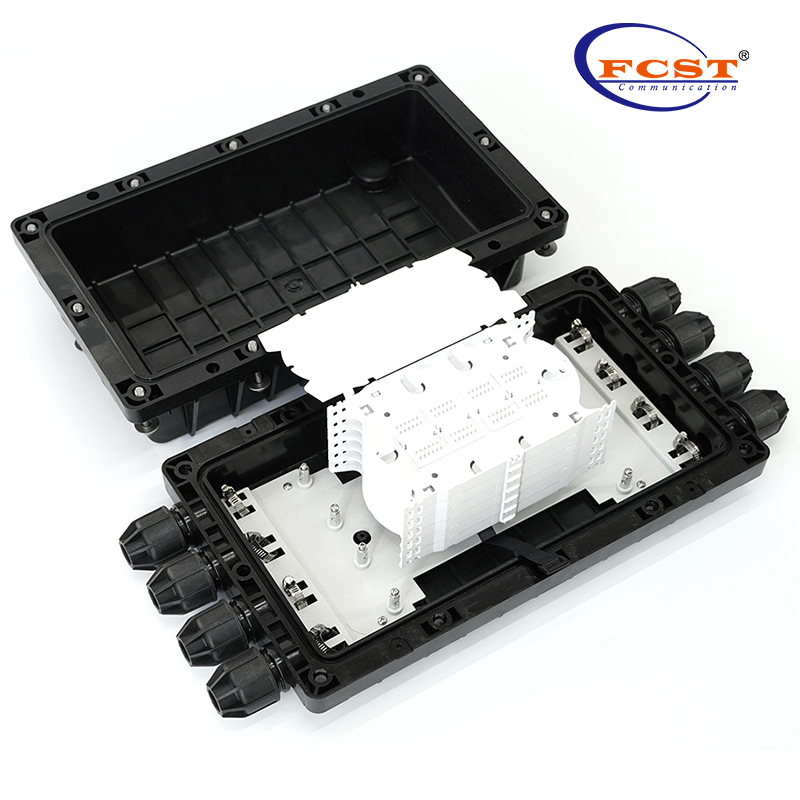

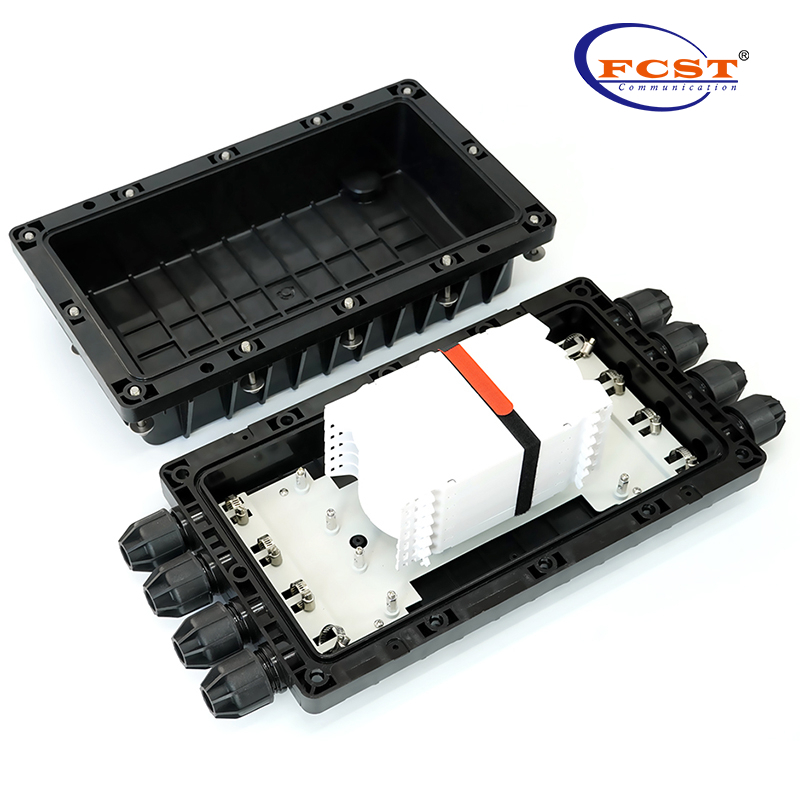

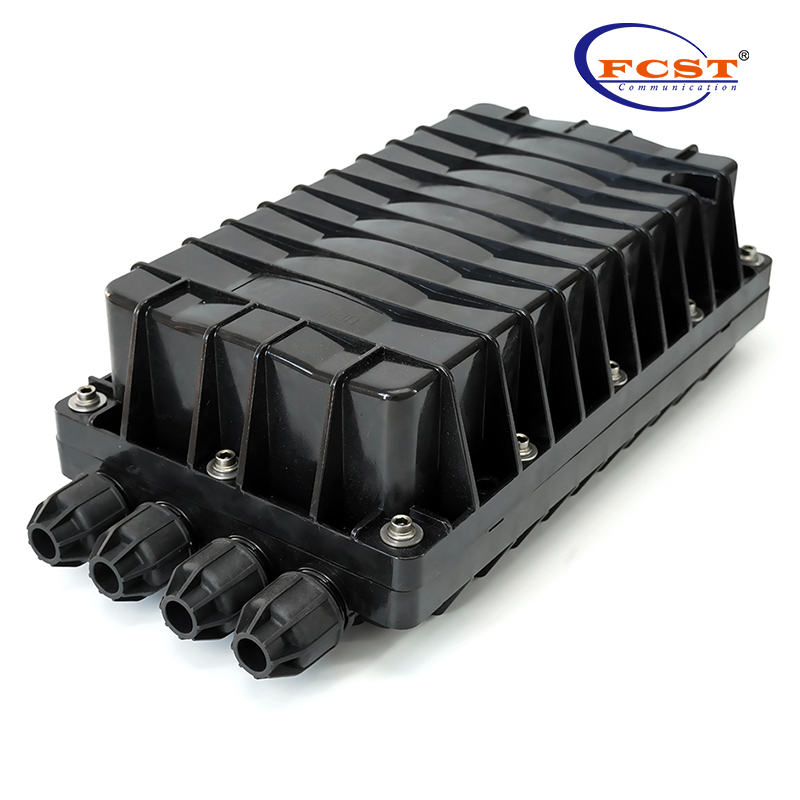

FCST01178 Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Product Advantages
l Ports: 4 inlets and 4 outlets, applicable to φ9-17 mm cables.
l Capacity: 24F/48F tray capacity, max 6 splice trays
l Fusion Splice Capacity: minimum 24F, maximum 288F
l Sealing: bolt mechanical structure, silicone rubber for squeezing seal, IP68
l Installation: wall mounting, aerial, duct mounting, direct burial
l Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99), and strict tests like IK9.
l Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment。
Product Specifications
Construction | Description |
Max. Capacity | Single:288Cores |
Material | PP+GF |
Dimension (mm) | 556*258*156 |
Inlets/Outlets | 4/4 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight(g) | 4000 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Φ9mm~φ17mm |
Sealing Mode | Mechanical |
Max Number Of Trays | 6 |
Capacity Of Tray | 24/48F |
Packing Information
Construction | Description |
Outside Dimension(L*W*H)mm | 580*280*190 |
Weight/PC(kgs) | 4.3 |
Carton Size(L*W*H)mm | 600*580*410 |
Qty/CTN(pcs) | 4 |
Weight/CTN(kgs) | 17.2 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
