FCST01155
FCST
FCST01155
Product Specifications
Model | FCST01155-1 | FCST01155-2 |
Material | PP/ABS | PP/ABS |
Applicable Cable Dia. | Φ12.2-Φ22mm | Φ12.2-Φ22mm |
Outlet&Inlet | 2 Inlets and 2 Outlets | 2 Inlets and 2 Outlets |
Max Capacity of Splice Tray | 24 Fibers(Single Fiber) | 24 Fibers(Single Fiber) |
Max Capacity | Axial turning way:144 Fibers(Single Fiber),432 Fibers(12 Fibers/Ribbon) | Axial turning way:96 Fibers(Single Fiber),216 Fibers(12 Fibers/Ribbon) |
Lateral turning way:96 Fibers(Single Fiber),192 Fibers(Ribbon) | Lateral turning way:96 Fibers(Single Fiber) | |
Cable Sealing Method | Unvulcanized Butyl Rubber Sealing | Unvulcanized Butyl Rubber Sealing |
Application Environment | Aerial,Buried,Pipe-lined | Aerial,Buried,Pipe-lined |
Dimension | 498*217*134mm | 400*174*113mm |

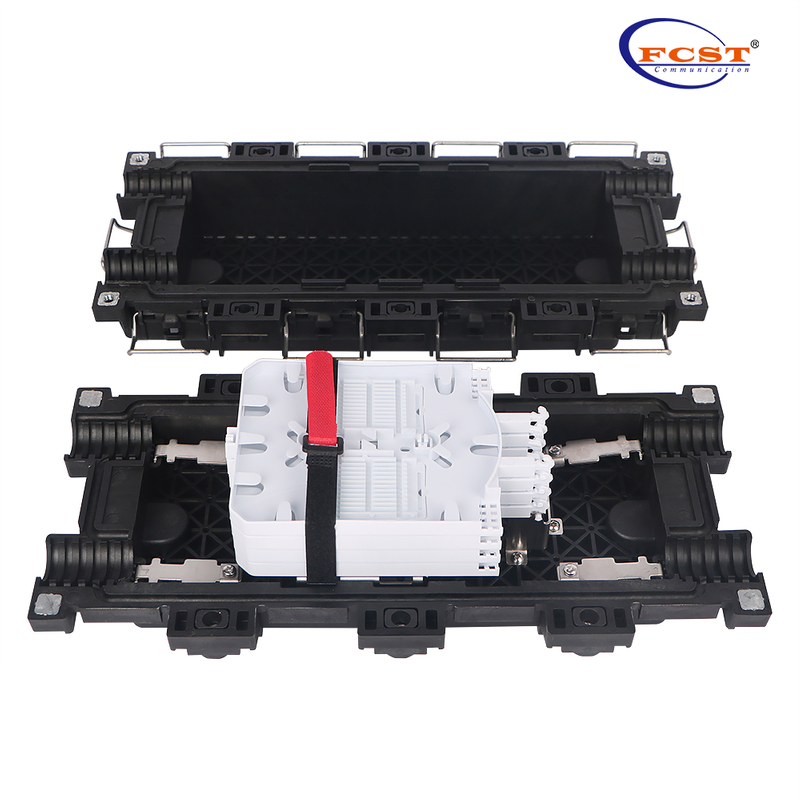

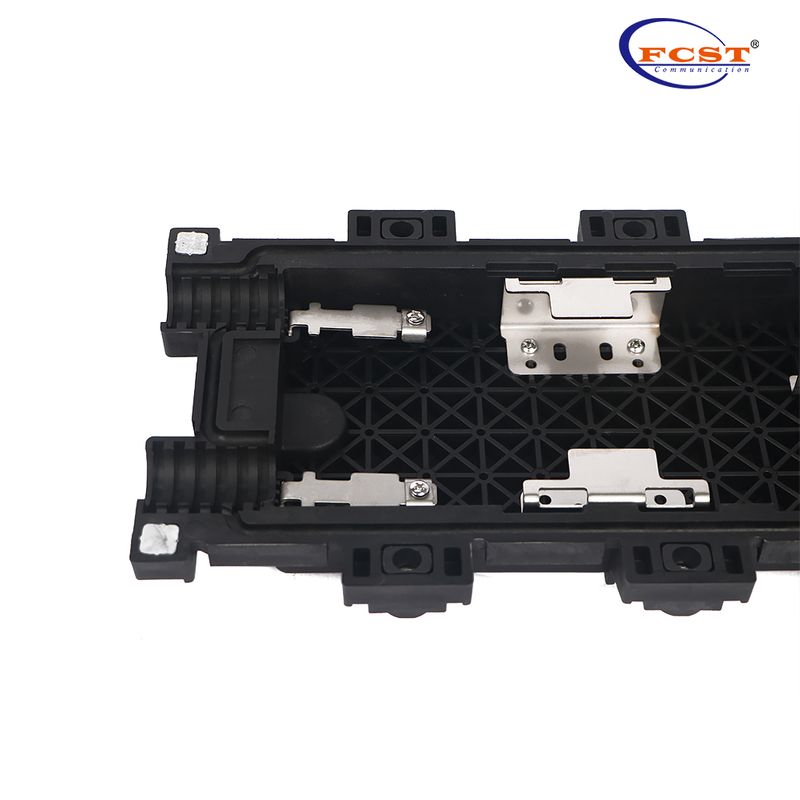

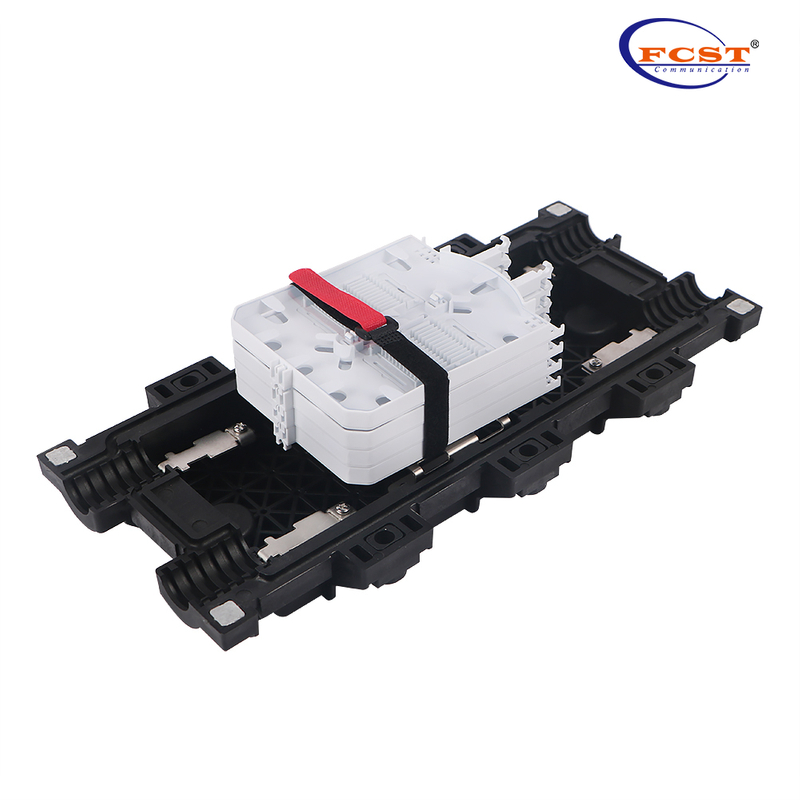

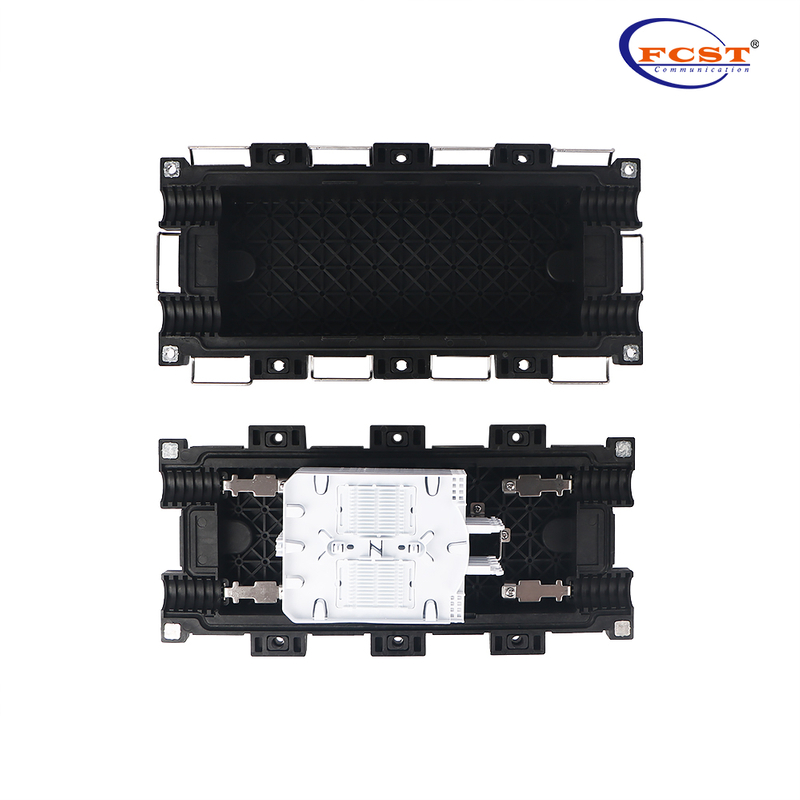

Product Structure
Design And Customization Services
l The high-capacity fiber closure provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
