FCST01176
FCST
FCST01176
Product Overview

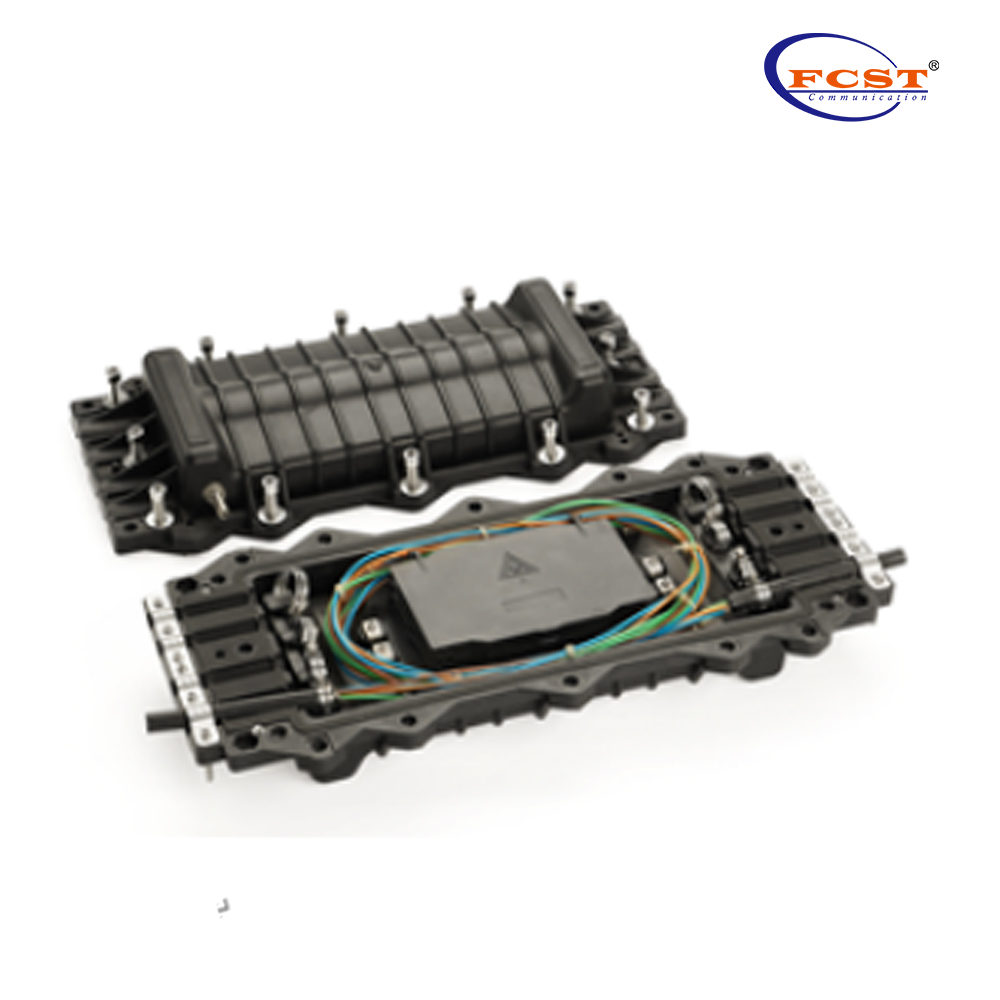

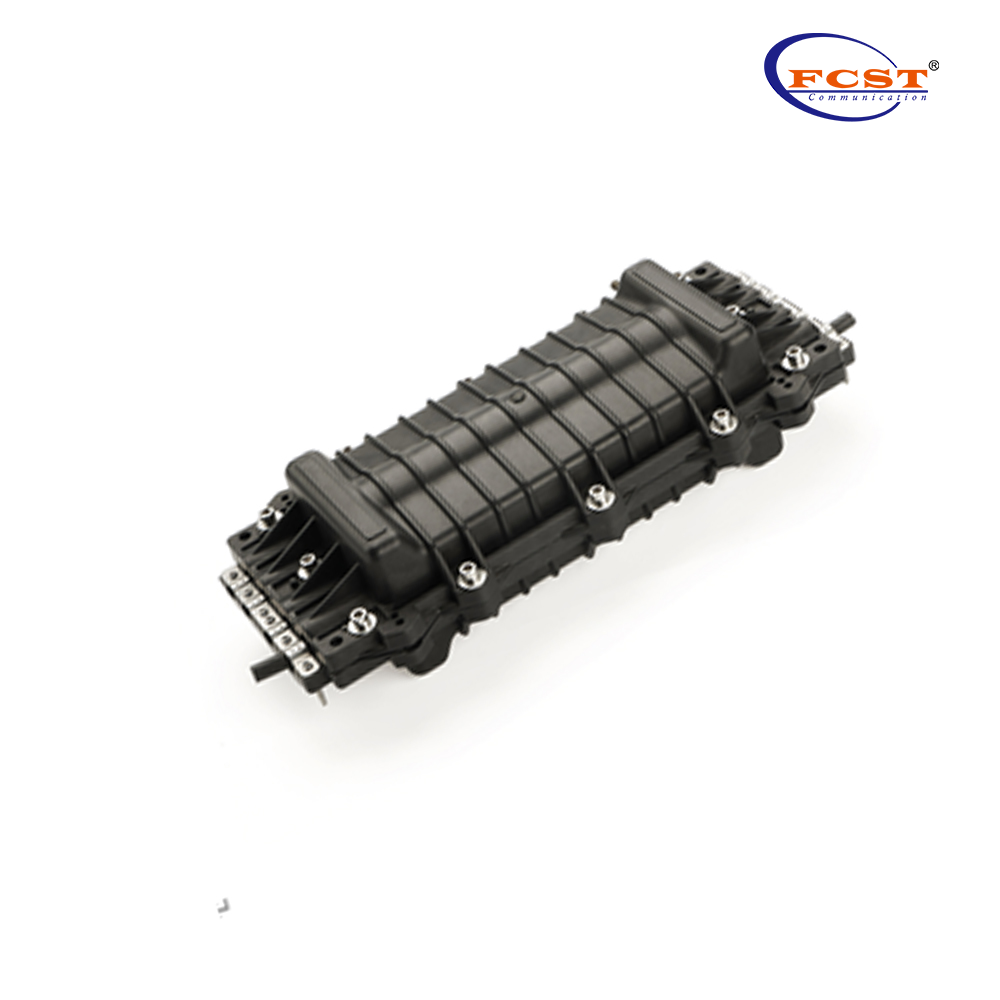

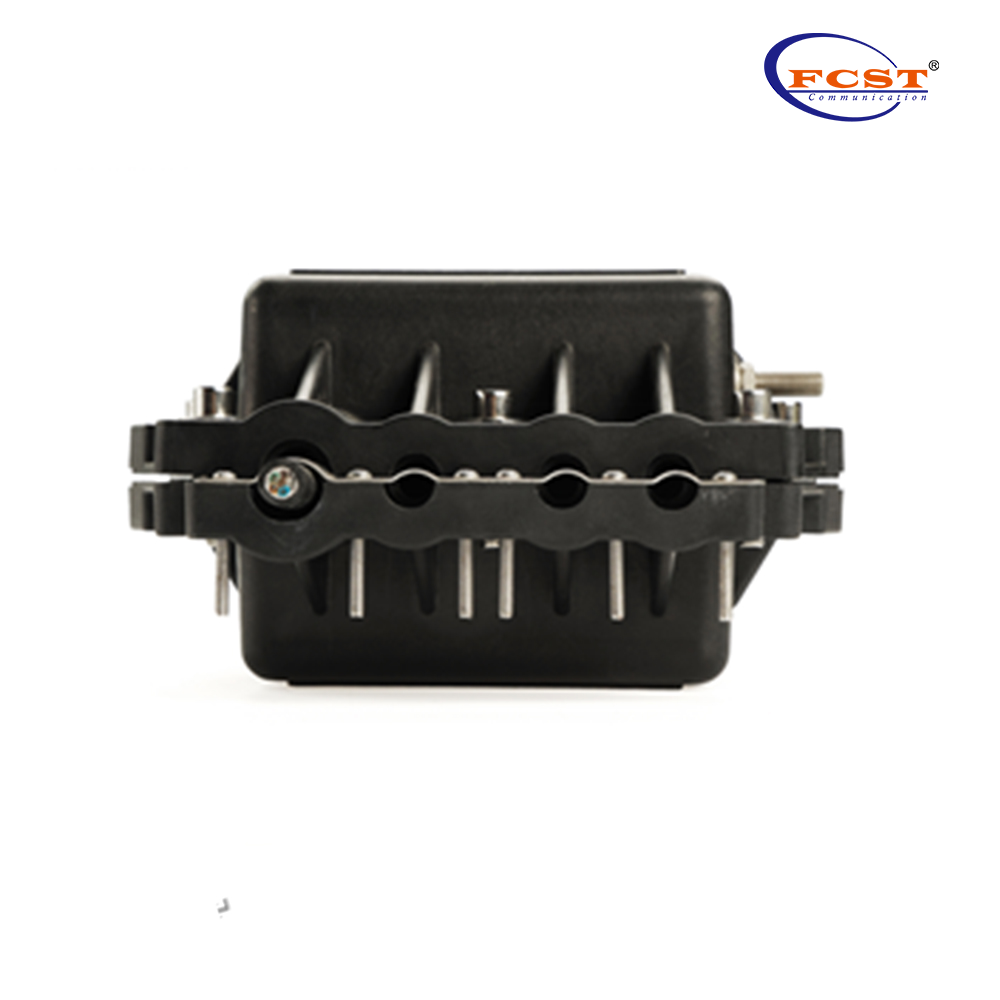

FCST01176 Fiber Optic Splice Closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The box can be applied to a variety of optical cable (loose sleeve, skeleton, ribbon, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch, etc.).
Product Advantages
l Cable ports: 8 cable ports in total.six ports diameter Φ8~Φ13, two ports diameter Φ10~Φ17.5.
l Seal performance: Mechanical sealing mode, protection grade is up to IP 68.
l Max capacity:splice tray support 24f, the max capacity is up to 144f.
l Strong weather resistance, can effectively resist high and low temperature and chemical corrosion tests.
l Tighten screws and gasket are all made of 304 stainless steel to improve the corrosion resistance.
l Installation mode: Suitable for Aerial, Pipe line, Manhole, Underground mounting.
Product Specifications
Construction | Description |
Max. Capacity | 144Cores |
Material | PP+GF |
Dimension (mm) | 457*201*120 |
Inlets/Outlets | 4/4 |
Installation | overhead, wall, pipe-line, manhole, underground |
Net Weight（g） | 4200 |
Protection Level | IP68 |
Diameter Of Fiber Cable | 6 port: Φ8～13mm; 2 port: Φ10～17.5mm |
Sealing Mode | Mechanical |
Number Of Trays | 6 |
Capacity Of Tray | 24F |

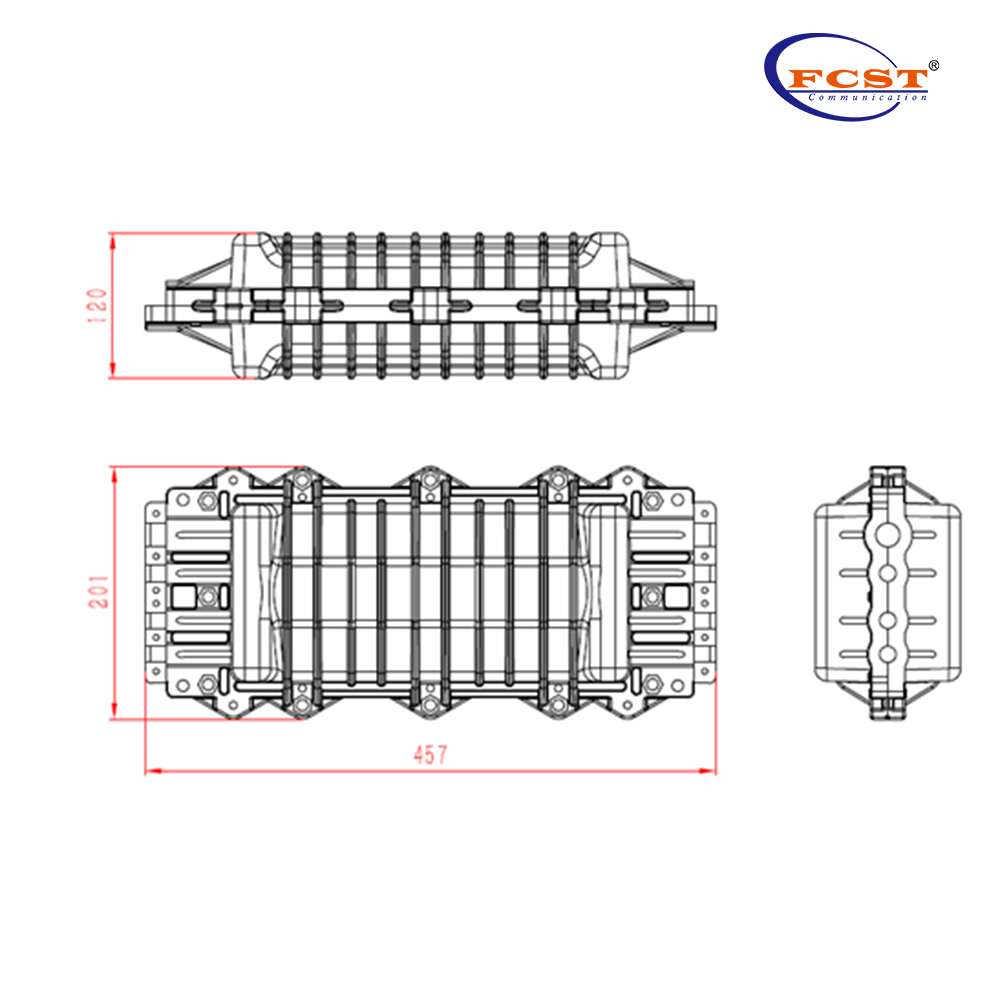

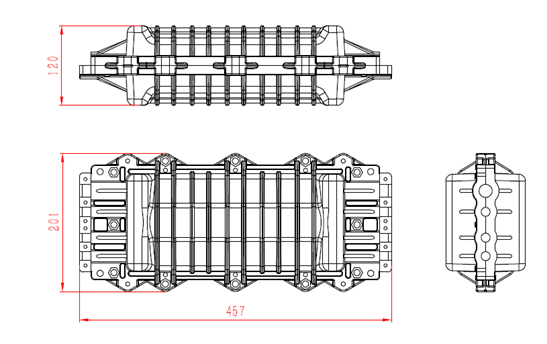

Structure Drawing
Unit：mm

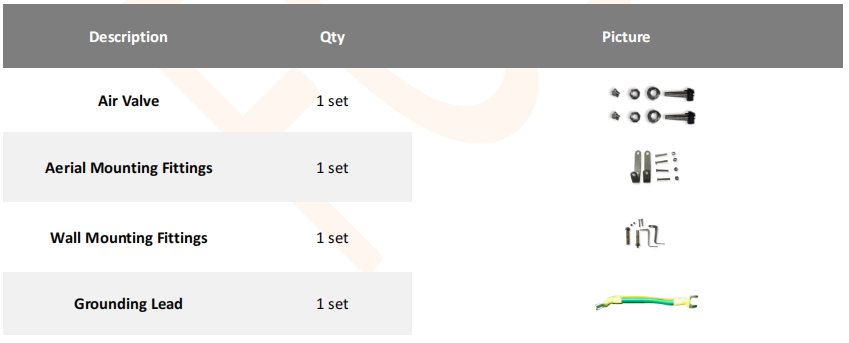

Standard Accessories（Picture only for refer）
Optional Accessory
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
