FCST01156
FCST
FCST01156
Product Overview

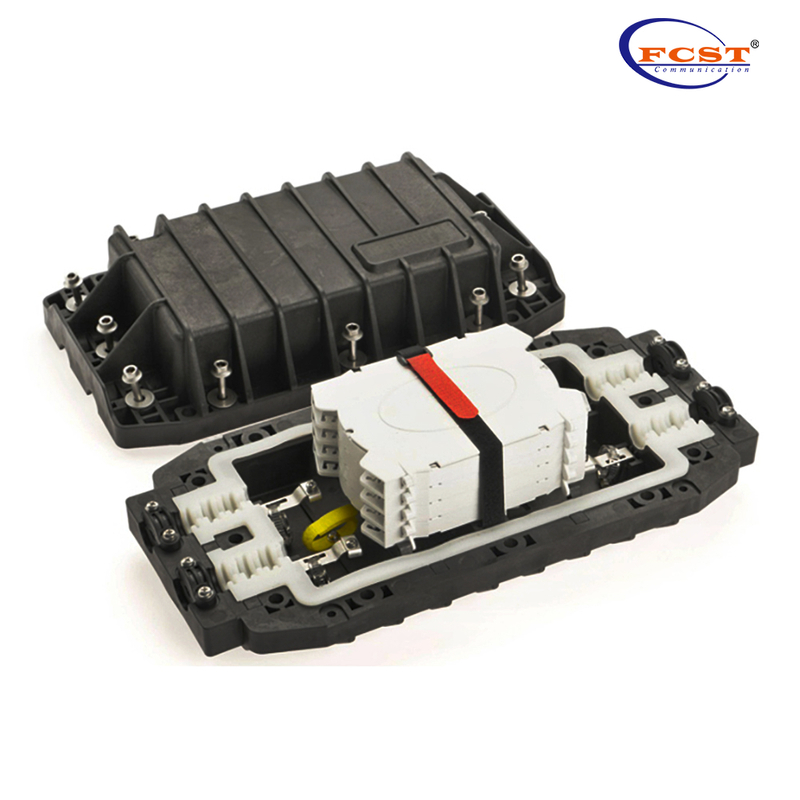

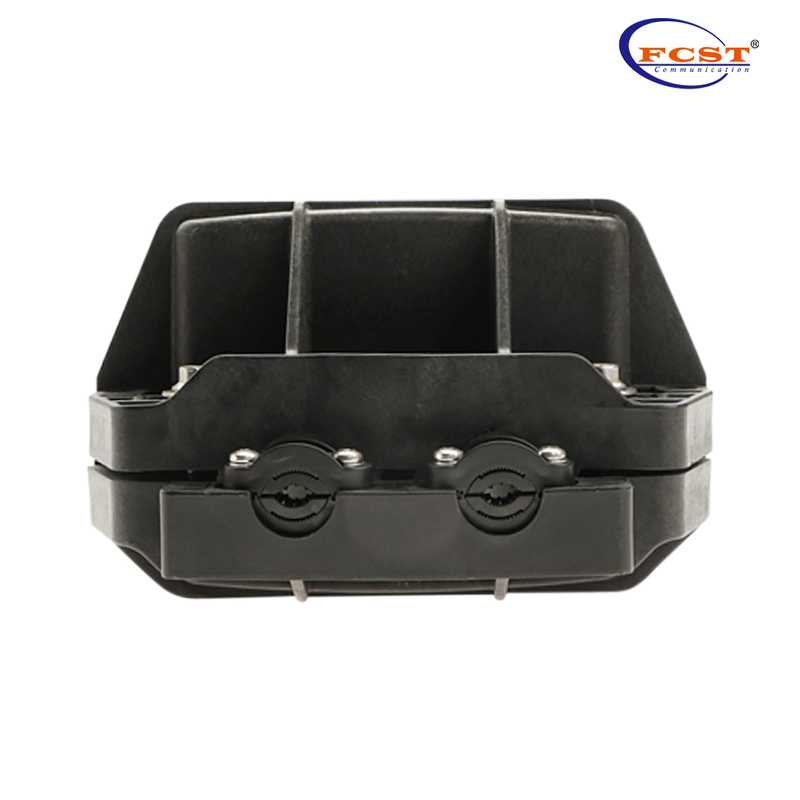

FCST01156 type of FOSC is designed for connection and protection of fiber cables. This splice closure has four cable ports and can be used for different applications of optical fiber cable splicing & branching and is suitable for aerial, pipe-lined and direct buried applications.
Product Advantages
l 2 in 2 out, suitable for Φ 10-20 mm cable.
l Maximum 96 core , support 4* 24 F fiber trays installation.
l Overall compact and flexible, simple structure, easy to operate, suitable for Aerial, pipeline installation.
l Good sealing performance, vulcanized sealing strip and mechanical seal coexist.
l Fiber optic cable fixed with internal and external double suspension fastening, fixing effect is good.
l Fastening screws and screw pads are 304 stainless steel to improve corrosion resistance.
Product Specifications
Construction | Description |
Capacity | 96Fibers |
Material | PP+GF |
Dimension W*H*D(mm) | 420*201*128 |
Inlets/Outlets | 2/2 |
Installation | Pipeline and wall mounting |
Suitable Cable Diameter (mm) | ￠10～￠20 |
Protection Level | IP68 |
Capacity Of Tray (Single fiber) | 24 |
Maximum Number Of Trays | 4 |
Net Weight（g） | 2200 |
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | 440*220*150 |
Weight/PC（kgs） | 2.7 |
Carton size（L*W*H）mm | 460*460*480 |
Qty/CTN（pcs） | 6 |
Weight/CTN（kgs） | 16.9 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
