FCST01130-F
FCST
Product Overview

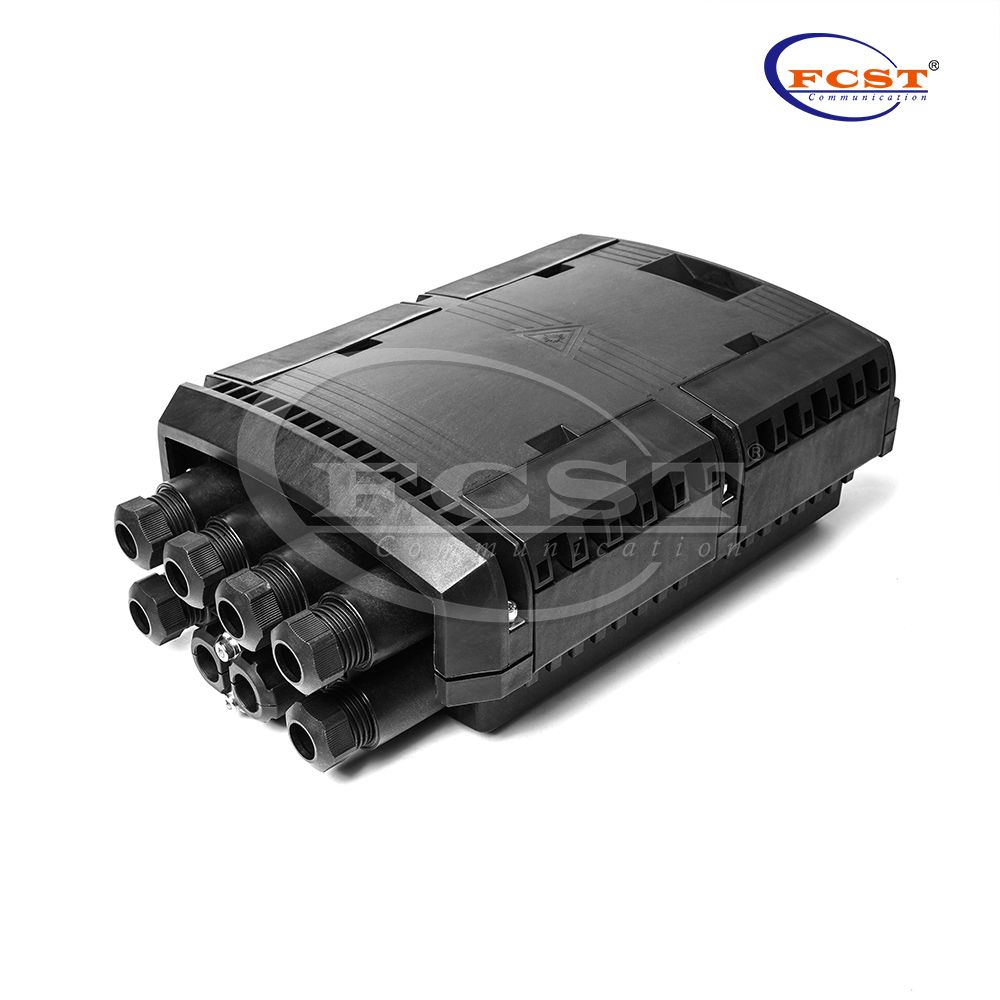

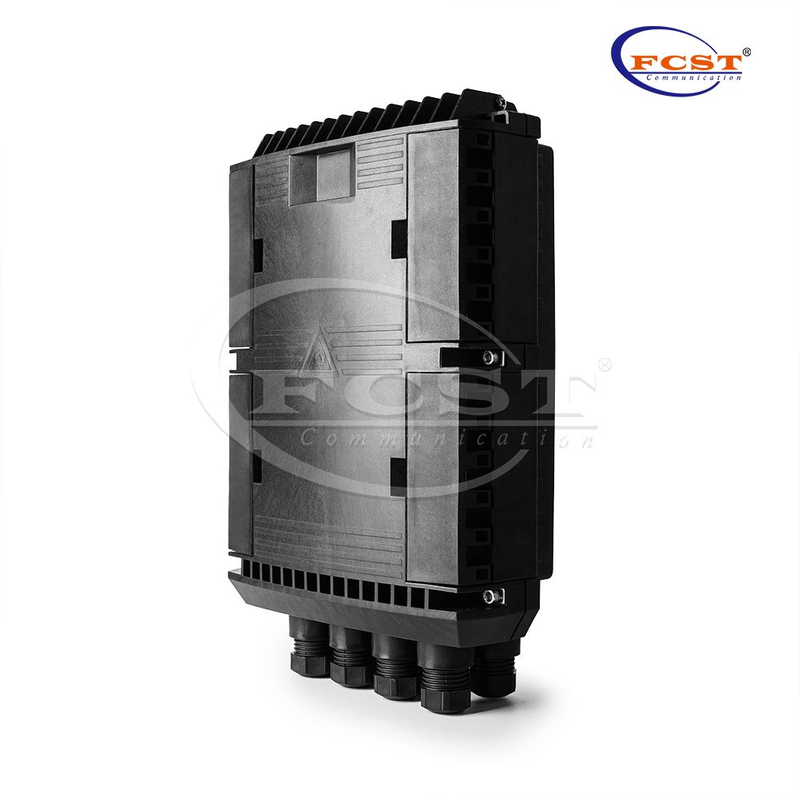

FCST01130 Fiber termination closure is able to hold up to 24 subscribers and 288 splicing points as closure. Fiber optic closure is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution storage and cable connection in one solid protection box.
Product Advantages
lWater-proof design with IP-68 protection standard.

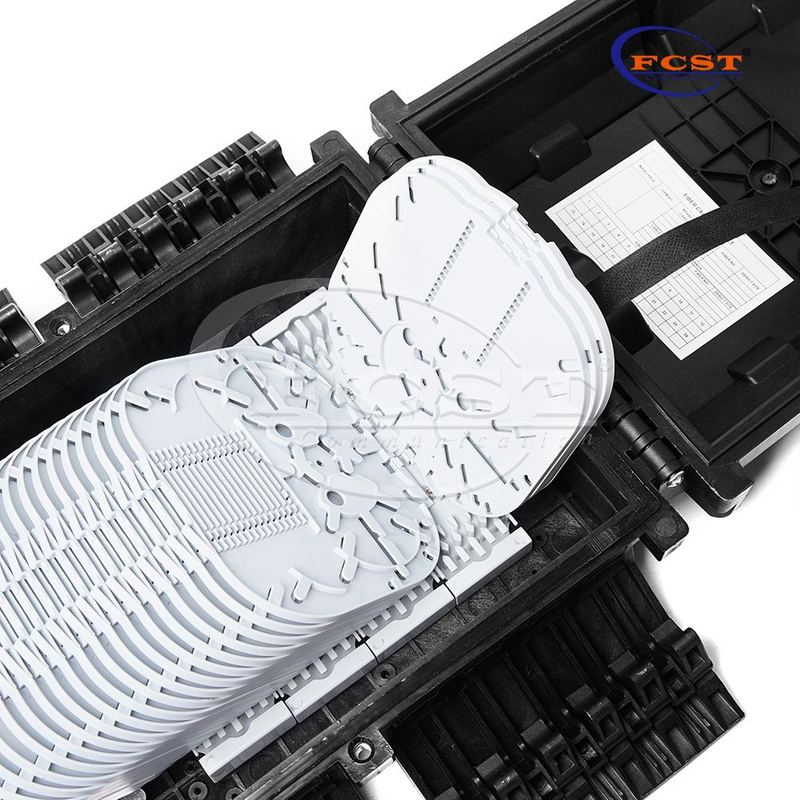

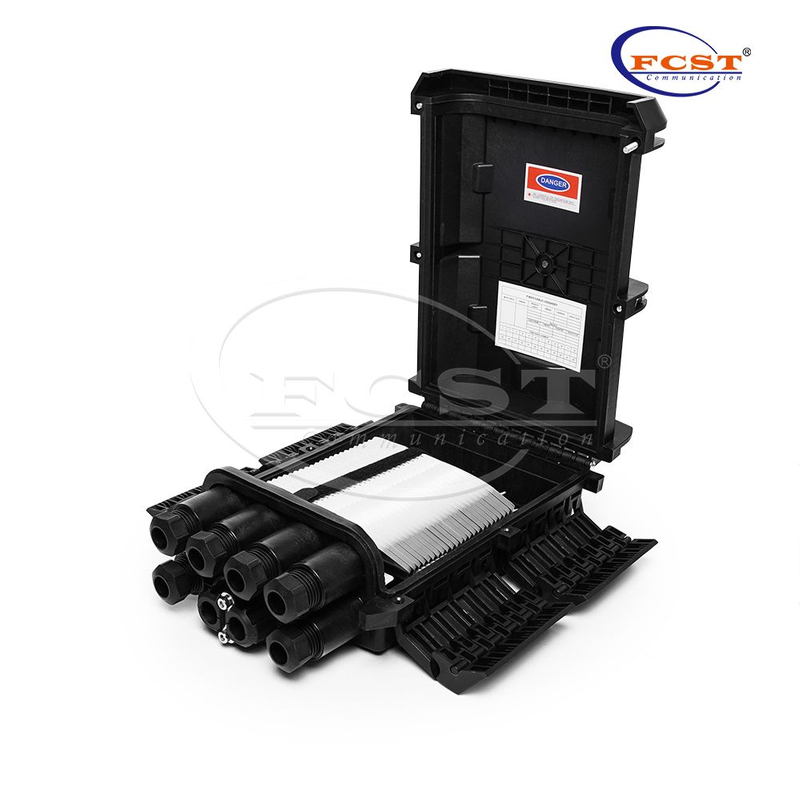

lIntegrated with flap-up splice cassette and adaptor holder.
lImpact test: IK10, Pull Force: 100N Full rugged design.
lAll stainless metal plate and anti-rusting bolts nuts,
lFiber bend radius control more than 40mm.
lSuitable for the fusion splice or mechanical splice.
l2pcs of 1*8 splitter can be installed as an option.
lMechanical sealing structure and mid-span cable entry.
Product Applications
lWall mounting and pole mounting installation.
lFTTH pre-installation and field installation.

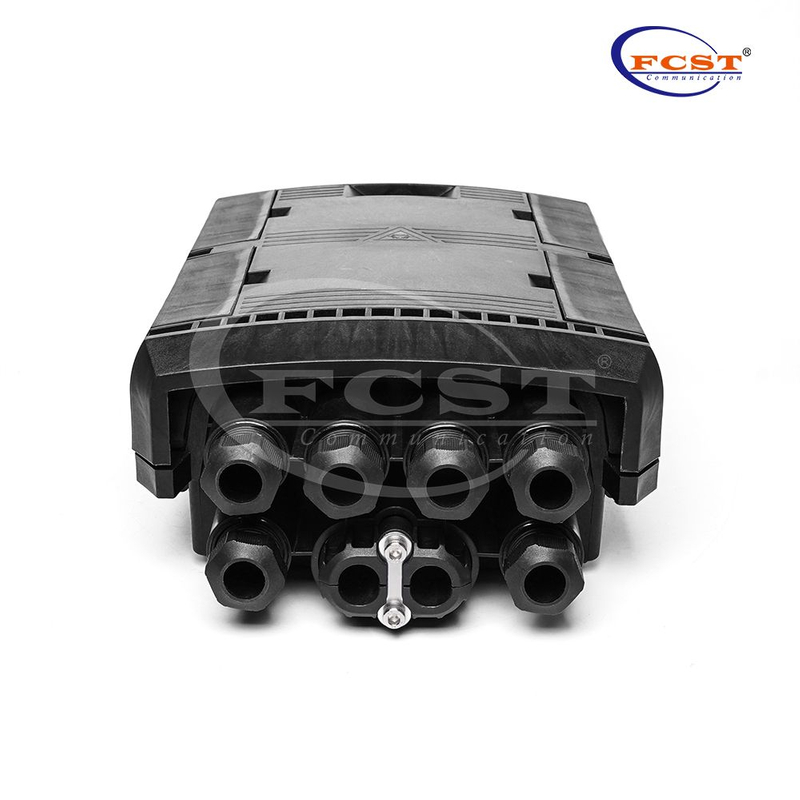

l1 input cable port for un-cut cable from diameter from10~17.5mm. 6 output
cable ports for cable diameter from 8~17.5mm.
Product Specifications
Construction | Description |
Capacity | 244Fibers |
Material | Plastic |
Dimension W*H*D(mm) | 395*245*130 |
Inlets/Outlets | 4/4 |
Installation | Pole-mounting/Wall-mounted |
Optional Accessories | Heat-shrink tubes |
Protection Level | IP68 |
Input Cable Method | Cutting |
PLC Splitter Available | No |
Net Weight(g) | 4500 |
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | 415*260*150 |
Weight/PC(kgs) | 5 |
Carton size(L*W*H)cm | 53*43*33 |
Qty/CTN(pcs) | 4 |
Weight/CTN(kgs)
| 21 |
Design And Customization Services
lProvide service with whole process from blueprint to product to the customer.
lMeet customer’s requirement to customize logo in suitable place for existing product.
lMeet customer’s requirement to make reasonable modify and customization for existing product.
lProvide free design according to the requirement of customer after signed cooperative agreement.
