FCST01166-B
FCST
FCST01166-B
Product Overview

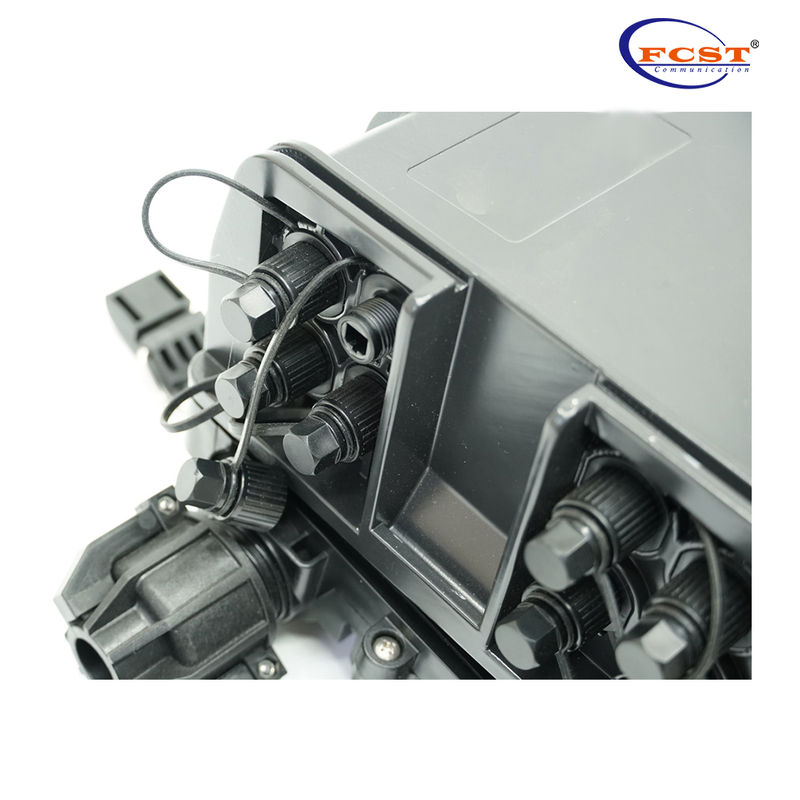

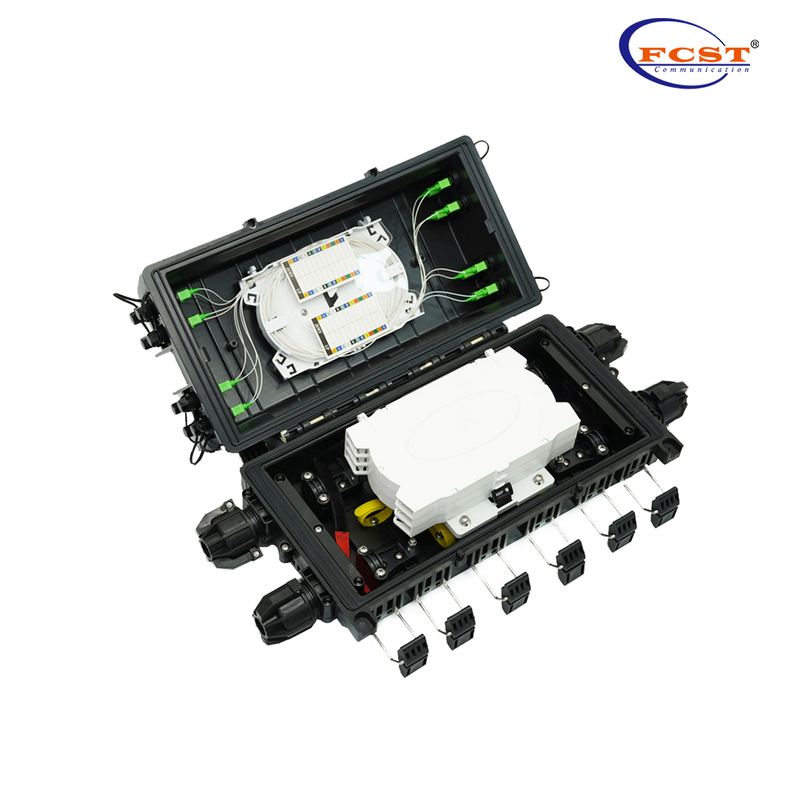

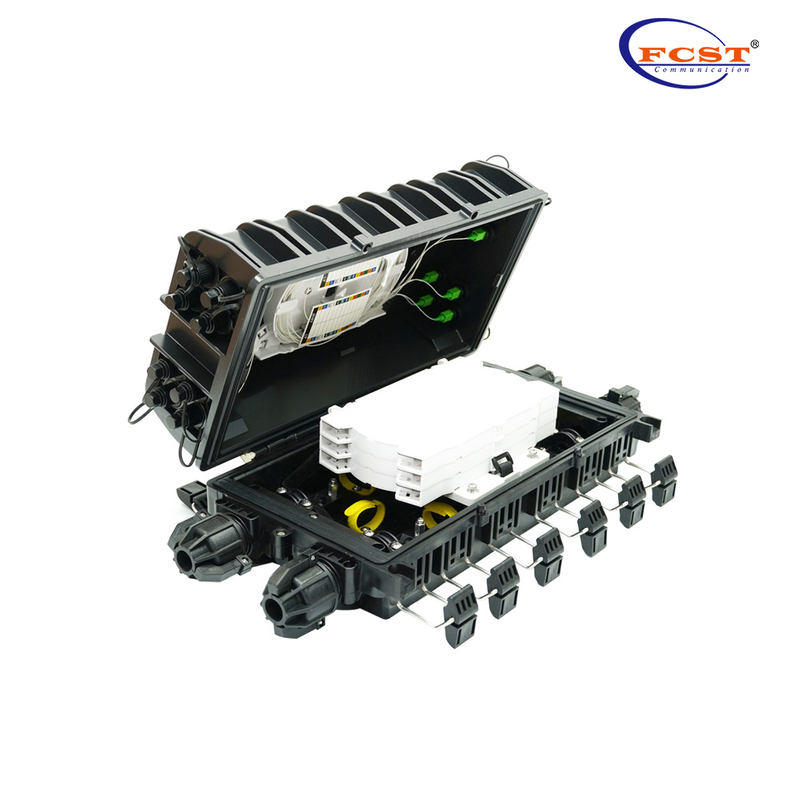

FCST01166-B Fiber Optic Splice Closure provides 2 input and 2 output, with mid-span, optical cable bifurcation and splicing functions, and can be used in installation environments such as pipelines, overhead and direct burial.
Product Advantages

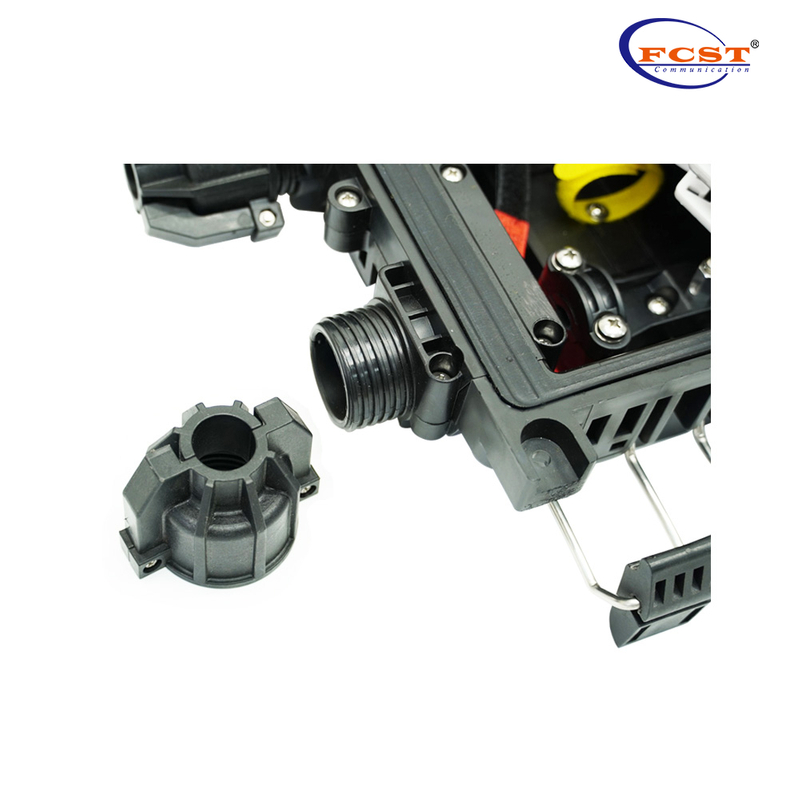

l Choose quick plug, with fast installation of optical cable, save installation time.
l Mechanical seals, snap open, reopened screwless.
l Supports the installations of wall-mounted, pipeline, overhead, buried, etc.
l A mouthpiece can be installed on the housing for filling and measuring pressure.
l Protection level: IP68.

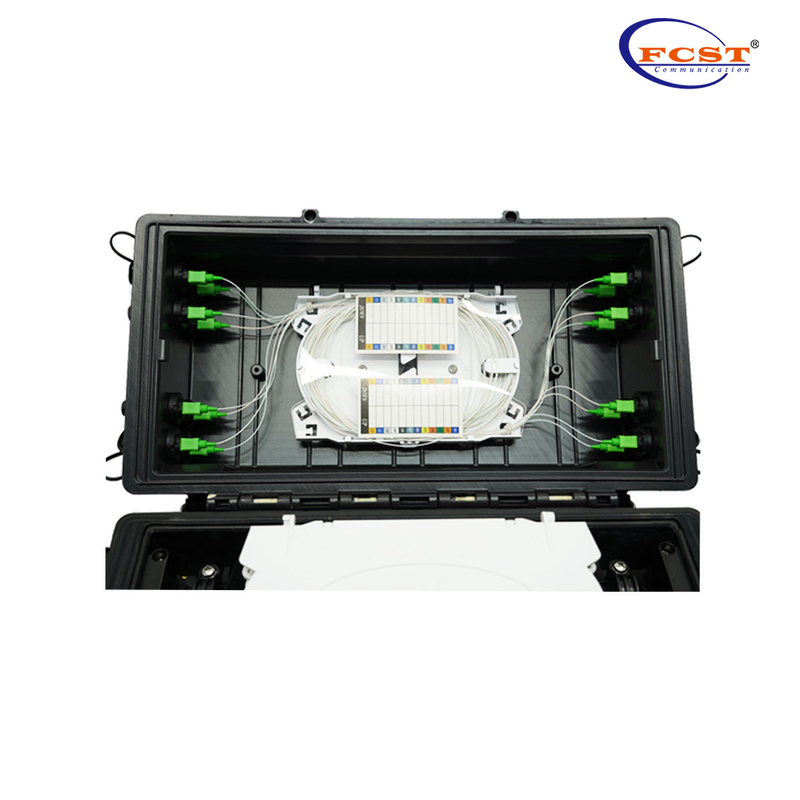

l Provide fiber optic connector placement and remaining fiber storage function, and have the function of protecting the fiber optic connector from the environment.
Product Specifications
Construction | Description |
Max Splicing Capacity | Single fiber:72/144F |
Material | PP+GF |
Dimension (L*W*Hmm) | 230*510*150 |
Protection Level | IP68 |
No Of Entry Cable | 2 in & 2 out |
Cable Diameter | Branch port: Φ9mm～11mm Drop port: 16pcs 4～6mm |
Sealing Mode | Mechanical |
Installation Mode | Pole/Aerial/Manhole |
Weight | 3.9Kg |
Single Tray Capacity | 24 core / 48 core |
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | 625*245*175（FCST01166-A) 530*245*175（FCST01166-B) |
Weight/PC（kgs） | 4.0 |
Carton Size（L*W*H）mm | 645*520*380（FCST01166-A) 550*510*380（FCST01166-B) |
Qty/CTN（pcs） | 6 |
Weight/CTN（kgs） | 24.1 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
