Product Overview

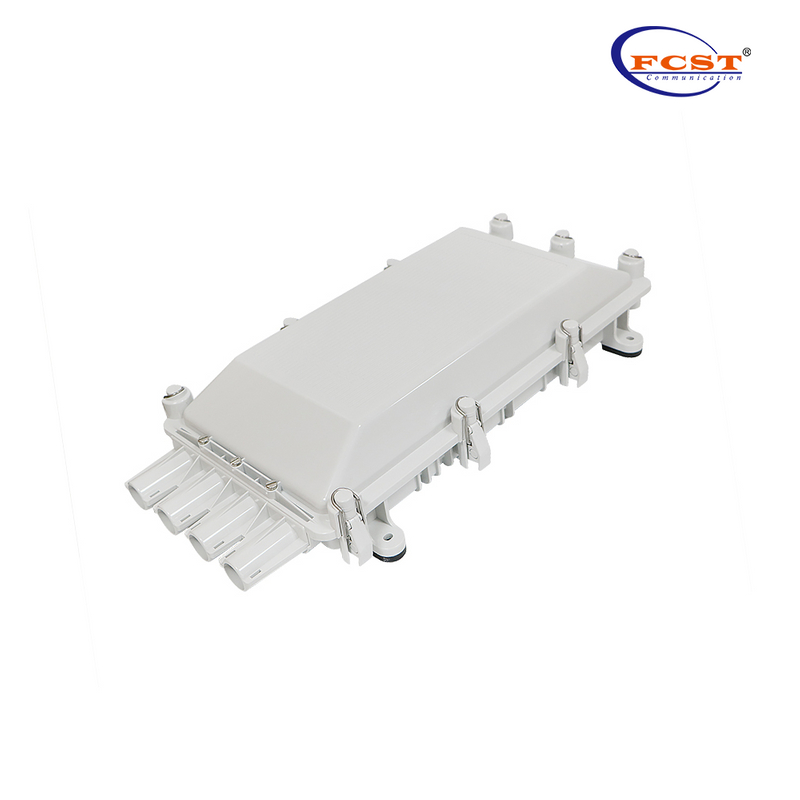

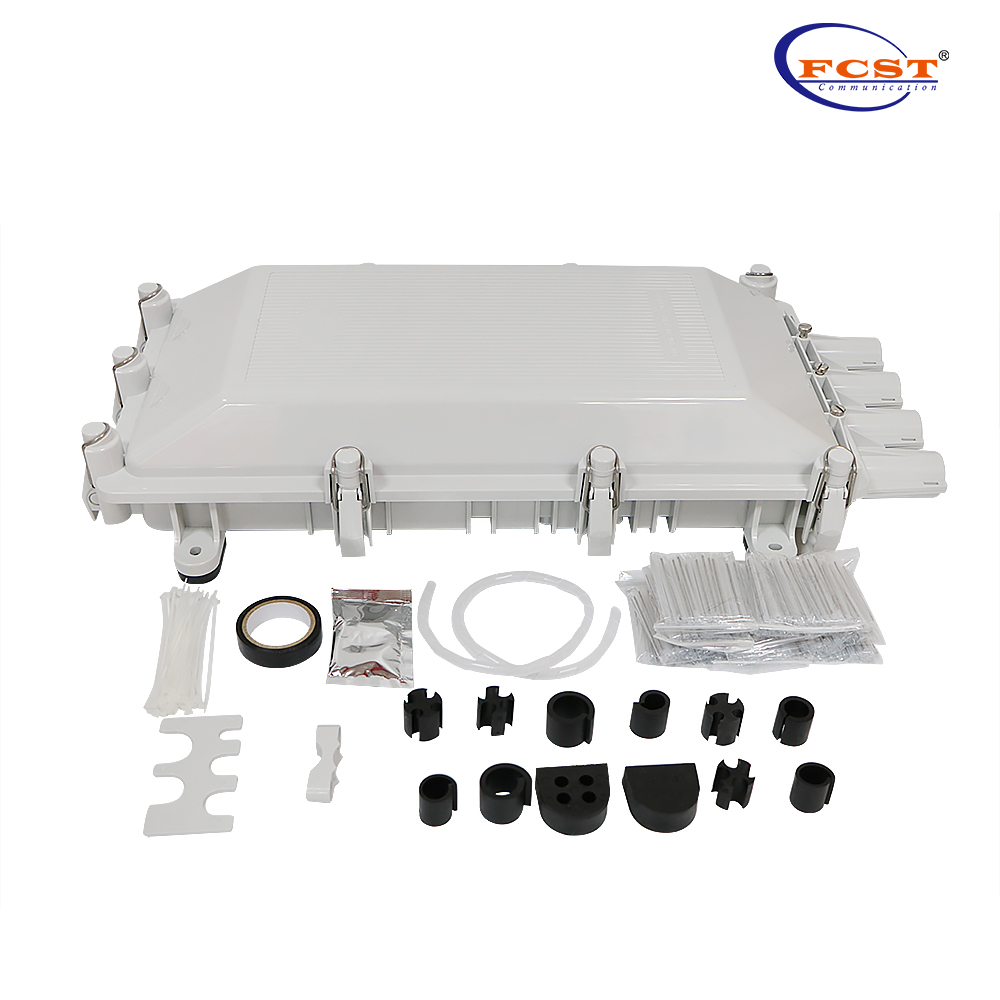

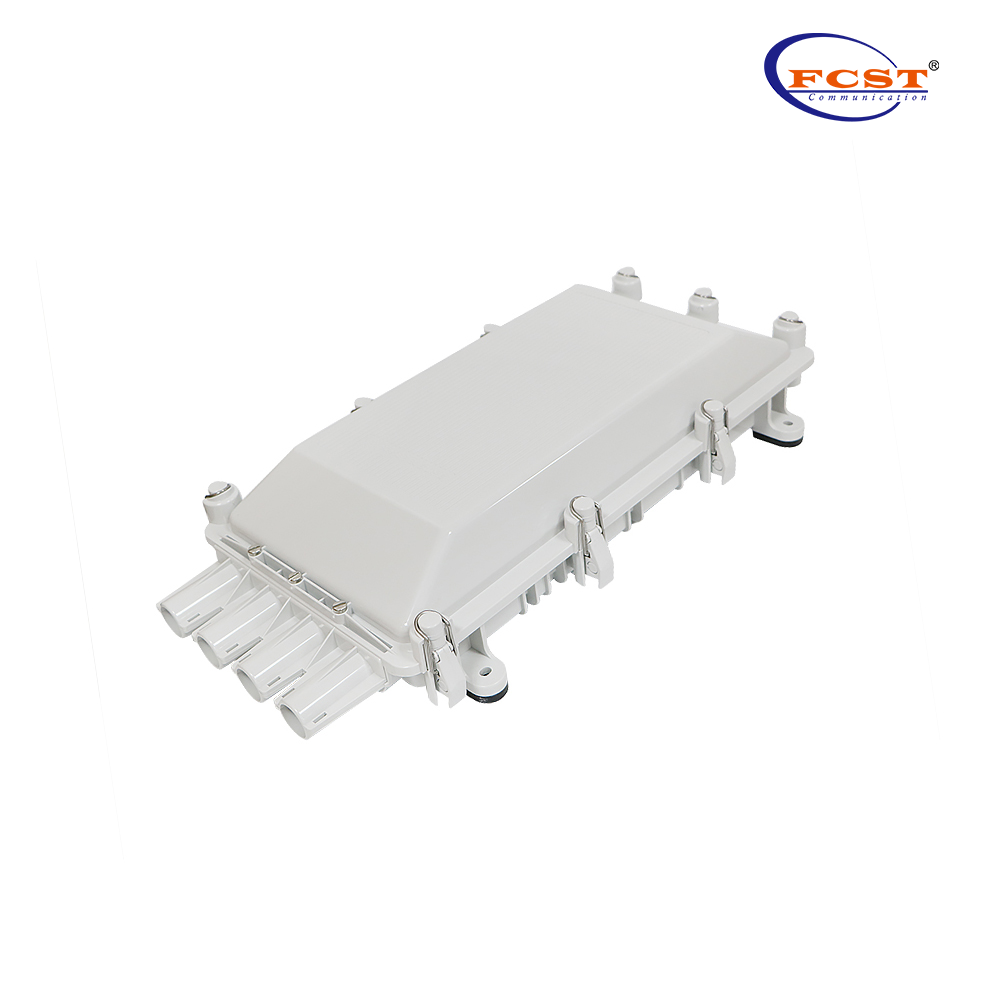

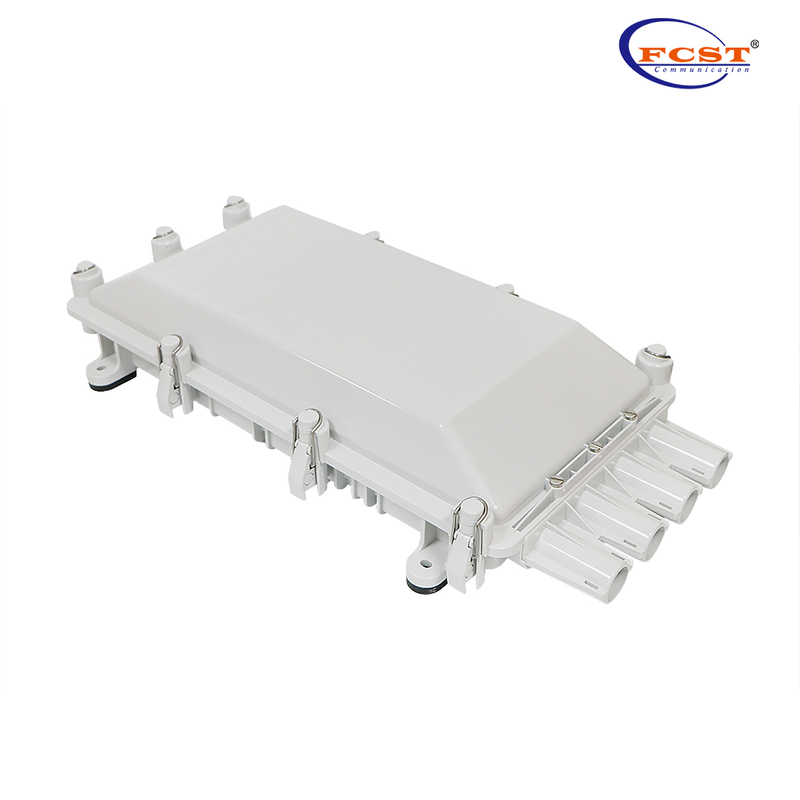

Splice closure is a universally accessible junction box that allows continuity and segregation of medium-capacity optical cables used in the deployment of optical power and power networks
Transport.The design of the box allows the mechanical continuity of the traction elements of cables and protects fibers,joints and optical devices facilitating the organization of splices and storage of excess fiber.The case is airtight and weather resistant by.
Product Advantages
l It has 4 independent cable accesses at one end. Each of them allows the individualized entrance of the minus two medium capacity multifiber cables (double inputs) and up to 6 small capacity optical cables (7mm.).
l The closure cap is completely assembled and removed without the need for special tools thanks to the hermetic clip-type closure.
l The sealing of access cables to the box is carried out by means of rubber gaskets with pre-cut inlets.
l Diameter of input / output cables from 22 to 7 mm. Maximum 256 F.O fusions (double layer).

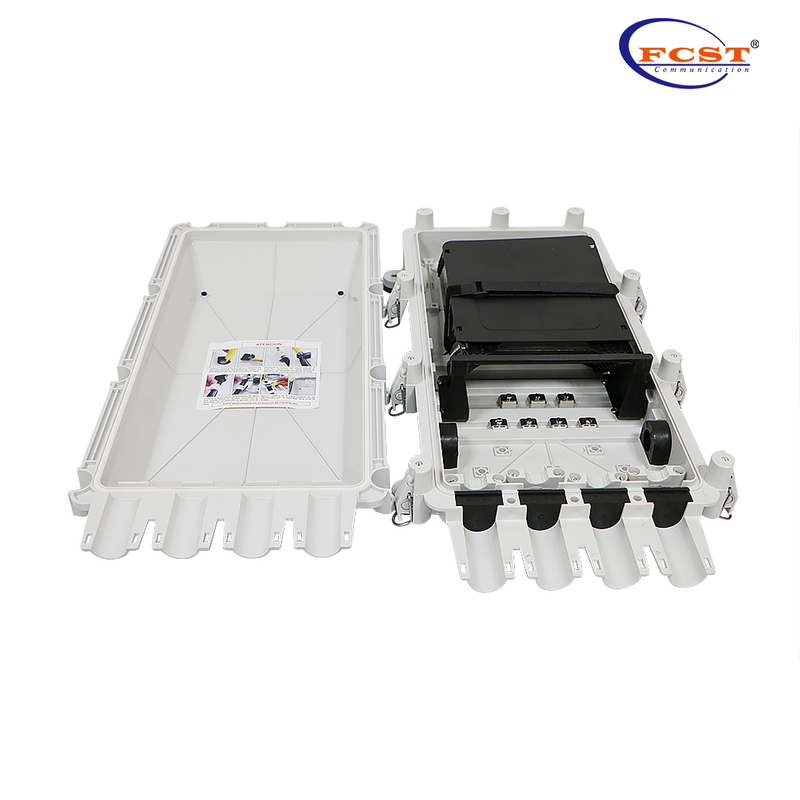

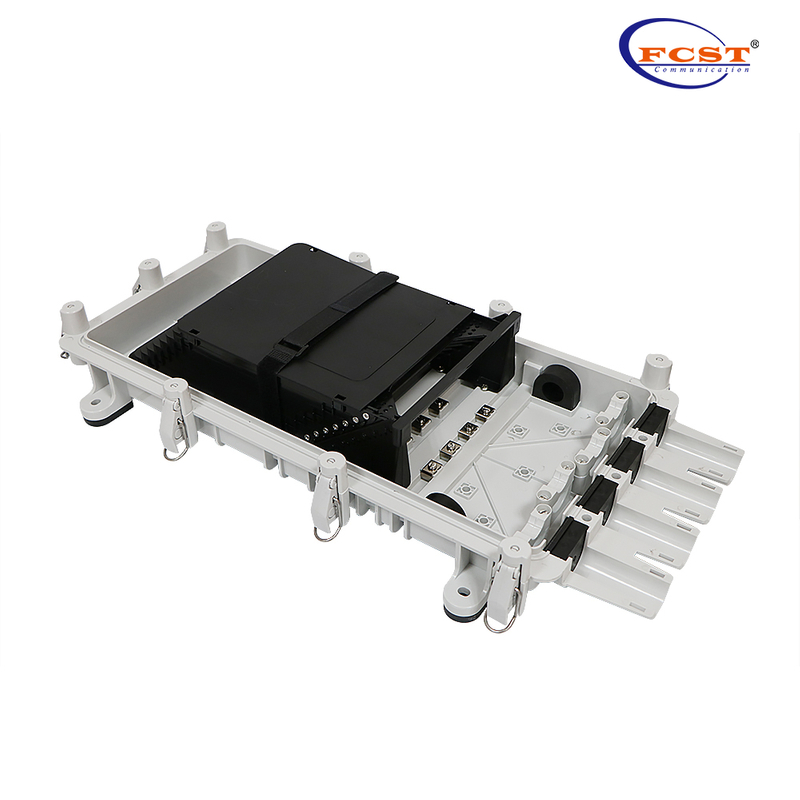

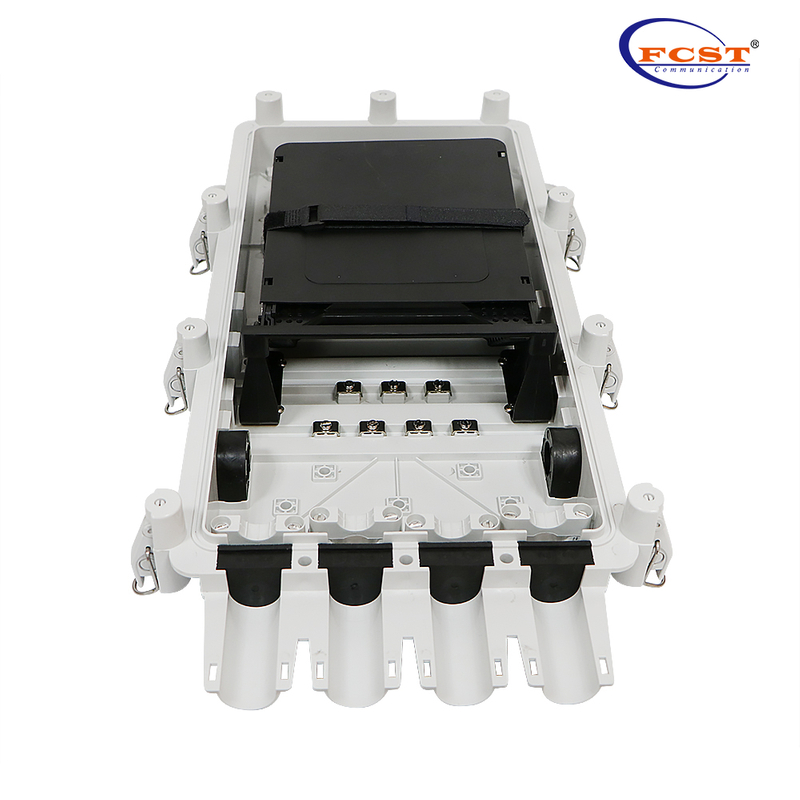

l Wide and easily accessible rectangular splice trays with extendable tabs for better
l fiber storage up to 32 F.O. (double layer). Both the support block and the individual trays allow the 90º turn and its interlocking in fixed positions to facilitate installation.
l The boxes can be opened, closed and manipulated without interrupting the operating circuits. Allows you to join and segregate cables without having to cut all the fibers as well as the adequate storage of the tubes and / or excess fibers of the cables.
l Axial tension Cable load> D / 45 mm x 1000 N. D: cable diameter. 1 hour by cable. Cable displacement <3mm
Product Specifications
Construction | Description |
Max. Capacity | 256Fibers |
Material | Base and Box High resistance polycarbonate. Colour light grey |
Dimension (mm) | 290*555*109 |
No Of Entry Cable | 4 |
Installation | Pole-mounting/Wall-mounted/Aerial |
Tray Material | Polycarbonate +ABS. Black |
Splice Tray | 8F |
Net Weight（g） | 3400 |
PLC Splitter Type | Tube splitter |
Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | 400*200*140 |
Weight/PC（kgs） | 3.2 |
Carton size（L*W*H）mm | 740*200*140 |
Qty/CTN（pcs） | 10 |
Weight/CTN（kgs） | 34.1 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
