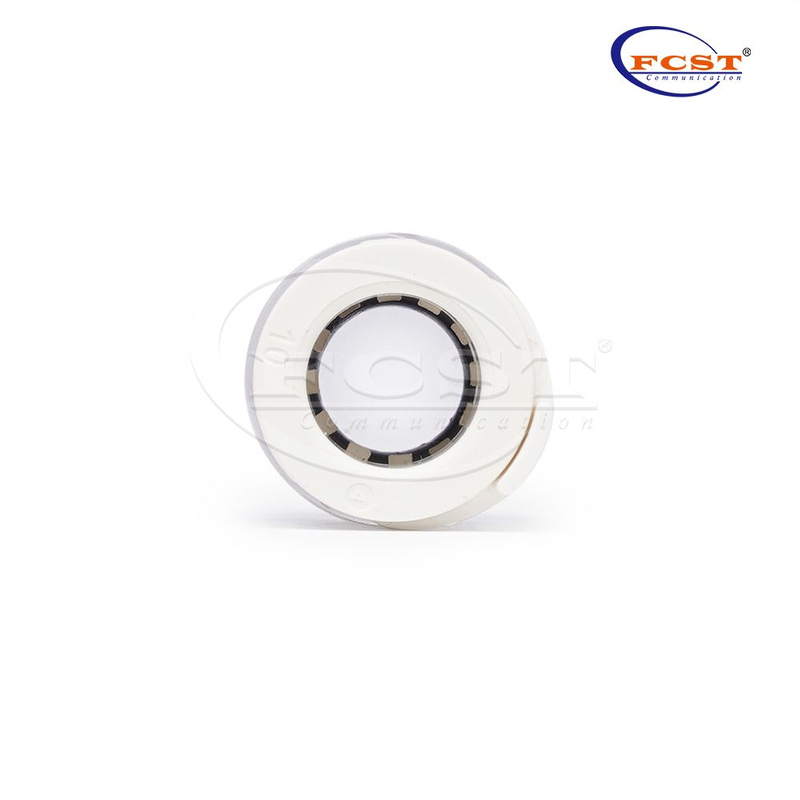

Product Overview
LSZH Microduct End Stop Connector Make connections between Microducts quickly and easily in in-building applications, without the need for tools. Transparent design affords greater control when connecting Microducts and enables visual confirmation of the presence of a cable.
Product Advantages
For 3-20 mm Microducts.
Easy “push-in” installation.
Crystal clear transparent body.
95% of the material is made of non-metal.
Tested in accordance to EN 50411-2-8:2009.
Locking rings to prevent accidental removal of connector.
Tested in accordance to UL94 V-0: flame resistance for in-building applications.
Product Specofication
Construction | Description |
Tube To Connector | LSZH Microduct(Indoor) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -15°C to +45°C |
Operation Temperature | -15°C to +45°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 1.5J |
According To Standards | UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |
Standards
Construction |
EN 60529:IP68 |
EN 61300-2-26: Salt Mist |
EN 61300-2-33: Re-entries |
UL94-V0 Vertical Burning Test |
EN 61300-2-10: Crush Resistance |
EN 61300-3-1: Visual Appearance |
EN 61300-2-4: Microduct Retention |
EN 61300- 2-34: Chemical Resistance |
EN 50411-2-8:Annex E:Insertion Force |
EN 61386-22: Glow Wire Test at 750°C |
EN 60794- 1-2: 2003,Method E4:lmpact |
EN 50411-2-8:Annex D:Installation Test |
EN 61300-2-22: Change of Temperature |
EN60794-1-2 Method E1. Tensile Strength |
EN 61300-2-38: 2006,Method B:Pressure Loss |
EN 50411-2-8:Annex C: High Pressure Resistance |
EN 61300-2-23: 1997,Method 2:Water Immersion |
EN 61386- 24: Conduit Systems Buried Underground |
EN 61300-2-38:2006, Method A:Sealing Performance |

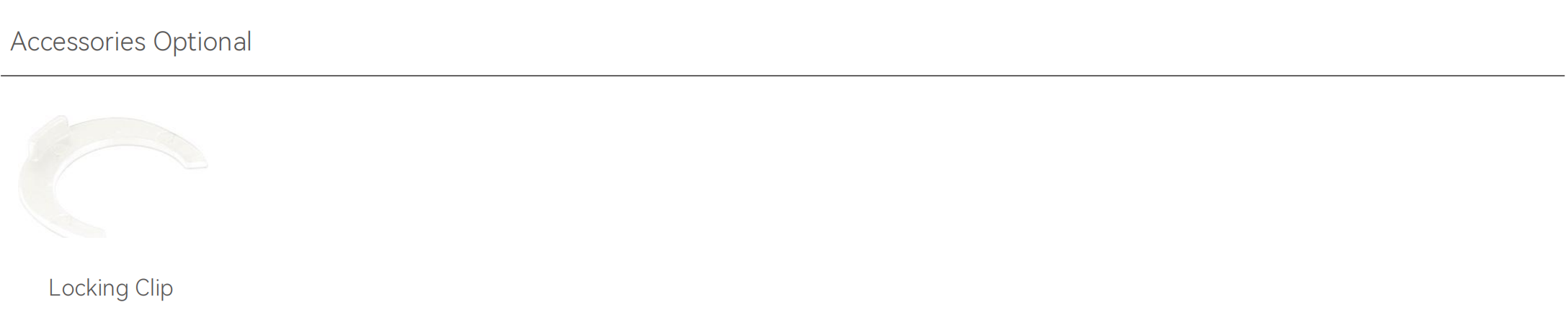

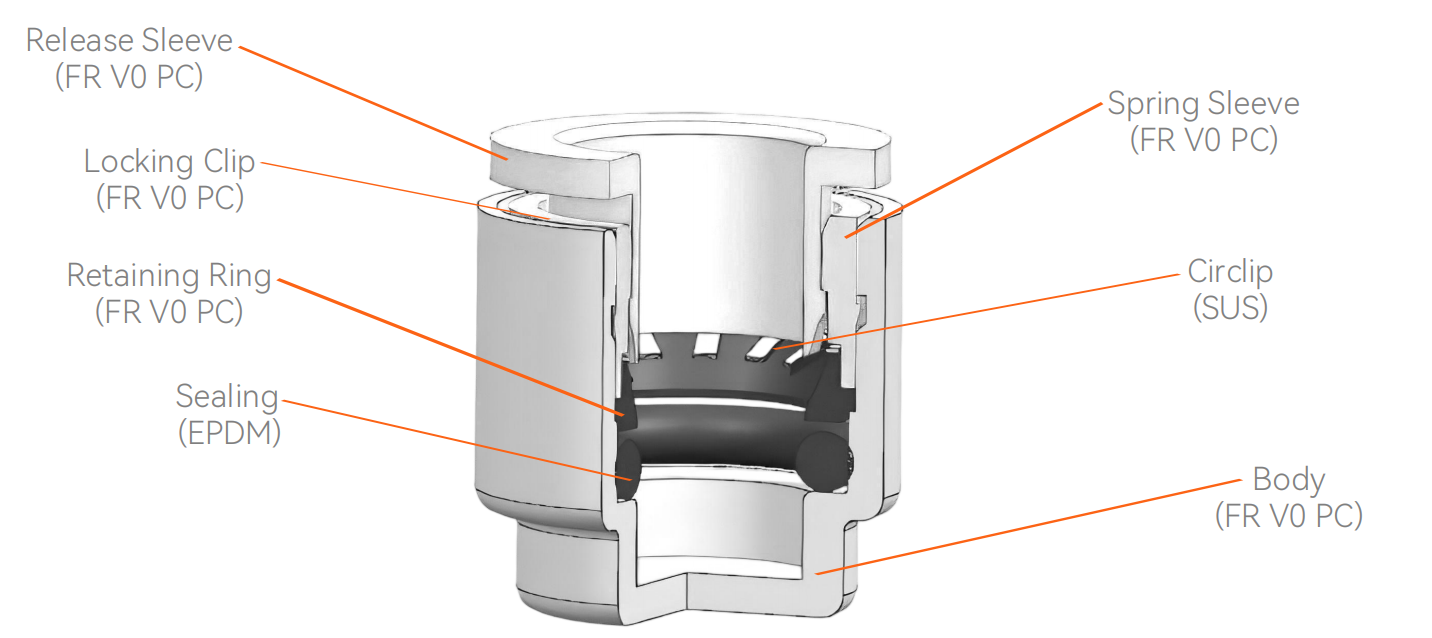

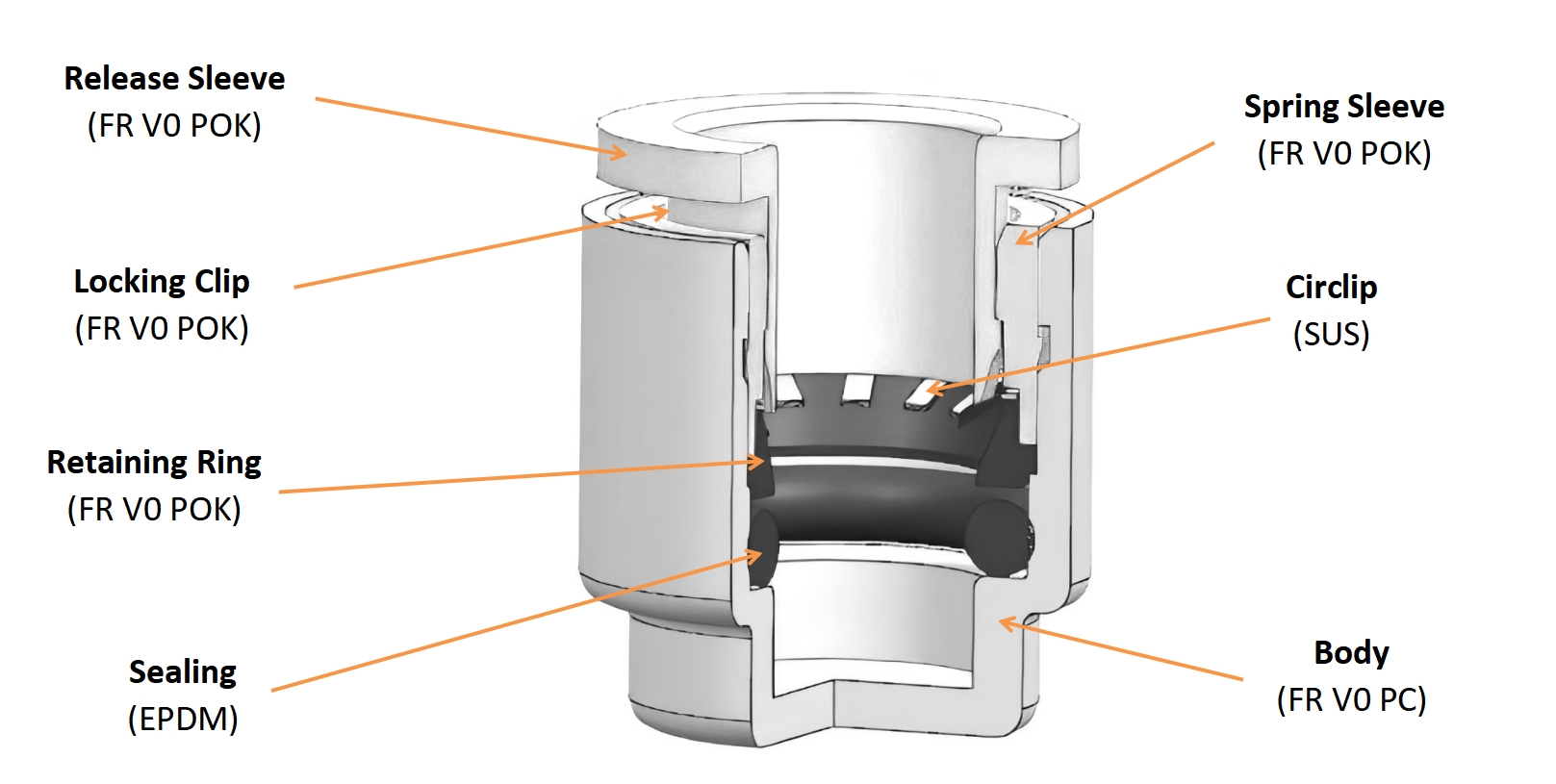

Product Material

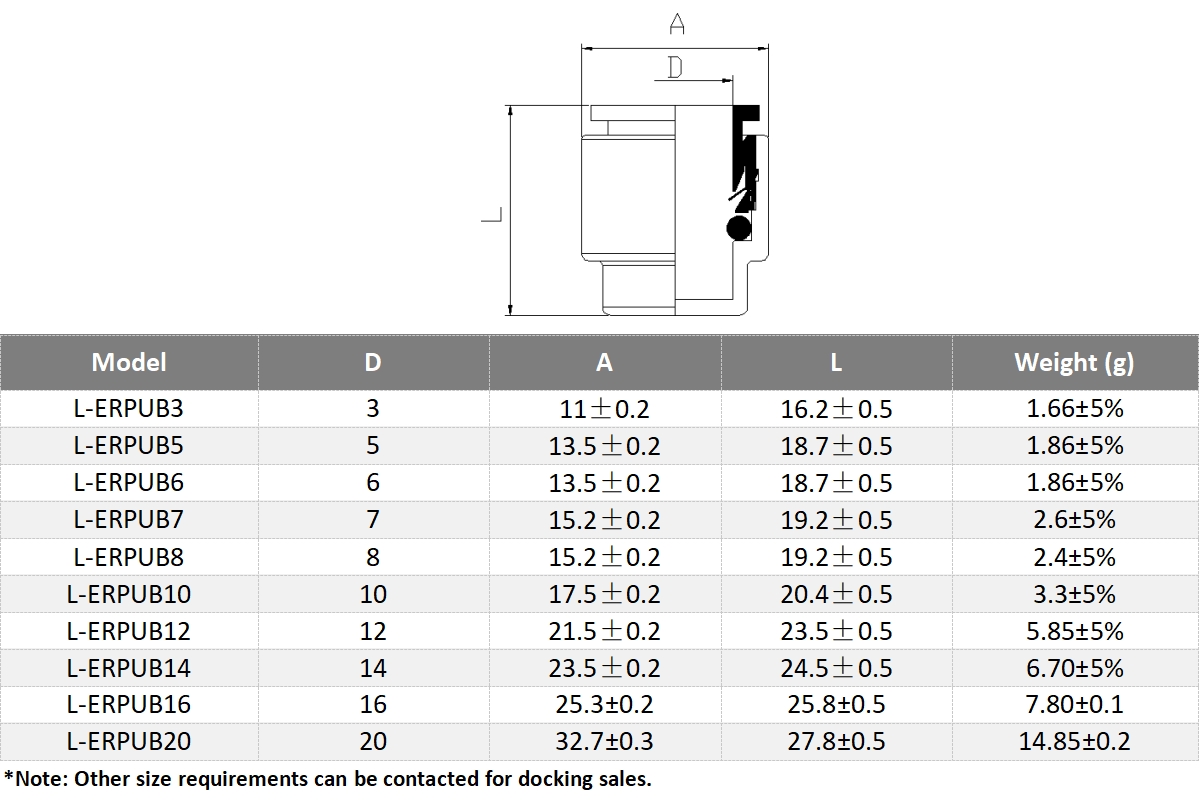

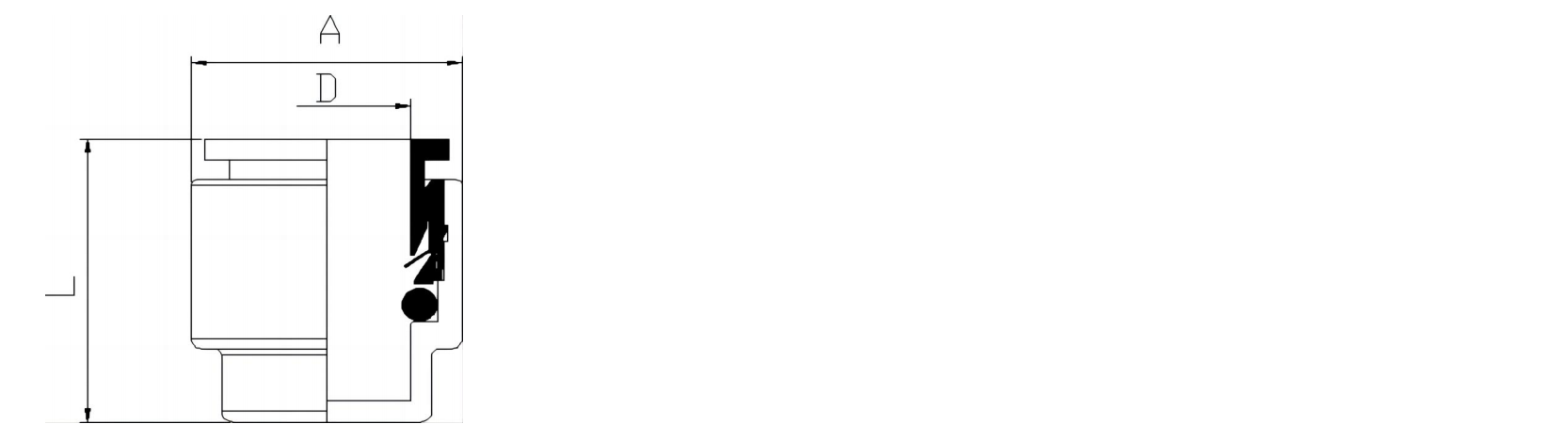

Ordering Information
| Model | D (mm) | A (mm) | L (mm) | Weight(g) |
| L-ERPUB3 | 3 | 11.0±0.2 | 16.2±0.5 | 1.66±5% |
| L-ERPUB5 | 5 | 13.5±0.2 | 18.7±0.5 | 1.86±5% |
| L-ERPUB6 | 6 | 13.5±0.2 | 18.7±0.5 | 1.86±5% |
| L-ERPUB7 | 7 | 15.2±0.2 | 19.2±0.5 | 2.4±5% |
| L-ERPUB8 | 8 | 15.2±0.2 | 19.2±0.5 | 2.6±5% |
| L-ERPUB10 | 10 | 17.5±0.2 | 20.4±0.5 | 3.3±5% |
| L-ERPUB12 | 12 | 21.5±0.2 | 23.5±0.5 | 5.85±5% |
| L-ERPUB14 | 14 | 23.5±0.2 | 24.5±0.5 | 6.70±5% |
| L-ERPUB16 | 16 | 25.3±0.2 | 25.8±0.5 | 7.80±0.1 |
| L-ERPUB20 | 20 | 32.7±0.3 | 27.8±0.5 | 14.85±0.2 |
*Note: For other sizes, please contact the sales department.
