3M™ Dynatel™
3M
3M™ Dynatel™
Product Overview

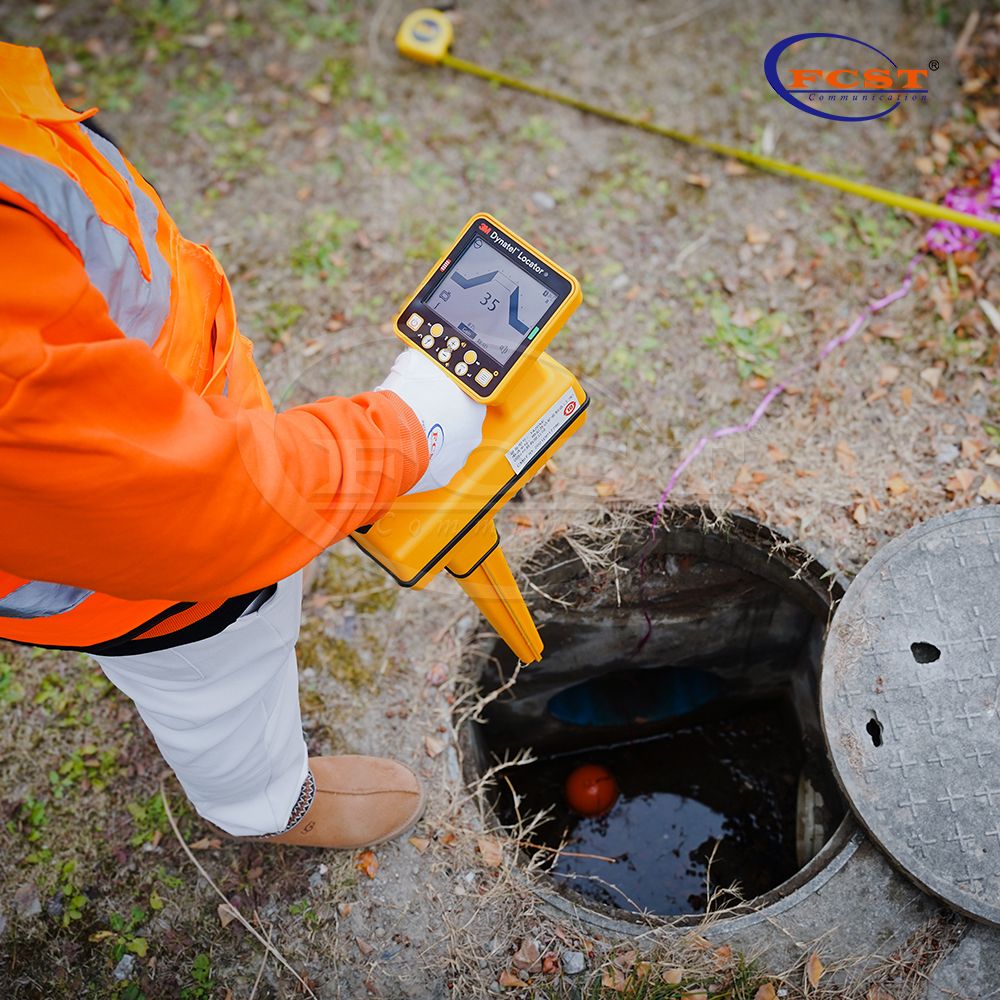

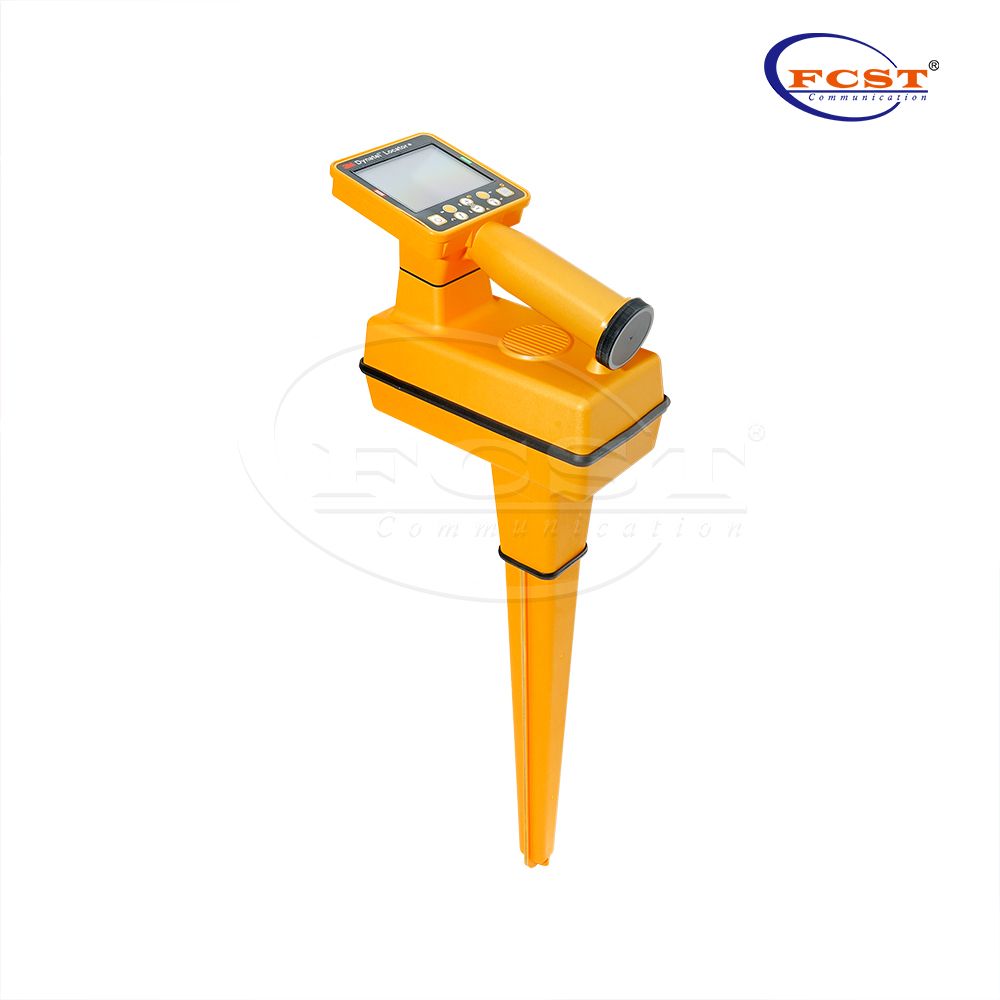

The 3M Dynatel™ 1420X and 1420XE series and 3M Dynatel™ 7420X and 7420XE series locators are designed to equip a locate professional with the following technologies for underground locating and mapping.
Product Advantage
Receiver with Bluetooth®wireless technology.

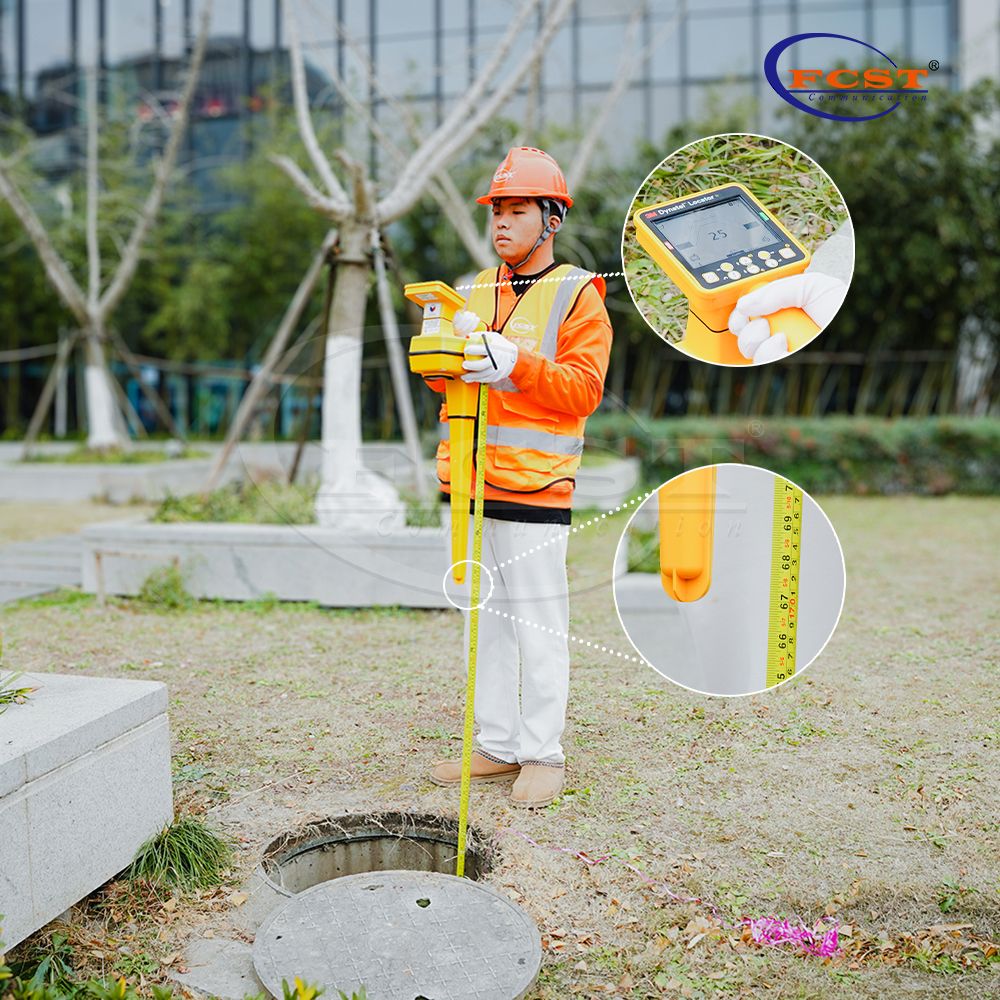

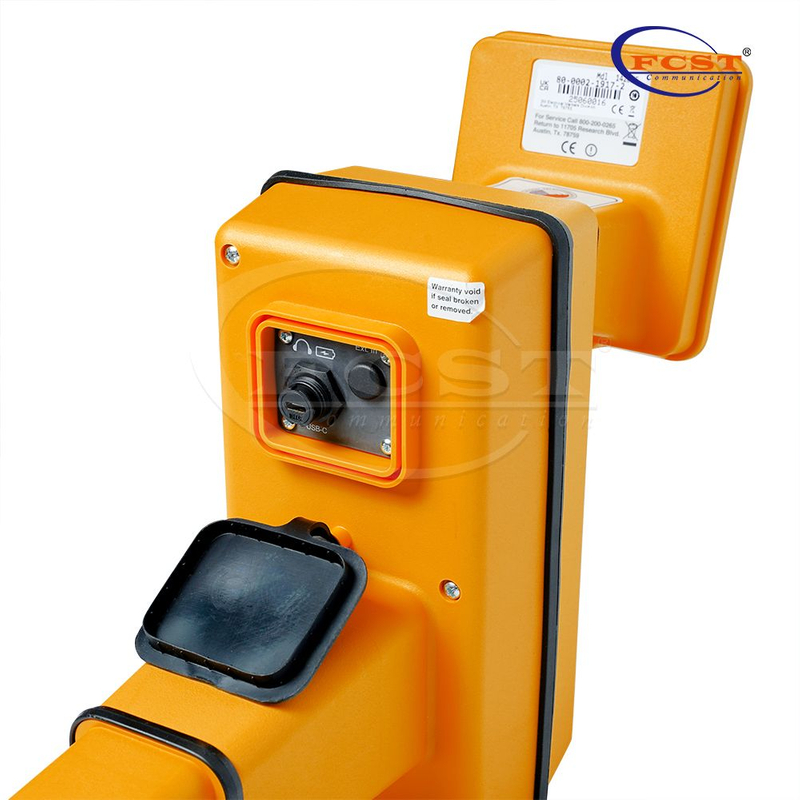

Integrated USB port is compatible with USB Type-C®Connector.
Internal GPS that can be saved internally or directly to a memory stick that is compatible with USB Type-C®connector Write/read/locate 3M™ iD Markers.
Locate 3M™ Electronic Marker System (EMS).
EMS Path Marking Antennas (3M™ Dynatel™ 7420X and 7420XE Series Locators).
Multiple EMS antennas for maximum locate capabilities (3M™ Dynatel™ 7420X and7420XE Series Locators).

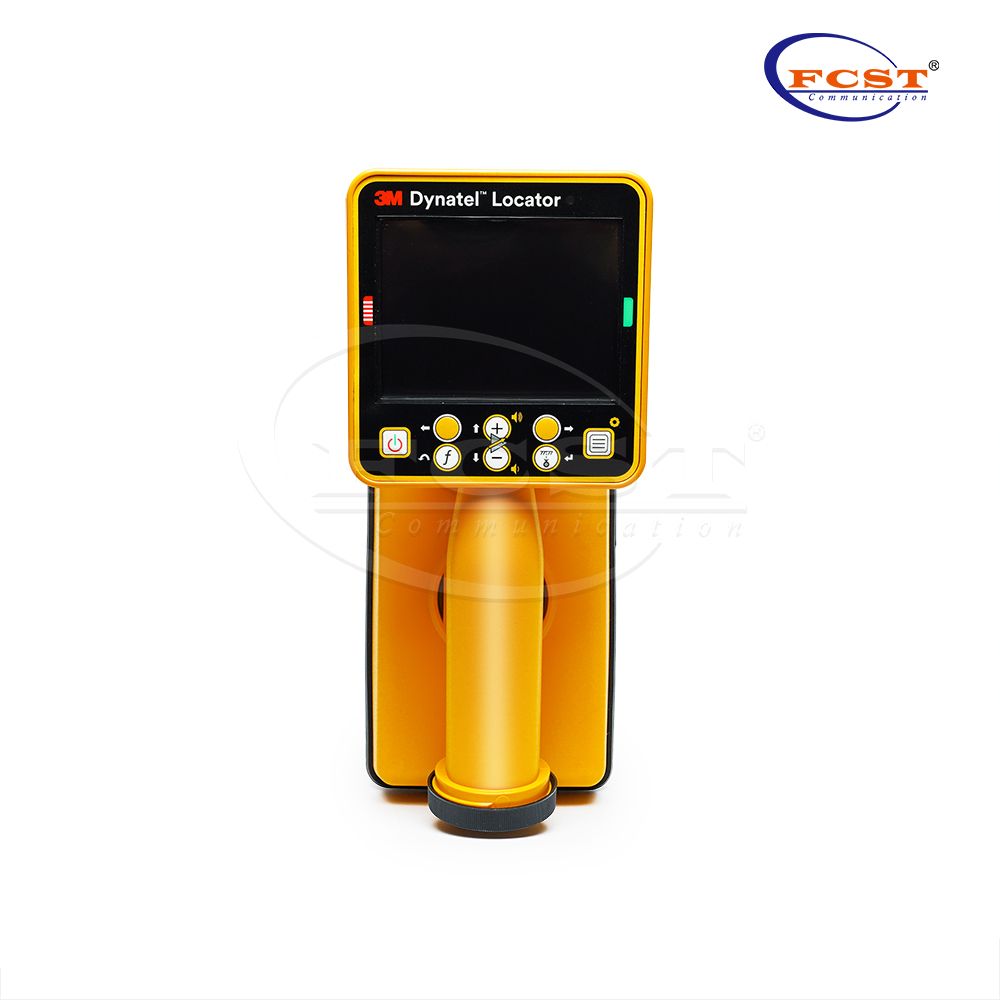

Large LCD display with image driven graphical interface.
| Physical Specifications | ||
| Receiver | Size (L x W x H) inch (cm) | Weight with batteries |
| Dynatel™ 1420X/1420XE Locators | 30 x 4.7 x 10.5 (76.2 x 11.9 x 26.7) | 4.1 lbs (1.8 kg) |
| Dynatel™ 7420X/7420XE Locators | 30 x 6.7 x 10.5 (76.2 x 17 x 26.7) | 4.9 lbs (2.2 kg) |
| Shipping Box | Size (L x W x H) inch (cm) | Weight with batteries |
| Dynatel™ 1420X/1420XE Locators | 33 x 17 x 12.6 (84 x 43 x 32) | 5.7 lbs (2.6 kg) |
| Dynatel™ 7420X/7420XE Locators | 33 x 17 x 12.6 (84 x 43 x 32) | 9.5 lbs (4.3 kg) |
| Environmental Specifications | |
| Operating Environment | Outdoor; Indoor for charging and configuring with a PC |
| Operating Temperature | -4° F to 122° F (-20° C to 50° C) |
| Storage Temperature | -4° F to 158° F (-20° C to 70° C) |
| Regulatory | 3M™ Dynatel™ Locators 1420X/7420X Series (FCC Part 15) 3M™ Dynatel™ Locators 1420XE/7420XE Series (CE) |
| Environmental Standard | IP54 |
| Maximum Altitude | 6500 ft. (2000 m) |
| Receiver Electrical Specifications | |

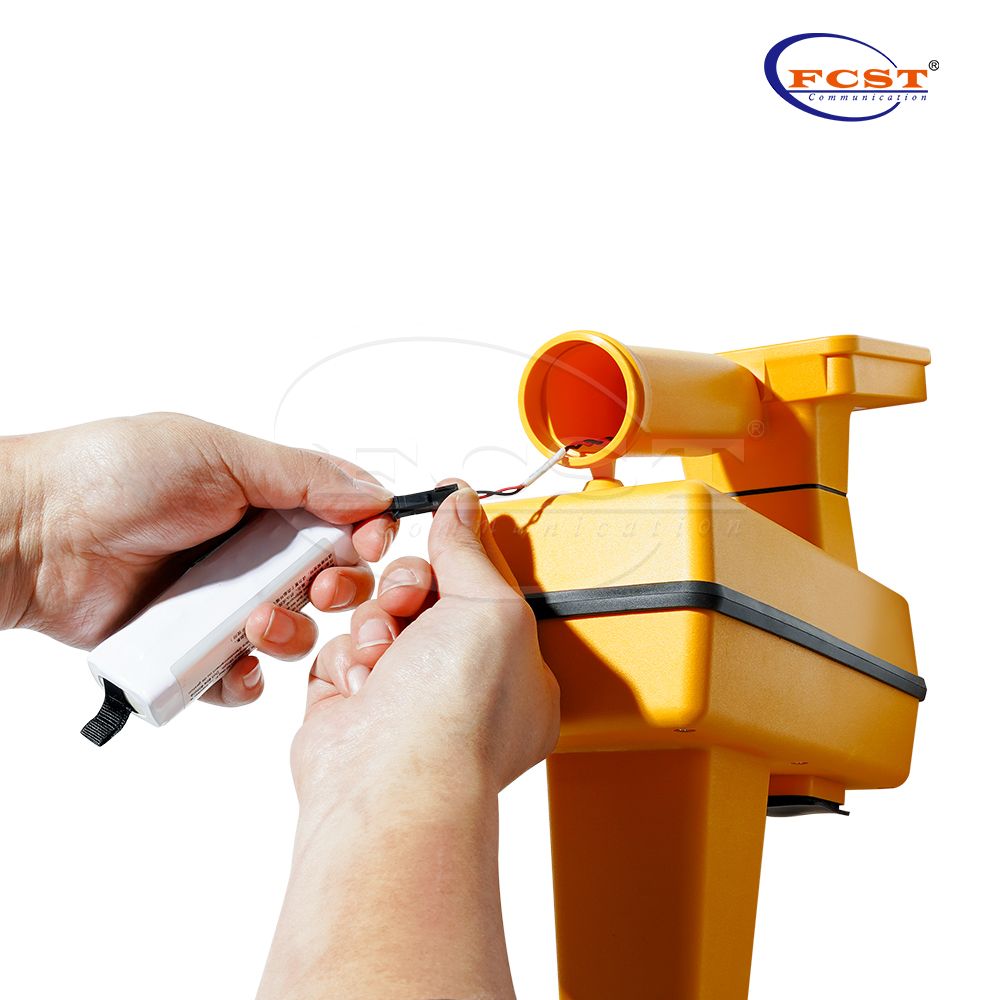

| Power | 3M™ Rechargeable Battery Pack (Alkaline 8xAA size battery pack for backup) 1 |
| Battery Life | 8 hours typical2 |
| Charging time | 3 hours with 3A USB Type-C® Connector AC Adapter 15W3 |
| Display | 4.4” Diagonal LCD Display (Menu driven GUI) |
| Speaker | 0.25W |
| Headphone Jack | Standard mini phone jack (used along with USB Type-C® adaptor) |
| Connectivity | Bluetooth® wireless technology - Dual-mode Bluetooth 5.0. |
| Profiles support GAP, GATT, SPP. | Bluetooth 5.0 wireless module at 2.4 GHz. |
| USB port is compatible with USB Type-C® Connector. | GPS Mapping |
| GPS Interface (internal, 3 m) CEP50 (Autonomous Position Accuracy) | External GPS Devices-Defer to Published Specifications of Device |
| Gain Control | Manual and Automatic |
| Marker Depth Accuracy | ± 10% ± 2 inch (5 cm) up to specified depth of marker4 |
Notes:
It's recommended to use the rechargeable battery pack. However, a battery holder and adapter are provided for using 8-AA size Alkaline
batteries for backup, which would have reduced battery life.
The battery life is specified for the 3M™ Rechargeable Battery Pack for the receiver at 73° F / 23° C, with 10% usage of the backlight and audio
volume at medium level.
The unit will stop charging when unit temperature is 104° F (40° C) or higher and shuts off at 122° F (50° C)
Depth accuracy susceptible to high ambient noise conditions
| 3M™ EMS Marker Frequencies | |
| TEL: Telecommunications | 101.4 kHz |
| PWR*: Power US | 169.8 kHz |
| GAS: Gas | 83.0 kHz |
| WTR: Water | 145.7 kHz |
| WW: Wastewater/Sanitation | 121.6 kHz |
| COM: CATV | 77.0 kHz |
| GP: General Purpose/Reclaimed Water | 66.35 kHz |
| CE PWR: European Power | 134 kHz |
*Not available for XE-Models
| 3M™ EMS Path Marking Tape & Rope Frequencies (3M™ Dynatel™ 7420X and 7420XE Series) | |
| TEL: Telecommunications | 48.8 kHz |
| PWR: Power US & European Power | 34.9 kHz |
| GAS: Gas | 53.9 kHz |
| WTR: Water | 73.5 kHz |
| WW: Wastewater/Sanitation | 41.4 kHz |
| RW: Reclaimed Water | 44.9 kHz |
| 3M™ EMS Marker & Path Marking - Reading Range | ||
| 1420X/1420XE | 7420X/7420XE | |
| 3M EMS Markers | Max Read Range: | Max Read Range: |
| Near-Surface | 3 ft (0.9 m) | 3 ft (0.9 m) |
| Ball Marker | 5 ft (1.5 m) | 5 ft (1.8 m) |
| Mid-Range | 6 ft (1.8 m) | 6 ft (2.1 m) |
| Full-Range | 8 ft (2.4 m) | 8 ft (2.8 m) |
| 3M EMS Path Marking | Max Read Range: | Max Read Range: |
| 7### Series Tape or Rope | Not Applicable | 4 ft (1.2 m) |
| 3M™ EMS iD Marker - Writing & Reading Range | |||
| 1420X/1420XE | 7420X/7420XE | ||
| 3M EMS iD Markers | Max Write Range: | Max Read Range: | Max Read Range: |
| Near-Surface | 6 inch (15 cm) | 2 ft (0.6 m) | 3 ft (0.9 m) |
| Ball Marker: PWR: US Power WTR: Water | 12 inch (30 cm) | 3.3 ft (1.0 m) | 5 ft (1.5 m) |
| Ball Marker: TEL: Telecommunications CE PWR: CE Power WW: Wastewater GAS: Gas CATV: Communication GP: General Purpose | 12 inch (30 cm) | 4 ft (1.2 m) | 5 ft (1.5 m) |
| Full-Range | 24 inch (60 cm) | 6.6 ft (2.0 m) | 8 ft (2.4 m) |
| Receiver Data Storage | |
| EMS-iD Read Records* | 512 |
| EMS-iD Program Records* | 128 |
| Locate Records* | 512 |
| Number of EMS-iD Templates: | 75 |
| * no record limit with External flash drive. (only limited by flash drive size) | |
