FCST01120
FCST
FCST01120
Product Overview

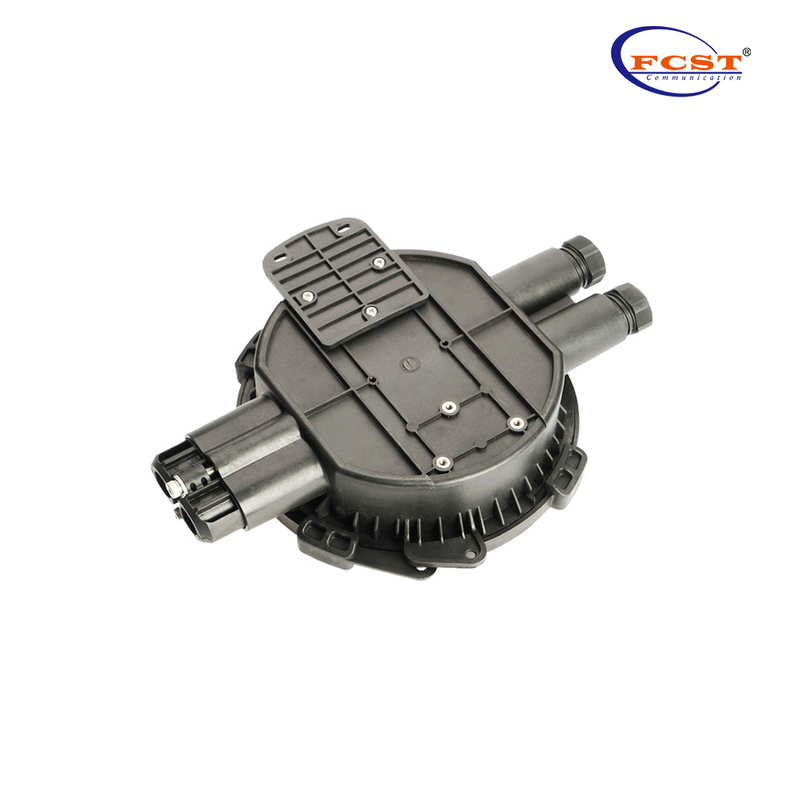

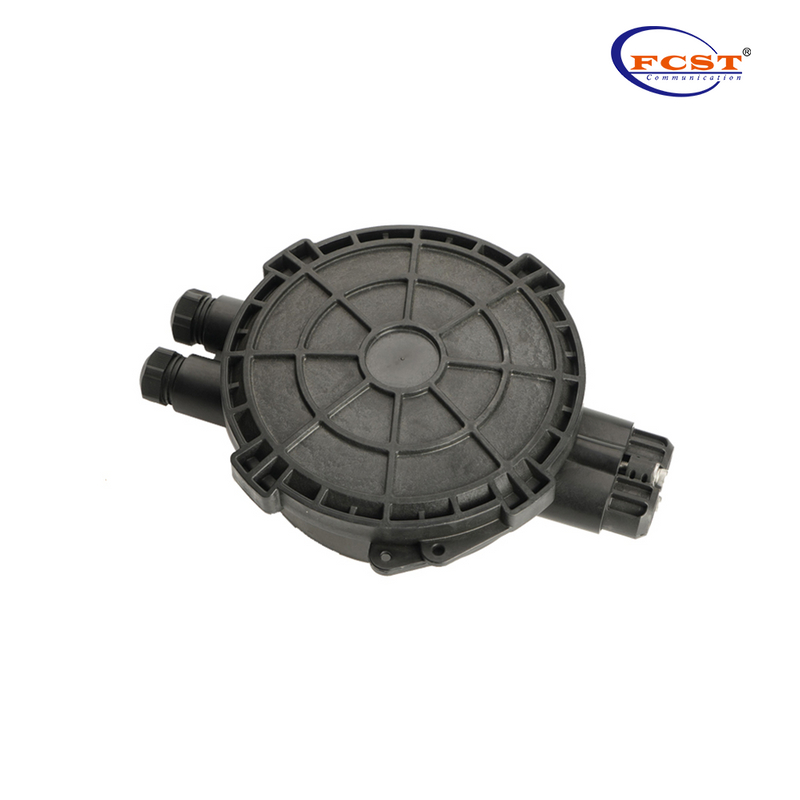

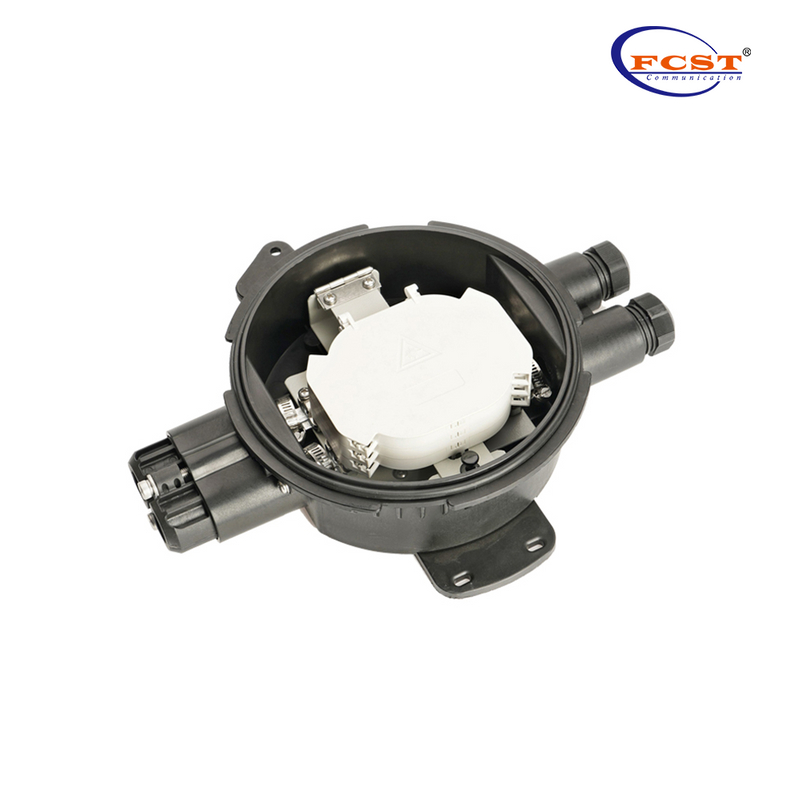

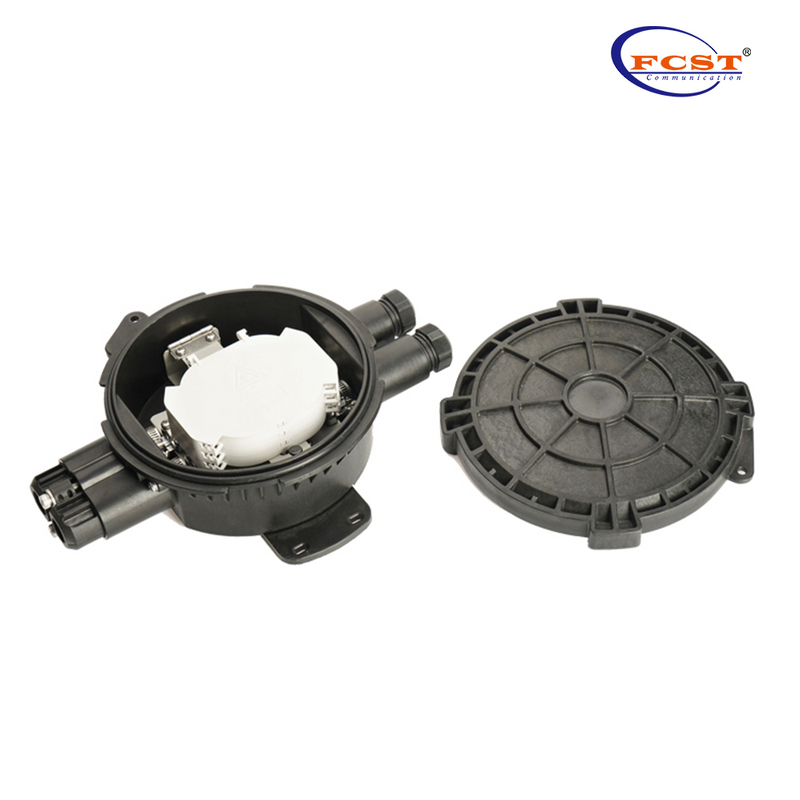

FCST01120 Fiber Optic Splice Closure is a member in dome series, the main function is to provice direct pass, branch and splice protection for various types of fiber cable during optical transmission. Protection rate is IP68. This type has two round cable ports and one oval cable port for uncut fiber cable. The material of seal component is vulcanized rubber, the cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws. This model is excellent in sealing performance, easy for installation, wide applications.
Product Specifications
Construction | Description |
Max Capacity (single fiber) | 36 |
Sealing Type | Mechanical |
Capacity For One SpliceTtray | 12 Fiber |
Dimension（mm） | 295×220×90 |
Installation | Pole-mounting/Wall-mounted/Pipeline/Direct burial |
Weight（kg） | 2.0～2.3 |
Cable Entrances | 3（2 round cable ports are for branch cable, 1 oval port is for direct cable.） |
Suitable Cable Diameter (mm) | Round port ф8～ф17.5 Oval port ф10～ф17.5 |
Max. number Of Splice Trays | 3 |
Protection Level | IP68 |
Product Advantages
l Distinguishable design.mechanical seal of spiral pattern,compact appearance.

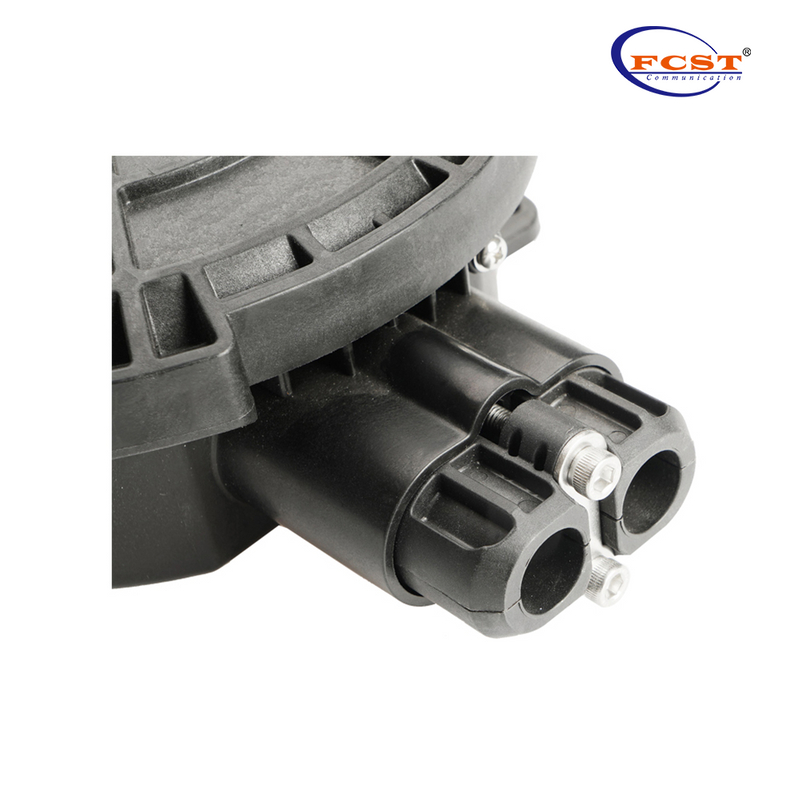

l Uncut cable port.
Product Size(mm)
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | 295*220*90 |
Weight/PC（kgs） | 2.4 |
Carton size（L*W*H）mm | 495*345*620 |
Qty/CTN（pcs） | 10 |
Weight/CTN（kgs） | 24.8 |
