Product Overview

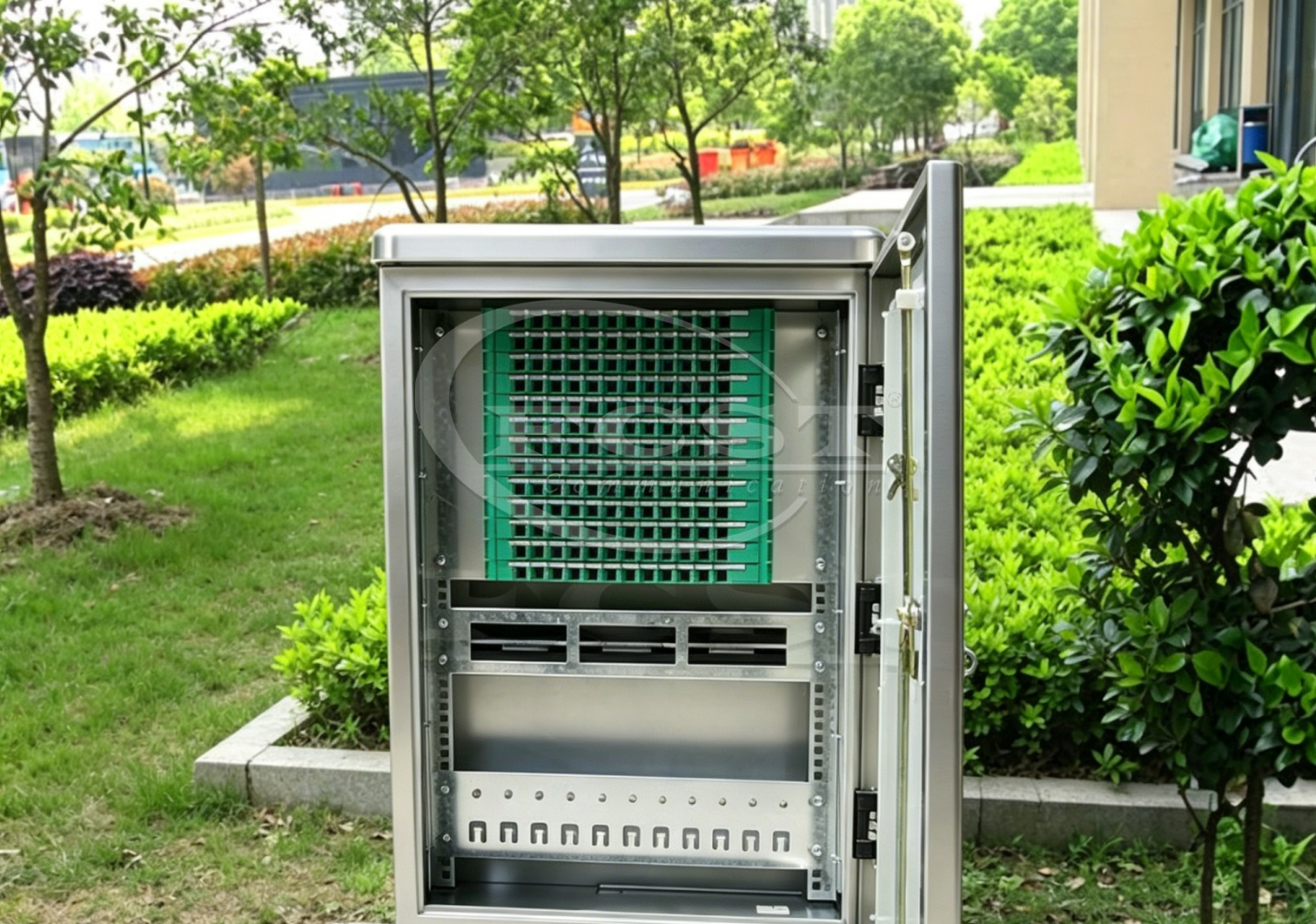

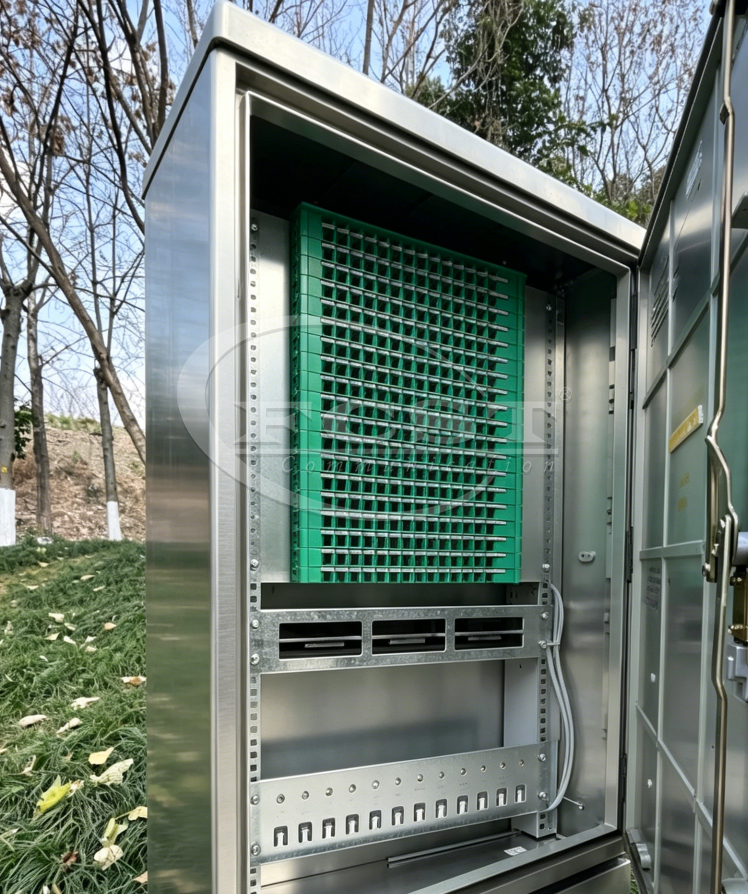

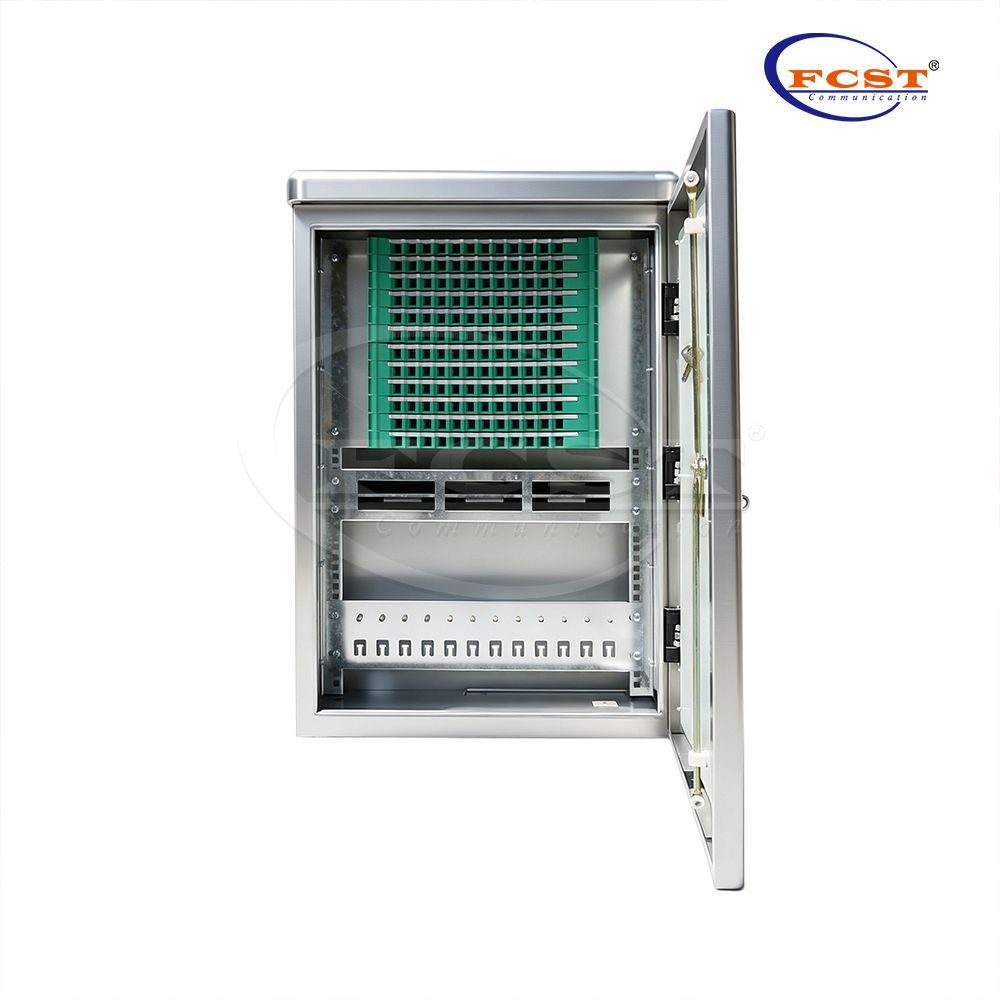

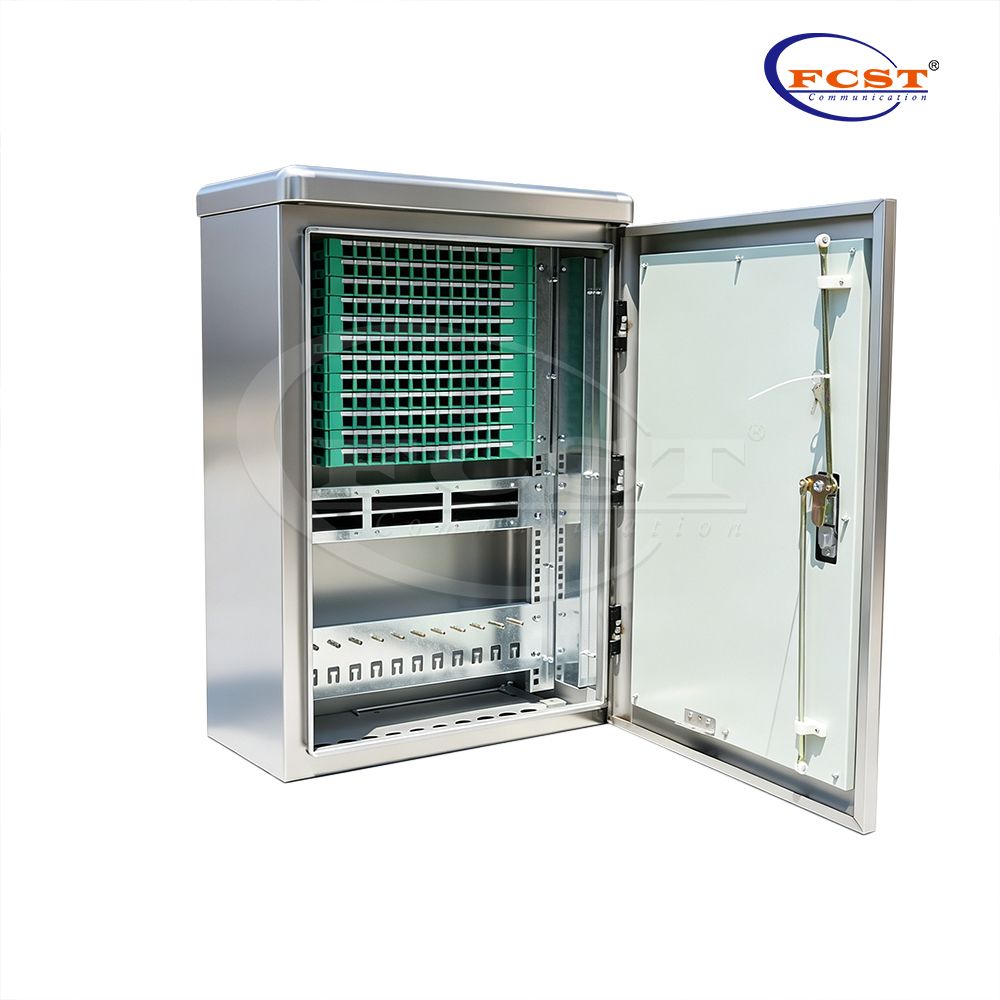

The FCST03512 Optical Distribution Cabinet is an outdoor trunk interface device that connects backbone cables to distribution cables. It supports direct connection and cross-connection, with complete cable fixing, metal component grounding, high‑voltage protection, and fiber slack storage.
Capacity up to 96 fiber.
Installation is quick and convenient.
Pre-connectorized fiber pigtails for rapid deployment
Built-in direct splice unit allows direct cable connection
High mechanical strength and anti-corrosion performance
Secure fastening and grounding protection for metal components
Optimized fiber routing design for easy management and maintenance
Withstands abrupt climate change and extreme environments (-40°C to +85°C)
With secure and reliable fastening and grounding protection devices for the optic fiber.
Product Specifications
Construction | Description |
Max. Capacity | 48~96Cores (SC,Max.144cores) |
Material | SMC/Stainless Steel |
Length | 555mm丨21.850in(SMC Type) |
Width | 310mm丨12.200in(SMC Type) |
Height | 770mm丨30.310in(SMC Type) |
Weight | SMC:22kg Stainless Steel:28.4kg |
Adapter | SC/LC/FC/ST etc. |

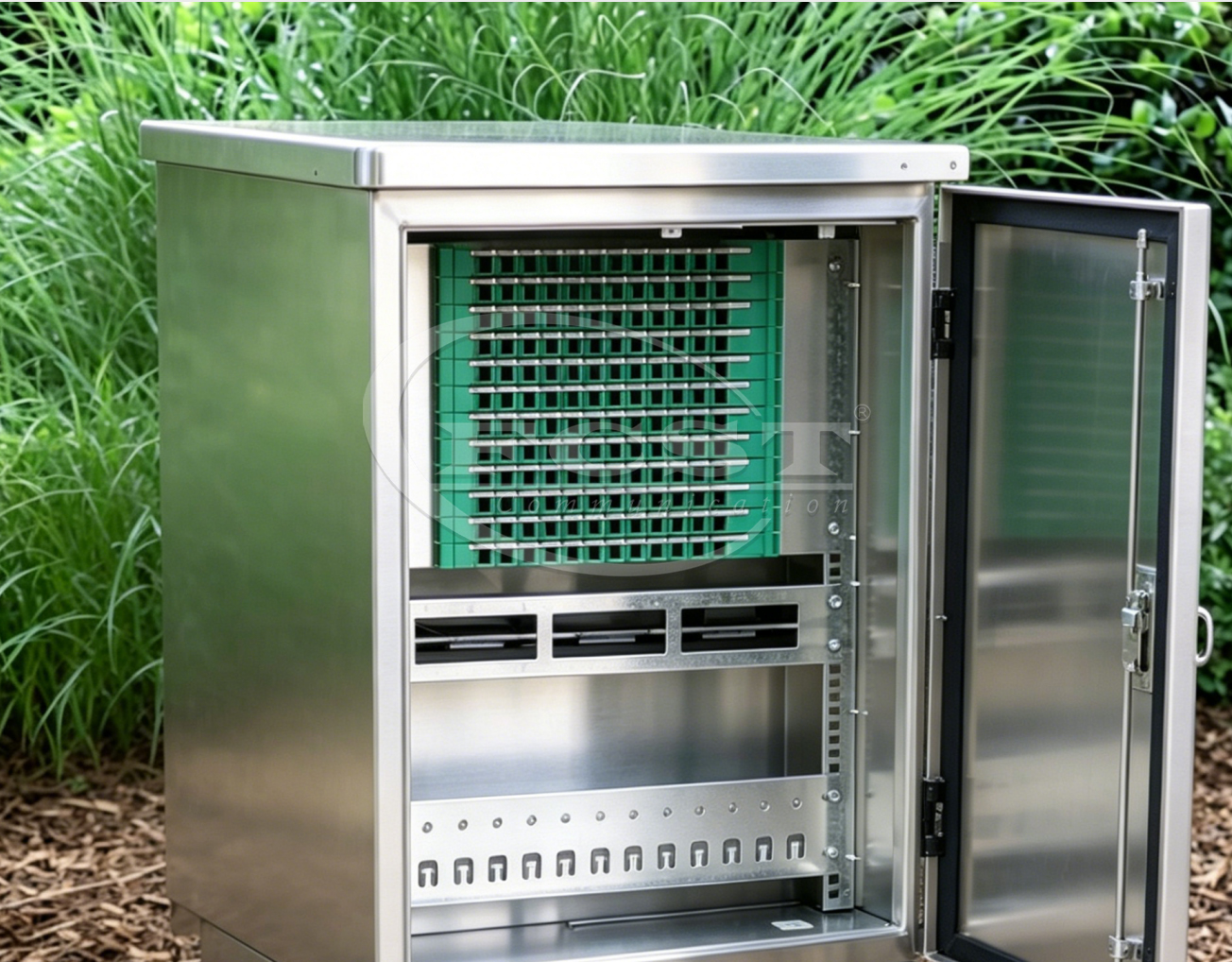

Installation | Outdoor fixed installation | Wall-mounting |
Max. Number Of Trays | 13PCS |
Splitter Type | Box Type PLC |
Max. Number Of Splitter | 6PCS |
IP Level | IP65 |
What are the typical applications of this fiber distribution cabinet?
Outdoor trunk cable and distribution cable connection (FTTx)
Fiber to the Home (FTTH) / Fiber to the Building (FTTB)
Telecommunication street cabinets and central offices
Direct splice and cross-connect scenarios

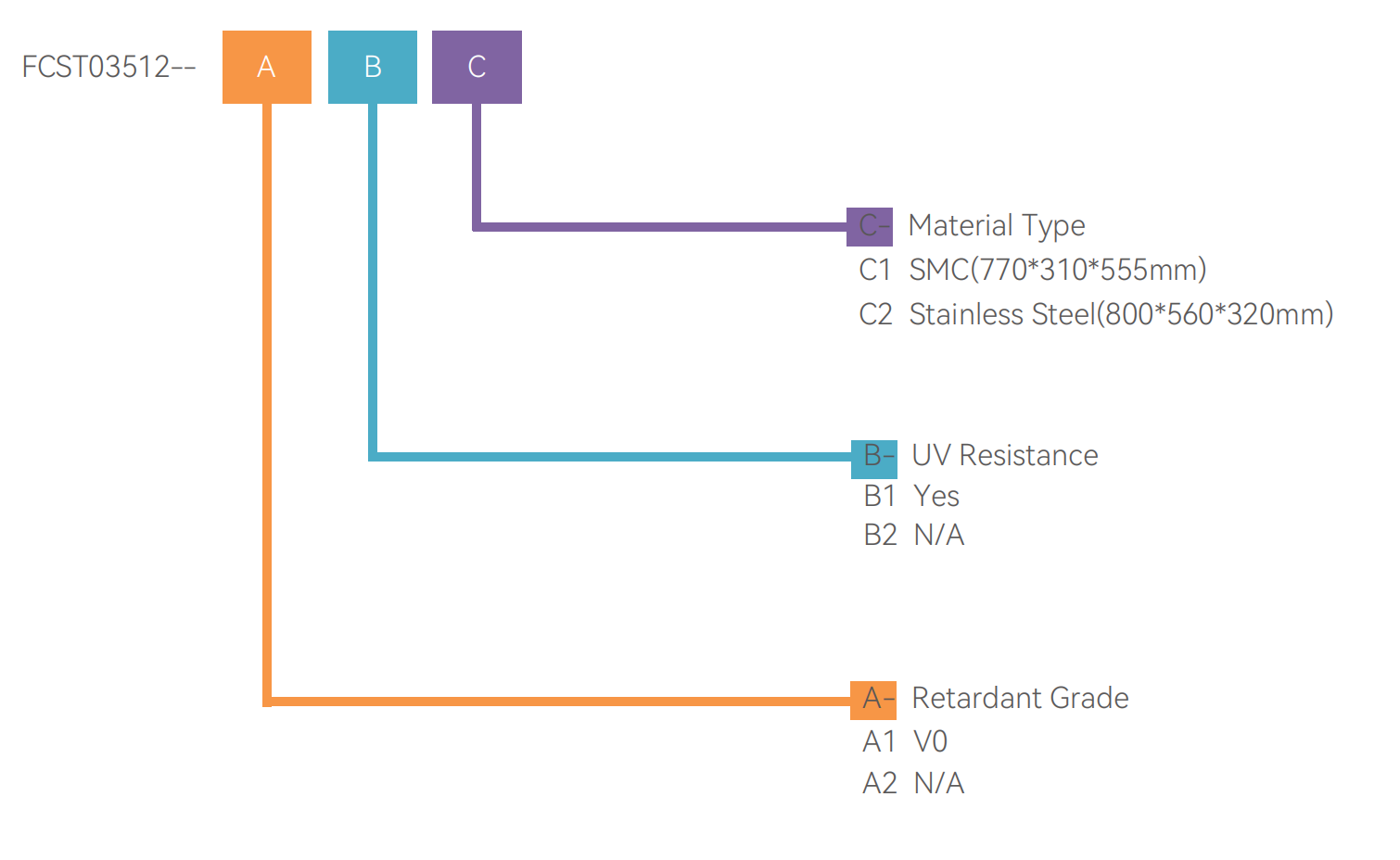

Ordering Information
*Note: The specified model is determined based on optional configurations. For example: FCST03512--A1-B1-C1.
Q&A
1: Can this cabinet be used for FTTH distribution, including splitters?
A: Yes. The FCST03512 supports up to 6 box-type PLC splitters. It is designed to work as an outdoor trunk interface and also as a distribution hub for FTTx networks (FTTH, FTTB). You can place splitters inside to split the signal to multiple homes.
2: Is this cabinet active (powered) or passive?
A: It is a passive cabinet. There is no electrical power inside. It only houses fibers, splitters, splice trays, and adapters. This is exactly what you need for a standard FTTH distribution point — unlike a 5G active cabinet which requires power and cooling.
3: Can I mount it on a wall or a pole?
A: Yes. The cabinet supports outdoor fixed installation and wall mounting. Pole mount kits are available as an option (please confirm with sales).
4: Does it include grounding for metal cables?
A: Yes. The cabinet has secure fastening and grounding protection devices for metal components and armored cables. High-voltage protection grounding is included.
5: I am a wireless operator. Can I use this to convert a 5G cabinet into a fiber distribution hub?
A: Technically you could place this cabinet next to or instead of a 5G cabinet for the fiber distribution part. But we do not recommend putting splitters and passive fiber inside an active 5G cabinet (heat, space, maintenance issues). The industry standard is to use a dedicated passive cabinet like the FCST03512 for FTTH distribution. You can keep the 5G cabinet for wireless equipment and let the FCST03512 handle fiber splitting and termination.
