FBL1000
FCST
FBL1000
Product Overview
FBL1000 Cable Blowing Lubricant is a kind of high efficiency and environmental protection lubricant developed by FCST. This product is made from variety non-irritating and non-corrosive raw materials, which is milky white thick liquid. The volatile, surface lubricating material can be adhered for a long time. The cable body which form a layer of lubricant film on the object (the inner wall of optical cable and pipe surface) can play a protective role, reduce friction coefficient, resistance and the damaged line run rate, increase the traction transmission speed enhance the speed of installation of the optical cable, improve labor productivity. Also, reduce the cost.
Product Advantage
1000ML capacity.
Concentrated: Works at very low coating thickness.
Increases cable blowing speed and distance by 30%.
Made from non-irritating and non-corrosive raw materials.

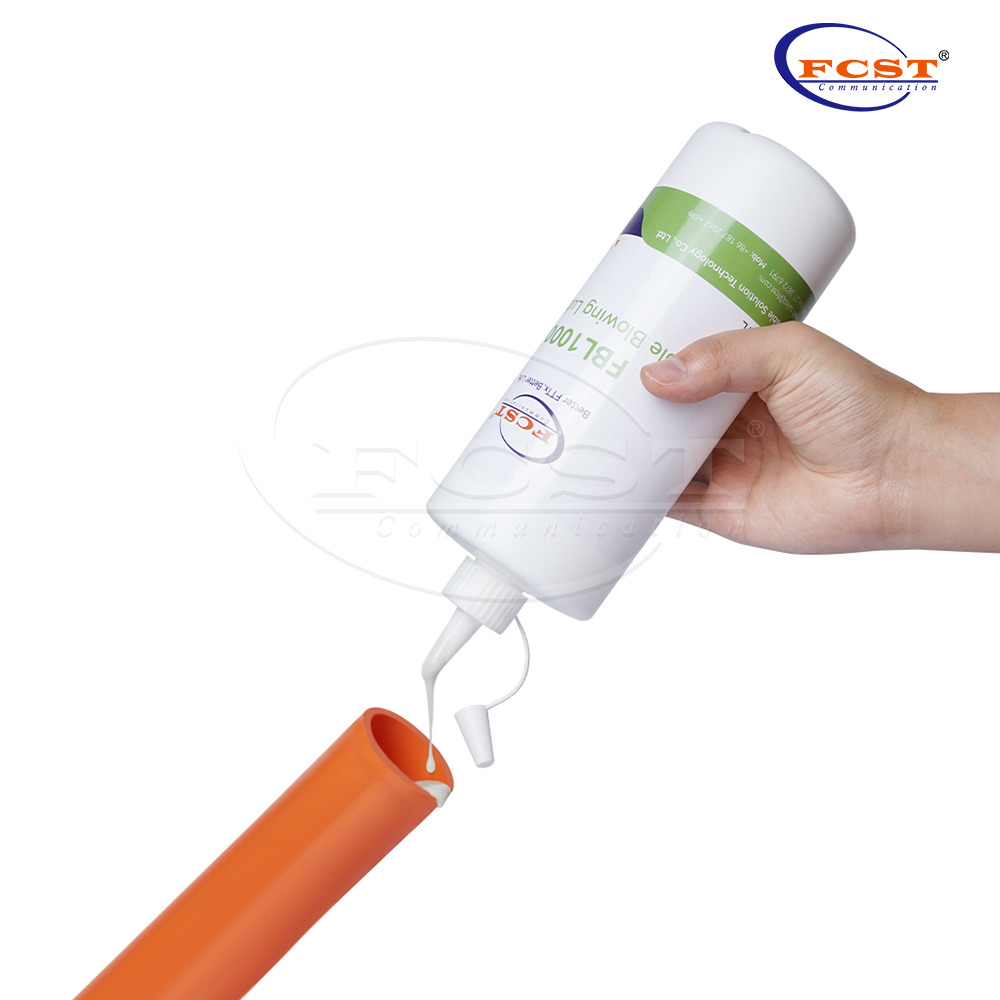

Easy to use: Simply squeeze into duct before blowing cable.
Compatible with cable jackets: Suitable for all types of cable jackets .
Low-friction coating: Coats duct efficiently and lubricates after drying.
Product Specifications
| Construction | Description |
| Capacity | 1000ml |
| Appearance | Milky white liquid |
| Odor | No odor |
| Viscosity | 160+10MPa/s |
| Specific gravity (25C) | 0.98 + 0.02g/cm3 |
| PH value | 5.5~7.5 |
| Operating Temperature | 0~50℃ |
| Size | φ80*H270mm | φ3.15"*10.63" |
| Packing | 12pcs/cnt 13.26kg 0.025CBM（0.32*0.26*0.29m） |
Application Scope
Lubrication for blowing cable
Communication cable.
Communication cable and power cable pipe laying lubrication.
Approximate Volume of Lubrication Required For Cable Jetting in Various Size Microducts
| Microduct Size(OD/ID,mm) | Amount of Lubrication Required Per 100m |
| 14/12mm | 30.06ml |
| 12/10mm | 23.38ml |
| 10/8mm | 16.7ml |
| 8/6mm | 13.36ml |
| 7/5mm | 13.36ml |
| 5/3.5mm | 10.02ml |

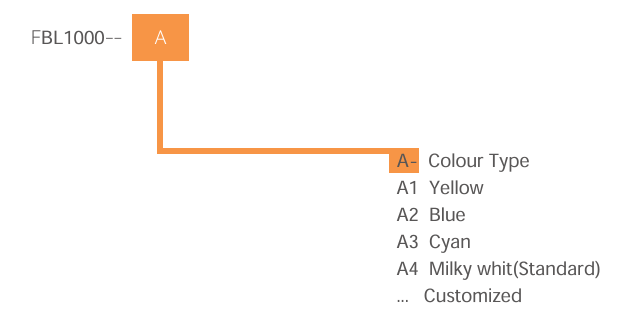

Ordering Information
*Note: The specified model is determined based on optional configurations. For example: FBL1000--A1
