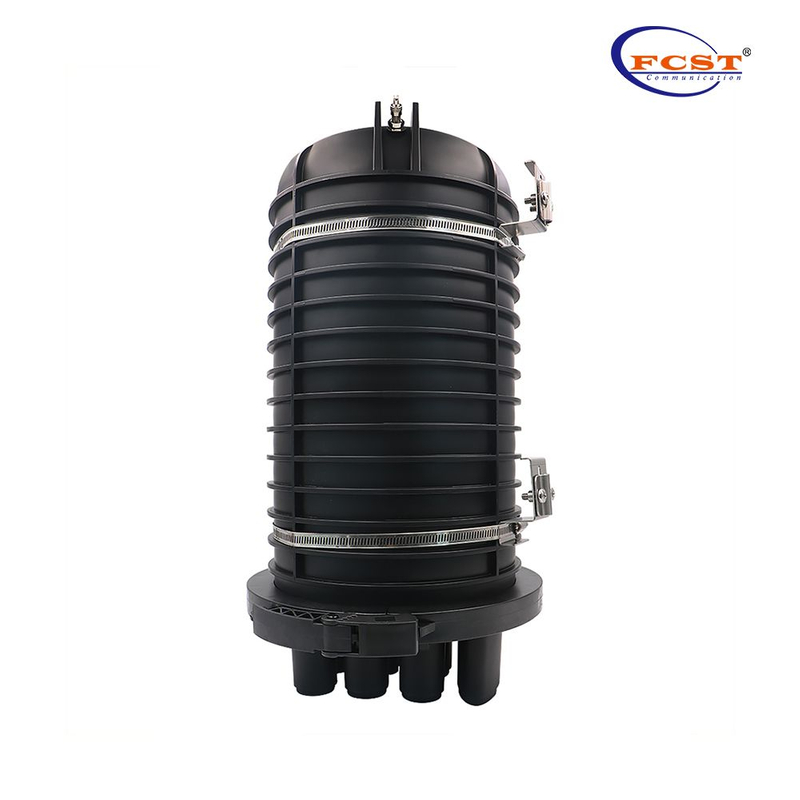

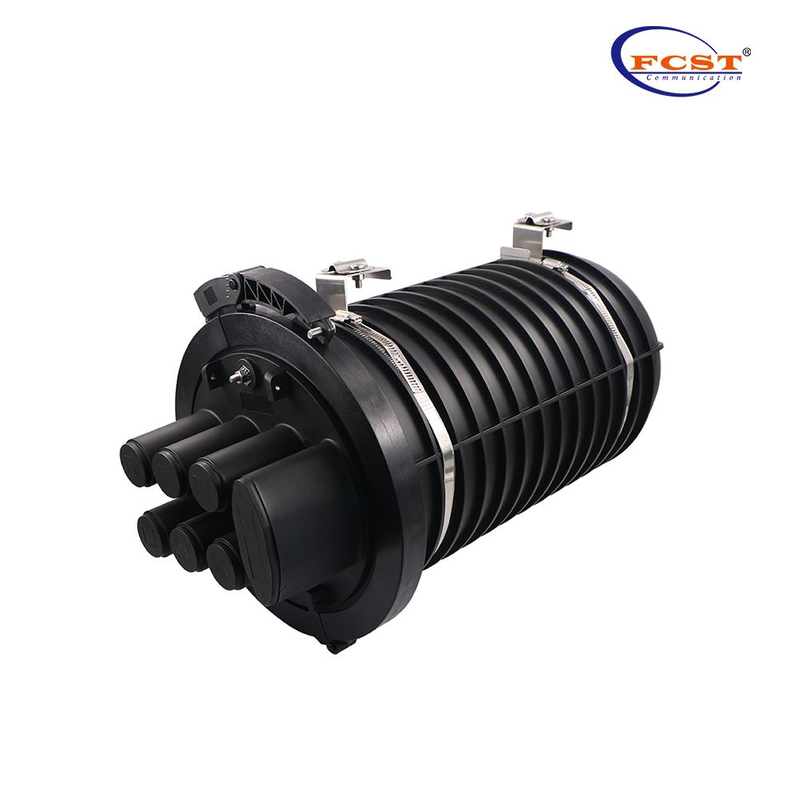

FCST012242 Fiber Optical Splice Closure

  • With protection grade of IP68.
  • Installation method: Aerial,Buried,Pipe-lined.
  • Easy installation with no special tool required.
Availability:
Quantity:
  • FCST012142

  • FCST

  • FCST012142

Product Overview

FCST012242 Fiber Optical Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.Dome-to-base design; sealed with clamp and O-ring system. With two types of optional trays can hinge for access of any splice, without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With  lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.

Product Specifications

Construction

Description

Max. Capacity

288F ( if with 12F tray, total 24 pcs)

192F ( if with 4F tray, total 48 pcs)

Material

Dome, Base:modified PP

Clamp:Nylon +GF

Tray: ABS

Metal Parts:Stainless steel

Height

506.1mm19.925in

Diameter

310.3mm12.217in

Protection Level

IP68

Inlets/Outlets

1/6

Installation

Aerial, Pole mounting, directly buried, Wall mounting

Diameter Of Fiber Cable

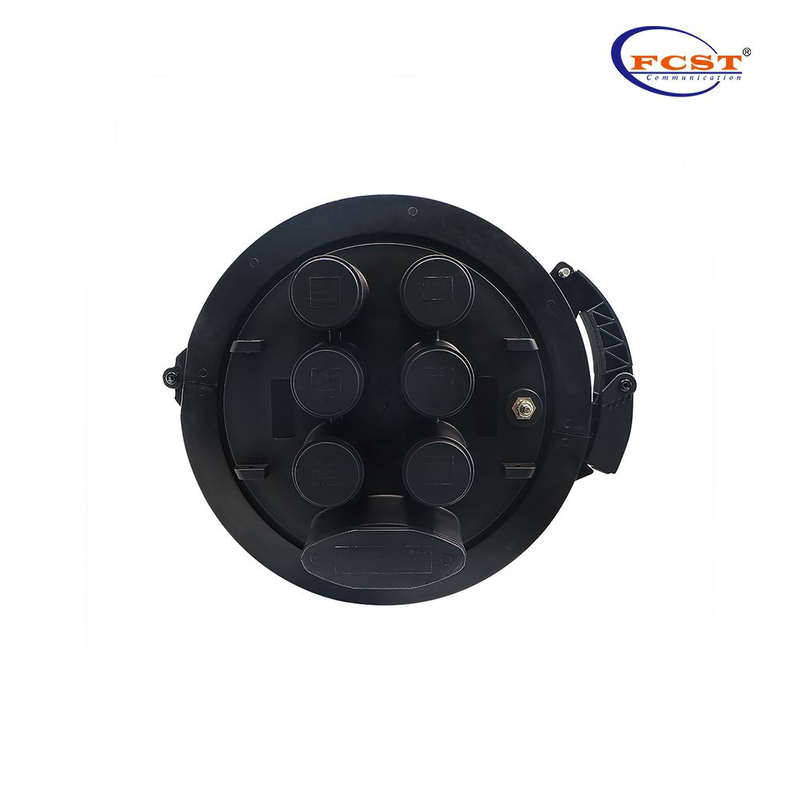

1 oval port for 2 pcs 10~30mm cable

6 round ports each for 1 pcs 6~ 33mm cable

Sealing Mode

Heat-shrink

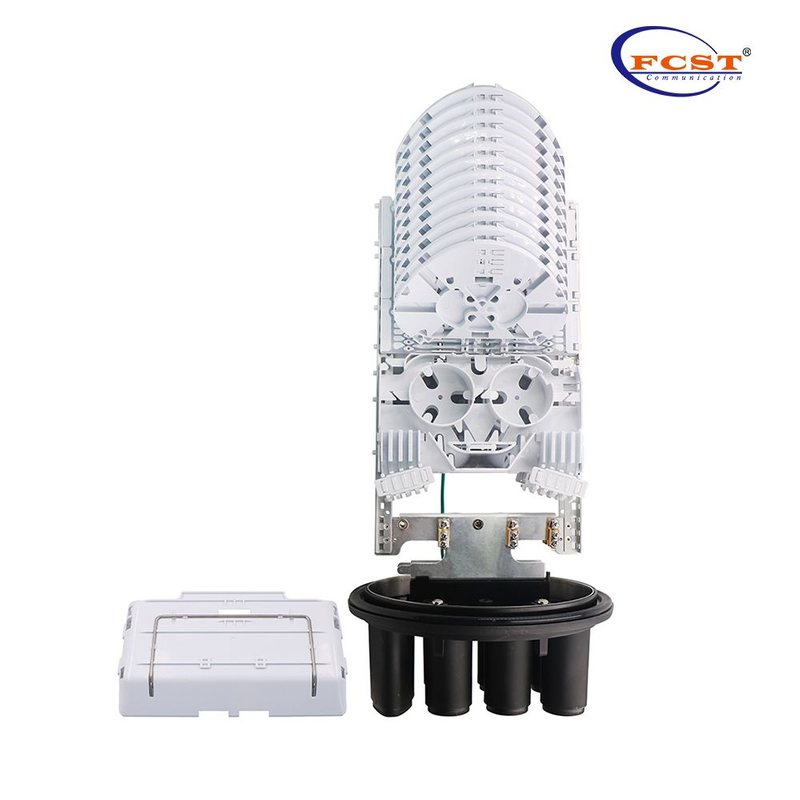

Product Structure

FCST012242 Fiber Optic Splice Closure-Dome Type

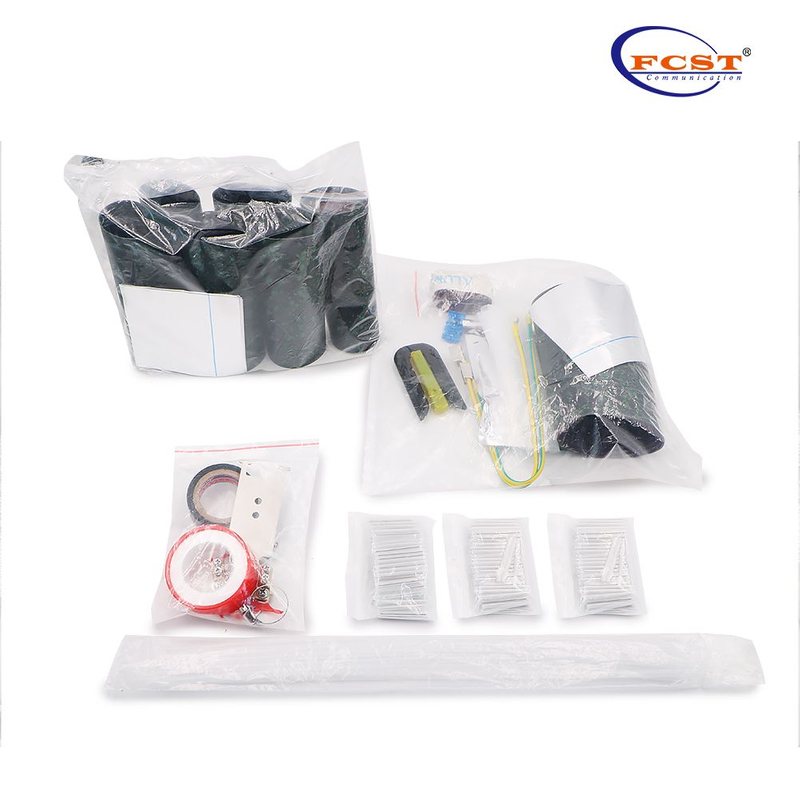

Main Components

FCST012242 Fiber Optical Splice Closure (7)

Design And Customization Services

Provide service with whole process form blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
