FCST-FE7mm
FCST
FCST-FE7mm
100
Product Overview

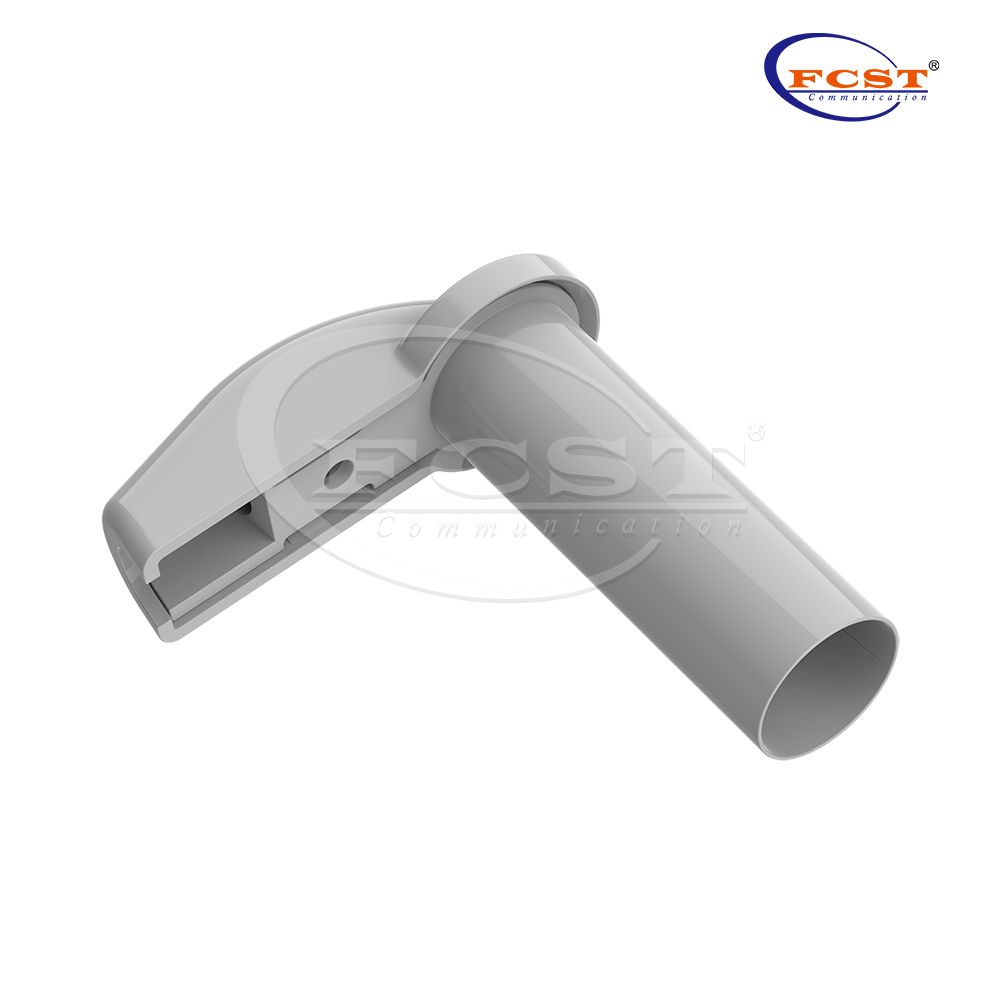

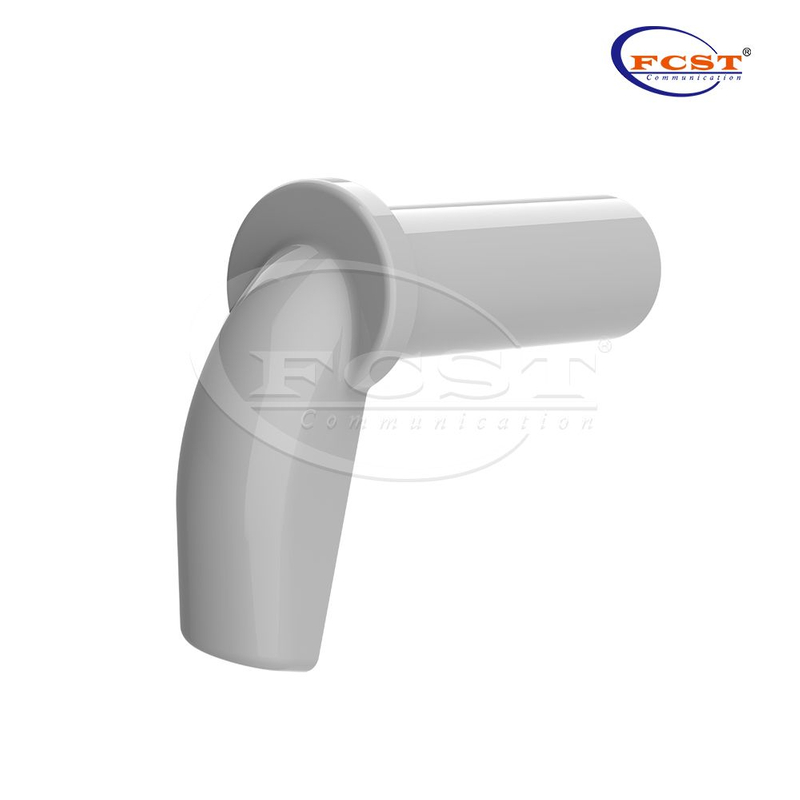

FCST-FE7mm FTTH Entry 90° with a 90° bend radius to allow safe and secure bending of micro ducts / cables and blowing of the fibre after installation. It can be used with mirco duct / cable sizes up to 8mm.
Product Advantages
Fixing anchor.
UV- and weatherability.
Suitable for retro fitting.
Micro duct / cable sizes up to 8mm.
Suitable for indoor and outdoor use.
Including 2 sets of expansion screws.
Optimize the design to protect the 90° bent micro duct/ cable.
Product Specifications
Construction | Description |
Applicable Diameter | 7mm、8mm |
Applicable Type | mirco duct、cable |
Material | PA6 |
Length | 72.5mm丨2.85in |
Width | 24.65mm丨0.97in |
Depth | 61.00mm丨2.40in |
Weight | 17g |
Working Temperature | -40℃~+65℃ |
Storage Temperature | -40℃~+70℃ |

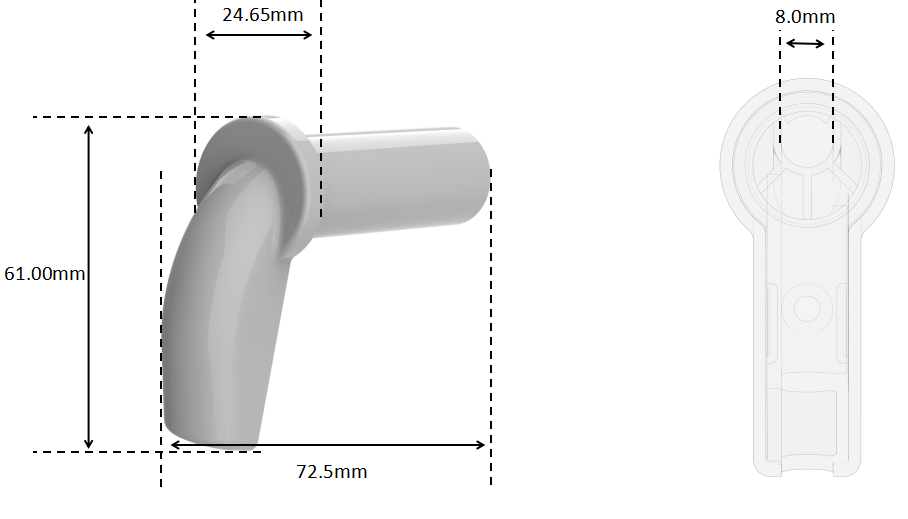

Product Size

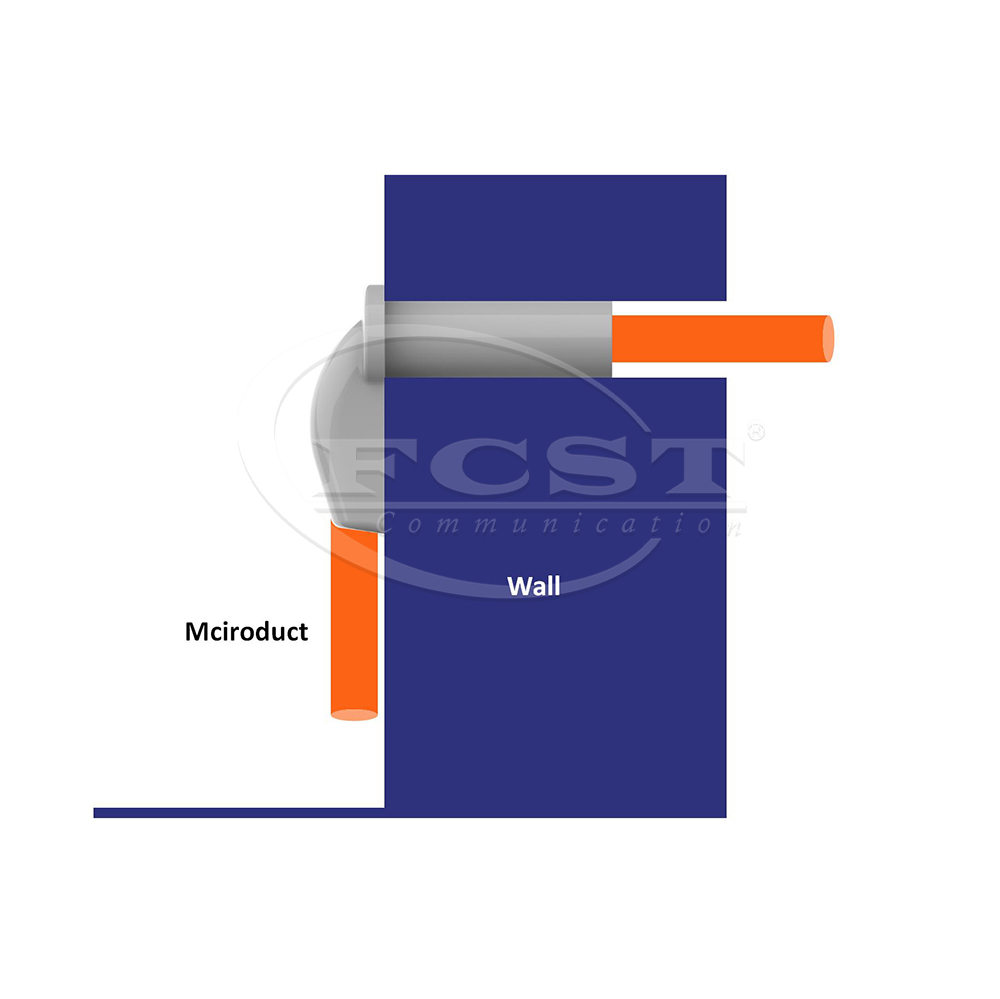

Product Installation
Product Overview
FCST-FE7mm FTTH Entry 90° with a 90° bend radius to allow safe and secure bending of micro ducts / cables and blowing of the fibre after installation. It can be used with mirco duct / cable sizes up to 8mm.
Product Advantages
Fixing anchor.
UV- and weatherability.
Suitable for retro fitting.
Micro duct / cable sizes up to 8mm.
Suitable for indoor and outdoor use.
Including 2 sets of expansion screws.
Optimize the design to protect the 90° bent micro duct/ cable.
Product Specifications
Construction | Description |
Applicable Diameter | 7mm、8mm |
Applicable Type | mirco duct、cable |
Material | PA6 |
Length | 72.5mm丨2.85in |
Width | 24.65mm丨0.97in |
Depth | 61.00mm丨2.40in |
Weight | 17g |
Working Temperature | -40℃~+65℃ |
Storage Temperature | -40℃~+70℃ |
Product Size

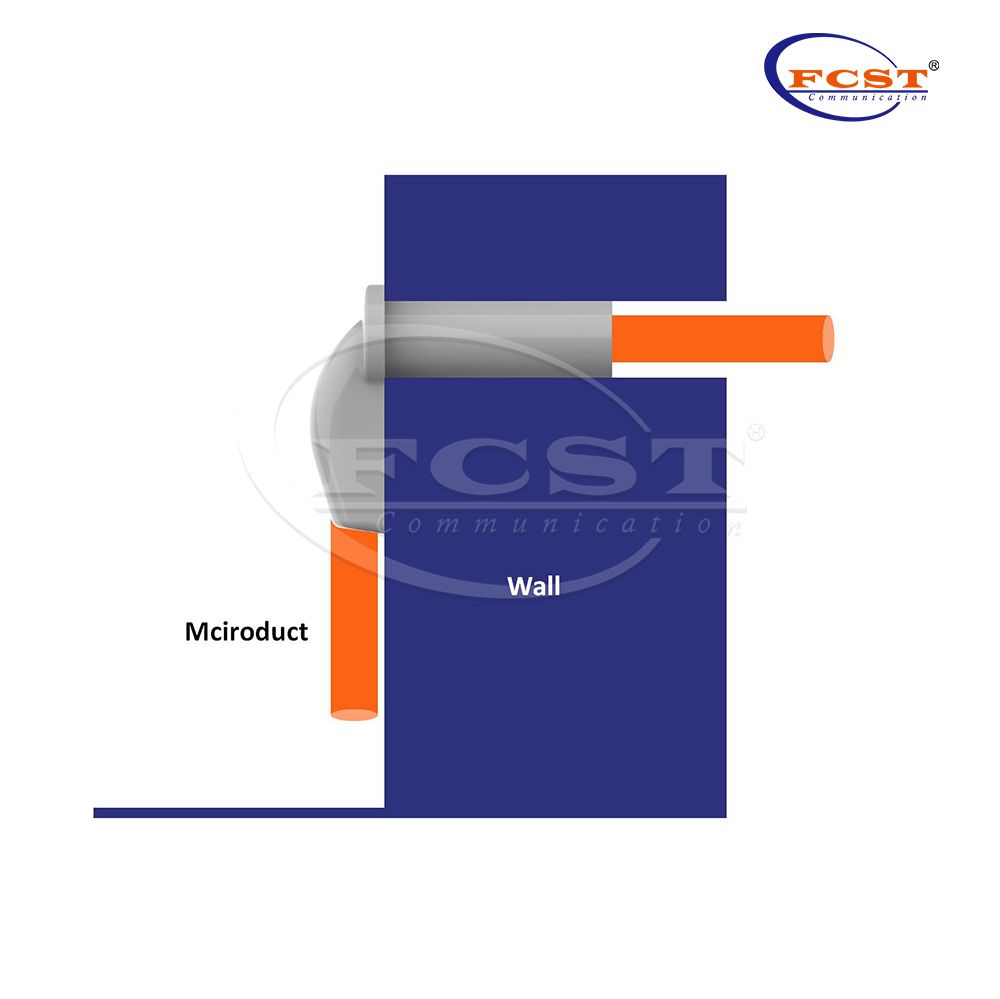

Product Installation
