Product Overview

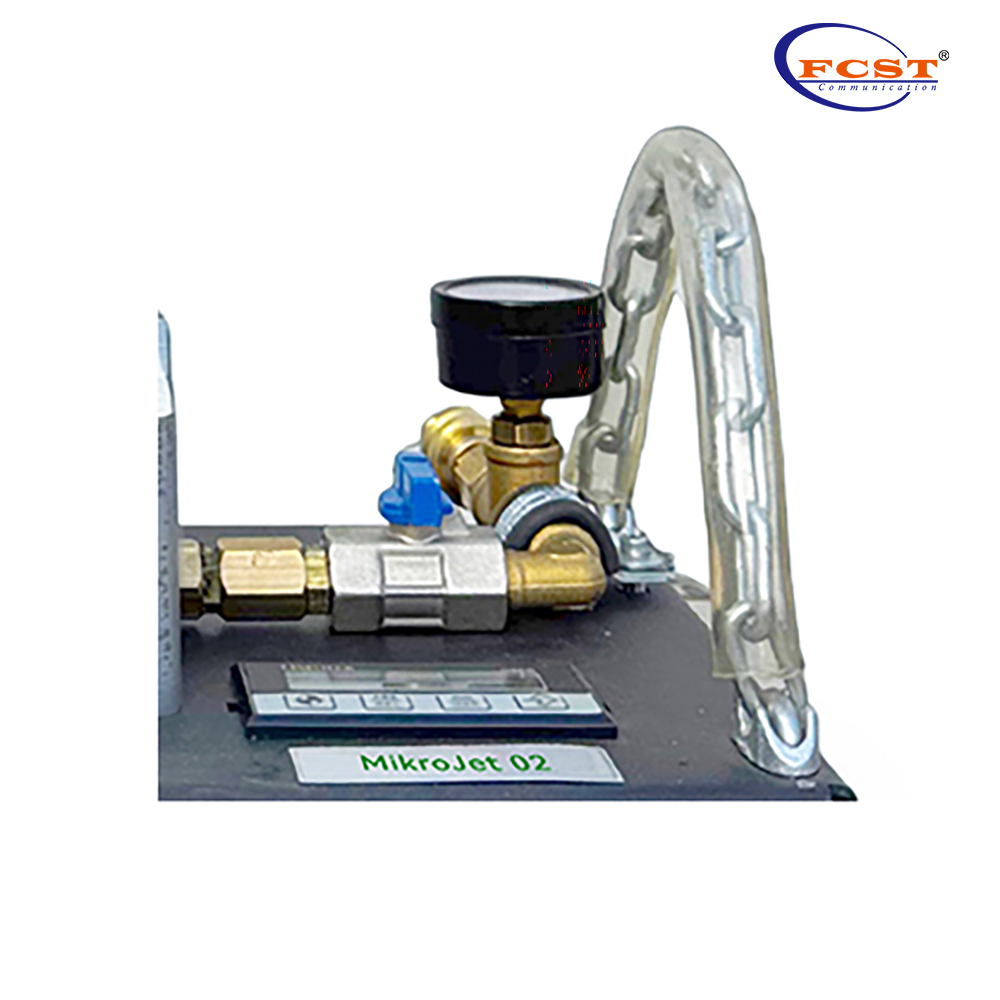

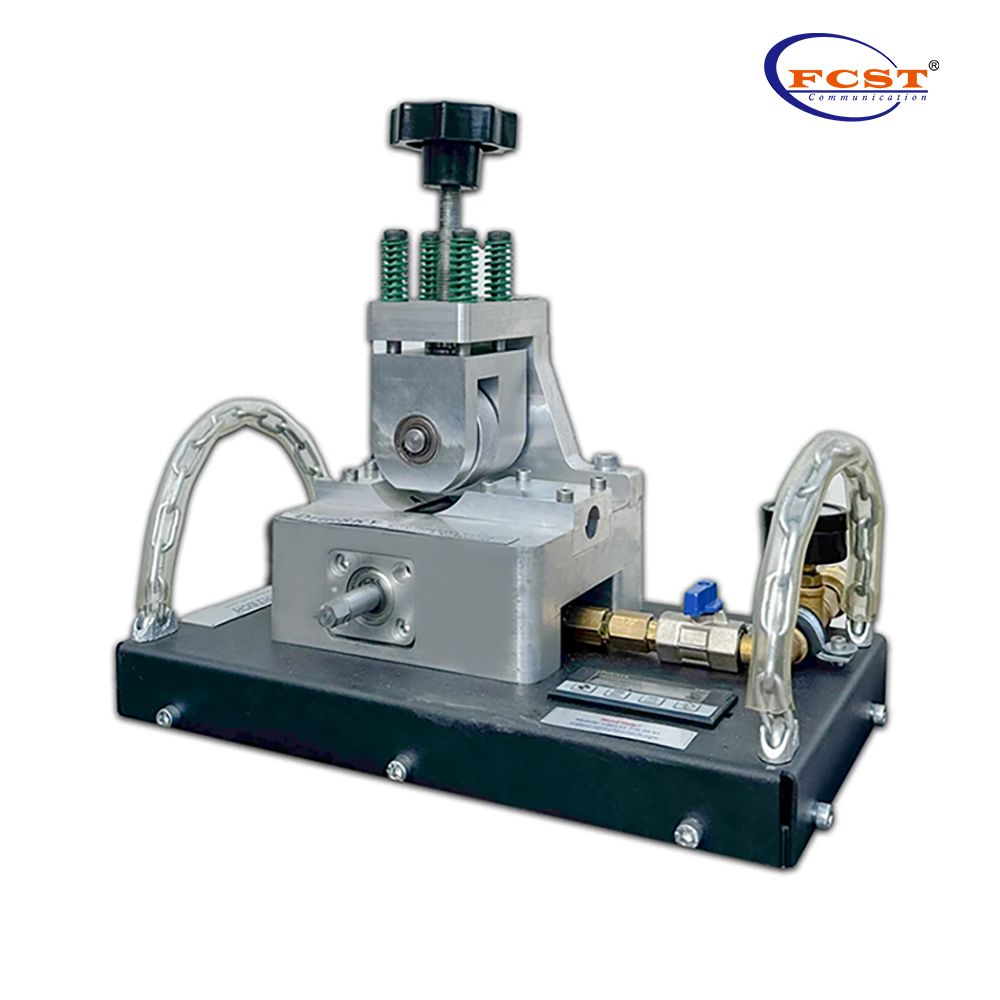

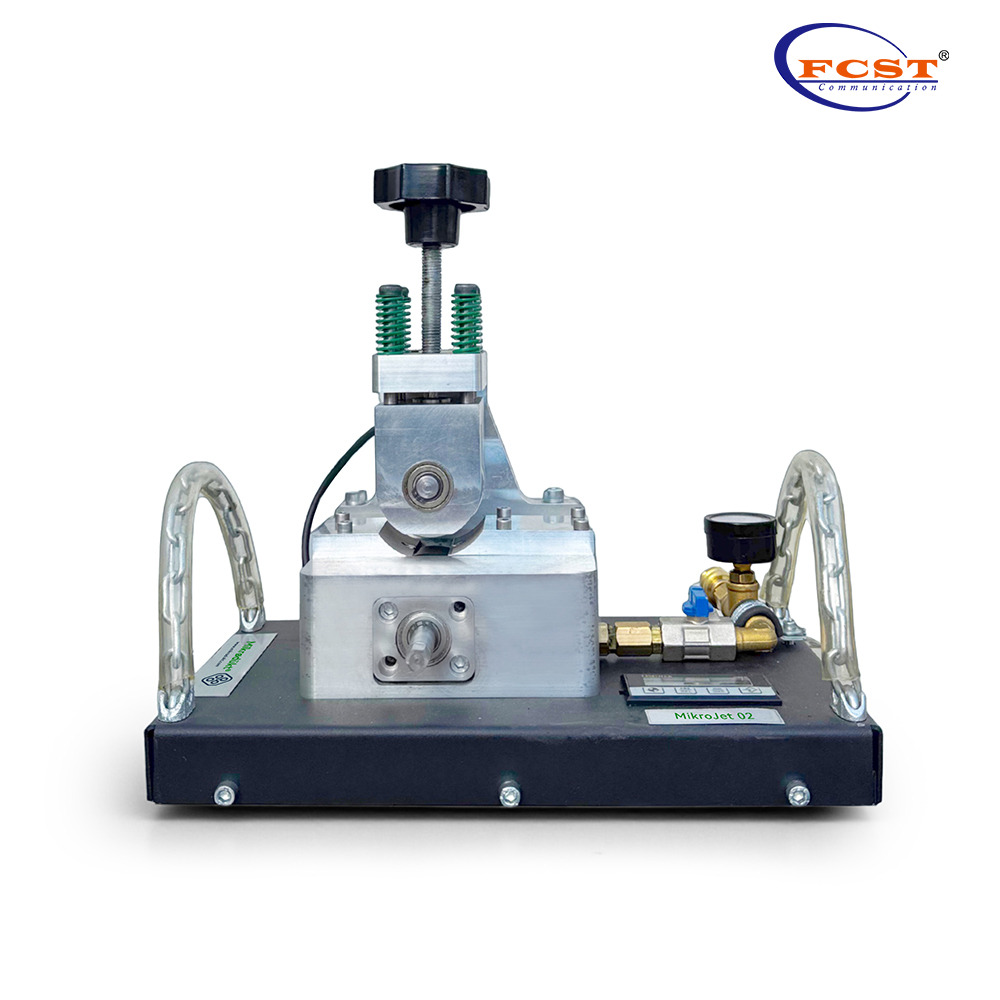

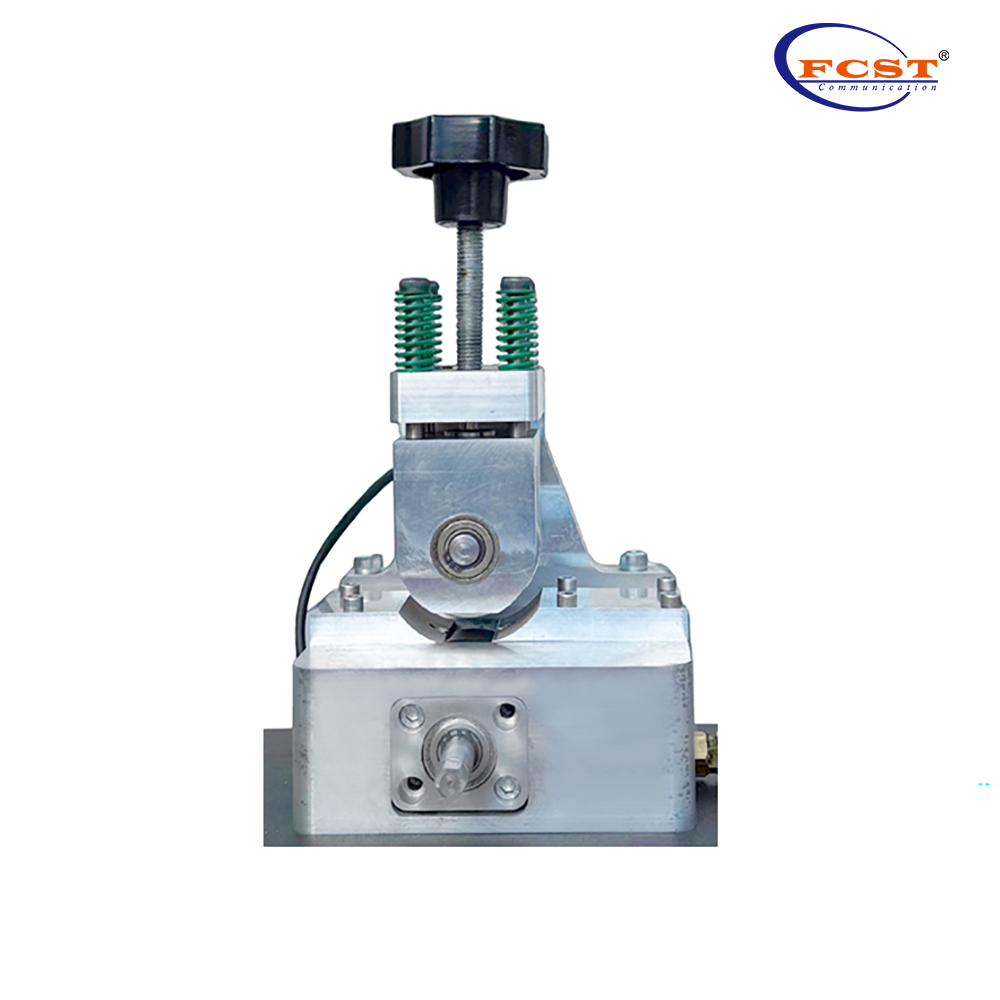

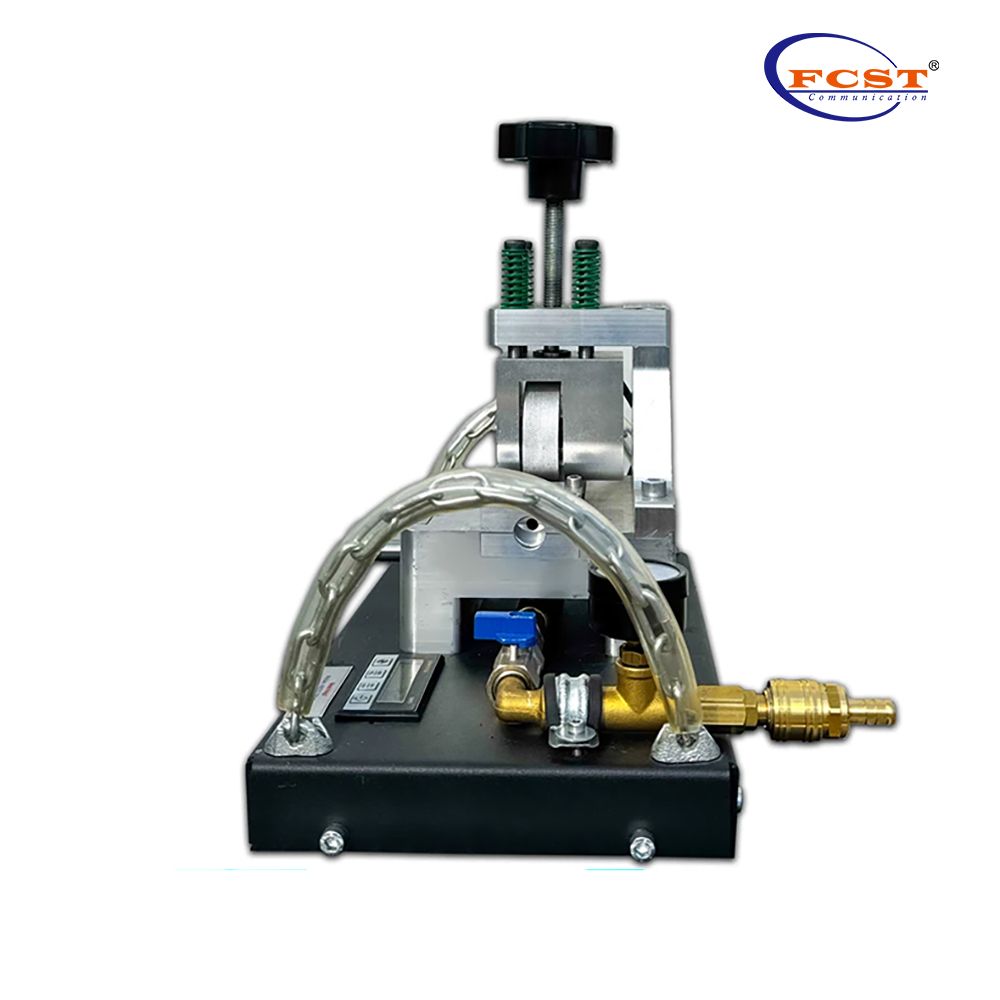

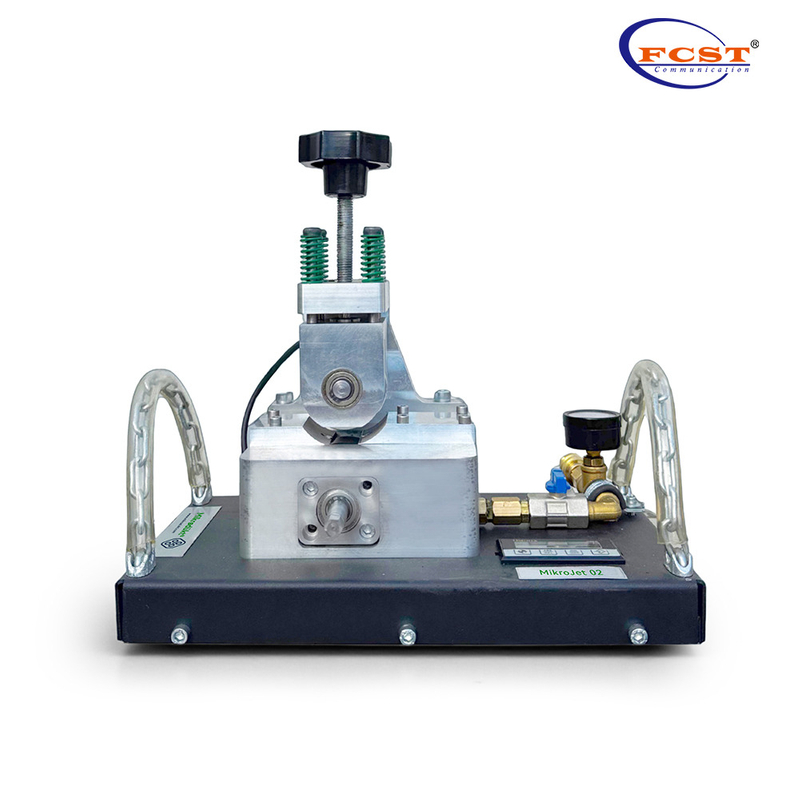

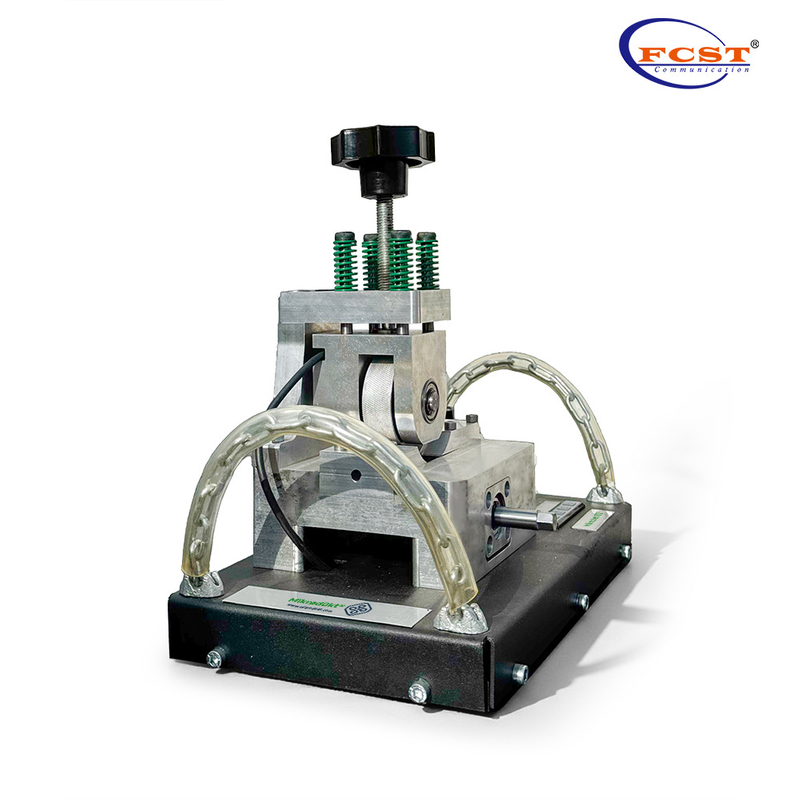

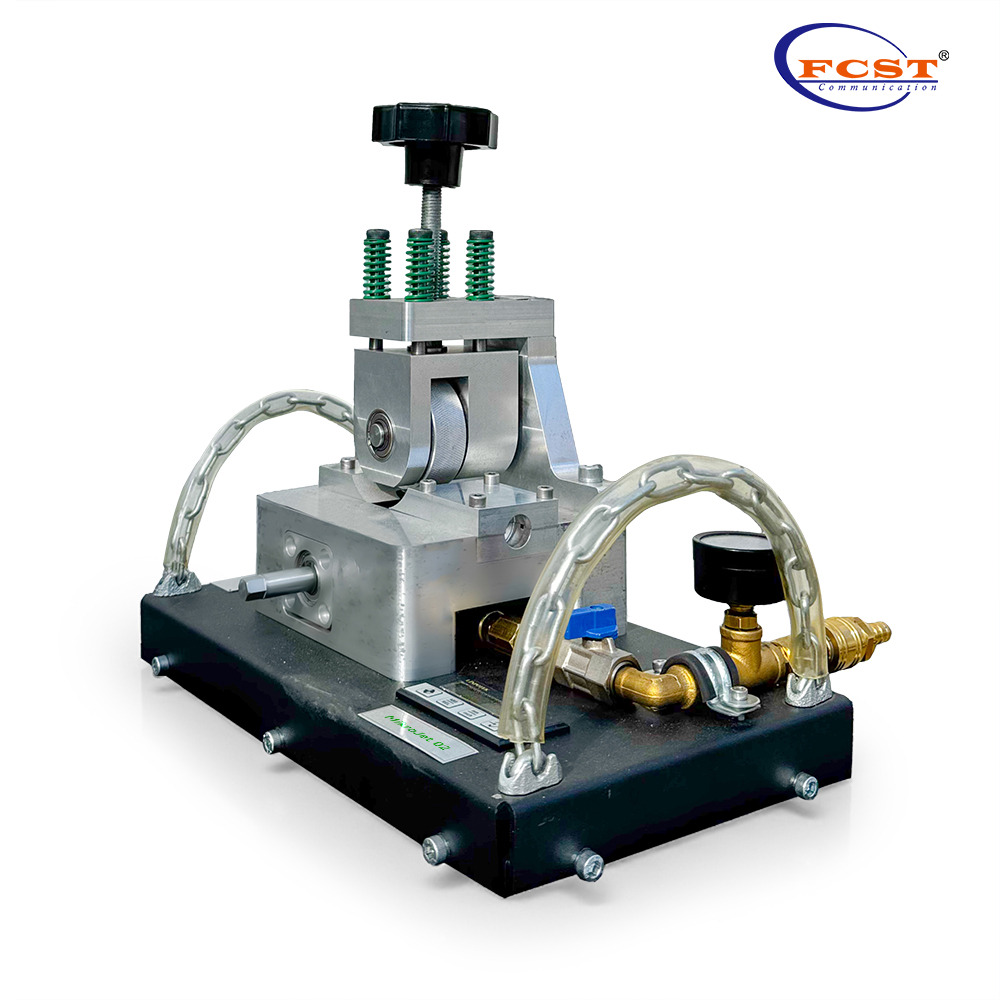

MikroJet 02 Fiber Optic Cable Blowing Machine is a specialized cable blowing machine designed for pushing micro fiber optic cables into HDPE ducts with the help of a cordless or electric drill. Perfect for tight-space operations such as FTTH (Fiber to the Home) installations and indoor projects, this unit supports fiber cable diameters ranging from 1 mm to 6 mm.
Product Features
Powered by any standard drill (corded or cordless).
Compatible with fiber cables from 1 mm to 6 mm.
Adjustable to fit various HDPE duct diameters.
Forward and reverse operation.
Durable steel body for long-lasting use.
Digital meter counter included.
Hydraulic sealing adapts to cable size.
Simple setup—can be operated by one person.
Comes with all essential spare parts.
2-year service warranty and 10-year spare parts warranty.
Supplied in a waterproof marine-grade storage box.
Remote support available through our technical assistance line.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ1~6mm |
| Micro Tube Diameter | φ 5,7,10,12,14,16 mm |
| Blowing Distance / Max | 1000m（Depends Drilling Force） |
| Blowing Speed / Max | 50 m/min(Depends Drilling Force) |
| Pushing Force | Depends Drilling Force |
| Work Pressure / Max | 15 bar |
| Dimensions (L*W*H) | 150*200*250mm | 5.91*7.87*9.84in |
| Weight (approx.) | 7kg |
| Power Source | Drilling Machine |
| Drive System | Mechanical, via drill connection |
| Operation Type | Depends Drilling Force |
| Warranty Period | 48months |
| Applications | FTTH/FTTx, micro cable networks,indoor installations |
| Required Compressor's Efficiency | micro ducts up till 8mm:0.8m³/min micro ducts between 8-12mm:1.0m³/min micro ducts between 12-15mm:1.5m³/min |
Standard Accessories
Cable feeding beds for all sizes (inlet and outlet)
Duct adapter set (customized to your duct dimensions)
Drill connector adapter O-ring set for sealing
1 mm–3 mm cable bed (inlet & outlet)
4 mm–6 mm cable bed (inlet & outlet)
Allen wrench set
Compressor hose coupler
Accessory and spare parts box
