FCST-EC02
FCST
FCST-EC02
Product Overview

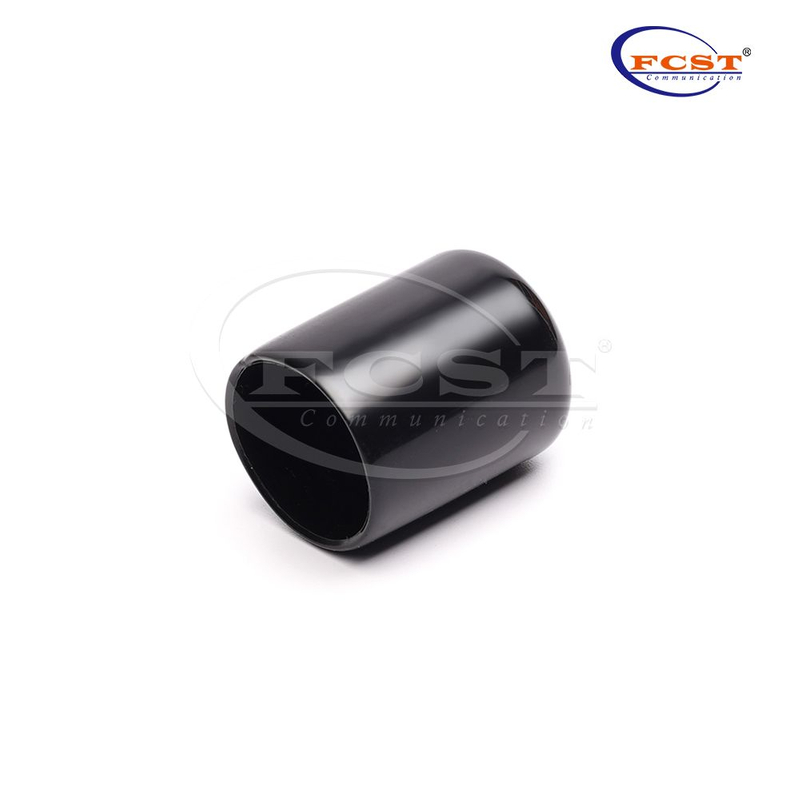

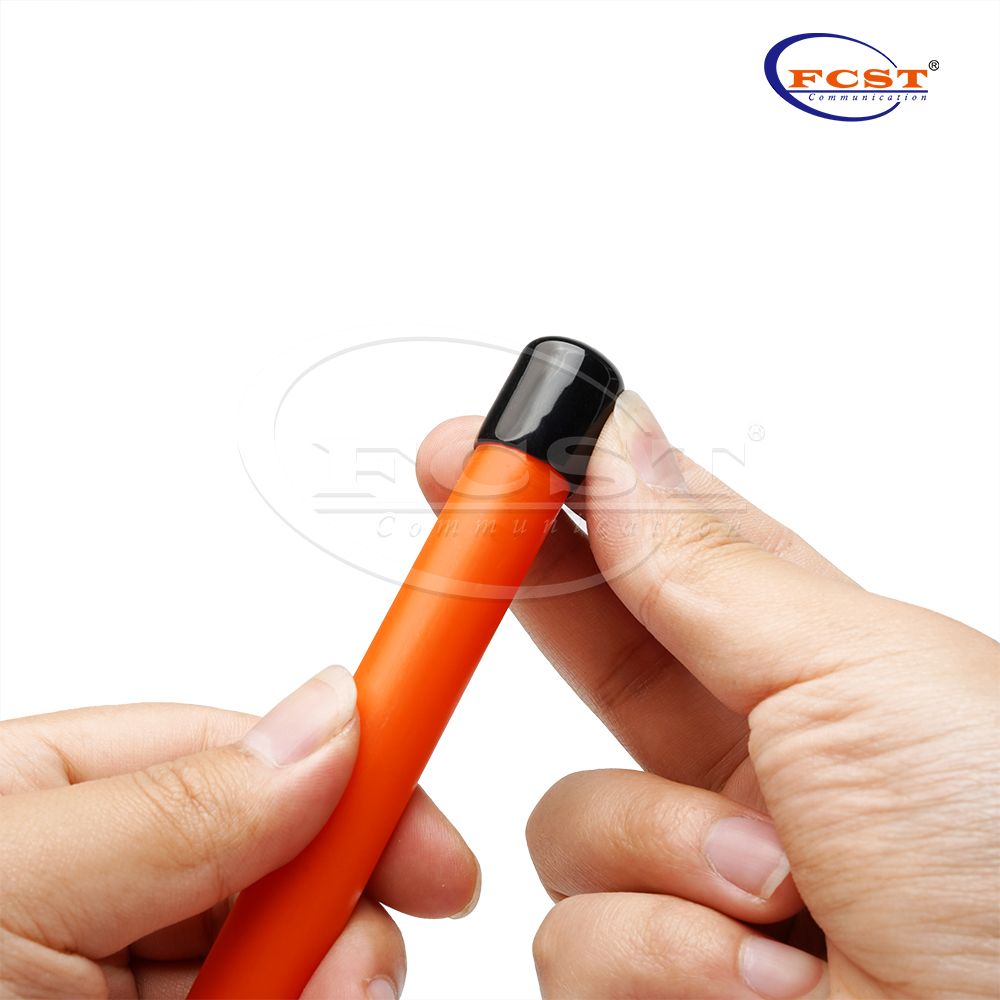

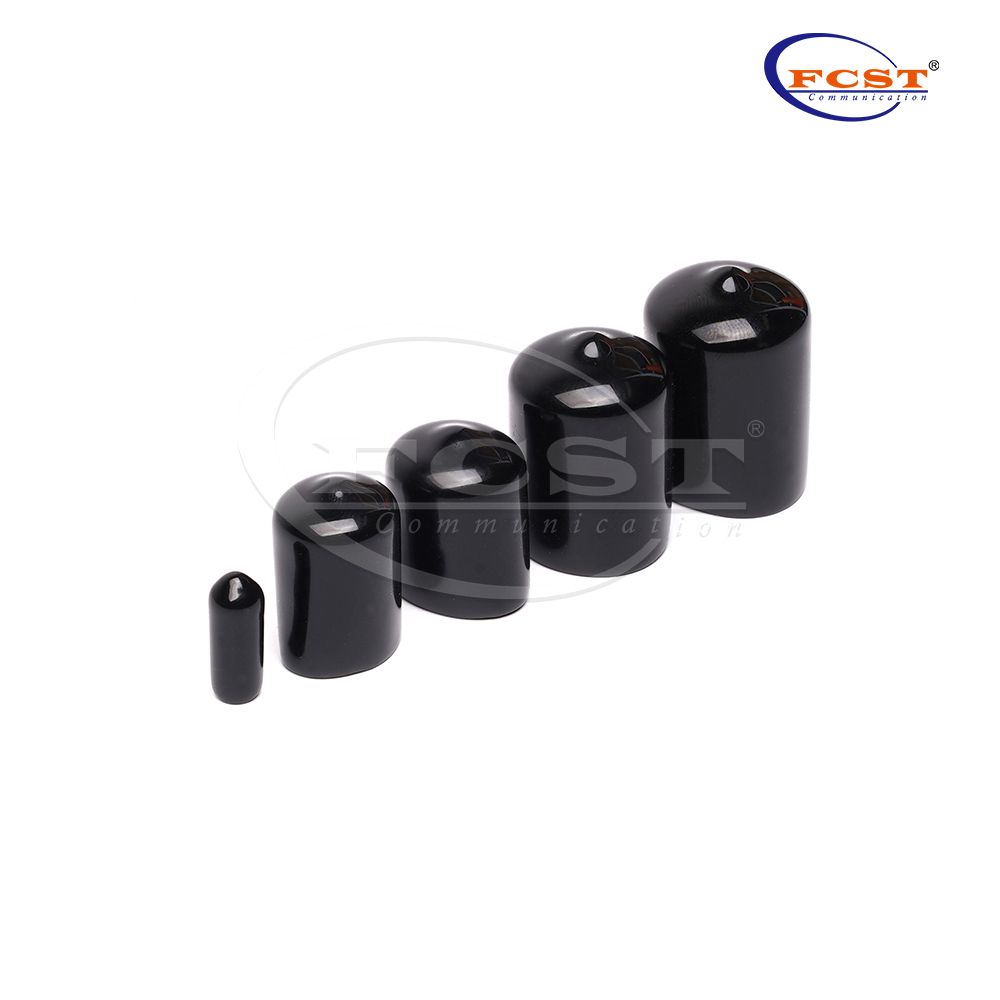

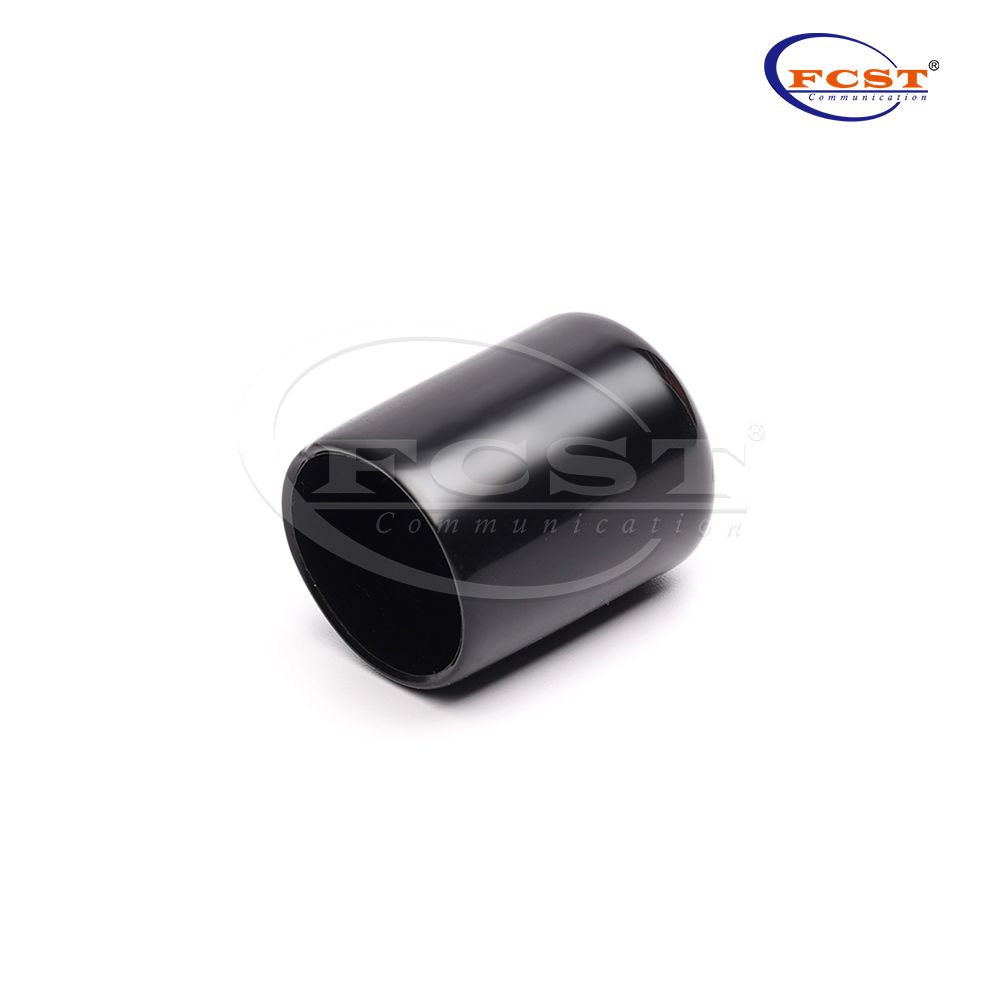

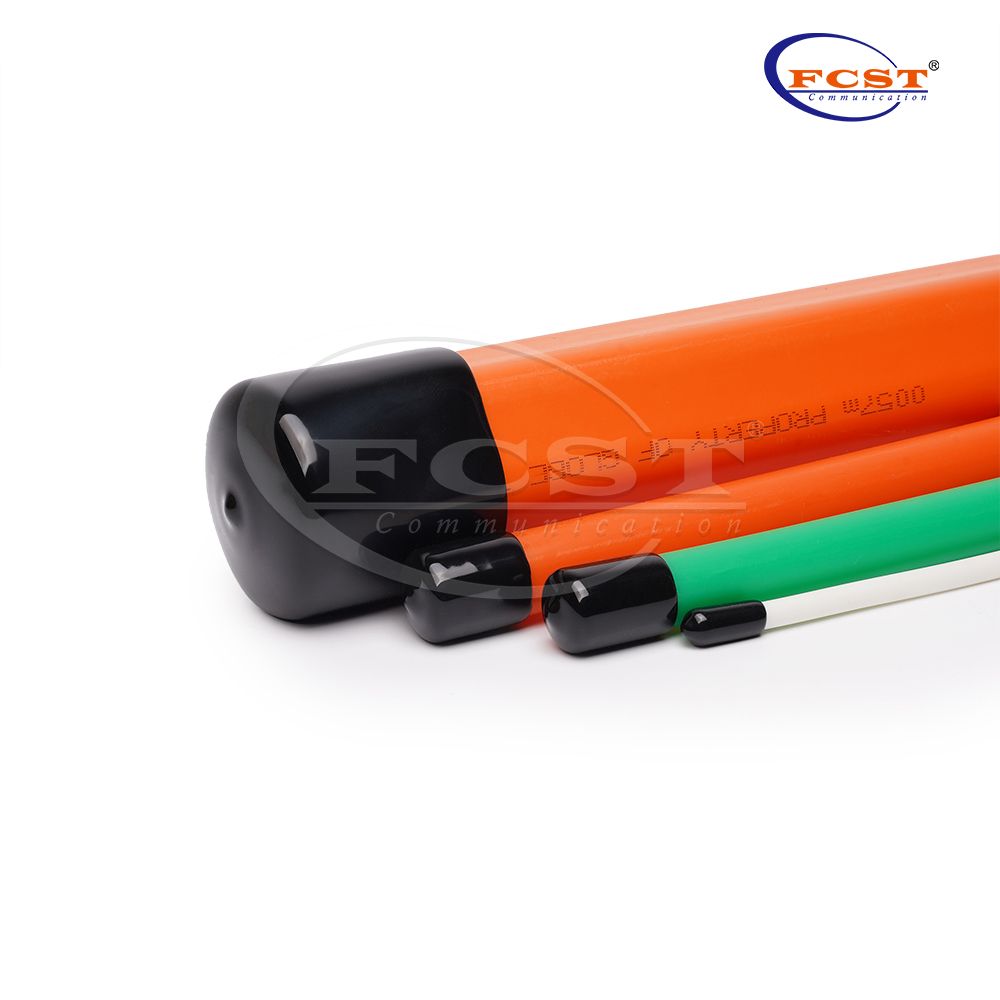

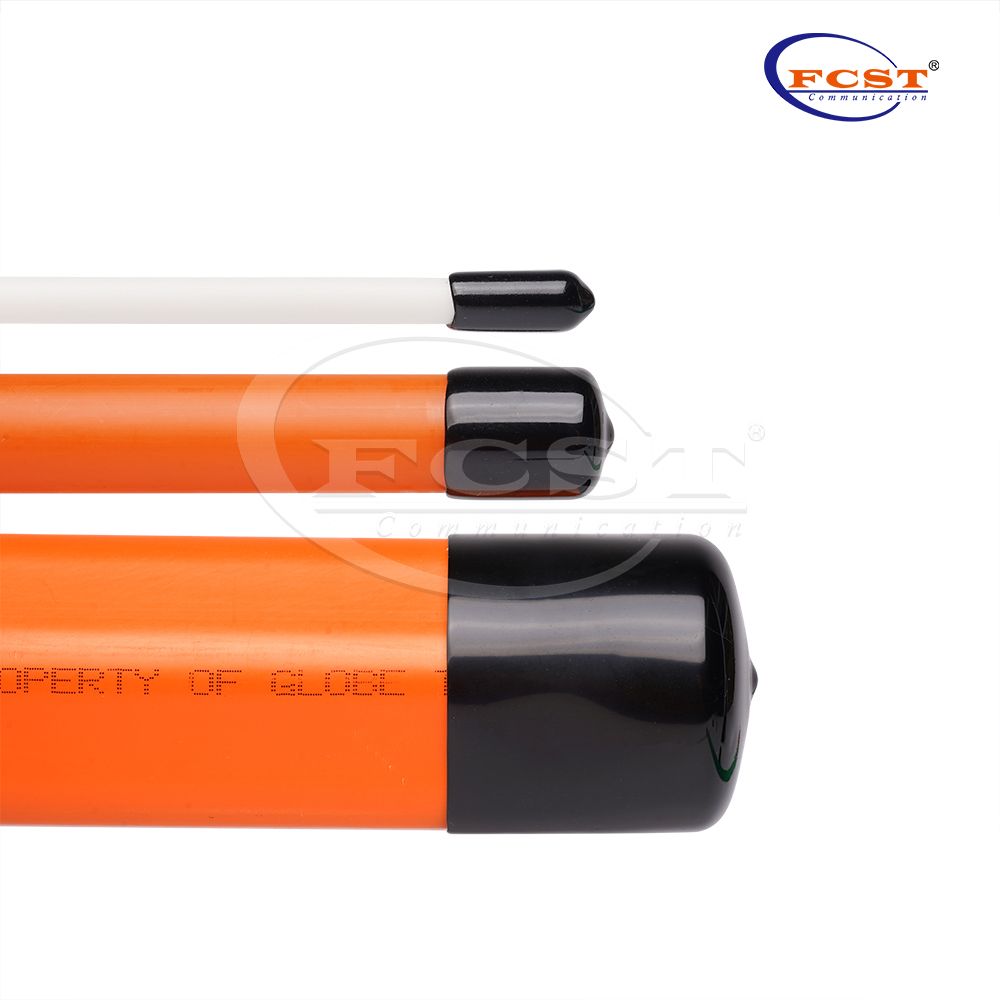

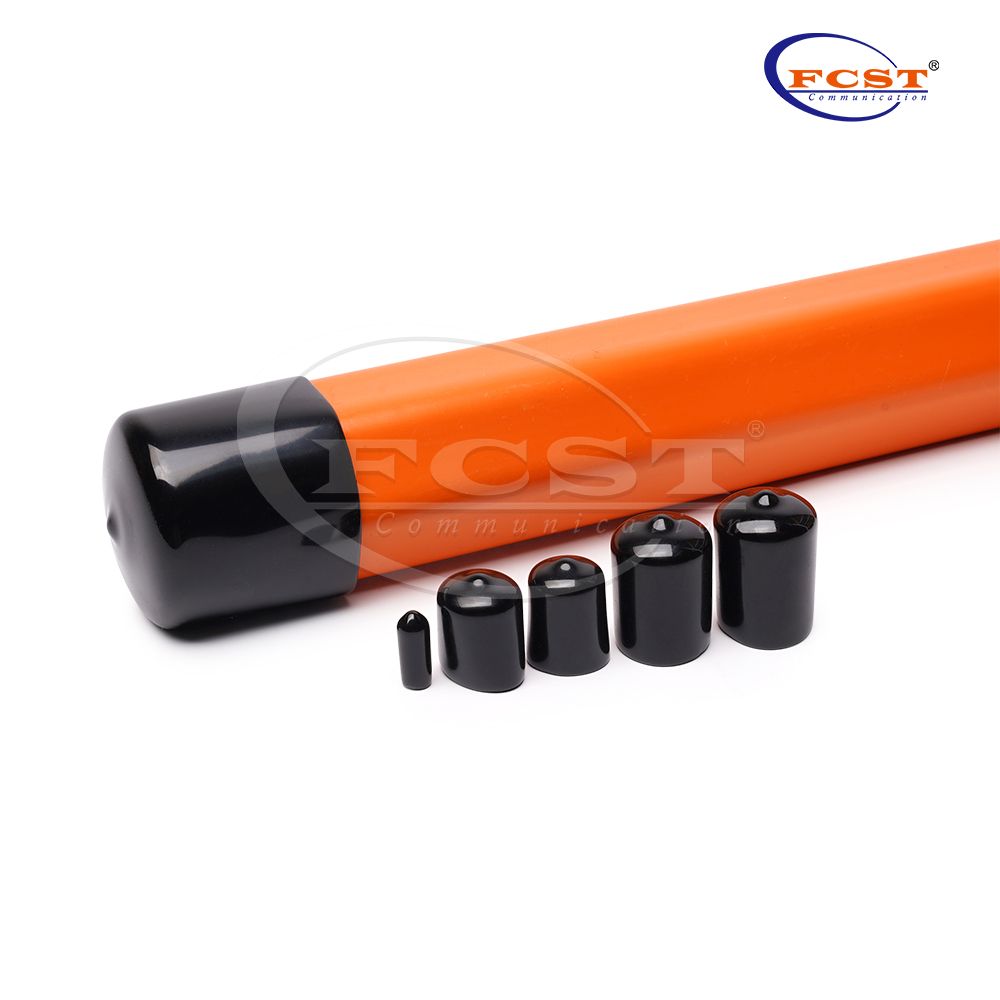

FCST-EC02 Microduct End Caps are used as a dust or dir cover, protecting entr by any foreign objects. They also protect the inner contents from disturbance. For use on ducts of 1mm up to 140mm.
Excellent stay ability.
Soft material cushions cable ends.
Flexible, easily adaptable, does not crack.
Flexible nature allows for easy installation.
Oil-resistant, corrosion-resistant, and aging-resistant Suitable for pipes with an inner diameter of 1 mm to 140 mm.
Product Specifcations
| Construction | Description |
| Material | PVC |
| Inner Diameter | Φ1-140mm,customized |
| Flame Retardant Grade | V1 |
| Working Pressure | 1 bar |
| Working Temperature | 0℃~+80℃ |
| Whether Heat Shrink | No |
| Colour | Black, Red,customized |
Ordering Information

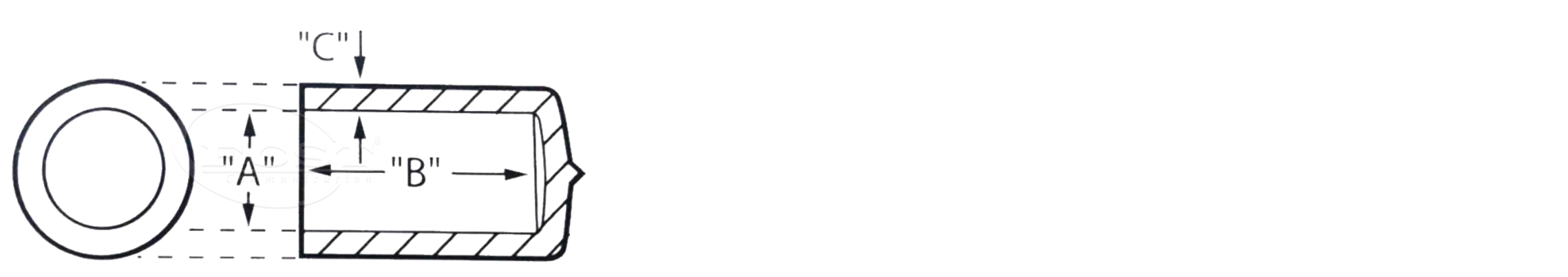

| Model | A (mm) | B (mm) | C (mm) | Colour |
| FCST-EC02-3 | Φ3.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-4 | Φ4.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-5 | Φ5.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-6 | Φ6.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-7 | Φ7.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-8 | Φ8.0 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-8.5 | Φ8.5 | 15±2.0 | 0.8±0.3 | Black&Red |
| FCST-EC02-10 | Φ10.0 | 20±2.0 | 1.0±0.3 | Black&Red |
| FCST-EC02-12 | Φ12.0 | 20±2.0 | 1.0±0.3 | Black&Red |
| FCST-EC02-12.5 | Φ12.5 | 20±2.0 | 1.0±0.3 | Black&Red |
| FCST-EC02-14 | Φ14.0 | 20±2.0 | 1.0±0.3 | Black&Red |
| FCST-EC02-15 | Φ15.0 | 20±2.0 | 1.0±0.3 | Black&Red |
| FCST-EC02-16 | Φ16.0 | 20±2.11 | 1.2±0.3 | Black&Red |
| FCST-EC02-18 | Φ18.0 | 25±2.0 | 1.2±0.3 | Black&Red |
| FCST-EC02-20 | Φ20.0 | 25±2.0 | 1.2±0.3 | Black&Red |
| FCST-EC02-22 | Φ22.0 | 25±2.0 | 1.2±0.3 | Black&Red |
| FCST-EC02-25 | Φ25.0 | 25±2.0 | 1.5±0.5 | Black&Red |
| FCST-EC02-27 | Φ27.0 | 30±2.0 | 1.5±0.5 | Black&Red |
| FCST-EC02-32 | Φ32.0 | 30±2.0 | 1.5±0.5 | Black&Red |
| FCST-EC02-40 | Φ40.0 | 30±2.0 | 1.8±0.5 | Black&Red |
| FCST-EC02-45 | Φ45.0 | 40±2.0 | 1.8±0.5 | Black&Red |
| FCST-EC02-50 | Φ50.0 | 40±2.0 | 1.8±0.5 | Black&Red |
| FCST-EC02-55 | Φ55.0 | 40±2.0 | 1.8±0.5 | Black&Red |
| FCST-EC02-60 | Φ60.0 | 50±2.0 | 1.8±0.5 | Black&Red |
| FCST-EC02-65 | Φ65.0 | 50±2.0 | 1.8±0.5 | Customized |
| FCST-EC02-70 | Φ70.0 | 50±2.1 | 1.8±0.6 | Customized |
| FCST-EC02-75 | Φ75.0 | 50±2.2 | 1.8±0.7 | Customized |
| FCST-EC02-90 | Φ90.0 | 50±2.2 | 1.8±0.7 | Customized |
| FCST-EC02-115 | Φ115.0 | 50±2.3 | 1.8±0.8 | Customized |
| FCST-EC02-120 | Φ120.0 | 50±2.3 | 1.8±0.8 | Customized |
| FCST-EC02-140 | Φ140.0 | 50±2.3 | 1.8±0.8 | Customized |
*Note: Other size requirements can be contacted for docking sales.
