FCST02296
FCST
FCST02296
Product Overview

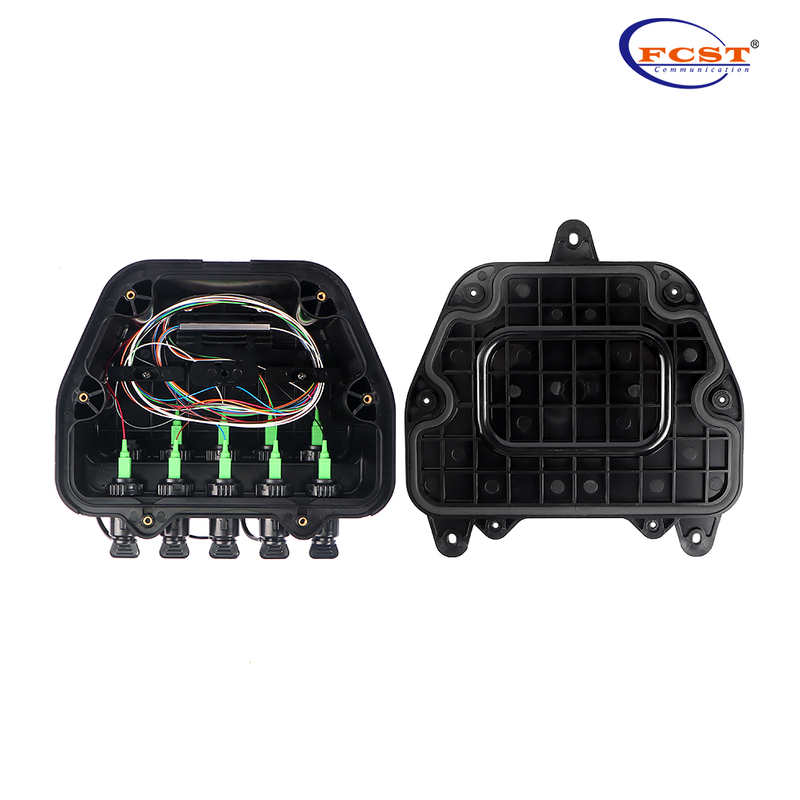

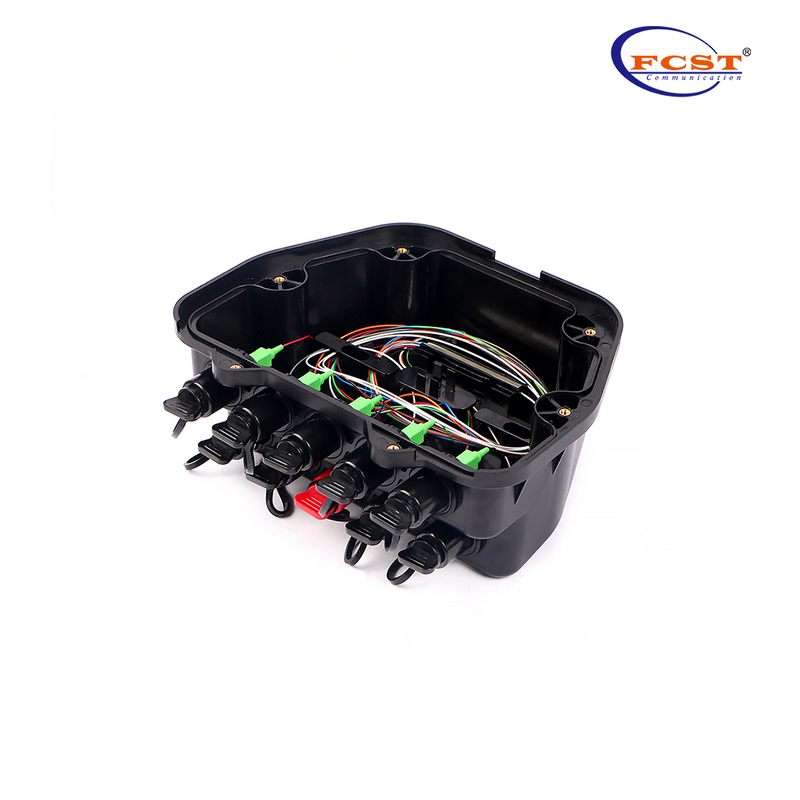

FCST02296 Fiber Access Terminal is able to hold up to 8 subscribers. Fiber Optic Fast Connect Drop Cable is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system. It integrates fiber splicing, splitting, storage and cable management in one solid protection box.
Product Advantages
l Advanced internal structure design, thus fiber suffering no attenuation.
l The box casing is made of industrial plastic PC+ABS material.
l Outdoor application and good UV resistant.

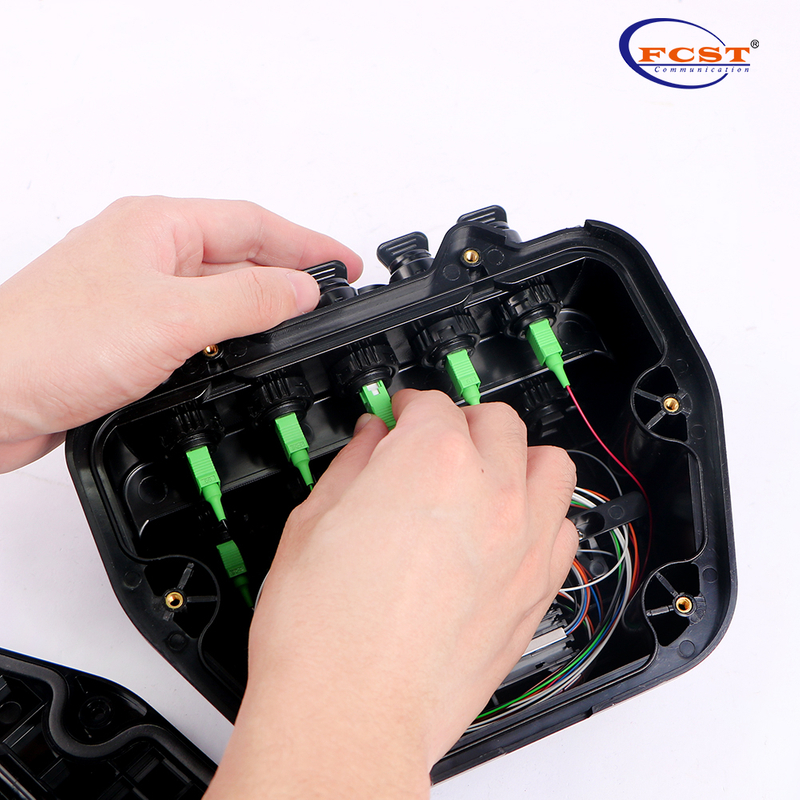

l Plug-and-play installation, easy for maintenance and expansion.

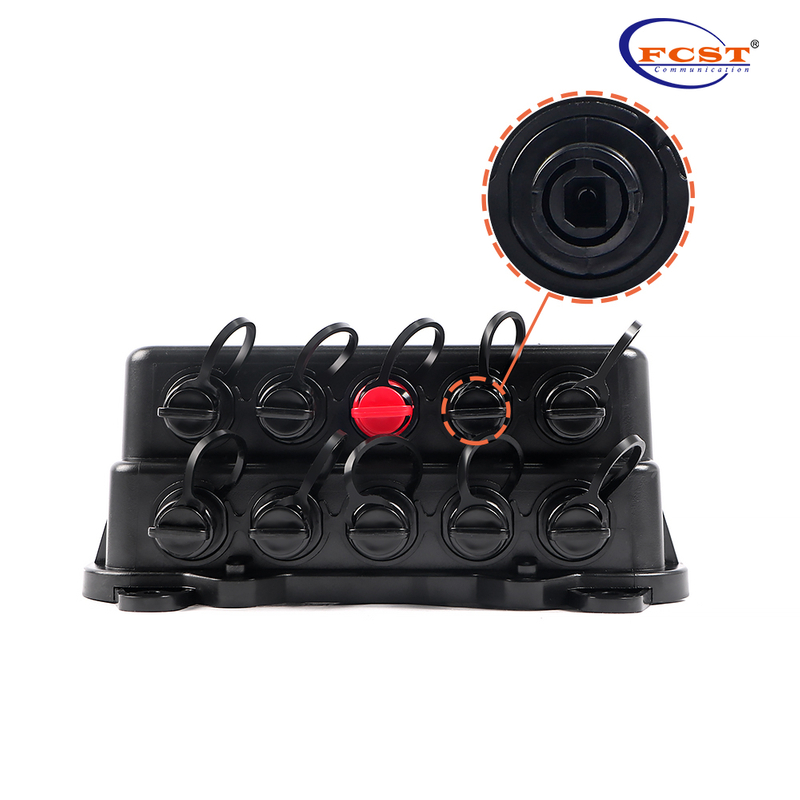

l 10 x reinforced adapters for drop cable with reinforced connectors.
l Compact design integrates distribution, splicing, splitting 3-in-1.
l Designated position for the placement of 1:2 and 1:8 PLC splitter.
l 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre- spliced with 1pcs of 1:8 PLC splitter input.
Product Specifications
Construction | Description |
Max. Capacity | Splice 4 Fibers(2 splice slots) |
PLC Splitter 1pcs 1x2(SC) + 1pcs 1x8(SC) | |
Material | PC+ABS |
Dimension (mm) | 210*204*88 |
Inlets/Outlets | 2/8 |
Reinforced Adapter | 10 pcs SC/UPC or SC/APC |
Net Weight（g） | 500 |
Protection Level | IP67 |
Color | Black |
Installation | Pole mounting,Strand mounting,Wall-mounting |
Impact Grade | IK10 |
Note：Use HUAWEI Hardened adapter，The Seal adapter of FCST02296 Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.
Standard Accessories
Wall mounted kits, fiber protective sleeves, cable protection tube, 10 x reinforced adapters SC/APC or SC/UPC(pre- installed).
Optional Accessories

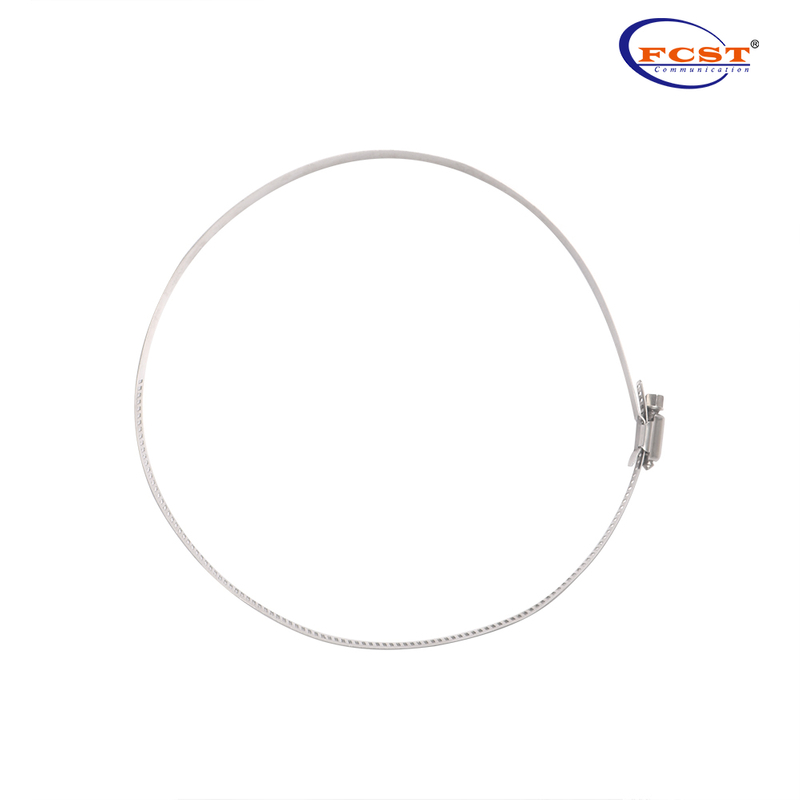

Pole mounted kits.
