FCST-MB77.0kHZ
FCST
FCST-MB77.0kHZ
10000
Product Overview

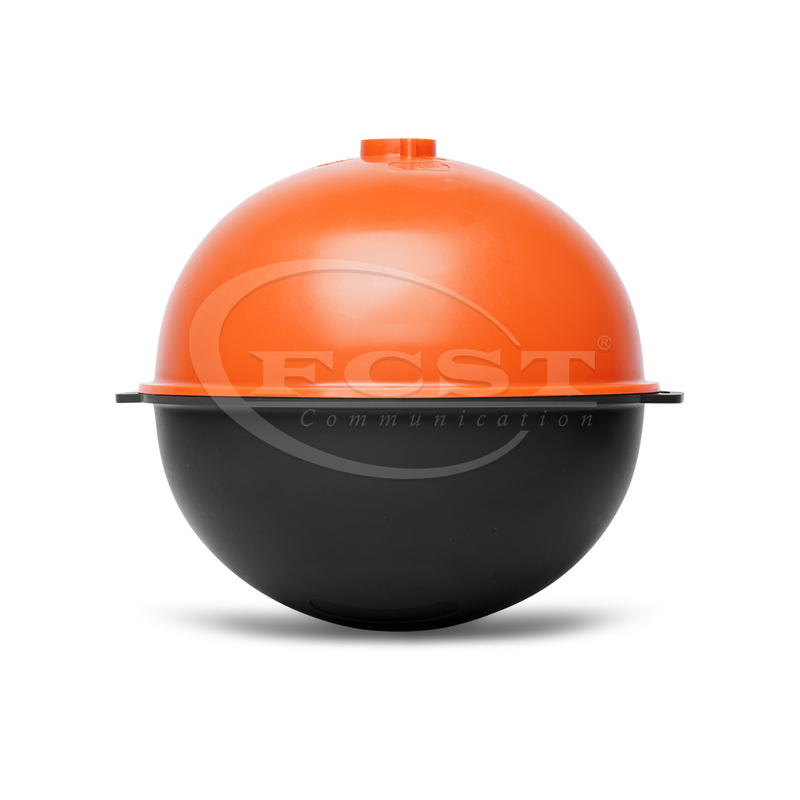

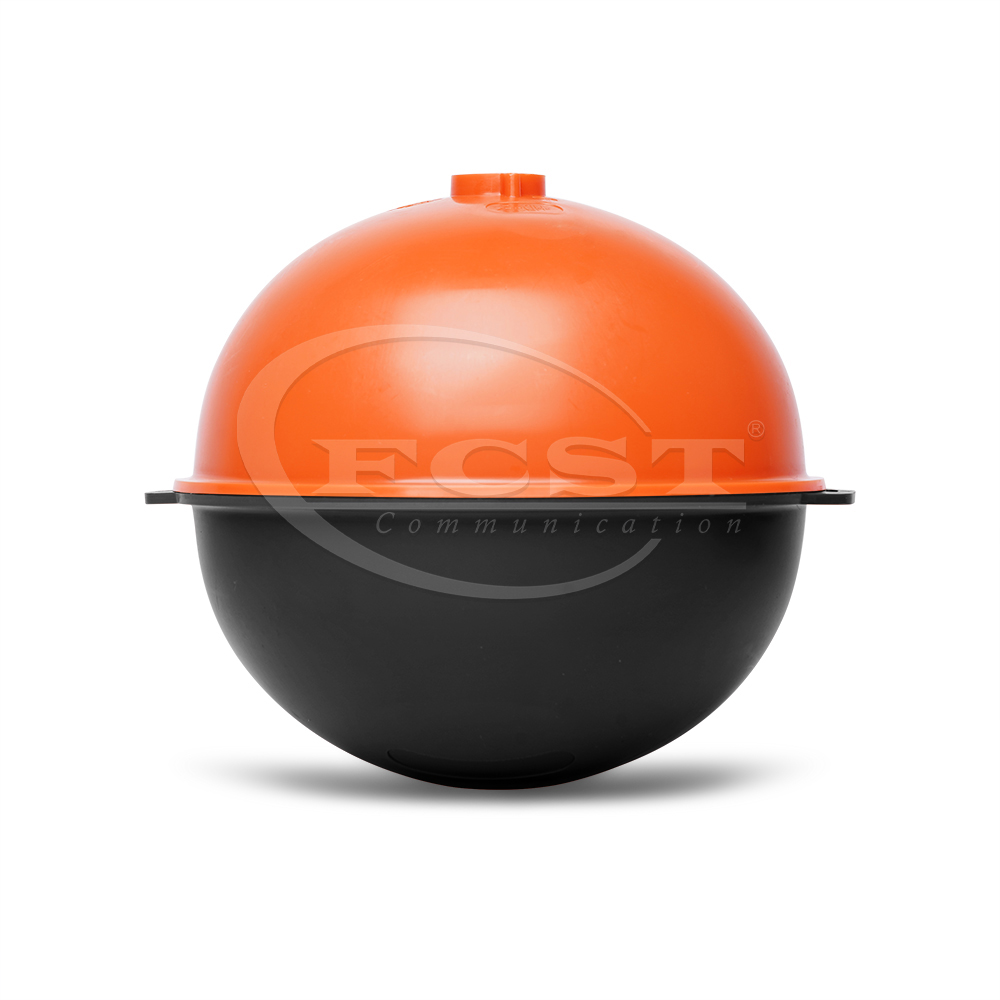

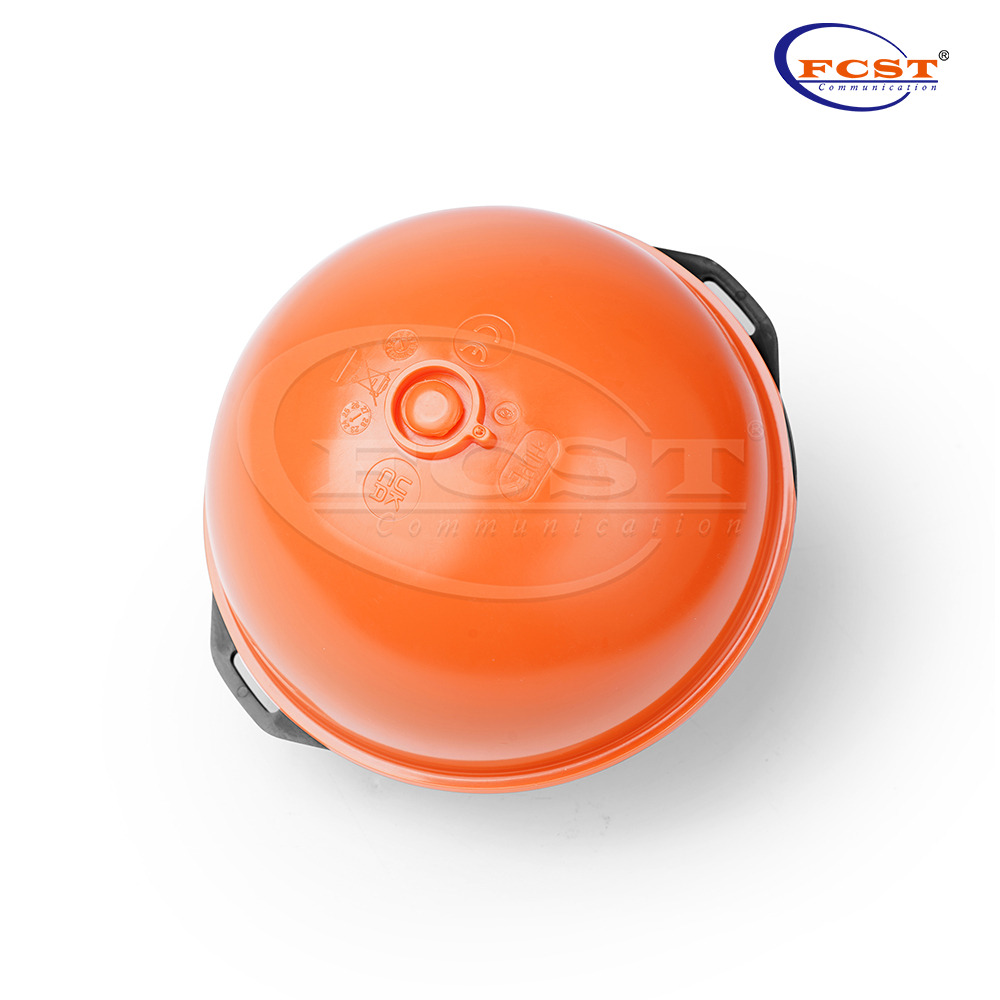

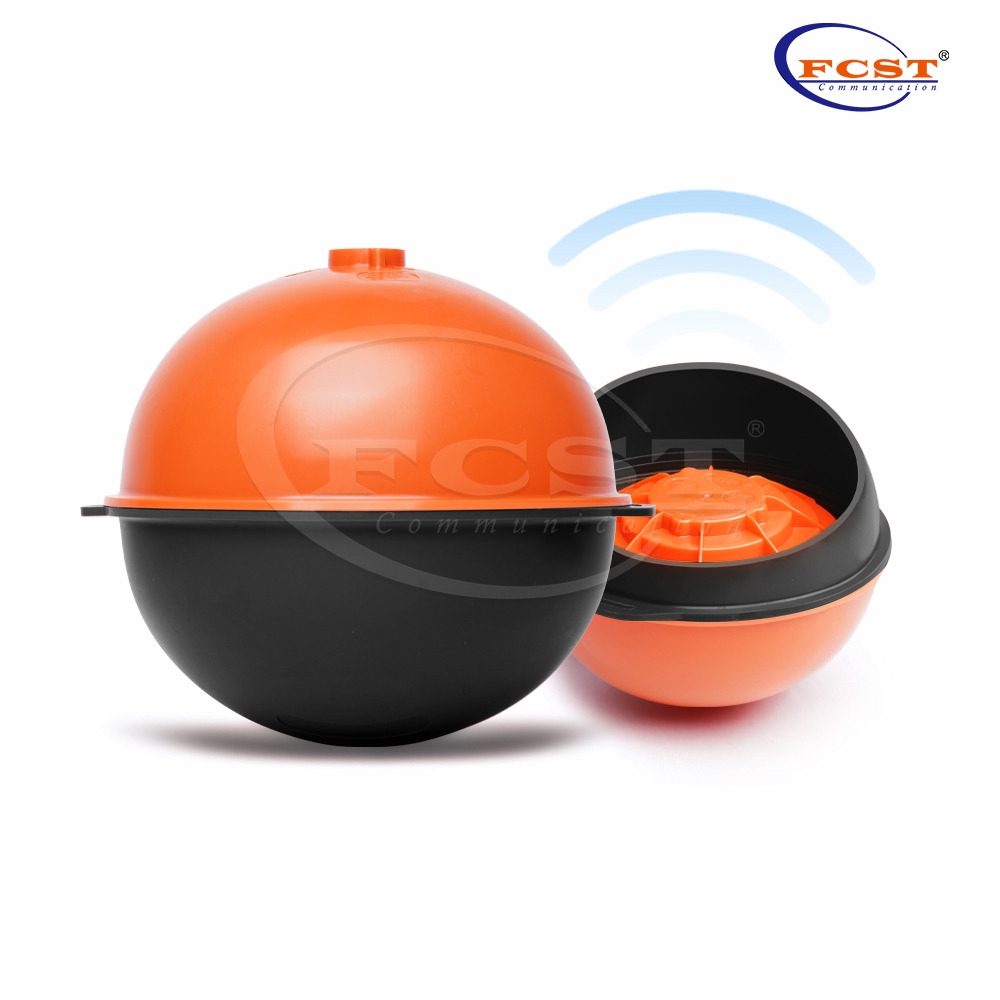

The Marker Ball is uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It can be selected as an underground pipeline positioning electronic marker without ID version or with ID version. The product supports multiple industry applications and multiple working frequency options, such as: Cable TV (77.0kHZ) etc
Product Advantages
No harmful fluid inside.
Detection range up to <1.5m.
High location precision marker ball.
For manholes or direct buried installation.
Self orientation RF reflector ensures best detection range and accuracy.
The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.
Product Specifications
Construction | Description |
Product Type | EX.ID version |
Frequency | 77.0kHZ |
Identification Depth | 1.5m |
Maximum Detectable Depth | 1.5 m (EX.ID version) |
Service life | 50 years |
Diameter | Φ120mm丨4.724in |
Height | 115mm丨4.528in |
Material | HDPE |
Weight | 0.4kg(±20g) |
Protection Level | IP68 |
Distance Between Two Marker Balls | Maximum distance 50 m |
Storage Temperature | -40℃ to +70 ℃ |
Operating Temperature | -45℃ to +60 ℃ |
Drop Test | Can withstand a 1.5m drop to the concrete floor |
Stress Resistance | Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function |
Detector Compatibility | EX.ID version: ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |

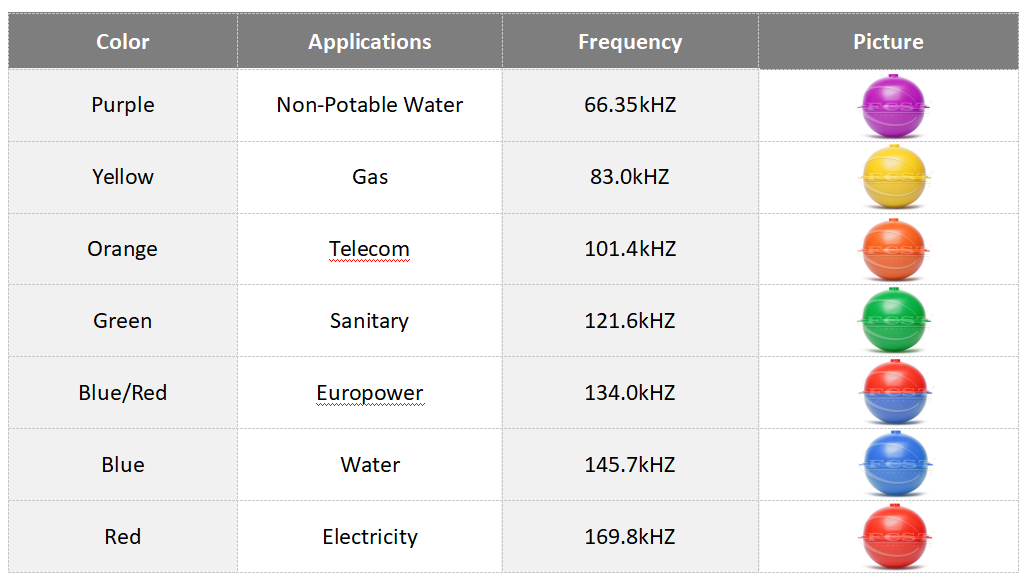

Ordering Information

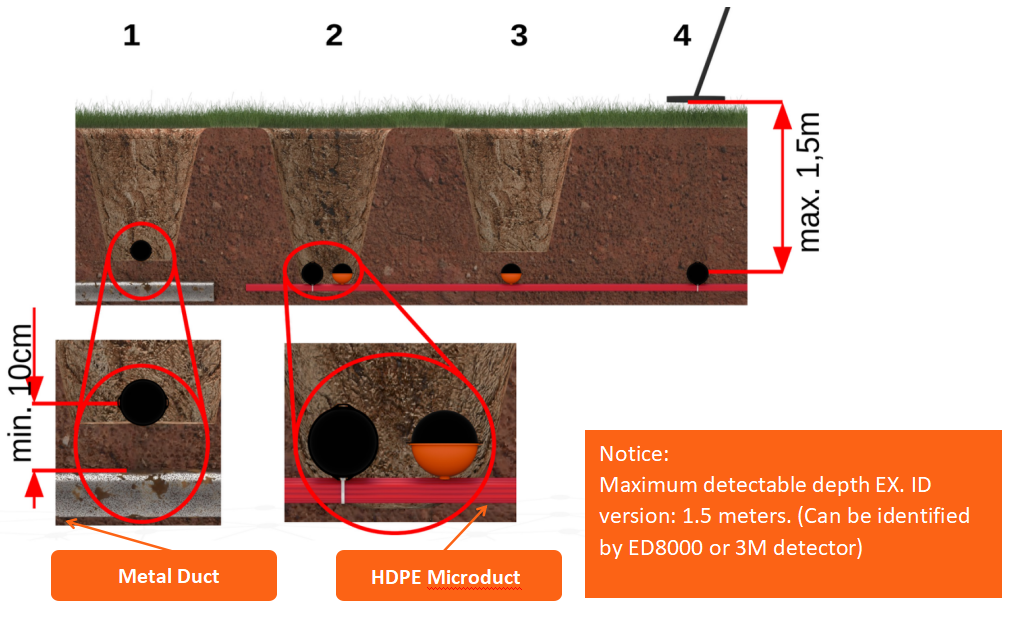

Product Applications

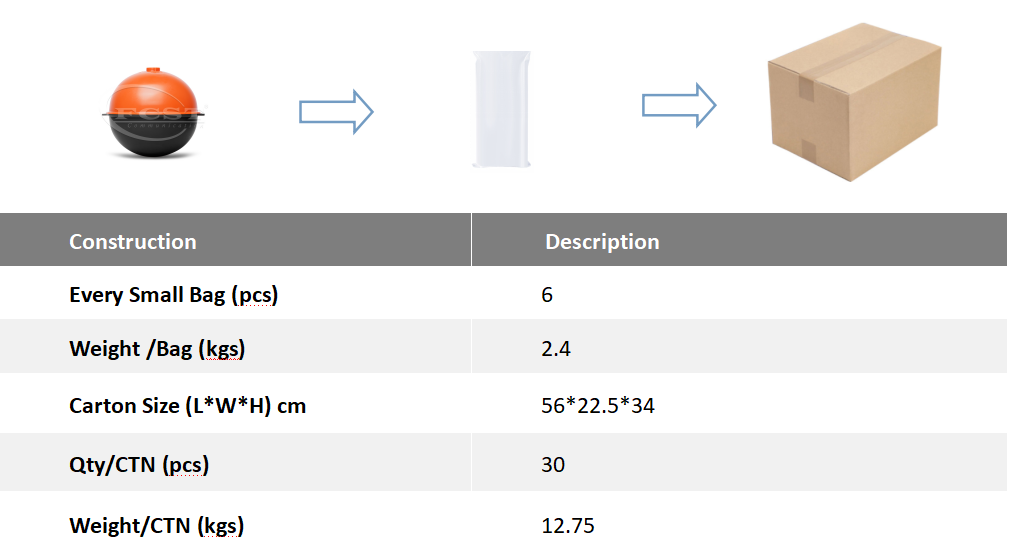

Packing Information
Related Products
Product Overview
The Marker Ball is uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It can be selected as an underground pipeline positioning electronic marker without ID version or with ID version. The product supports multiple industry applications and multiple working frequency options, such as: Cable TV (77.0kHZ) etc
Product Advantages
No harmful fluid inside.
Detection range up to <1.5m.
High location precision marker ball.
For manholes or direct buried installation.
Self orientation RF reflector ensures best detection range and accuracy.
The induction coil is suspended on the built-in antifreeze and can be kept horizontally upward.
Product Specifications
Construction | Description |
Product Type | EX.ID version |
Frequency | 77.0kHZ |
Identification Depth | 1.5m |
Maximum Detectable Depth | 1.5 m (EX.ID version) |
Service life | 50 years |
Diameter | Φ120mm丨4.724in |
Height | 115mm丨4.528in |
Material | HDPE |
Weight | 0.4kg(±20g) |
Protection Level | IP68 |
Distance Between Two Marker Balls | Maximum distance 50 m |
Storage Temperature | -40℃ to +70 ℃ |
Operating Temperature | -45℃ to +60 ℃ |
Drop Test | Can withstand a 1.5m drop to the concrete floor |
Stress Resistance | Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function |
Detector Compatibility | EX.ID version: ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |
Ordering Information

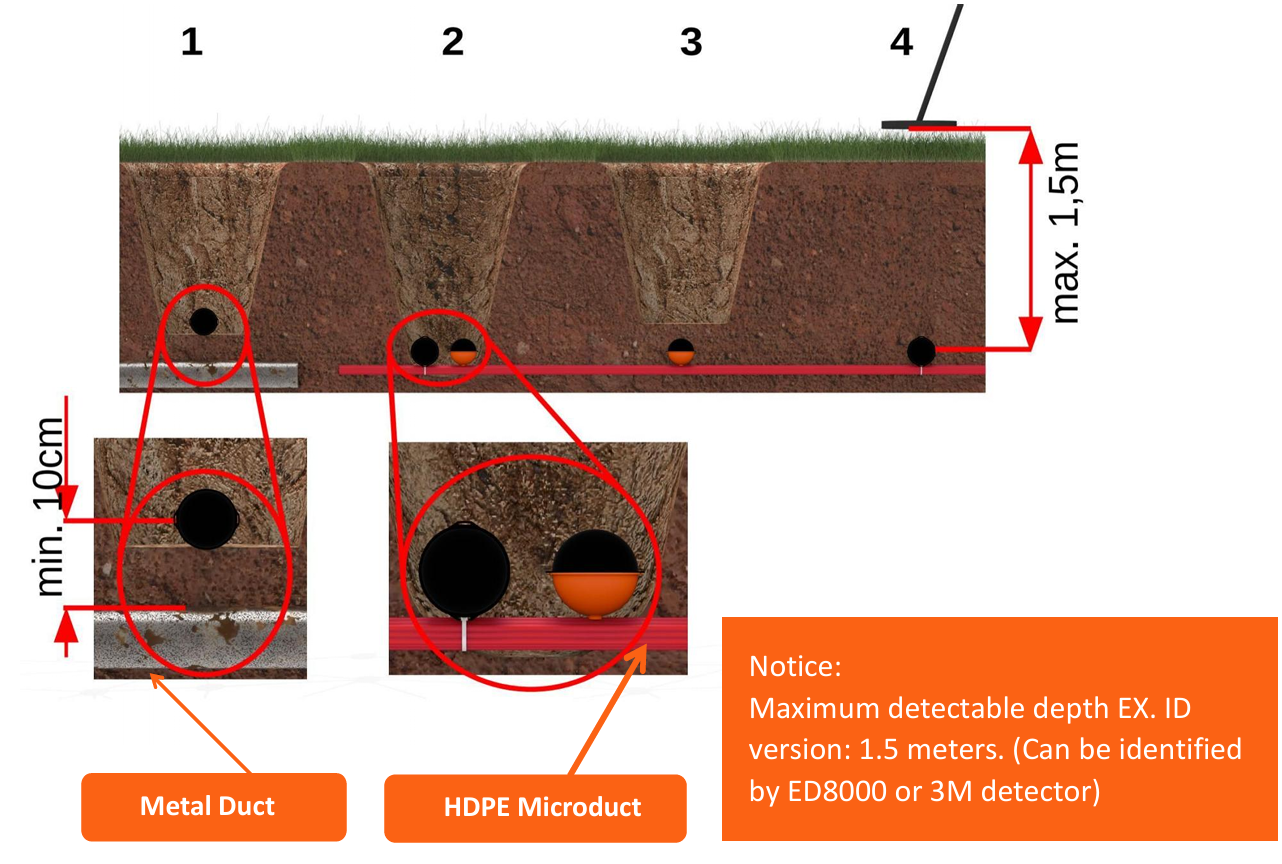

Product Applications
