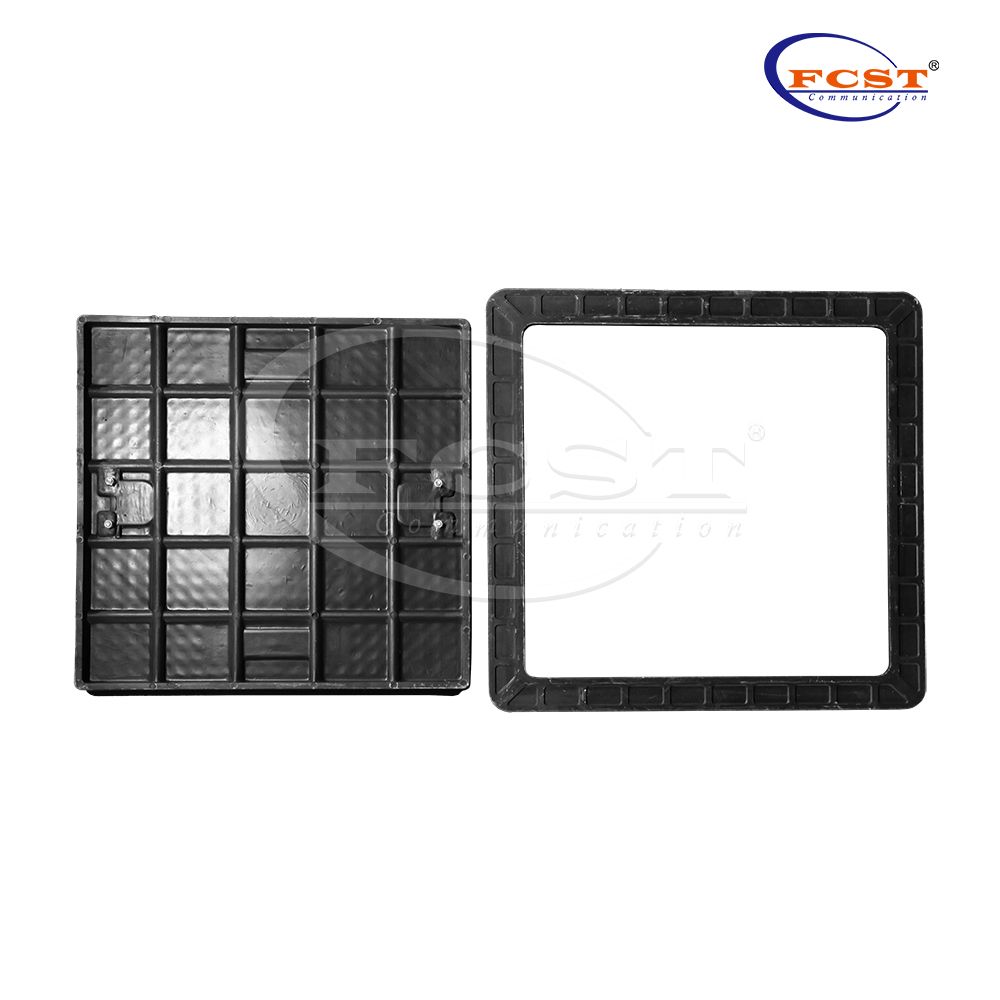

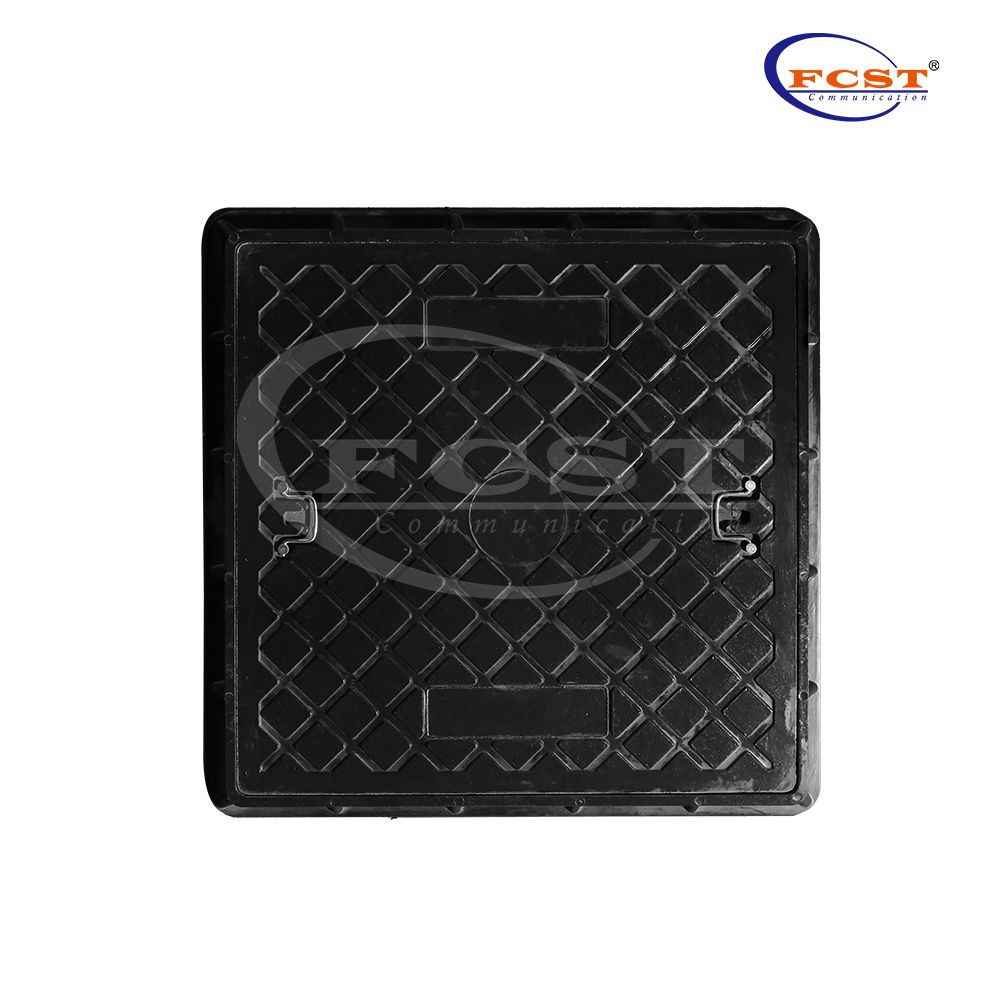

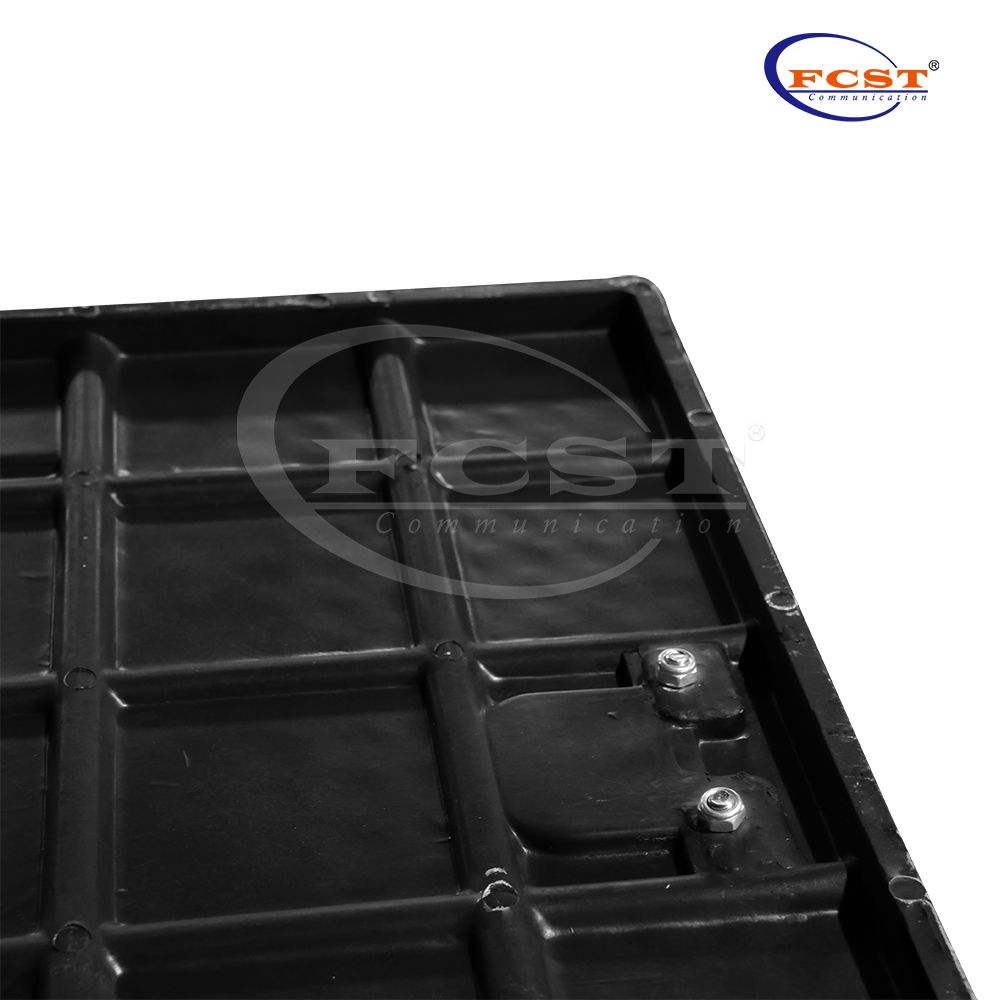

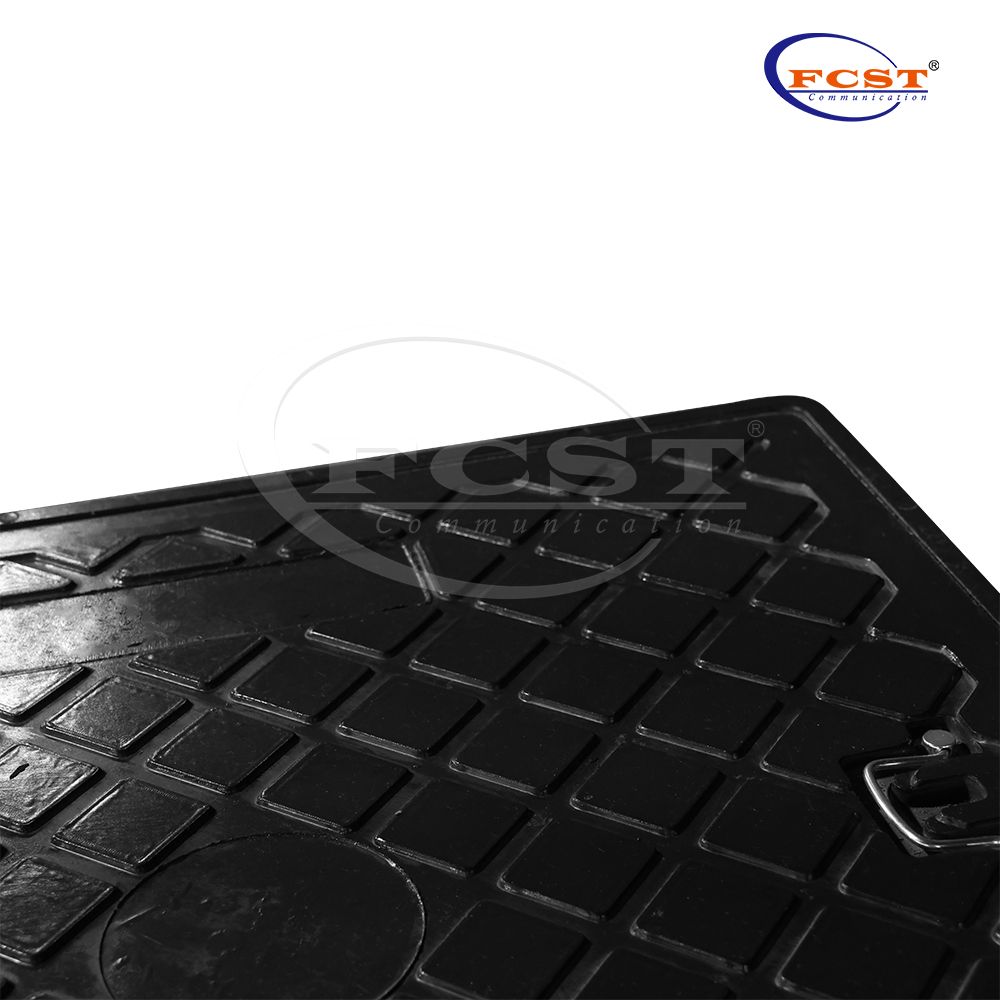

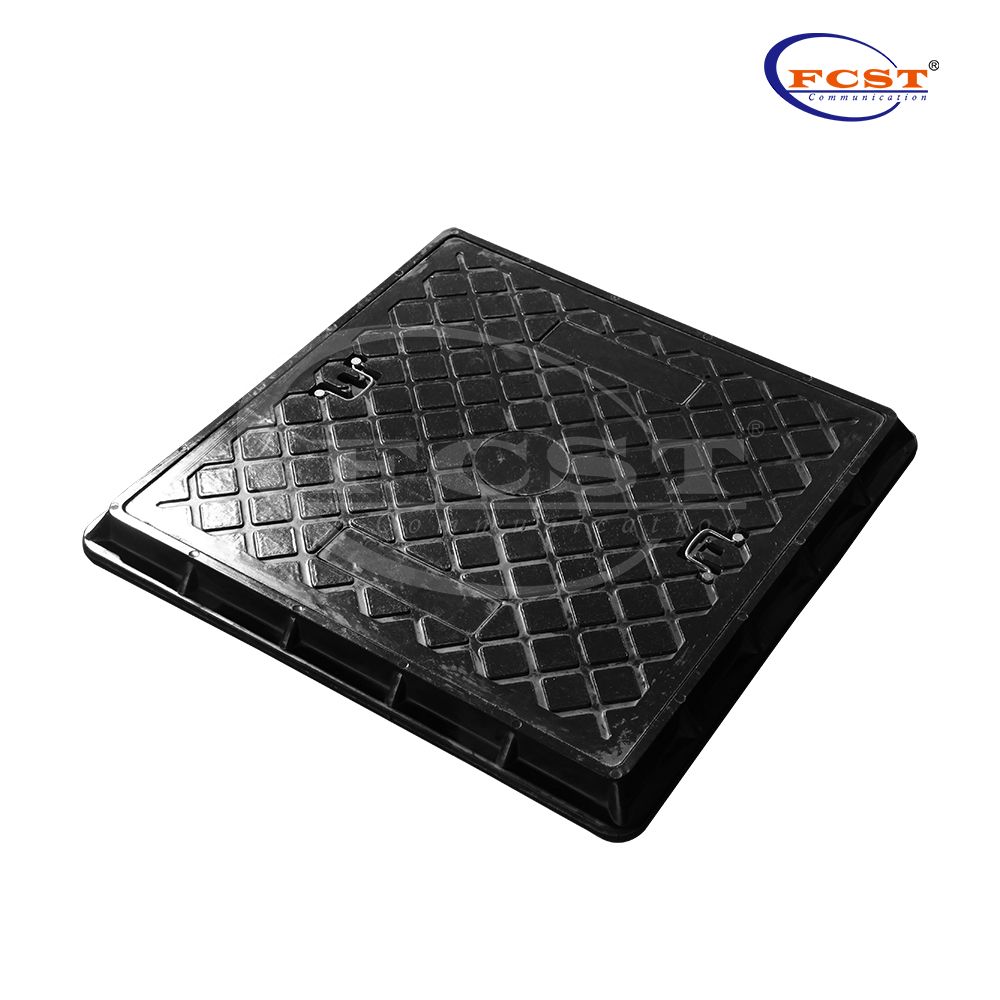

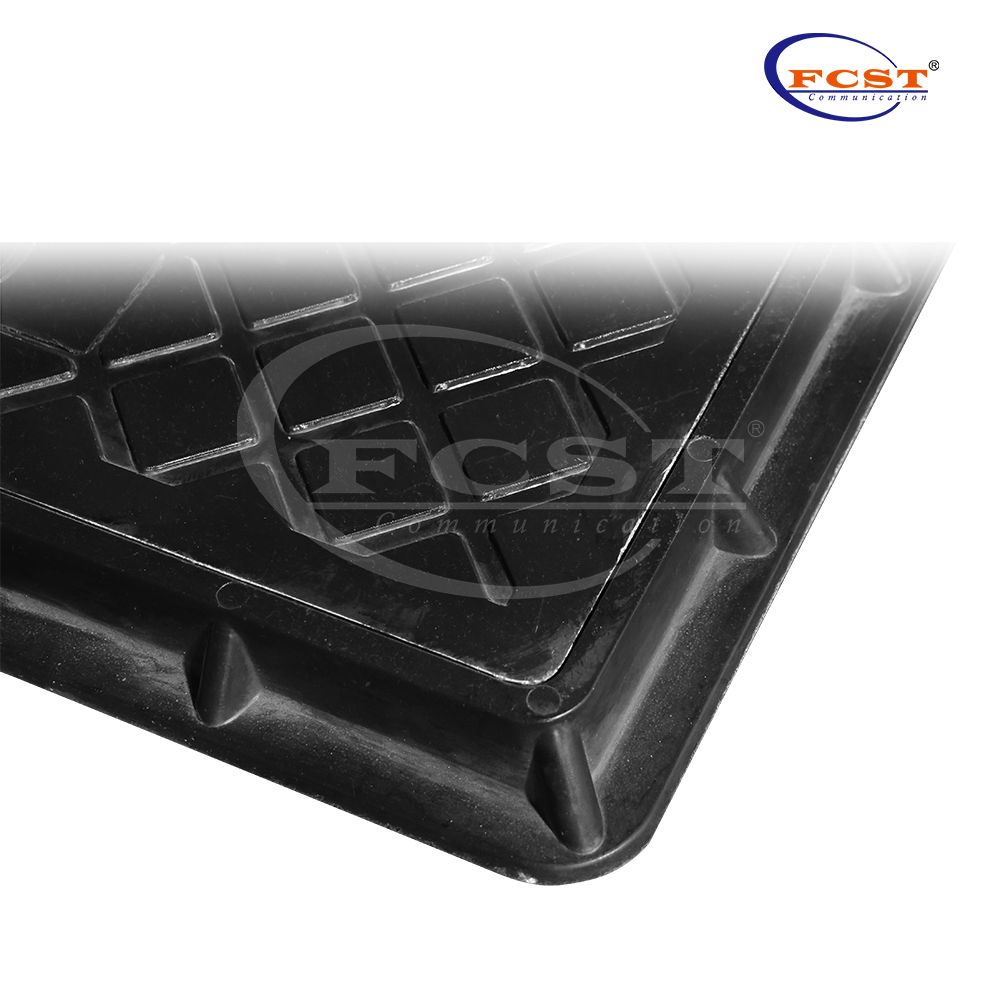

Pedestrian 655x655mm BMC Square Manhole Cover & Frame

- BMC material.
Customized services.
655x655mm (25.787") clear opening.
The load capacity can reach 0.3-0.5T.
Lightweight & Easy Installation: Save labor and install quickly on site.

Availability:



Get a Quote Add to Quote Cart

Model:
FCST-Pedestrian-655x655mm
Brand:
FCST
Code:
FCST-Pedestrian-655x655mm
MOQ:
100

Product Description

Product Overview

FCST-Pedestrian-655x655mm BMC Square Manhole Cover & Frame the manhole seat and the manhole cover consist of BMC composite materials,The load capacity can reach 0.3-0.5T,Suitable for areas without vehicle traffic, such as green belts, parks, sidewalks, and non-motorized vehicle lanes.

Product Advantages

- BMC material.

- Customized services.

- 655x655mm (25.787") clear opening.

- The load capacity can reach 0.3-0.5T.

- Lightweight & Easy Installation: Save labor and install quickly on site.

Product Specifications

Construction	Description
Material	BMC
Total Weight	32.2kg
UV Resistance	Yes
Color	Black / Grey (Customizable)
Cover
Load Rating	Pedestrian (0.3-0.5T)
*Cover Dimension (LWH*)	70070040mm丨27.55927.5591.575in
*Cover Diameter (LW**)	700700mm丨27.55927.559in
Frame
Frame *Dimension (LWH*)	80080060mm丨31.49631.4962.362in
Frame Outer *Diameter (LW)**	800800mm丨31.49631.496in
Clear Opening	655mm丨25.787in
