FCST-ERS42.2(1 1/4,SDR11)
FCST
FCST-ERS42.2(1 1/4,SDR11)
Product Overview
FCST-ERS Push Fit Duct Coupler,Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design.Simply push the duct ends into the coupler for a locked and air-sealed assembly. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
Product Advantages
Compatible with 25/30/32/50mm pipes.
Pre-lubricated O-ring is water-tight and air-tight.
Suitable for both cable pulling & jetting applications.
Self-locking ring design assembles in seconds and is re-enterable.
Simple, one person 'push-on' assembly lowers installation costs.
High strength molded plastic body is ideal for buried duct applications.
The visual confirmation of the pipe within the coupler ensures that it has been properly seated at the center stop.
Product Specifications
| Construction | Description |
| Material | PP |
| Reference Standard | JT/T496-2004、Q/KL020-2005 |
| Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
| Tensile Resistance(Under Tightened State) | ≥4300N |
| Weight(g) | 102.3g(32mm) |
| High Temperature Resistance | -40℃~+65℃ |

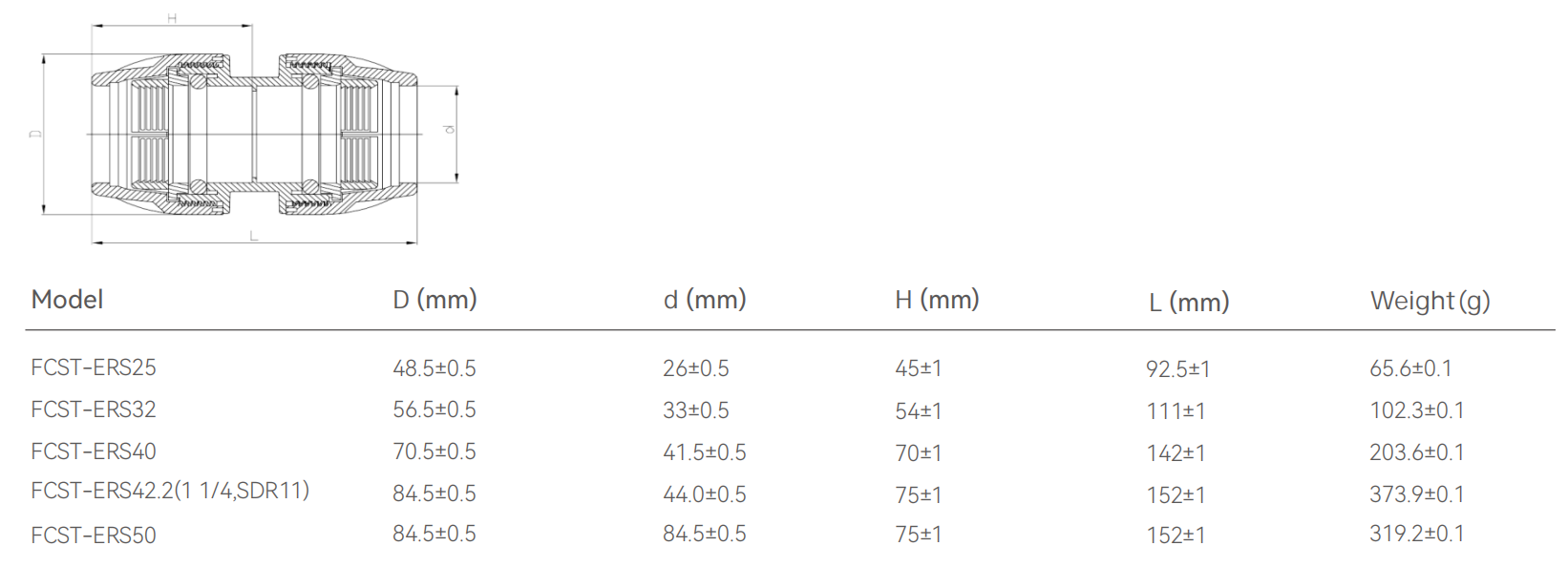

Ordering Information
Q&A
1.What is the production capacity of push-fit coupler for 1.25" conduit?
14/10mm
Daily production capacity: 23,000 pcs.
Monthly production capacity: 780,000 pcs.
2.How many production facilities and employees does FCST have?
1.Factory area: 12,000 square meters.
2.Number of employees: 150 people.
3.High-speed punching machines: 10 sets.
4.Plastic injection molding machines: 43 sets.
5.Sealing ring compression molding machines: 4 sets.
6.CNC machine tools: 60 sets.
7.Automated parts assembly production lines: 40 sets.
8.Manual assembly presses: 20 sets.
9.Semi-automated Microduct Connector assembly machines: 2 sets.
10.Product testing equipment: 10 sets.
3.Which parts of Push Lock Conduit Coupler 1-1/4" can be customized in color?
Customizable Parts:Retaining Ring,Spring Sleeve,Release Sleeve,Locking Clip
Customizable Color: The colors can refer to RAL color card and PANTONE color card.
4.What processes are required for customizing HDPE Push-Lock Comfit Couplers 1-1/4"?
5.What environmental certifications do db microduct connector comply with?
Rhos、Reach
