Product Overview

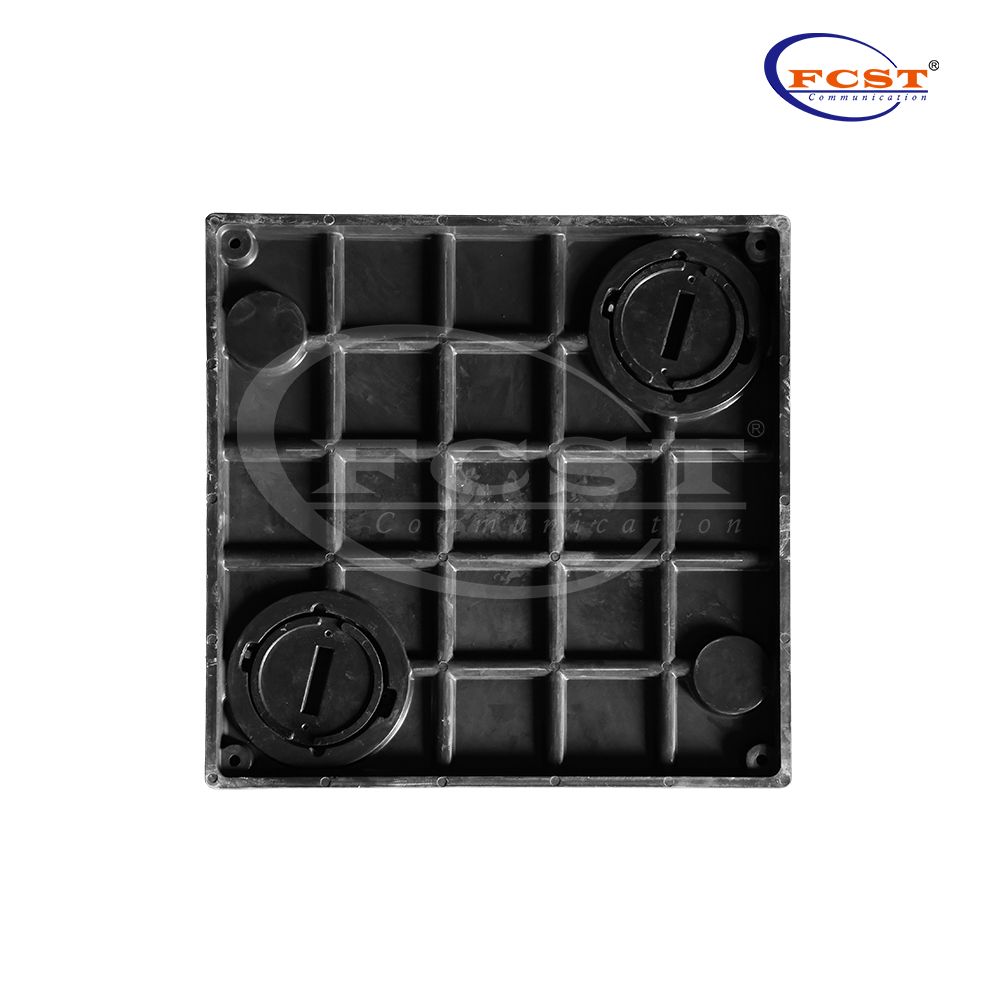

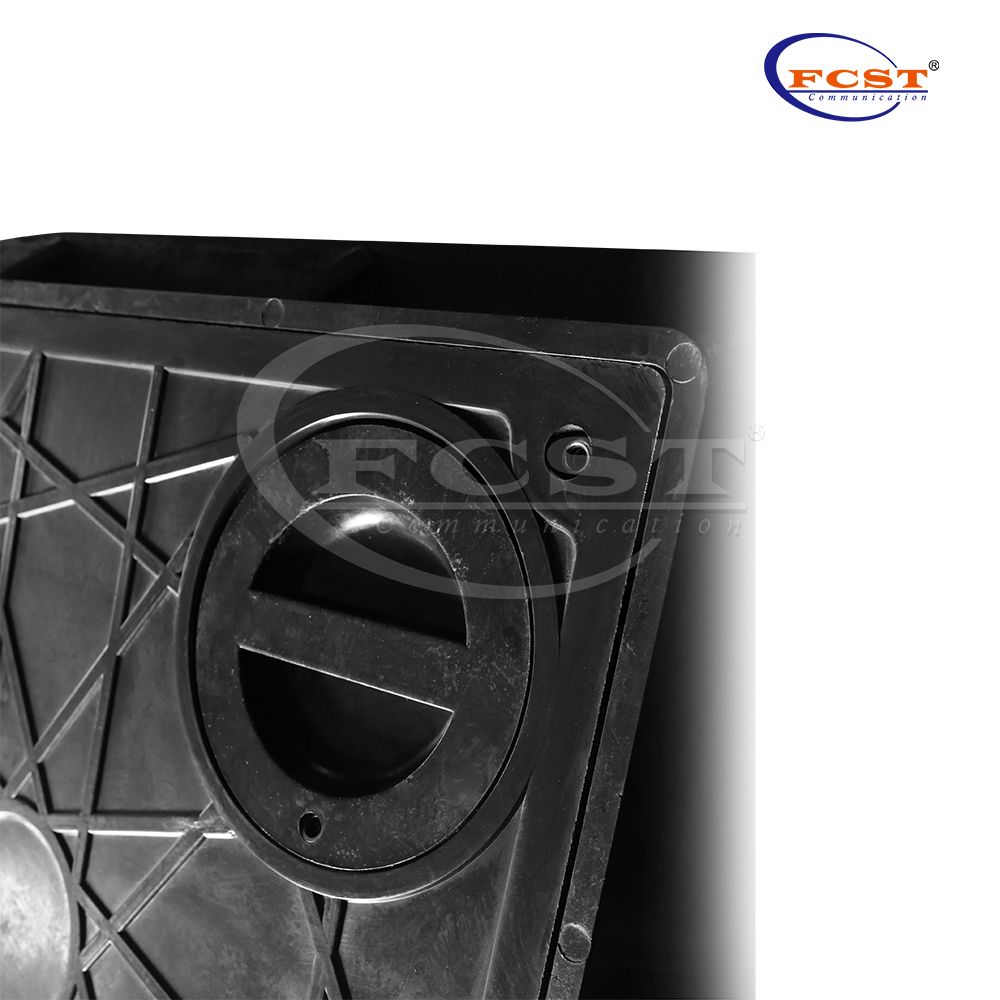

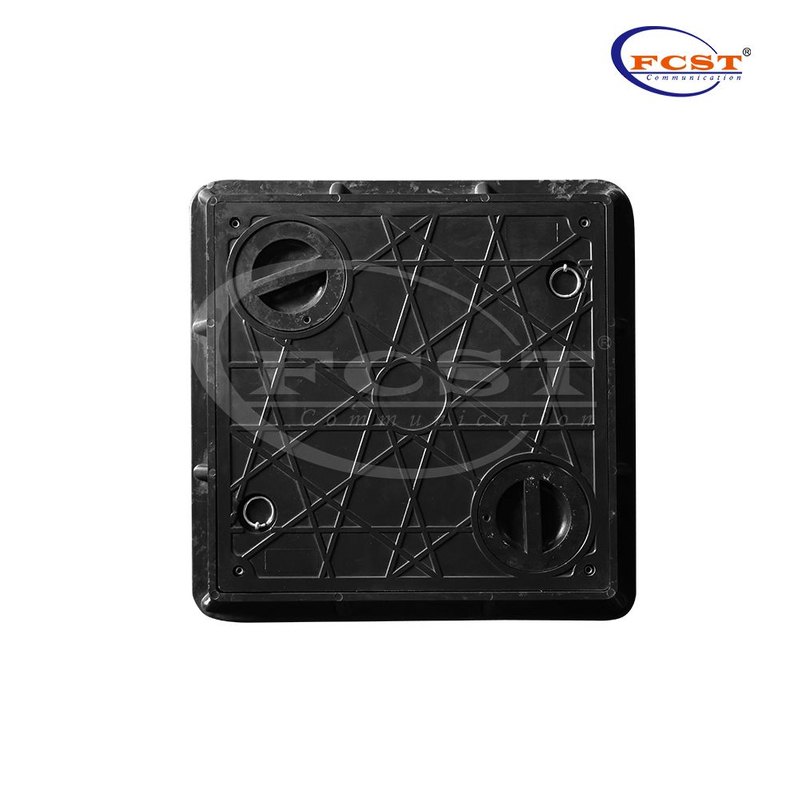

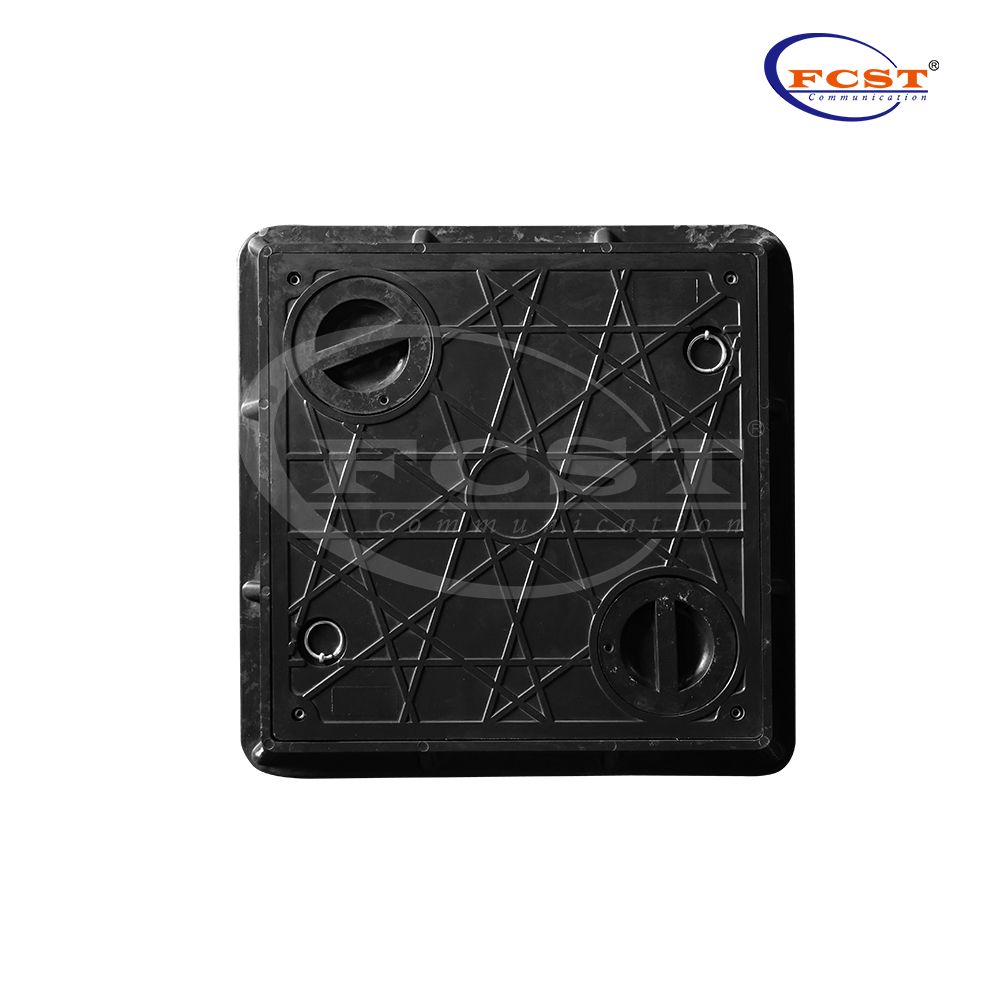

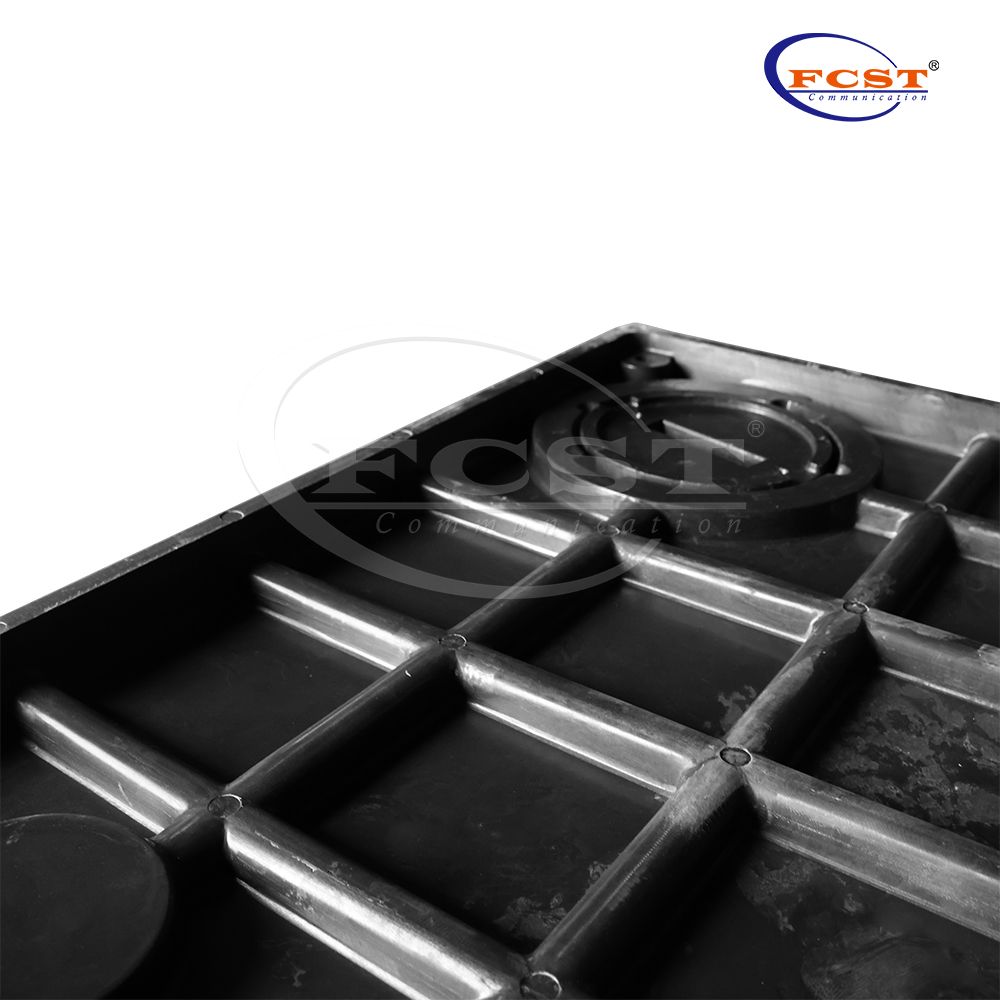

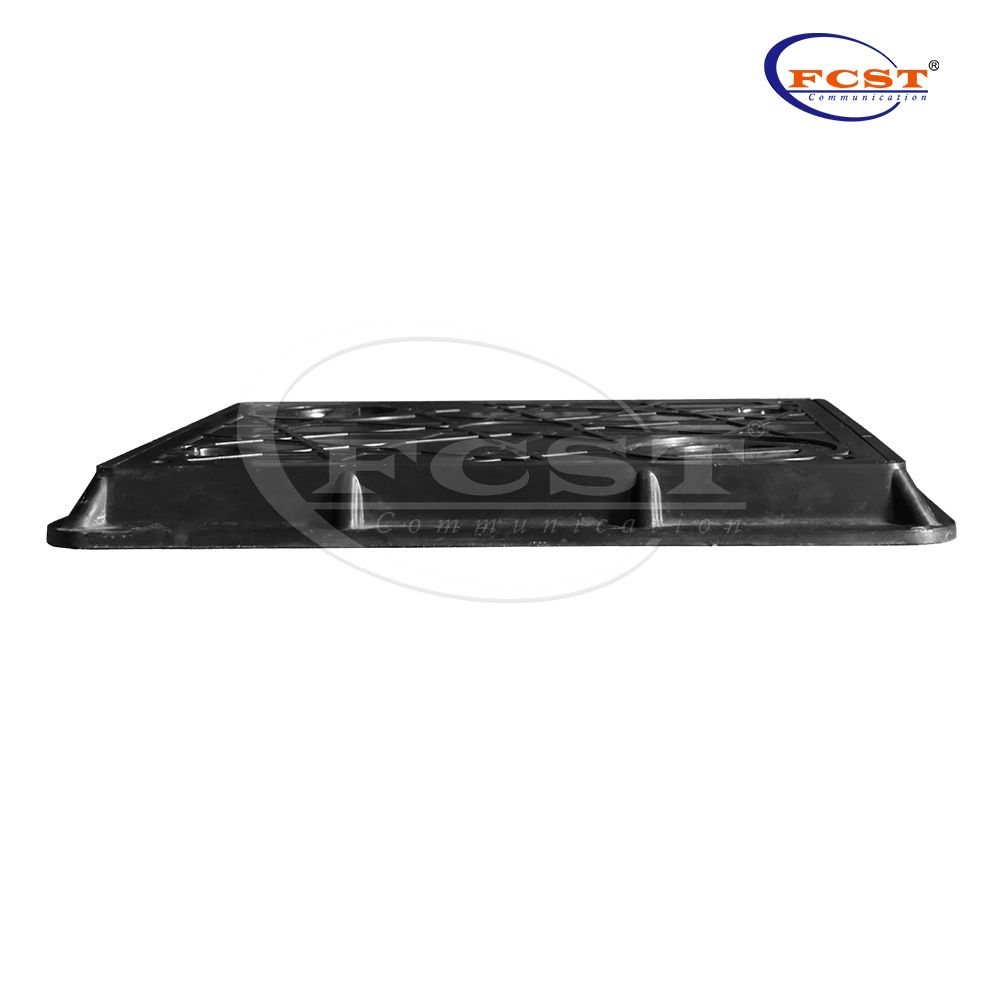

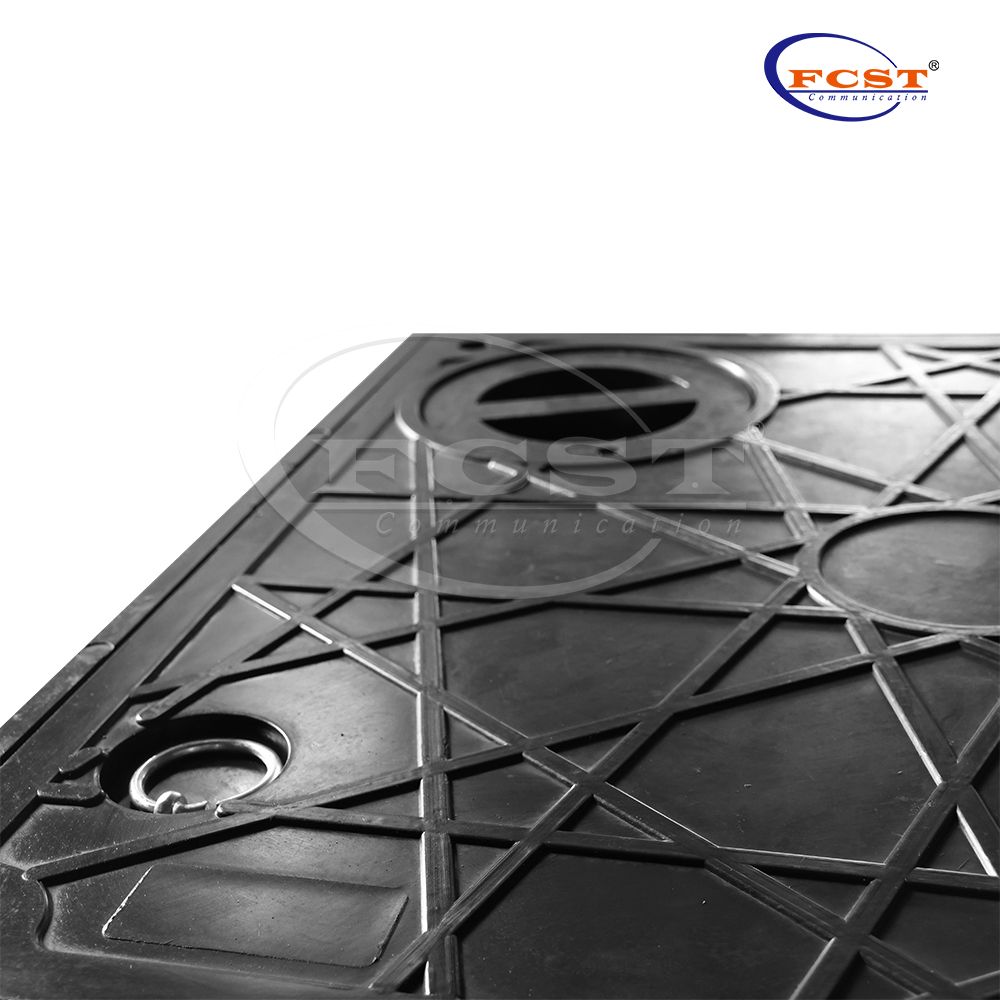

FCST-Pedestrian-565x565mm Double Opening BMC Square Manhole Cover & Frame the manhole seat and the manhole cover consist of BMC composite materials,The load capacity can reach 0.3-0.5T,Suitable for areas without vehicle traffic, such as green belts, parks, sidewalks, and non-motorized vehicle lanes.
Product Advantages
- BMC material.
- Customized services.
- 565x565mm (22.244") clear opening.
- The load capacity can reach 0.3-0.5T.
- Lightweight & Easy Installation: Save labor and install quickly on site.
Product Specifications
Construction | Description |
Material | BMC |
Total Weight | 20.9kg |
UV Resistance | Yes |
Color | Black / Grey (Customizable) |
Cover | |
Load Rating | Pedestrian (0.3-0.5T) |
Cover Dimension (L*W*H) | 600*600*40mm丨23.622*23.622*1.575in |
Cover Diameter (L*W) | 600*600mm丨23.622*23.622in |
Frame | |
Frame Dimension (L*W*H) | 700*700*60mm丨27.559*27.559*2.362in |
Frame Outer Diameter (L*W) | 700*700mm丨27.559*27.559in |
Clear Opening | 565mm丨22.244in |

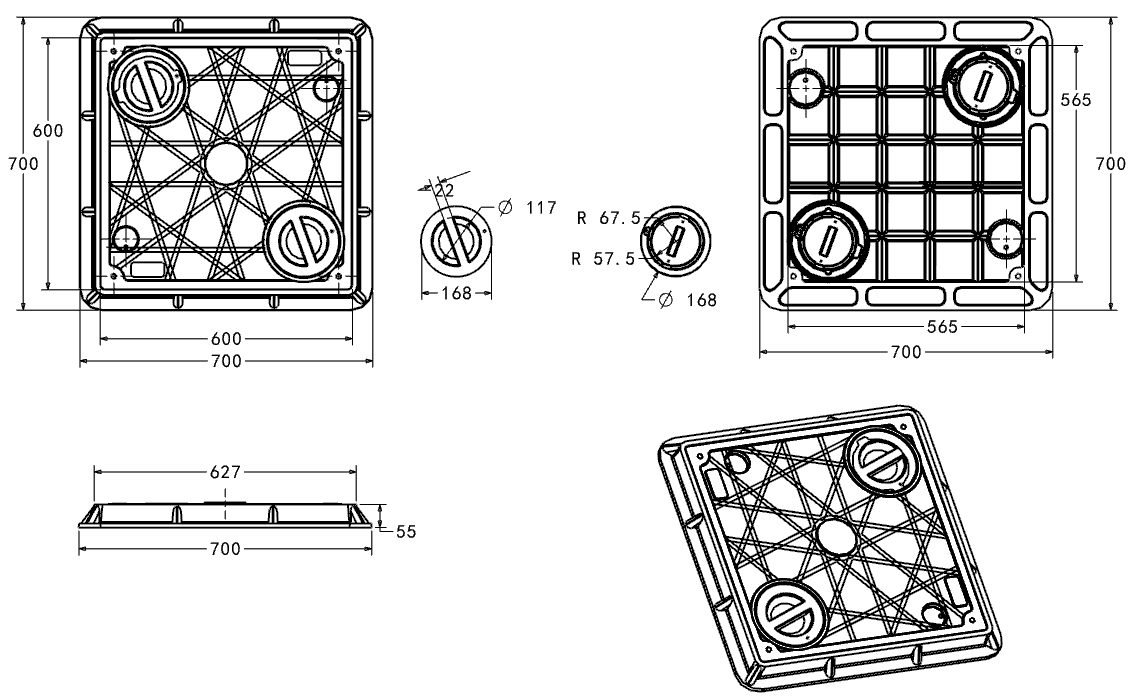

Product Size
