FCST-CR120-ELB90 120mm 90° Horizontal Elbow of Fiber Raceway Corner Connector

Product Overview

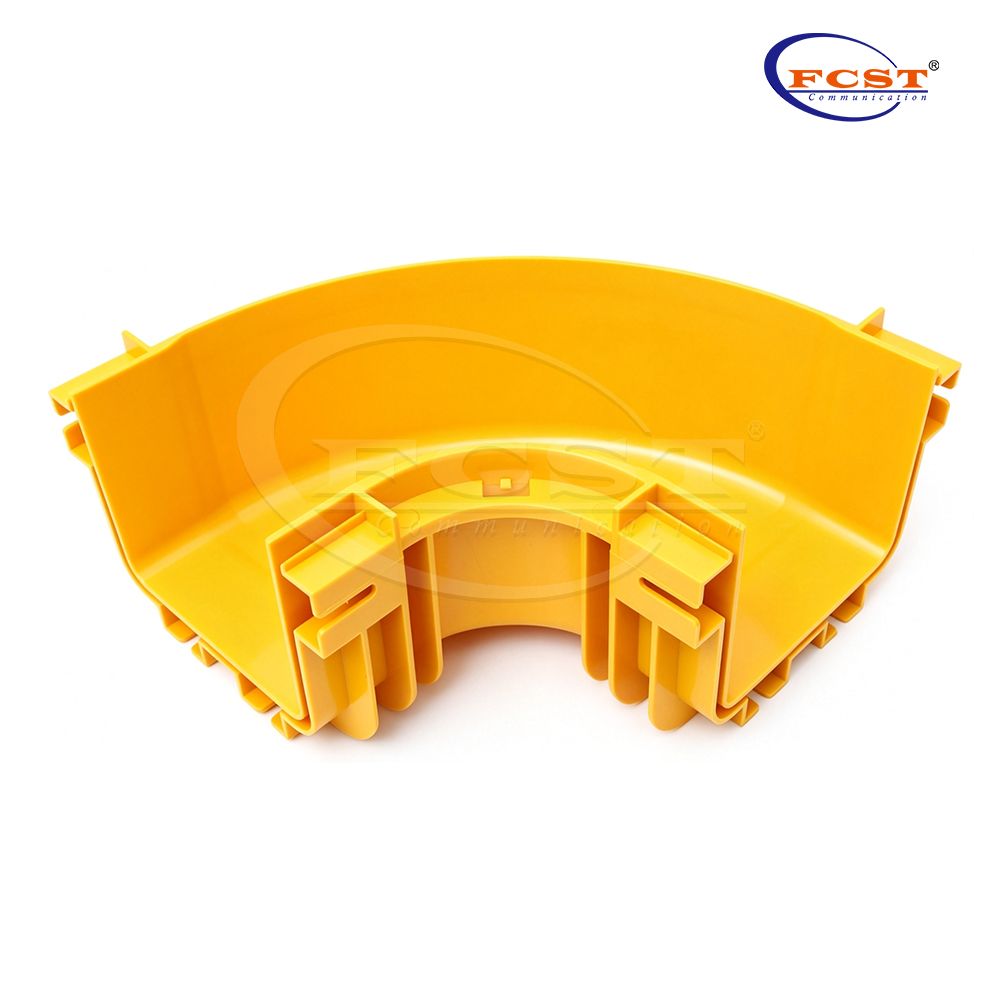

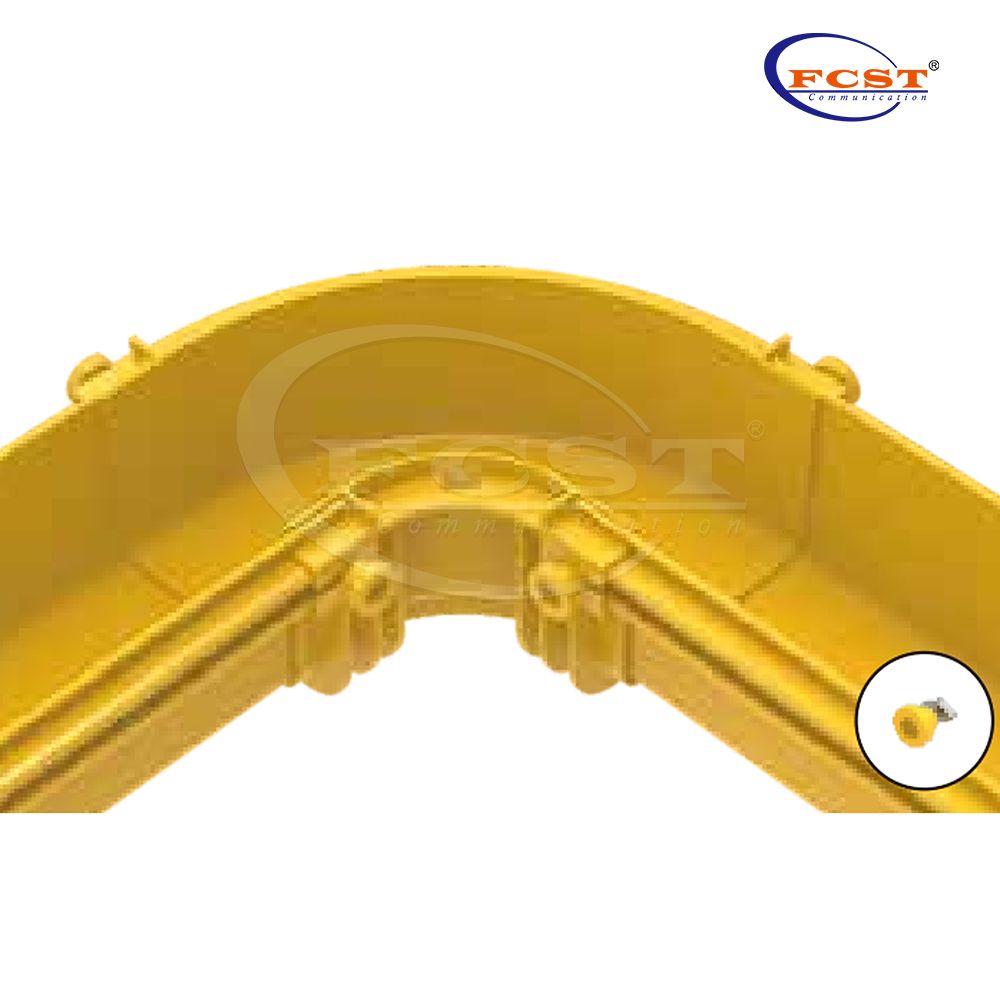

The FCST-CR120-ELB90 is a 90° horizontal elbow for 120mm fiber optic raceway systems. It connects straight raceway sections at corners, allowing fiber cables to change direction within the horizontal plane. The elbow is made of ABS, meets UL94-V0 flame-retardant requirements, and features a smooth inner curve to guide cables without sharp edges. It is a key component for building rectangular or L-shaped fiber routing loops in data centers and equipment rooms.

Key Features

• 90° horizontal turn – Enables direction changes within the horizontal plane of a 120mm fiber raceway system.

• Smooth inner curve – Free of sharp edges to guide fiber cables without abrupt bends.

• Flush, seamless connection – Designed to fit securely with straight raceway sections and help prevent cables from slipping out at the joint.

• UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.

• Corner and loop construction – Supports rectangular or L-shaped routing layouts.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• 90° horizontal corner connections in 120mm fiber raceway systems

• Data center fiber routing above cabinets or between racks

• Equipment room fiber cable management

• Rectangular or L-shaped fiber routing loops

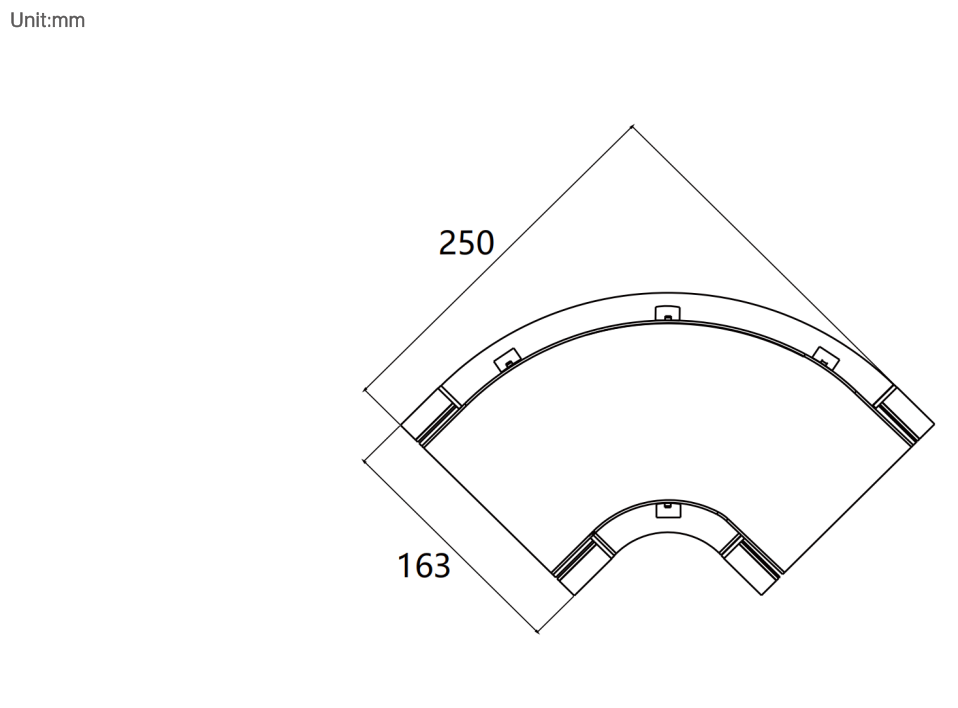

Product Structure

FAQ

Q1: What is the FCST-CR120-ELB90 used for?

A: It is a 90° horizontal elbow used to connect straight sections of 120mm fiber raceway at corners, allowing fiber cables to change direction within the horizontal plane.

Q2: What material is the elbow made of?

A: It is made of ABS with a V0 flame-retardant rating.

Q3: Does the elbow protect fiber cables at the corner?

A: The inner curve is free of sharp edges, providing smooth physical guidance. The flush, seamless fit with straight raceway sections helps prevent cables from slipping out at the joint.

Q4: How is it packaged?

A: The specified packaging is 16PCS/CNT 8.8KG. 16 × 550g matches the stated carton weight.
