FCST-CR120-CRS
FCST
FCST-CR120-CRS
100

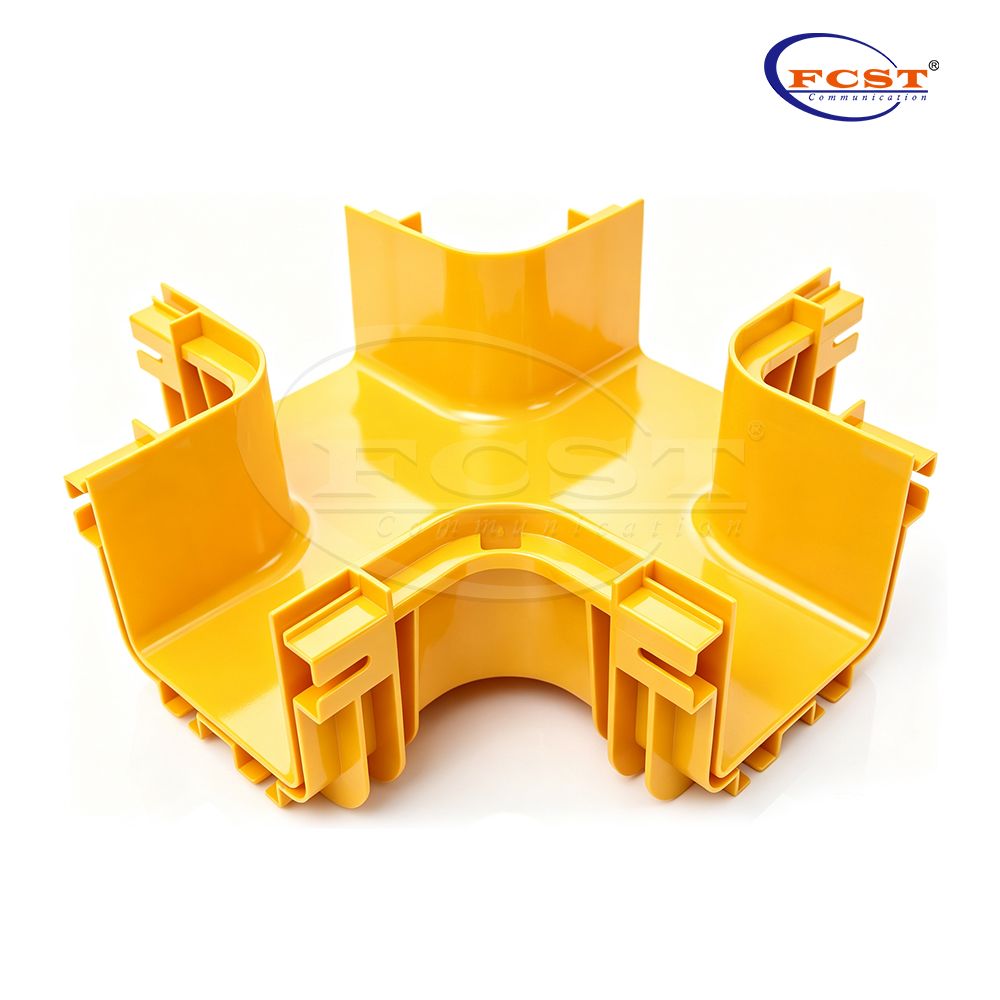

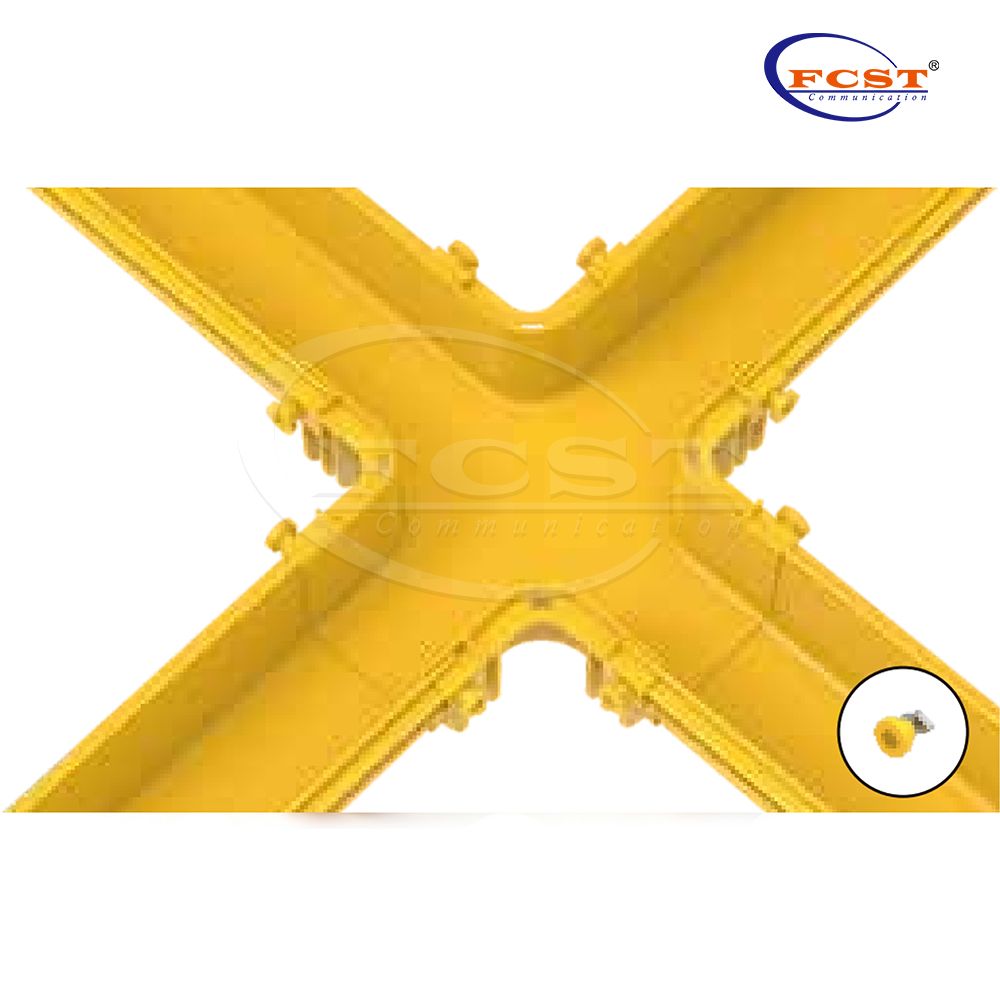

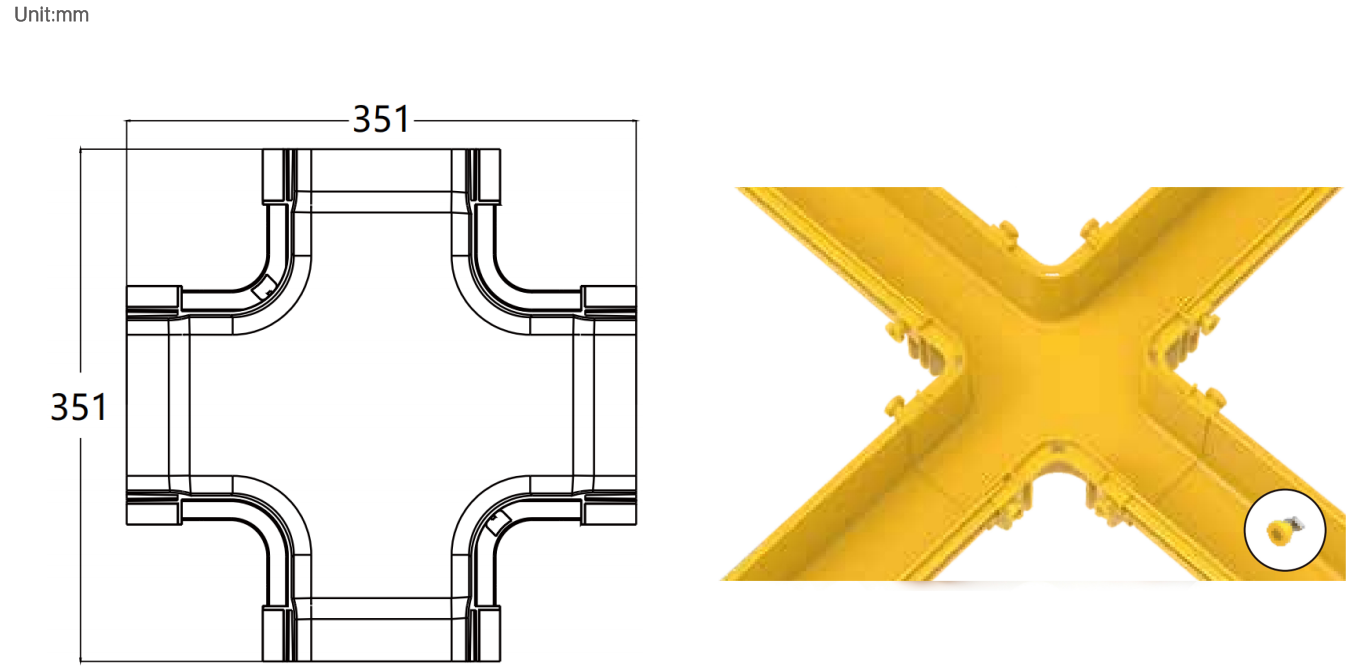

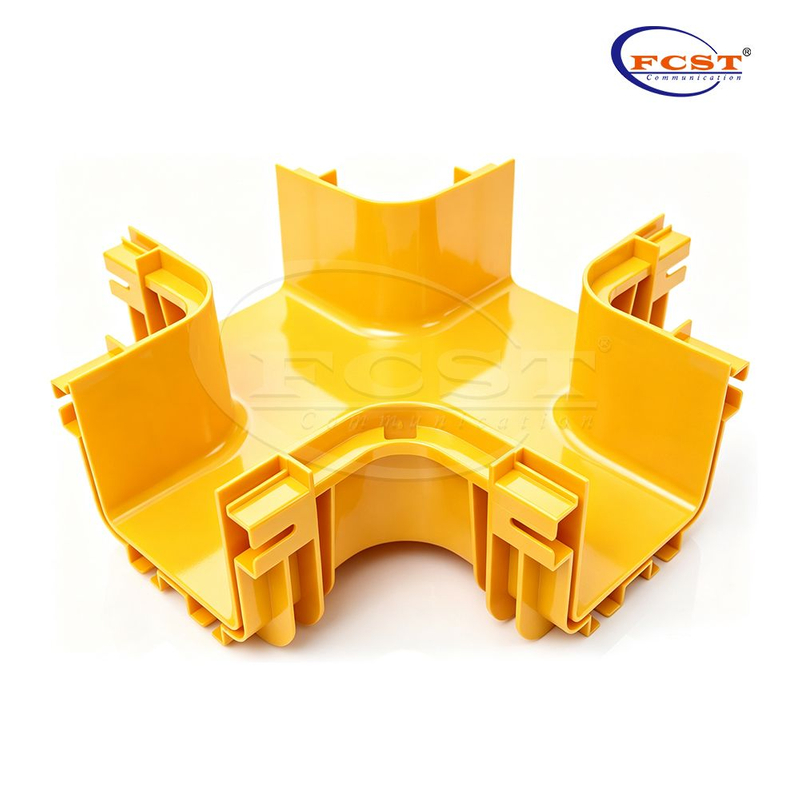

The FCST-CR120-CRS is a horizontal cross for 120mm fiber optic raceway systems. It connects horizontal raceways from four directions, managing the intersection, branching, and convergence of backbone and branch fiber cables. It serves as a key node for building grid-like routing networks in data centers and equipment rooms. The cross is made of ABS and meets UL94-V0 flame-retardant requirements.
Four-way intersection – Connects horizontal raceways from four directions in a 120mm fiber raceway system.
Backbone and branch management – Handles intersection, branching, and convergence of backbone and branch fiber cables.
Grid network construction – Serves as a key node for complex, grid-like routing layouts.
Sturdy structure – Specification states sturdy structure with excellent load-bearing capacity.
Easy installation – Designed for easy installation and high adaptability.
UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.
ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.
Construction | Description |
Material | ABS |
Flame-retardant Rating | V0 |
Packaging | 9PCS/CNT 5.76KG |
Weight | 640g |
Four-way horizontal intersections in 120mm fiber raceway systems
Backbone and branch fiber cable convergence points
Grid-like fiber routing networks in data centers
Equipment room fiber cable management at intersection nodes
Q1: What is the FCST-CR120-CRS used for?
A: It is a horizontal four-way cross used to connect 120mm fiber raceway sections from four directions, managing the intersection, branching, and convergence of fiber cables.
Q2: What material is the cross made of?
A: It is made of ABS with a V0 flame-retardant rating.
Q3: Does it support backbone and branch cable management?
A: Yes. The specification states it manages the intersection, branching, and convergence of backbone and branch fiber optic cables.
Q4: Is it compatible with FCST-CR120 Fiber Raceway?
A: It is designed for 120mm fiber optic raceway systems, which includes the FCST-CR120 series.
Q5: How is it packaged?
A: The specified packaging is 9PCS/CNT 5.76KG. 9 × 640g matches the stated carton weight.
