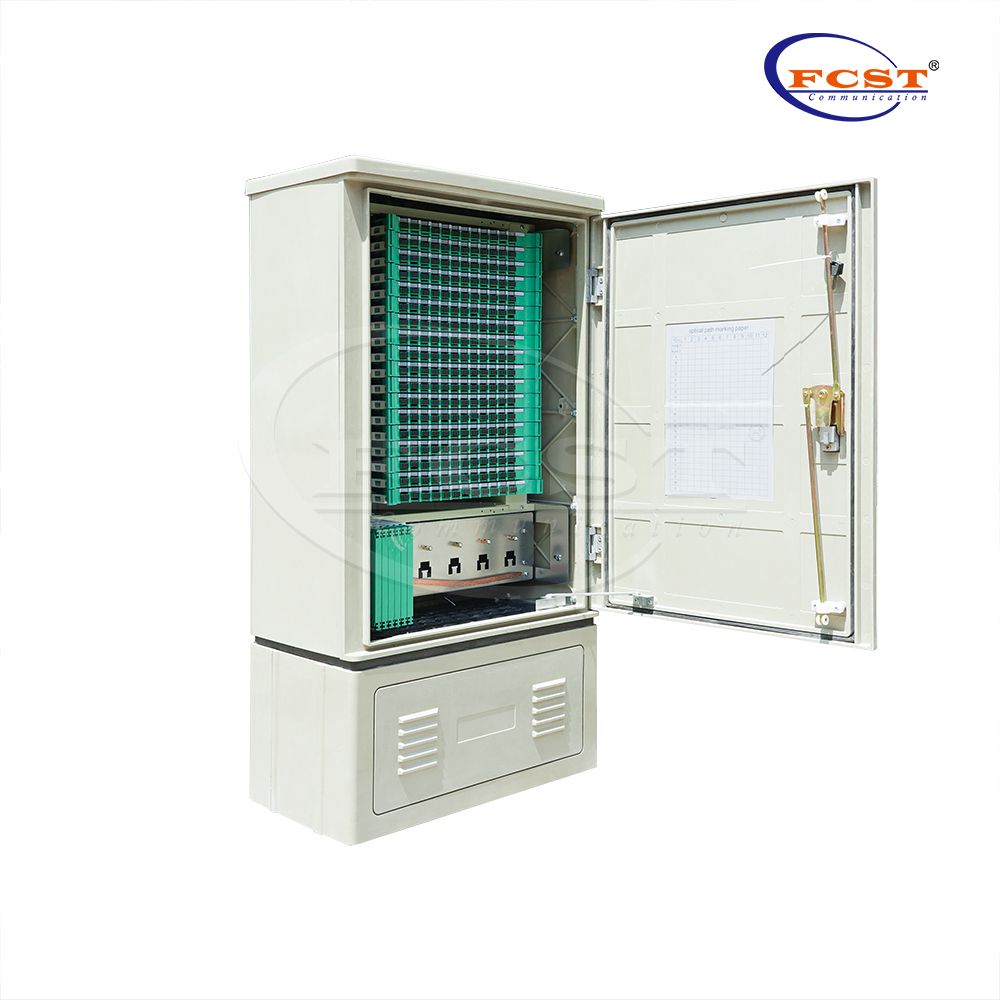

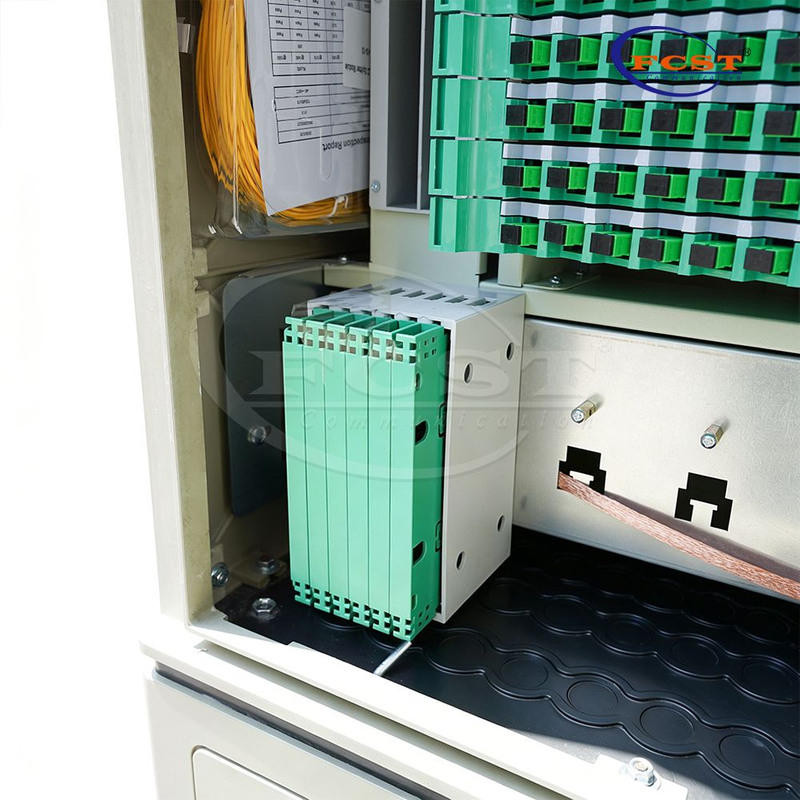

The FCST03501 Fiber Optical Distribution Cabinet is designed for outdoor fiber distribution, cross-connection, and cable management in FTTH and ODN networks.
Built with a rugged IP65-rated enclosure, the cabinet provides reliable protection for fiber splicing, splitter installation, and cable routing in demanding outdoor environments. It serves as a secure interface between backbone cables and distribution cables while simplifying network expansion and maintenance.

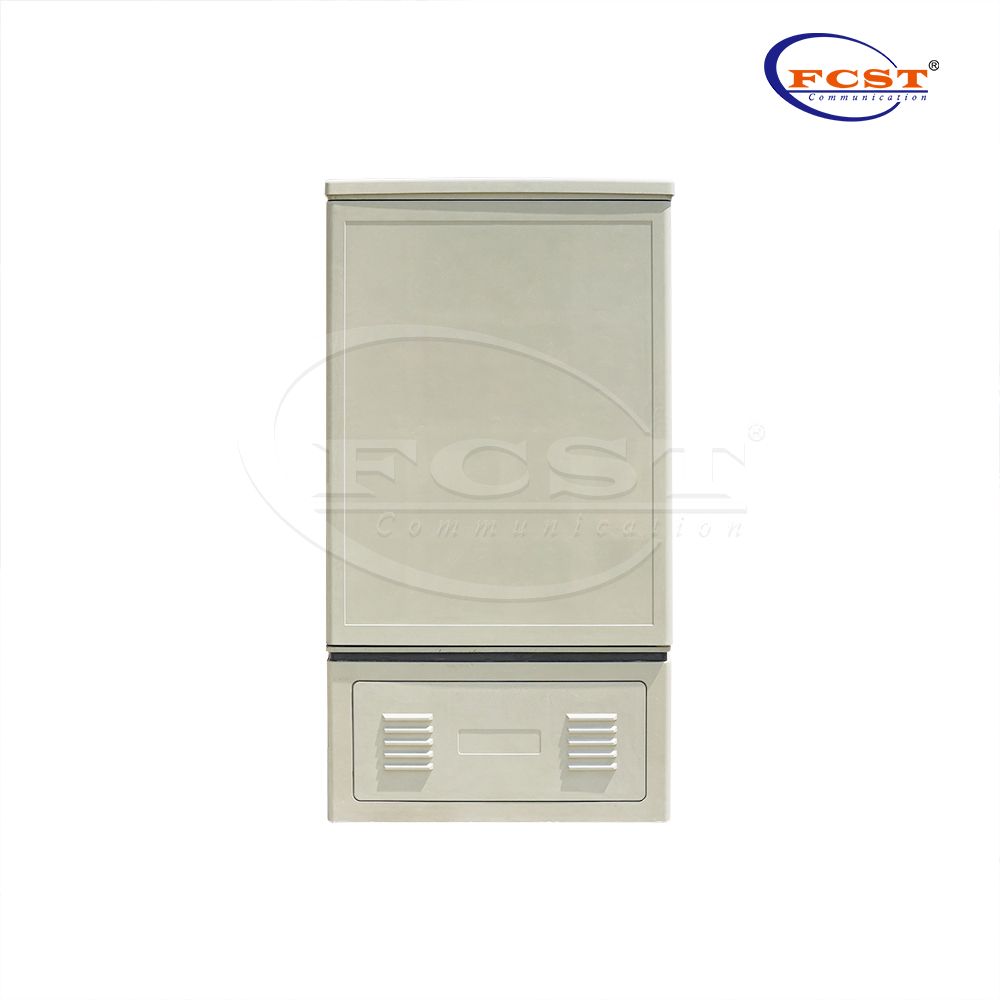

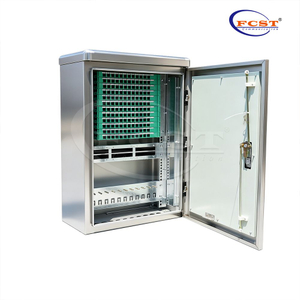

Available in SMC, stainless steel, and cold-rolled steel configurations, the FCST03501 offers flexible deployment options for telecom operators, ISPs, data communication networks, and broadband infrastructure projects.
High-Density Fiber Capacity

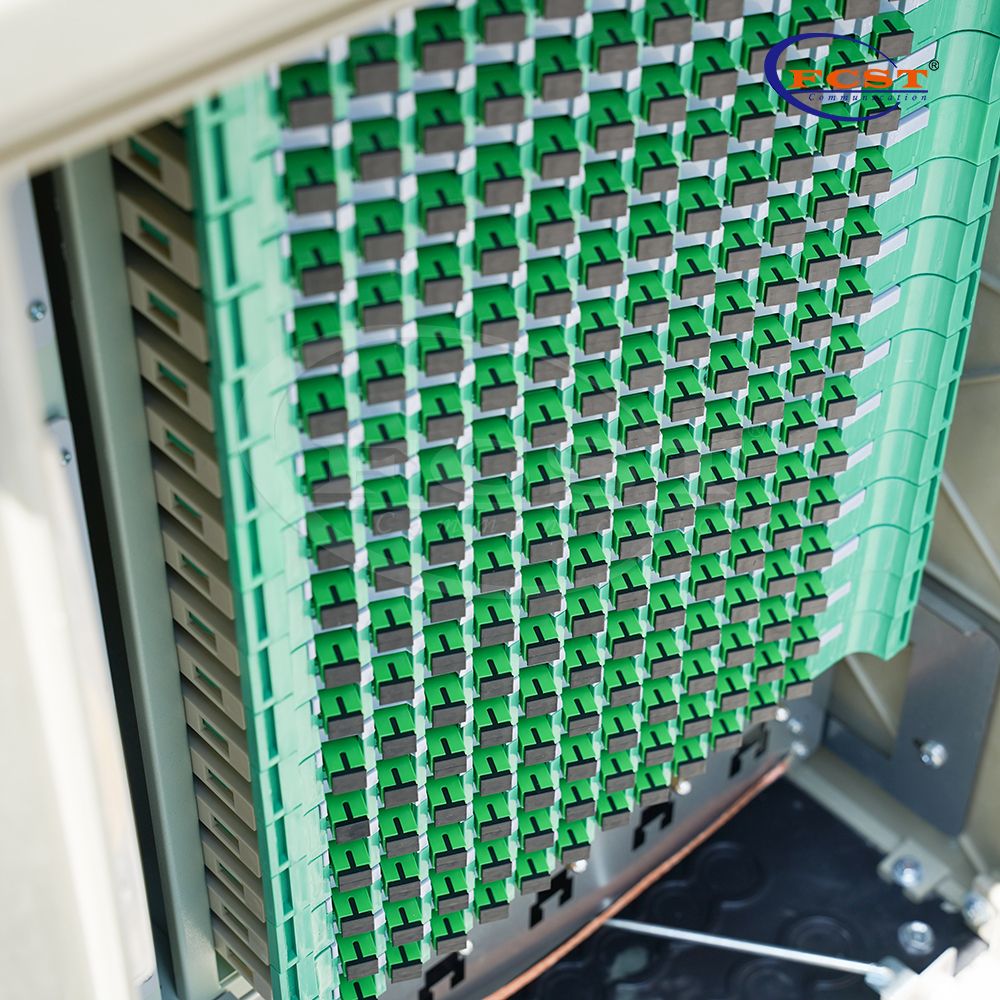

Supports up to 144 fiber cores with a maximum capacity of 216 SC adapter ports, making it suitable for medium and large FTTH deployments.
IP65 Outdoor Protection
The weatherproof enclosure protects internal fiber components from dust, rain, UV exposure, and harsh environmental conditions.
Faster Field Installation

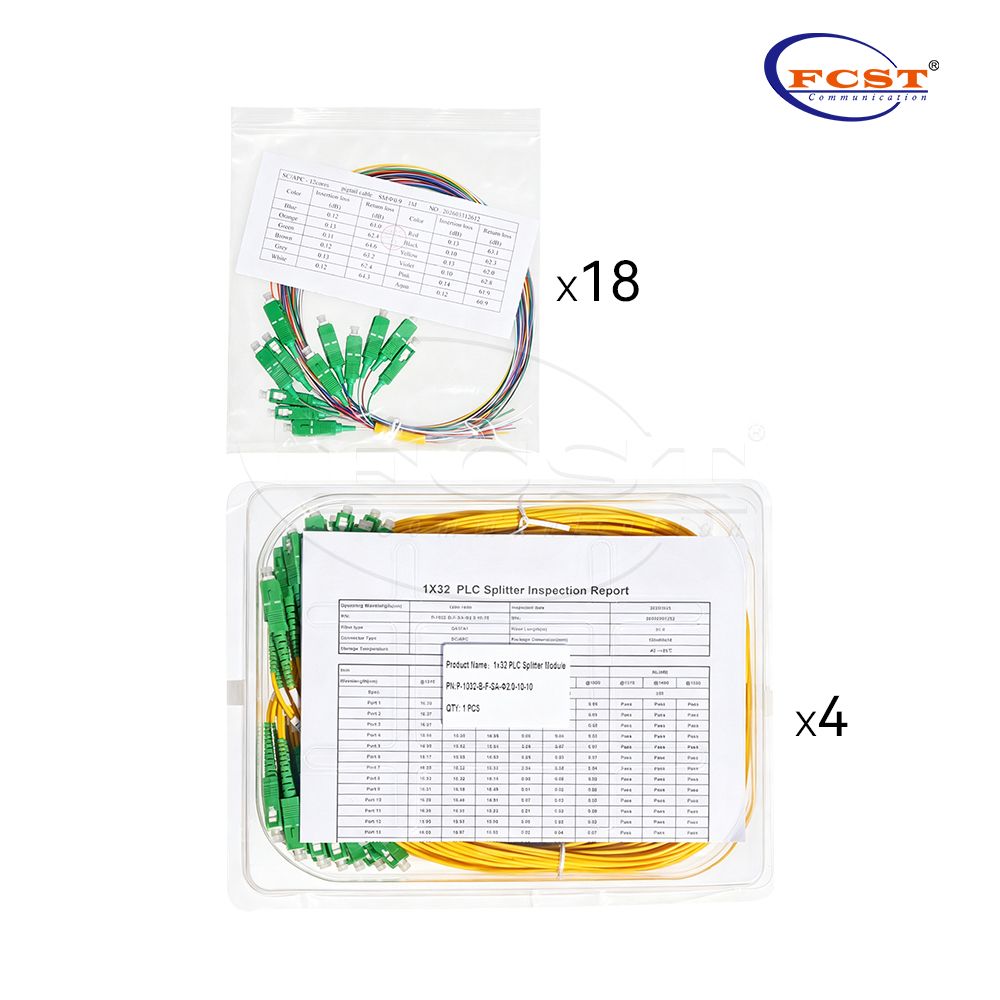

Pre-installed fiber pigtails and integrated splice management reduce installation time and improve deployment efficiency.
Flexible Internal Configuration

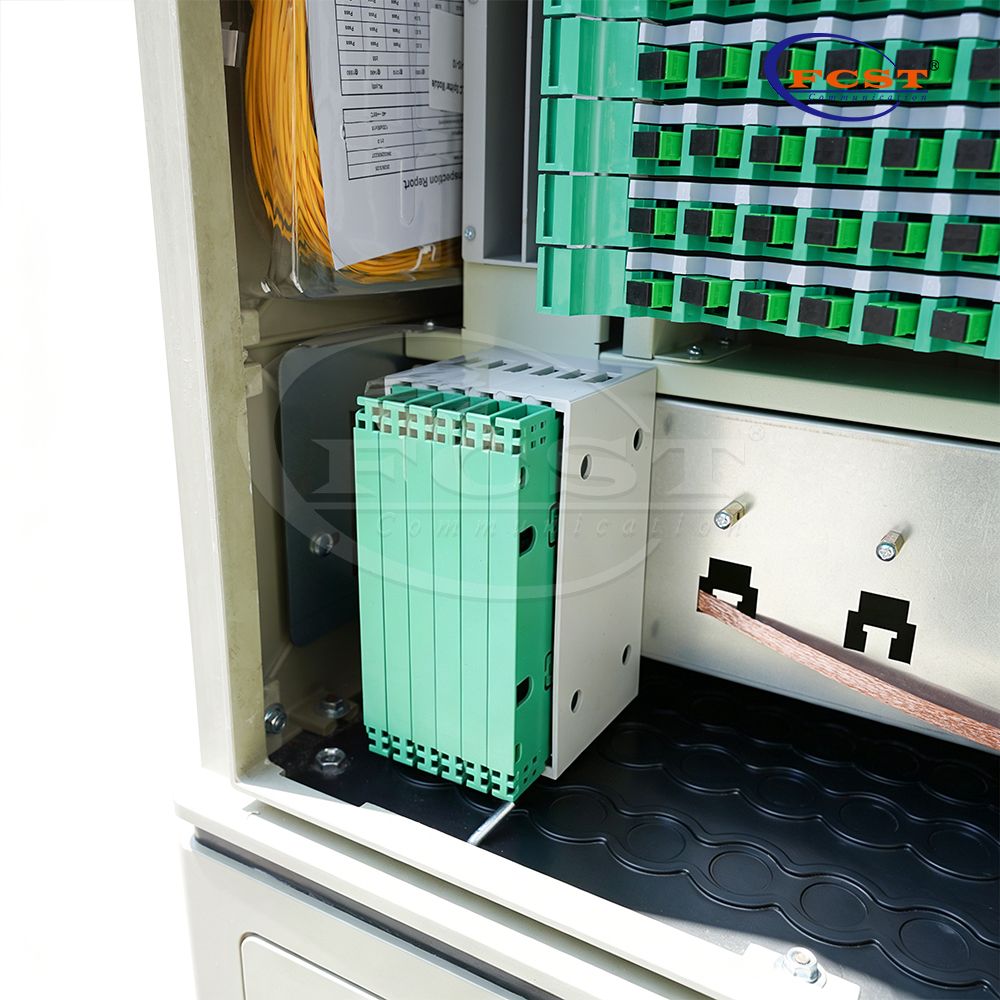

Compatible with PLC splitters, splice trays, and customized layouts to support various network architectures.
Optimized Fiber Management
Dedicated cable routing paths help prevent excessive bending, improve organization, and simplify maintenance operations.
Reliable Grounding Protection
Integrated grounding and cable fastening systems provide additional safety and long-term network reliability.
FTTH Access Networks
FTTx Infrastructure Projects
Passive Optical Networks (PON)
Fiber Distribution Hubs
Telecom Central Offices
Broadband Expansion Projects
Multi-Operator ODN Networks
Construction | Description |
Max. Capacity | 144Cores (SC,Max.216 cores) |
Material | SMC/Stainless Steel/Cold rolled steel plate |
Length | 555mm丨21.850in(SMC Type) |
Width | 310mm丨12.200in(SMC Type) |
Height | 1050mm丨41..340in(SMC Type) |
Weight | SMC:31kg |
Adapter | SC/LC/FC/ST etc. |
Installation | Outdoor fixed installation |
Max. Number Of Trays | 18PCS |
Splitter Type | Box Type PLC |
IP Level | IP65 |
Q1: How many subscribers can a 144-core fiber distribution cabinet support?
A: Subscriber capacity depends on the splitter ratio and network design. With PLC splitters, a 144-core cabinet can support thousands of end-user connections in FTTH networks.
Q2: What IP rating is recommended for outdoor fiber distribution cabinets?
A: IP65 is widely used for outdoor telecom applications, providing protection against dust, rain, and harsh weather conditions. The FCST03501 is rated IP65 for reliable outdoor deployment.
Q3: Does the cabinet provide grounding protection for metallic cables?
A: Yes. The cabinet includes grounding and bonding provisions to help protect fiber infrastructure and metallic cable components.
Q4: Can the cabinet be wall-mounted or pole-mounted?
A: The standard version is designed for fixed outdoor installation and is typically ground-mounted. Customized mounting options may be available upon request.
Q5: Can this cabinet be used as a fiber distribution hub for 5G networks?
A: Yes. The FCST03501 can be deployed alongside 5G infrastructure to manage fiber backhaul and fronthaul connections while keeping passive fiber equipment separate from active network devices.
