FCST-CBB-4mm 5mm 6mm
FCST
FCST-CBB-4mm 5mm 6mm
Product Overview

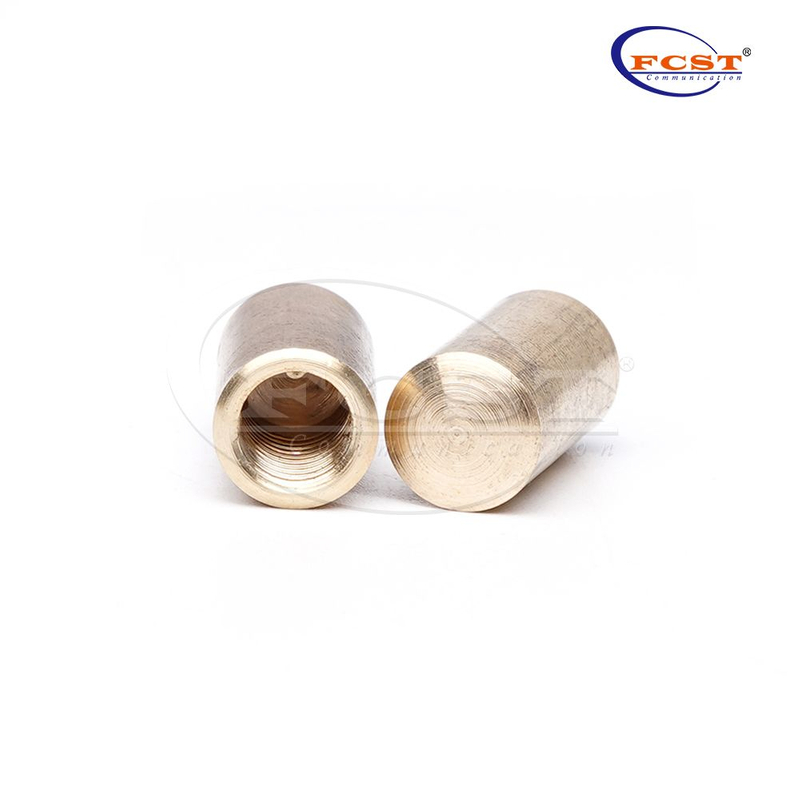

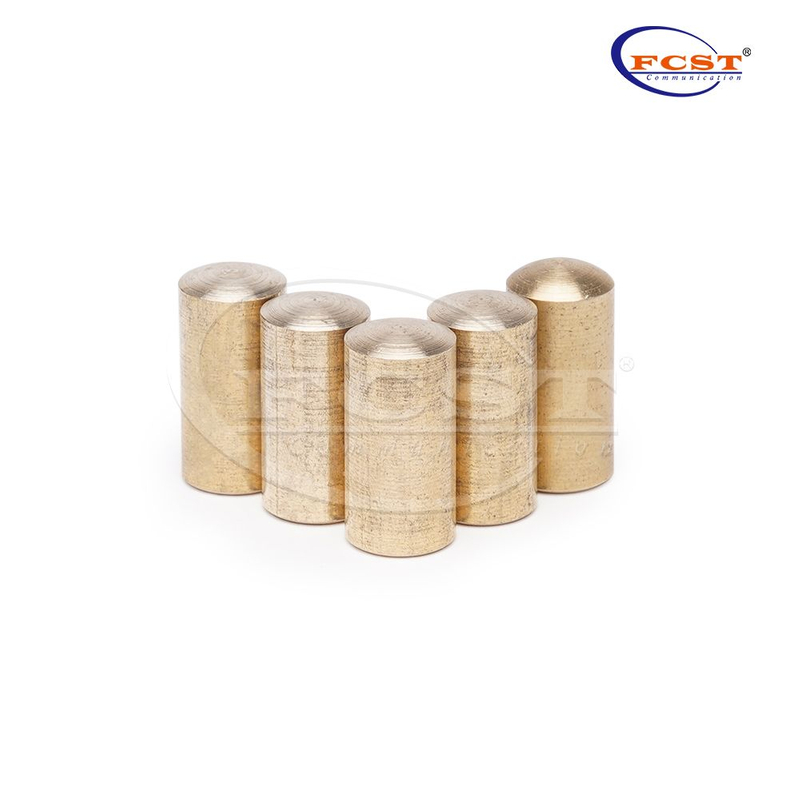

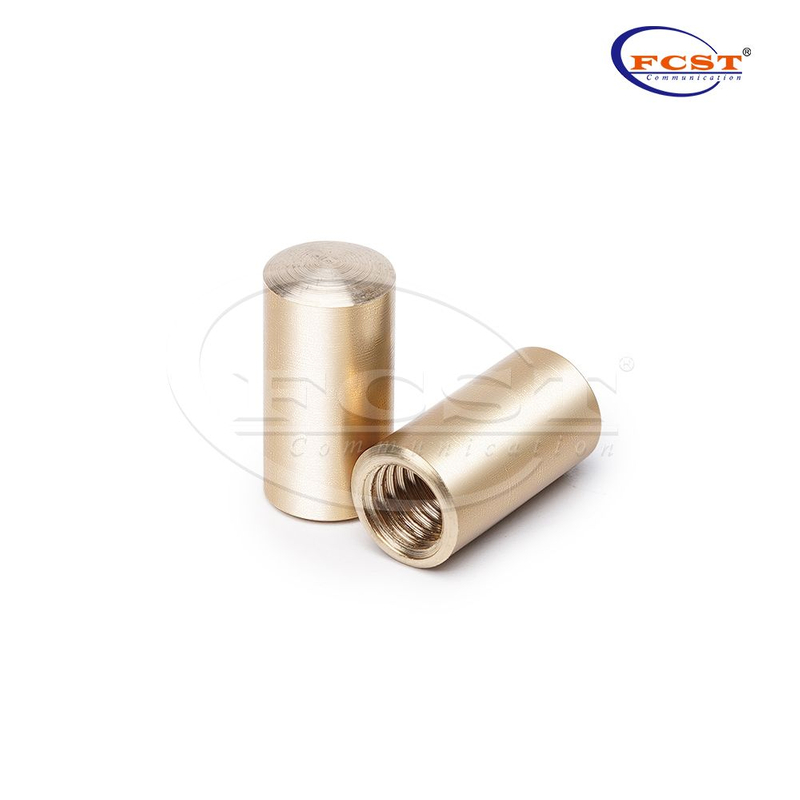

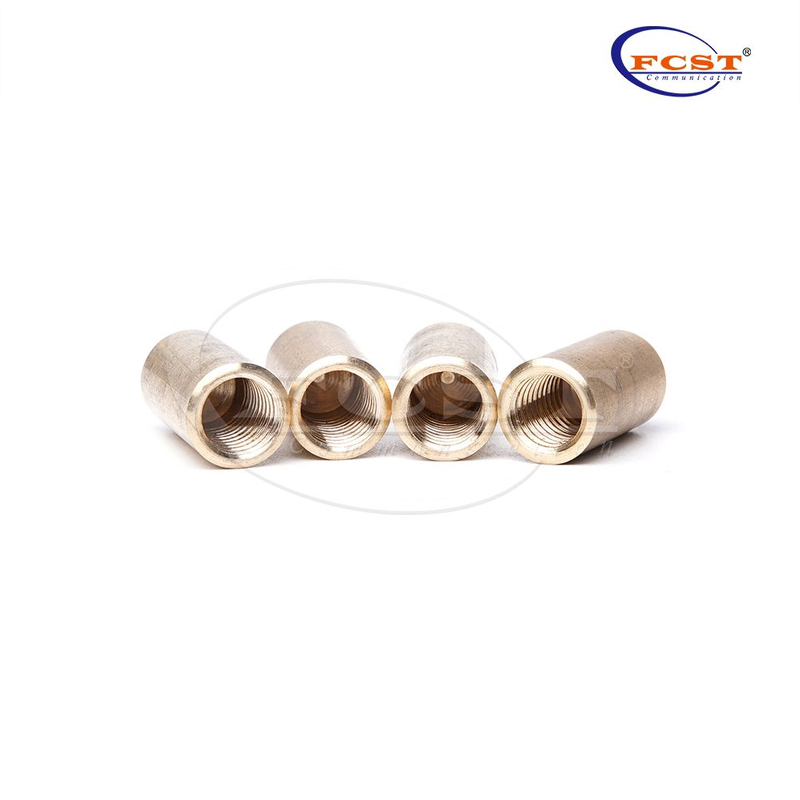

Brass end caps shall be mounted on the cable end before blowing the micro cable into the micro duct. The end cap forms a rounded tip that facilitates blowing trough duct joints. They also prevents air from penetrating trough the open cable end into the cable. These end caps are extra slim to enable blowing into slim micro ducts. An inner thread makes them easy to mount on the cable tip. The end caps can be re-used.
Re-useable.
Prevents cable damage.
Safe mounting on cable tip.
Threaded for easy mounting.
Applicable to 1.2~16mm micro cables.
Improves cable blowing performance.
Rounded tip that facilitates blowing of micro cables.
Product Specifications
| Construction | Description |
| Material | Brass |
| Inner Diameter | 1.2,1.7,2.0,2.7,3.0,3.5,4,5,6,8,9,10,12,14,16mm |
| Insertion Type | Threaded |
Ordering Information
| Model | A-Inner Diameter (mm) | B- Length(mm) | Weight（g） | Thread Diameter |
| FCST-CBB-1.2mm | Φ1.2 | 7 | 0.02 | -- |
| FCST-CBB-1.7mm | Φ1.7 | 7 | 0.02 | -- |
| FCST-CBB-2.0mm | Φ2.0 | 7 | 0.02 | -- |
| FCST-CBB-2.7mm | Φ2.7 | 7 | 0.02 | -- |
| FCST-CBB-3.0mm | Φ3.0 | 7 | 0.02 | -- |
| FCST-CBB-3.5mm | Φ3.5 | 9 | 0.2 | -- |
| FCST-CBB-4.0mm | Φ4.0 | 9 | 0.2 | -- |
| FCST-CBB-5.0mm | Φ5..2~5.4 | 20.25 | 5.0 | M6 |
| FCST-CBB-6.0mm | Φ6.9~7.1 | 20.32 | 7.5 | M8 |
| FCST-CBB-8.0mm | Φ8.6~8.9 | 20.48 | 10.6 | M10 |
| FCST-CBB-9.0mm | Φ8.6~8.9 | 19.96 | 9.8 | M10 |
| FCST-CBB-10.0mm | Φ10.6~10.8 | 20.26 | 12.0 | M12 |
| FCST-CBB-12.0mm | Φ12.7~13 | 20.37 | 14.7 | M14 |
| FCST-CBB-14.0mm | Φ14.7~15 | 20.34 | 17.7 | M16 |
| FCST-CBB-16.0mm | Φ16.8~17 | 20.22 | 10.9 | M18 |
