FCST-CR50-CVR
FCST
FCST-CR50-CVR
The FCST-CR50-CVR Fiber Raceway Cover is a 50mm wide, 2000mm long cover component for fiber raceway systems. It is designed to protect fiber optic cables in high-density equipment room and data center environments. The cover features smooth, burr-free inner walls to help prevent scratching or damaging fiber coatings, and its lightweight construction reduces load on cabinets. It is available in PVC or PC+ABS and meets UL94-V0 flame-retardant requirements.
Fiber protection – Smooth, burr-free inner walls help prevent scratching or damaging fiber coatings.
Lightweight construction – Reduces load on cabinets and supports easier handling during installation.
One-handed operation – Designed to improve installation efficiency.
UL94-V0 flame-retardant material – Available in PVC or PC+ABS.
2000mm standard length – Matches standard raceway section length for continuous coverage.
50mm width – Designed for 50mm fiber raceway systems.
ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.
Construction | Description |
Material | PVC/PC+ABS |
Flame-retardant rating | V0 |
Length | 2000mm |
Width | 50mm |
Weight | 1280g |
Covering 50mm fiber raceway channels in data centers
Protecting fiber patch cords and pigtails in equipment rooms
High-density fiber cable management above cabinets or between racks
Fiber routing systems requiring flame-retardant covers

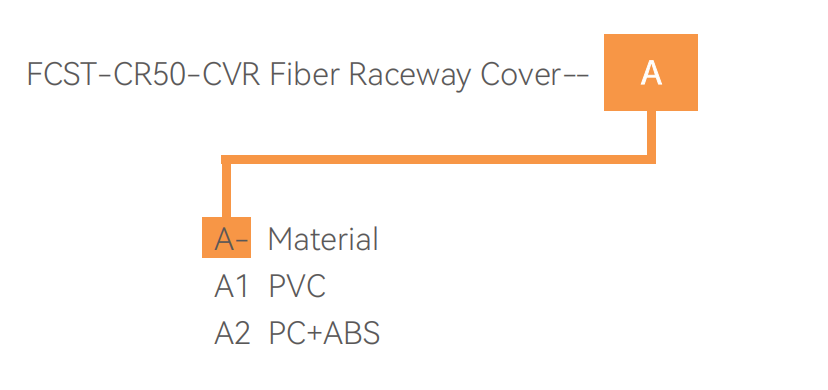

*Note: The specified model is determined based on optional configurations. For example: FCST-CR50-CVR Fiber Raceway Cover--A1.
Q1: What is the FCST-CR50-CVR used for?
A: It is a cover for 50mm fiber raceway systems, designed to protect fiber optic cables and support organized cable management in data centers and equipment rooms.
Q2: What material options are available?
A: The cover is available in PVC (A1) or PC+ABS (A2), both with a V0 flame-retardant rating.
Q3: Will the cover damage fiber cables?
A: The specification states the inner walls are smooth and burr-free to help prevent scratching or damaging the fiber coating.
Q4: Is it easy to install?
A: The lightweight construction and one-handed operation are designed to improve installation efficiency and reduce load on cabinets.
Q5: What is the standard length?
A: The standard length is 2000mm.
Q6: Is it compatible with FCST-CR50 Fiber Raceway?
A: Yes, the cover is specified for 50mm fiber raceway systems.
Q7: Does the cover affect the recommended fill rate of the raceway?
A: The cover is designed to protect cables within the raceway. FCST recommends a 50%–75% fill rate for the overall raceway system. Installing at 100% fill is not recommended, as it can make cable management and future maintenance difficult.
