FCST-CR120-ELB45 45° 120mm Horizontal Elbow for Fiber Raceway

Product Overview

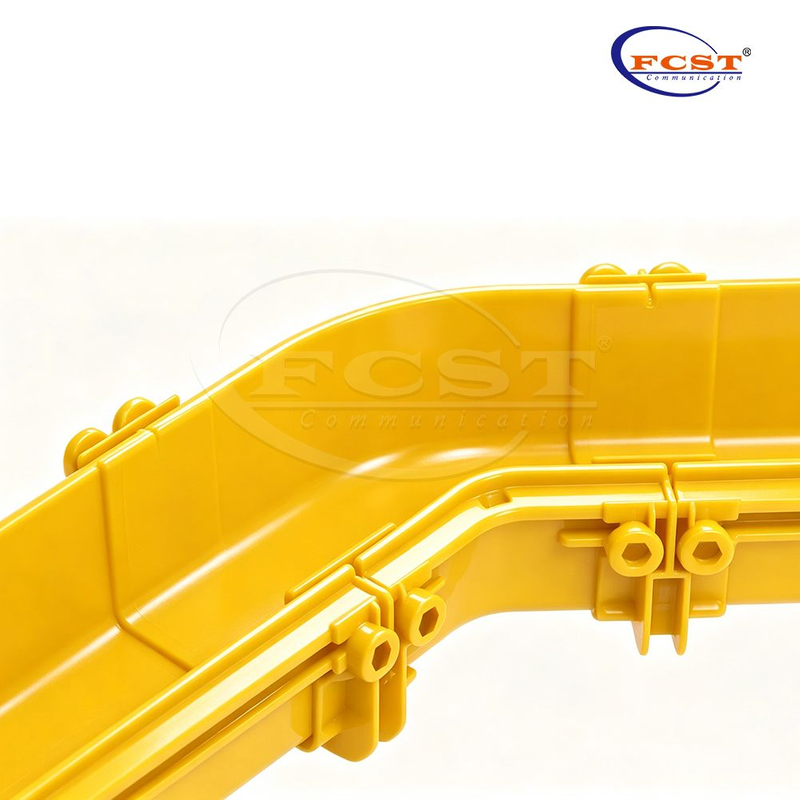

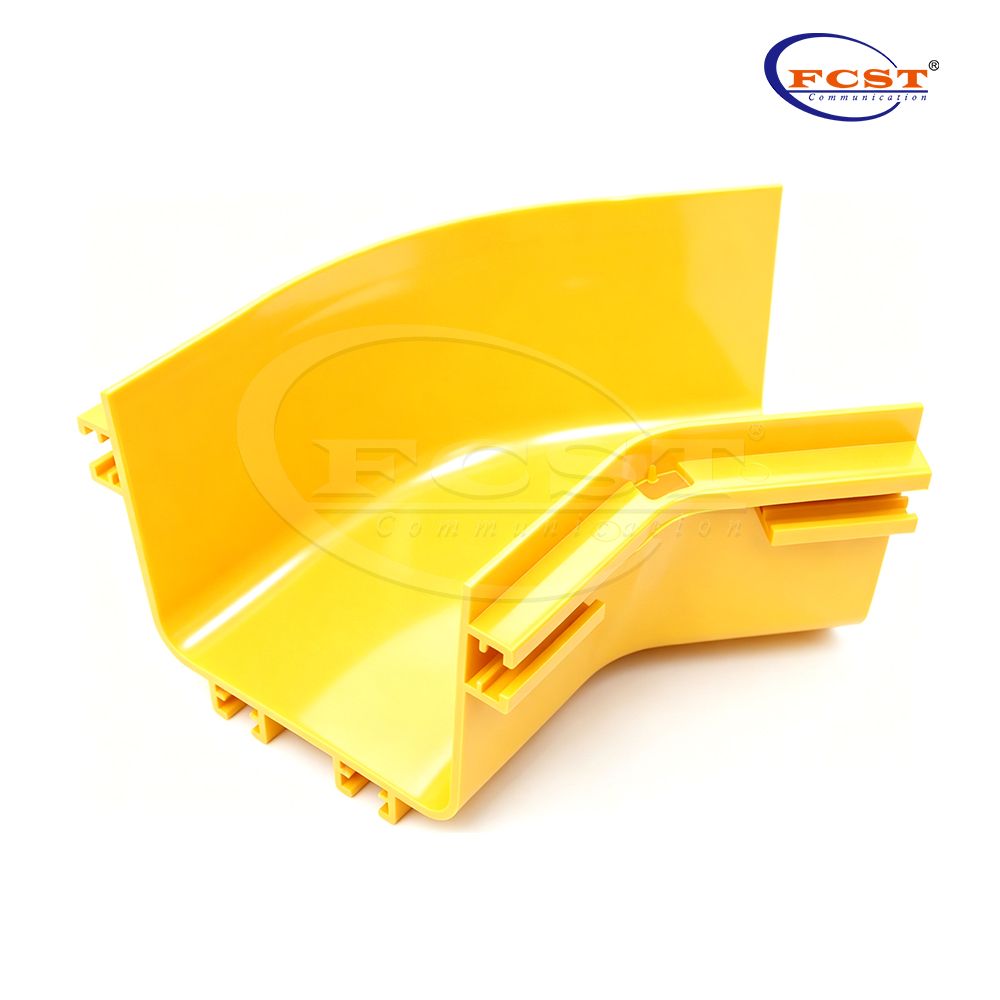

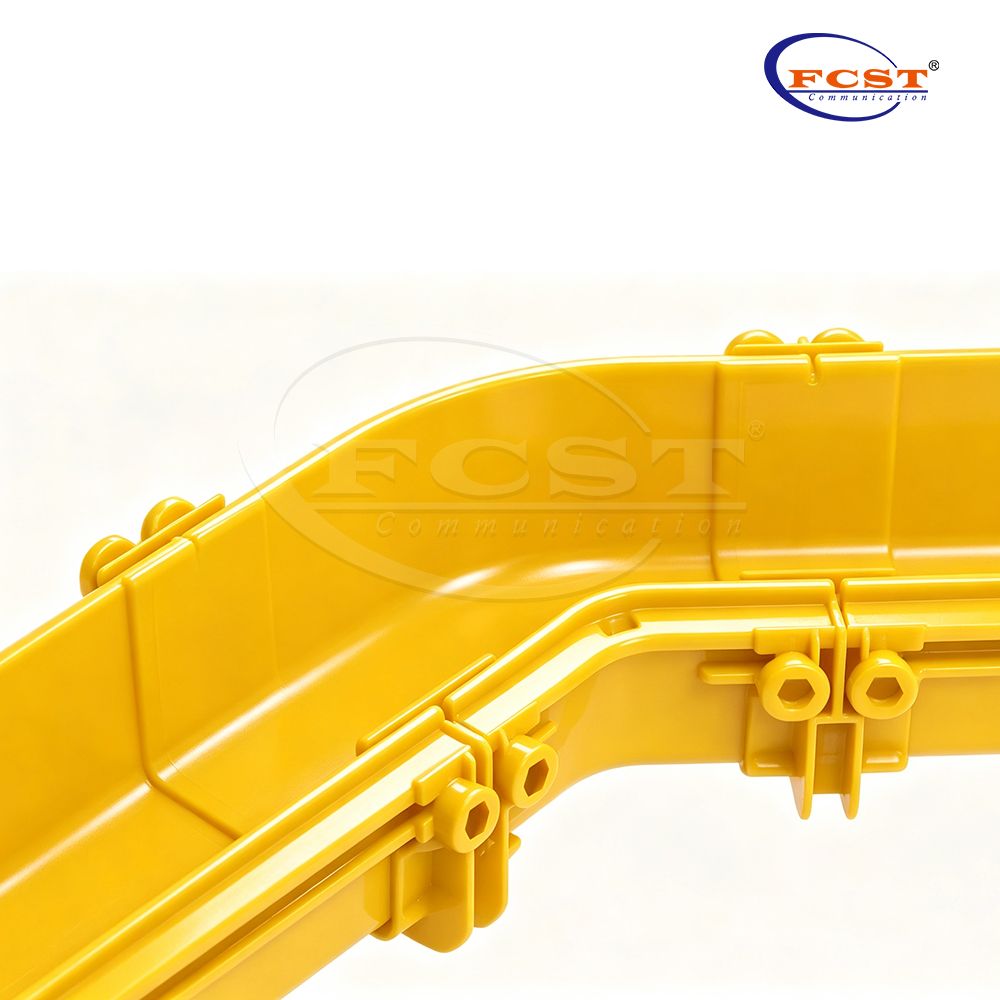

The FCST-CR120-ELB45 is a 45° horizontal elbow for 120mm fiber optic raceway systems. It enables the raceway to make a smooth 45° turn within the horizontal plane, often used to bypass obstacles or create loop or polygonal routing paths. The elbow is made of ABS and meets UL94-V0 flame-retardant requirements.

Key Features

• 45° horizontal turn – Enables direction changes within the horizontal plane of a 120mm fiber raceway system.

• Obstacle bypass and loop routing – Used to bypass obstacles or create loop or polygonal routing paths.

• Precise angles, smooth transition – Specification states precise angles and smooth transition at the bend.

• Easy installation – Designed for efficient construction.

• UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• 45° horizontal corner connections in 120mm fiber raceway systems

• Bypassing obstacles in equipment rooms

• Creating loop or polygonal fiber routing paths

• Data center fiber cable management

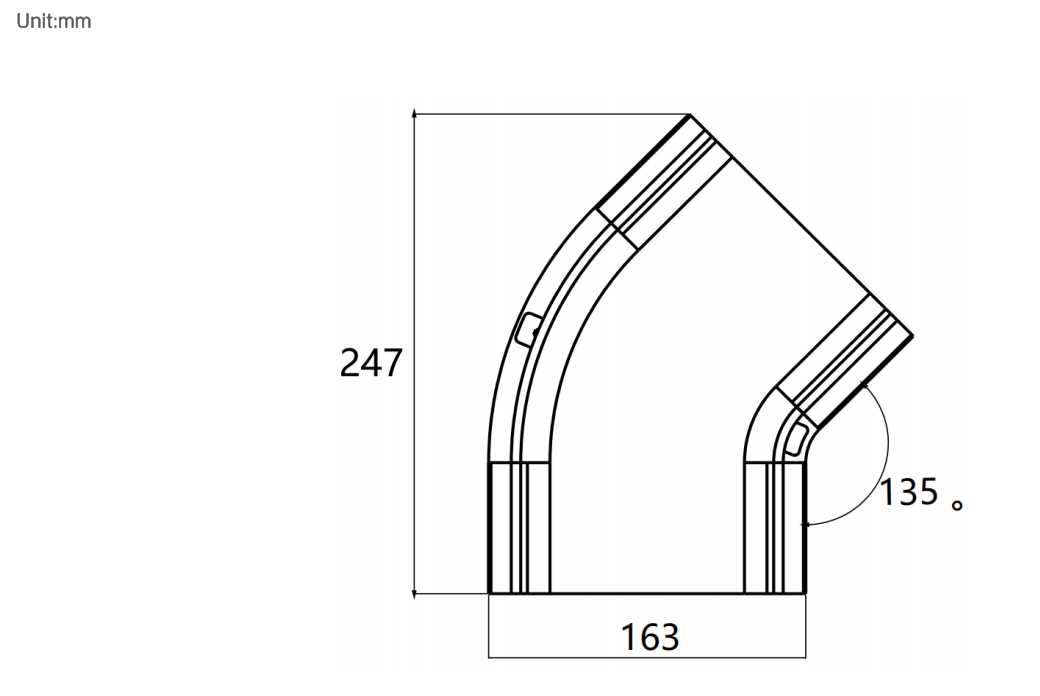

Product Structure

FAQ

Q1: What is the FCST-CR120-ELB45 used for?

A: It is a 45° horizontal elbow used to connect 120mm fiber raceway sections at a 45° angle within the horizontal plane, often to bypass obstacles or create loop or polygonal routing paths.

Q2: What material is the elbow made of?

A: It is made of ABS with a V0 flame-retardant rating.

Q3: How is it packaged?

A: The specified packaging is 36PCS/CNT 14.4KG. 36 × 400g matches the stated carton weight.
