FCST-CR120 120mm Open-Style Fiber Raceway for Data Centers

Product Overview

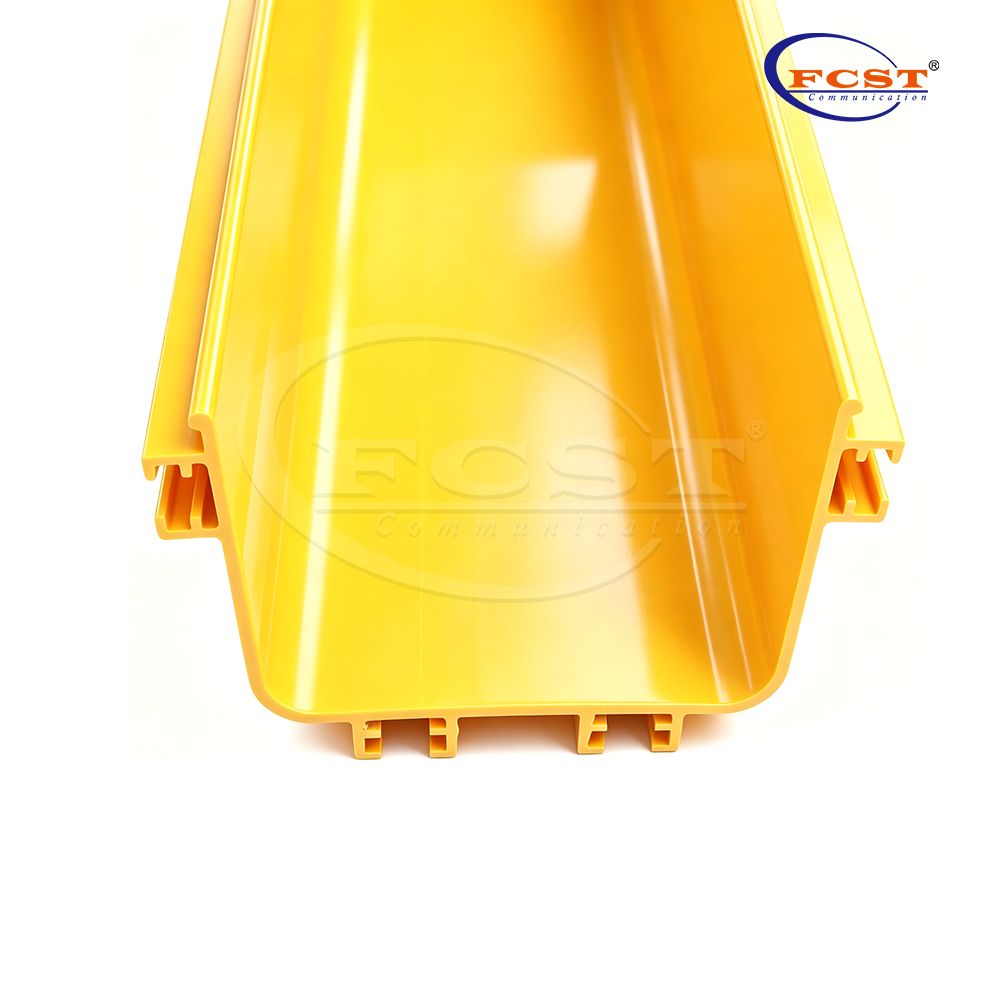

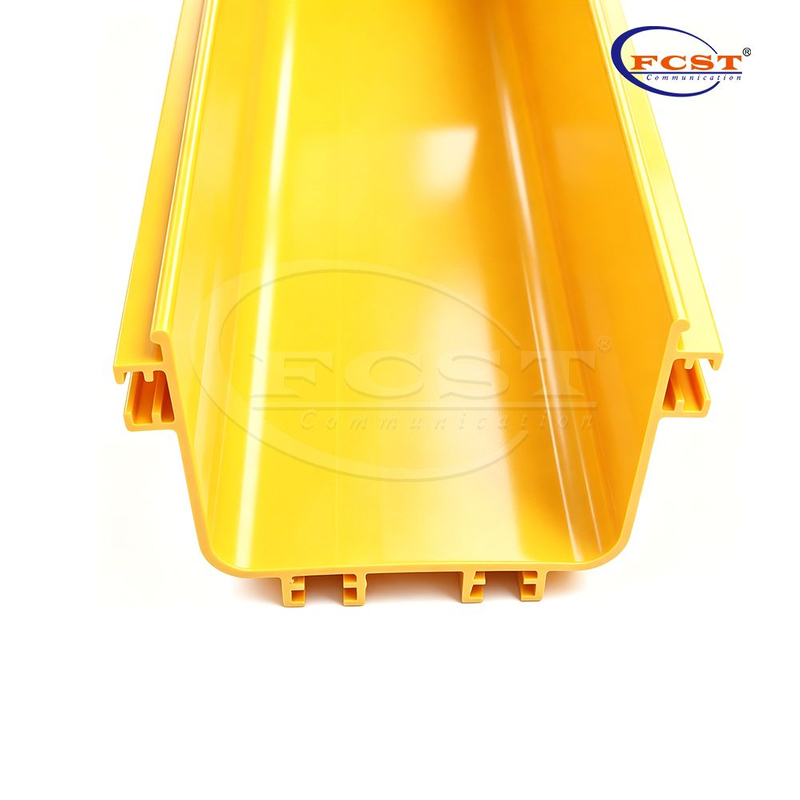

The FCST-CR120 Fiber Raceway is a 120mm wide, 2000mm long open-style cabling channel designed for data centers and equipment rooms. It routes, manages, and protects fiber optic patch cords and pigtails above cabinets or between racks. The modular system supports straight sections, elbows, tees, and crosses for complex fiber routing layouts. It is available in PVC or PC+ABS, in 2.5mm or 3.0mm thickness, and meets UL94-V0 flame-retardant requirements.

Key Features

• 120mm width for higher cable density – Larger internal cross-section than 50mm raceway systems, suitable for high-density fiber routing.

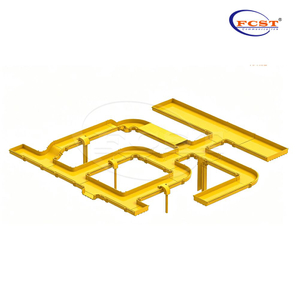

• Modular raceway system – Compatible with straight sections, elbows, tees, and crosses for flexible layout design.

• UL94-V0 flame-retardant material – Available in PVC or PC+ABS to meet fire safety requirements in equipment rooms.

• Two thickness options – Select 2.5mm or 3.0mm wall thickness based on load and installation requirements.

• Open-style access – Supports organized routing and layered management of fiber patch cords and pigtails.

• 2000mm standard length – Reduces the number of joints and simplifies installation across long runs.

• ISO 9001 manufacturing – Produced under an ISO 9001 quality management system.

Product Specifications

Applications

• Data center fiber cabling above cabinets

• Equipment room fiber routing between racks

• High-density fiber patch cord and pigtail management

• Modular fiber routing layouts requiring straight sections, bends, tees, or crosses

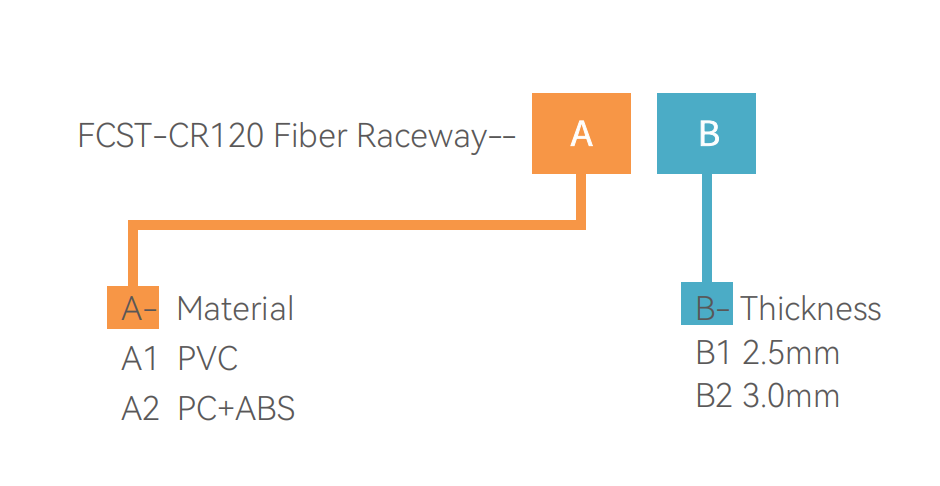

Ordering Information

*Note: The specified model is determined based on optional configurations. For example: FCST-CR100 Fiber Raceway--A1-B1.

FAQ

Q1: What is the FCST-CR120 Fiber Raceway used for?

A: It is an open-style cabling carrier used in data centers and equipment rooms to route, manage, and protect fiber optic patch cords and pigtails, typically installed above cabinets or between racks.

Q2: What material and thickness options are available?

A: The raceway is available in PVC (A1) or PC+ABS (A2), and in 2.5mm (B1) or 3.0mm (B2) thickness.

Q3: How does the 120mm width compare to 50mm raceway systems?

A: The 120mm width provides a larger internal cross-section for higher fiber cable density. The routing capacity table lists up to 955 × 2mm fibers at 50% fill and 1433 × 2mm fibers at 75% fill.

Q4: Does it support different layout directions?

A: Yes. The modular design allows assembly with straight sections, elbows, tees, and crosses to accommodate complex layouts.

Q5: What is the recommended fill rate?

A: For practical installation, 50%–75% fill is recommended. The 100% fill figure is a theoretical maximum and is not recommended for normal use.
