FCST02146
FCST
FCST02146
Product Overview

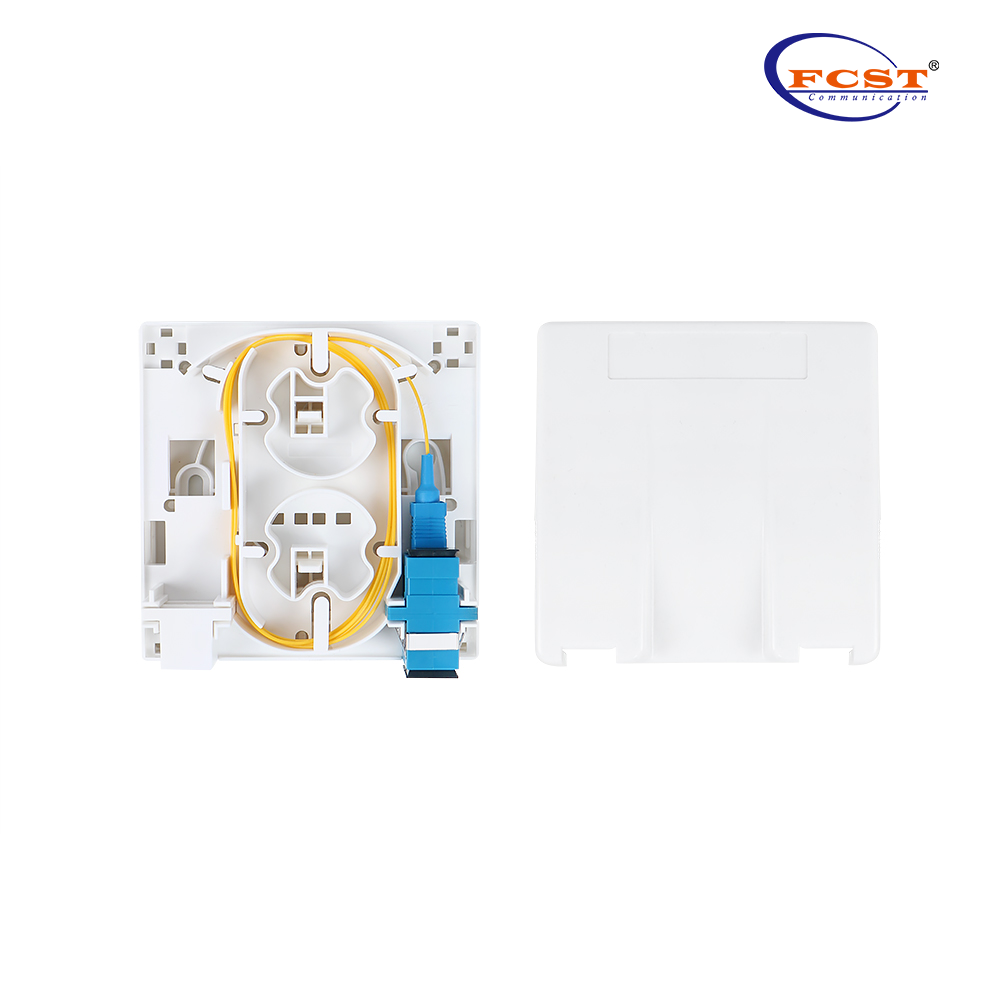

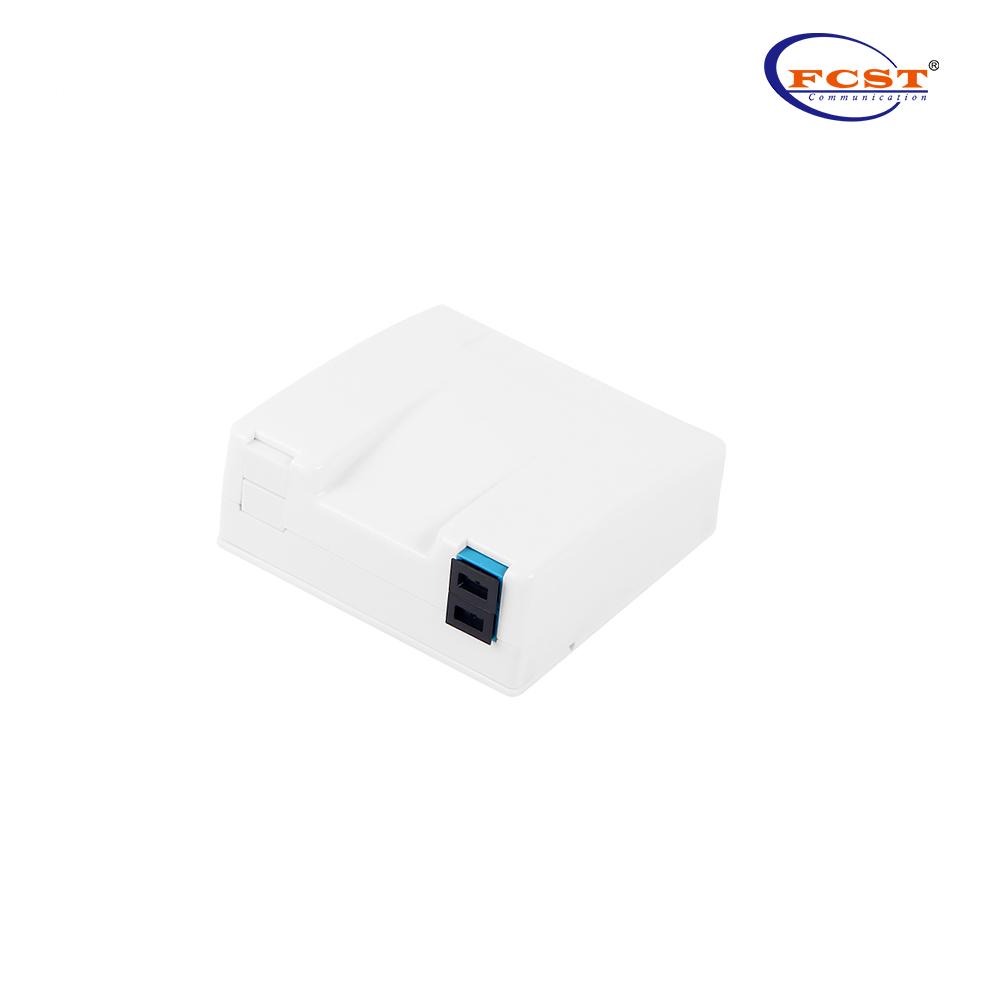

FCST02146 Fiber Optic Terminal Box is suitable for the indoor cable's termination and fixation of user’s cable and pigtail splicing. It meets the needs of traditional transmission network.
Product Advantages
l Made of high quality plastics;

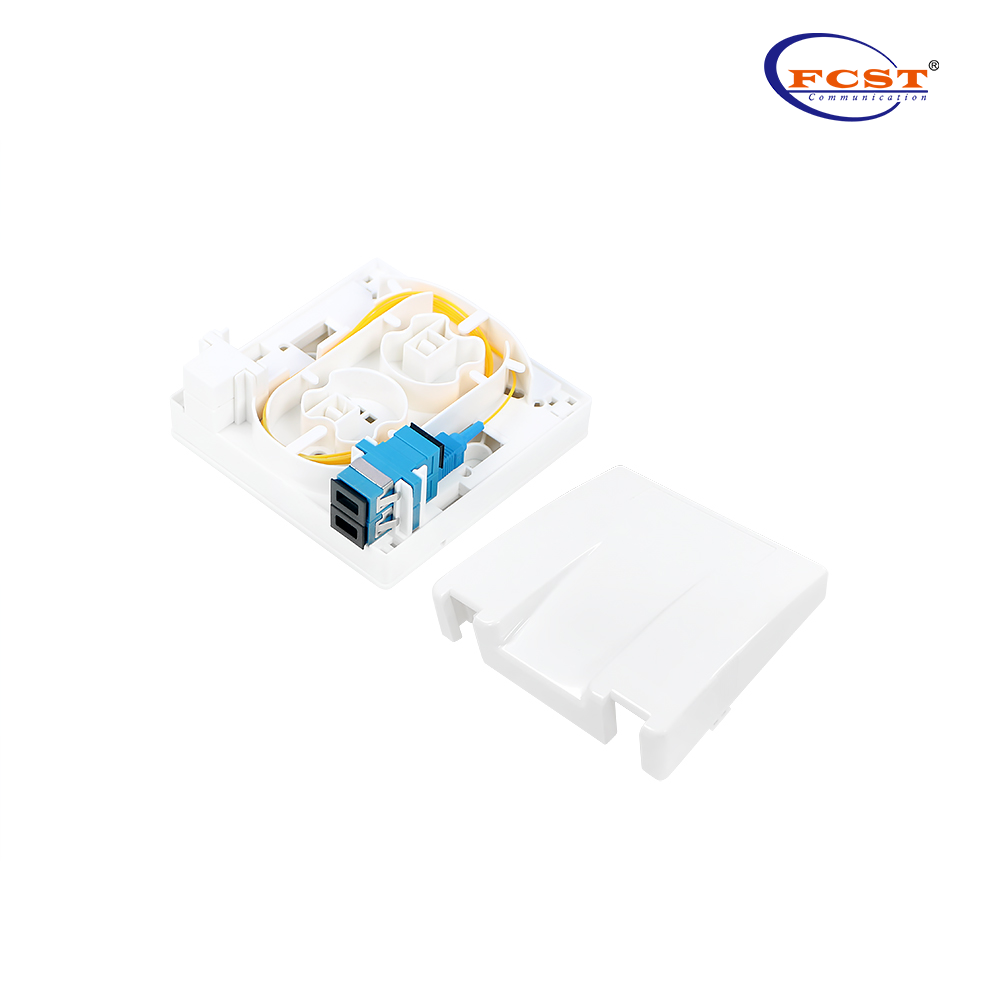

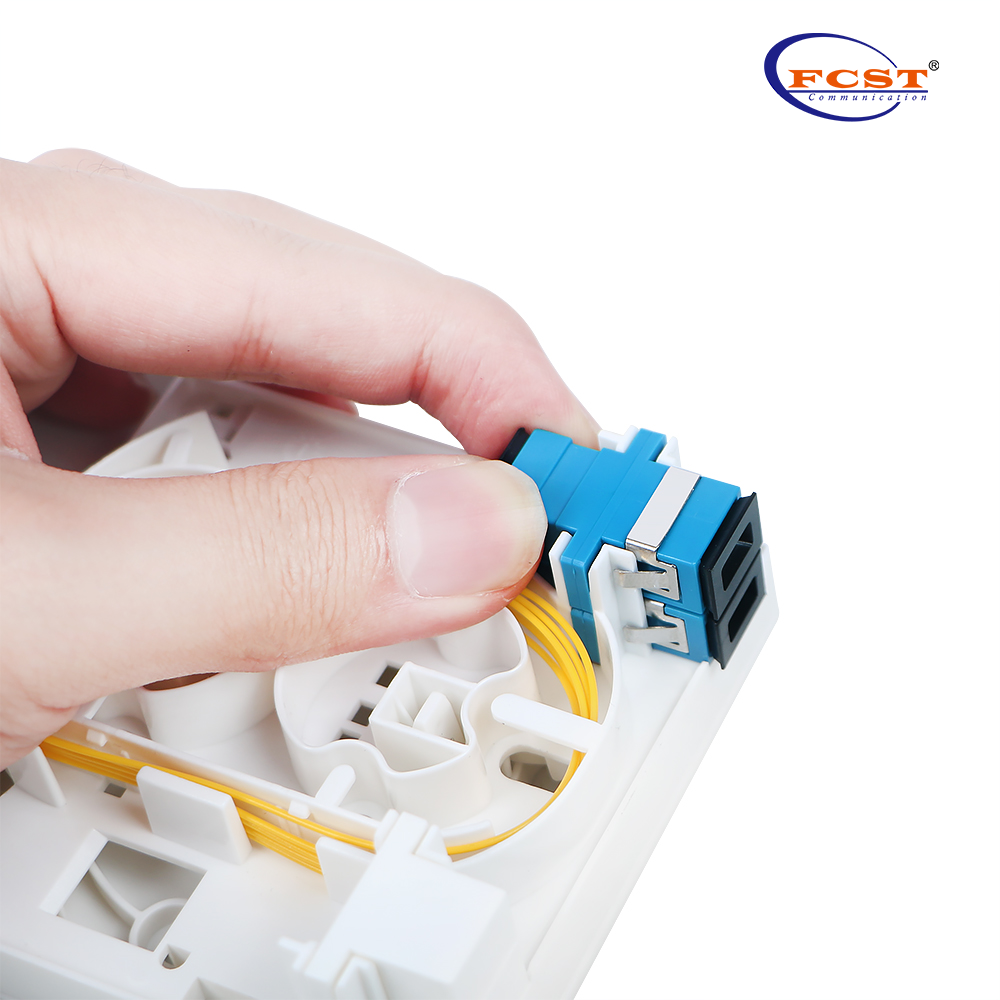

l 4 SC simplex or 2 LC duplex adapter slots are set at the output end, and is equipped with dust plugs as required, which meets the direct splicing of 1 ～ 4 single-core pigtails;

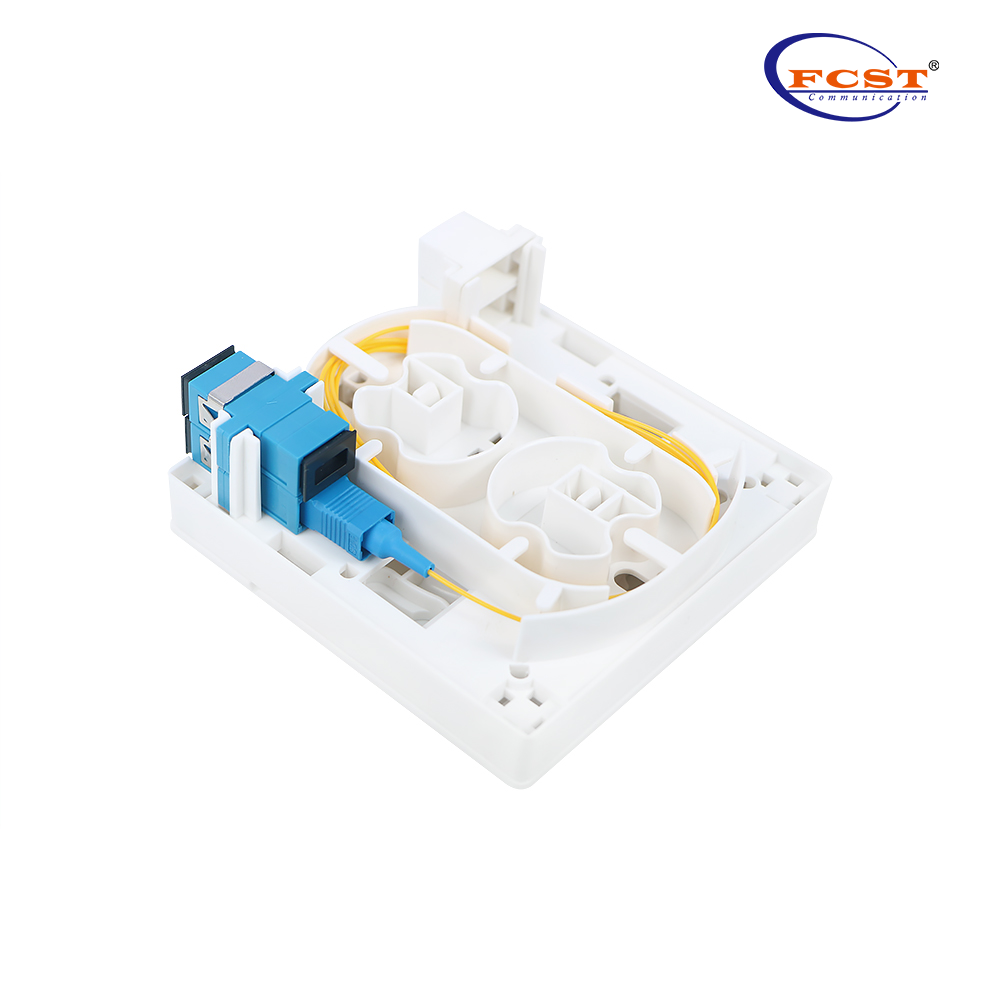

l Three-layer partition structure of the box makes 3 clear-cut area for cable entry, fiber pigtail storage and splicing, which avoids crossing lines, and is convenient to lay and maintain the optical cables;
l Multiple cable entry holes on the left, right and upper part of the box meet the flexible and variable routing mode in the construction field;
l Indoor wall mounting.
Product Specifications
Construction | Description |
Capacity (cores) | 4 (single core) |
Dimension (mm) | 86*86*34 |
Inlets/Outlets | 6 / 4 |
Net Weight（g） | 100 |
Cable Diameter (mm) | ≤ ￠4 |
Adaptor Type | SC simplex / LC duplex |
Accessories
Name | Quantity |

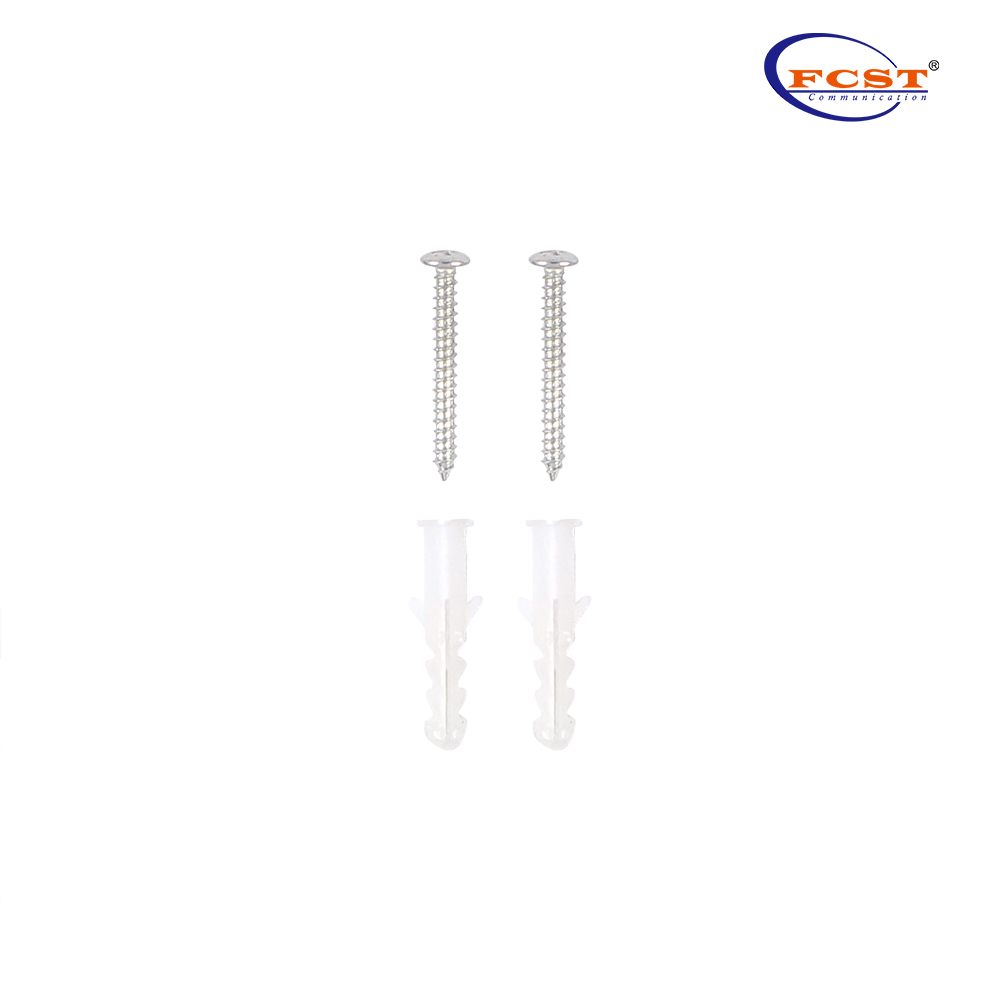

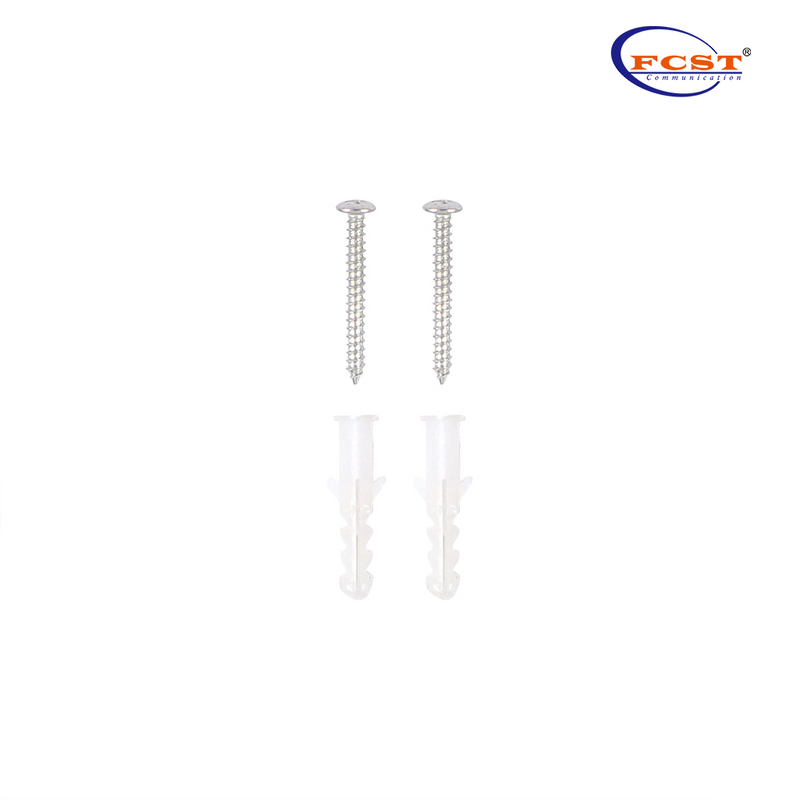

M4 expansion | 2 pcs |
M4*25 screw | 2 pcs |
Heat shrinkable tube | optional |
Tie (3*100mm) | optional |
