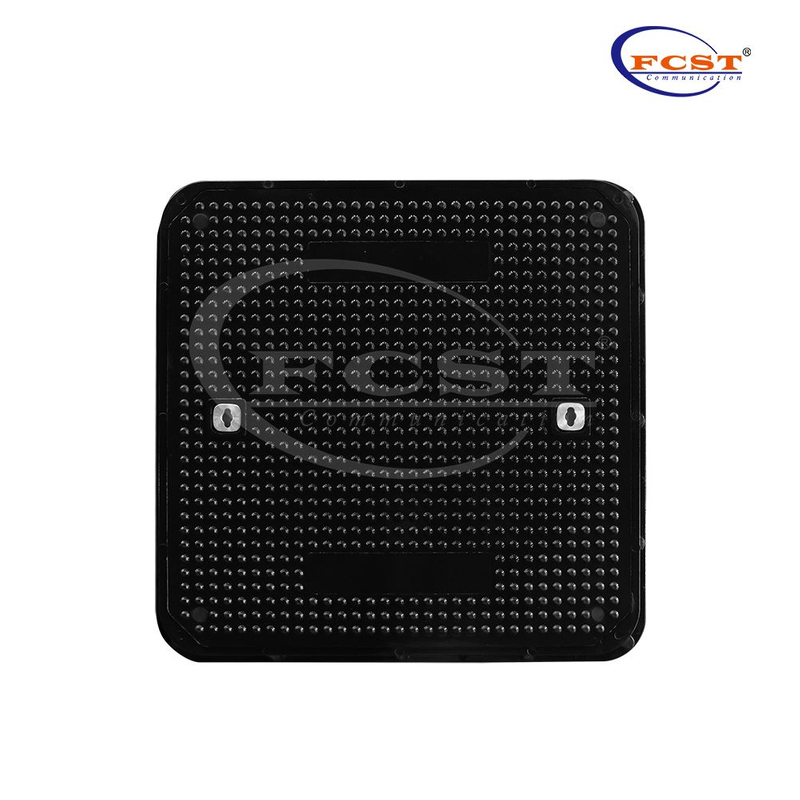

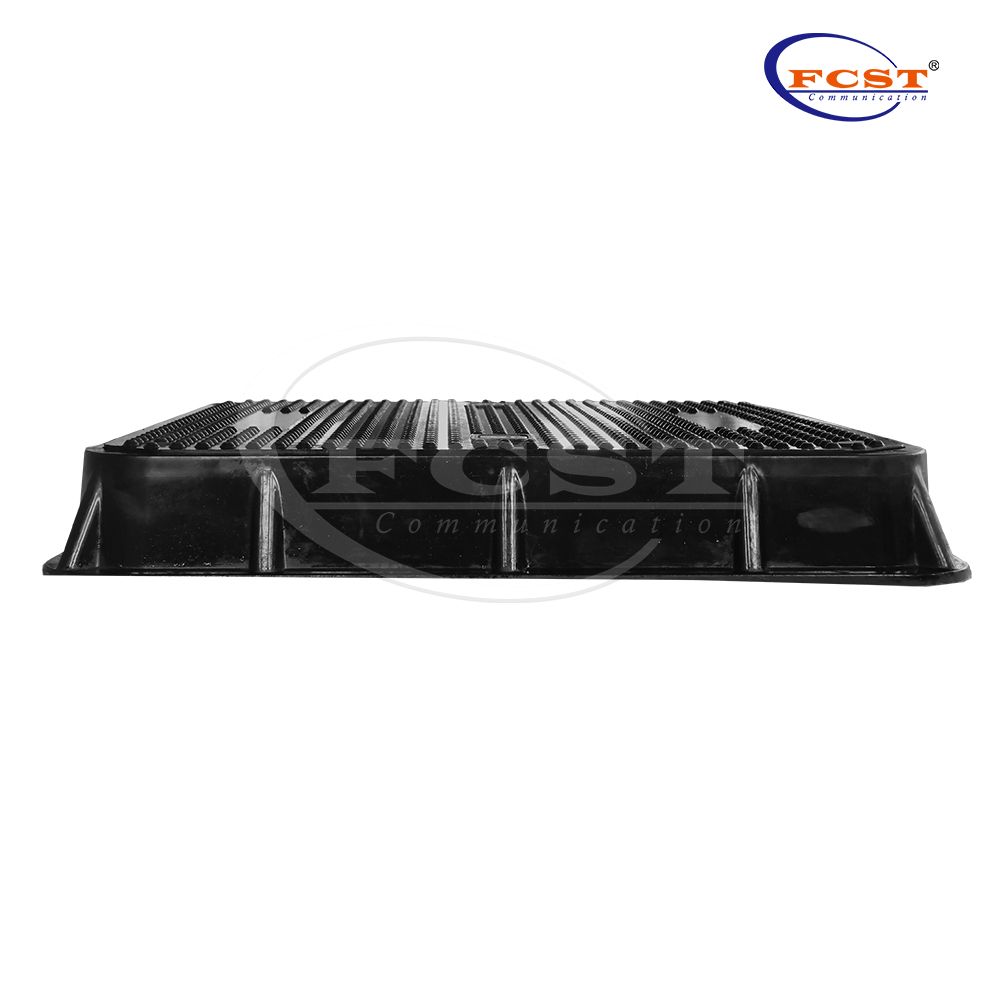

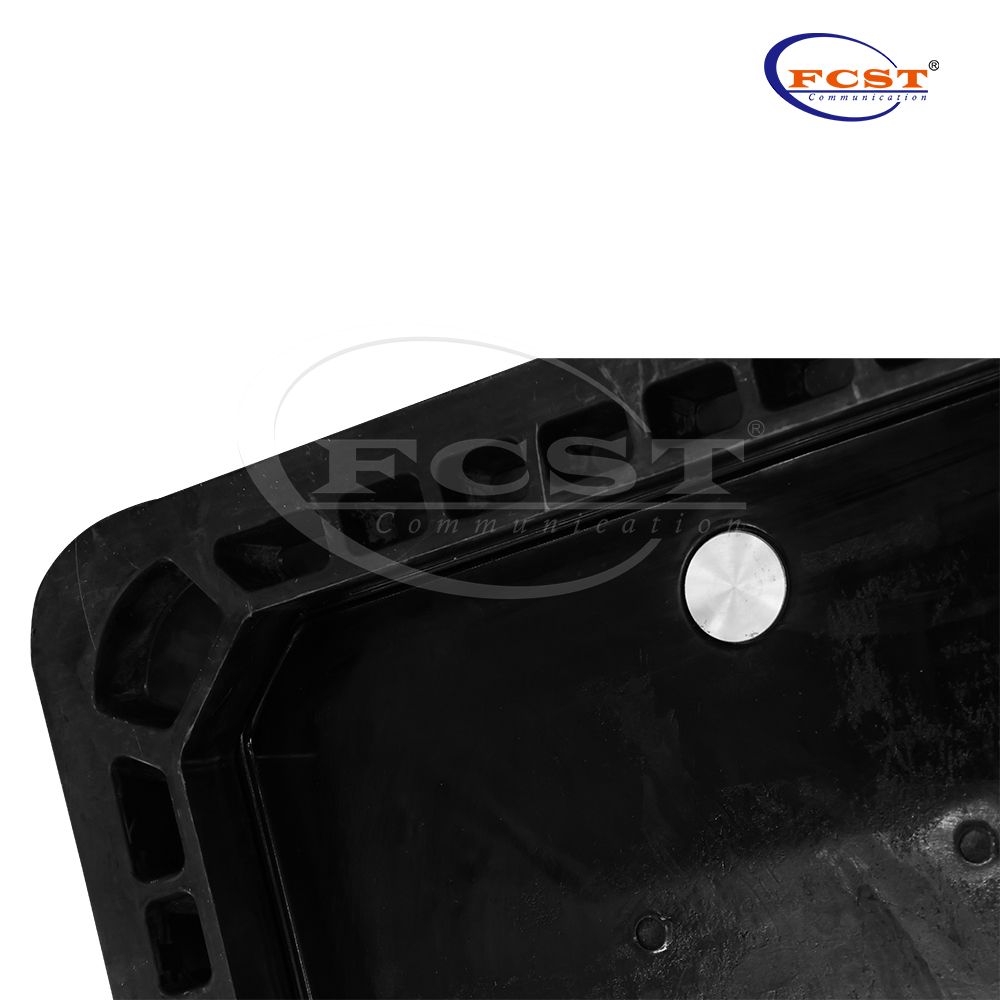

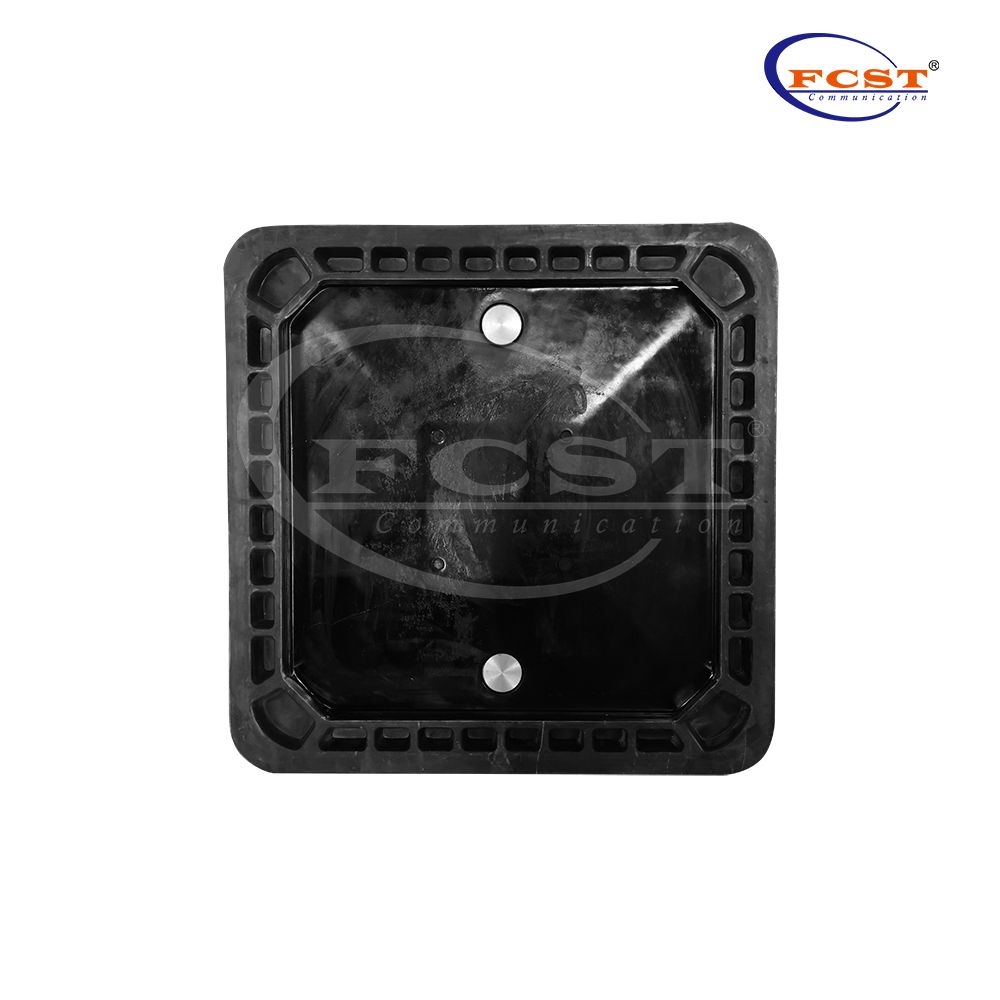

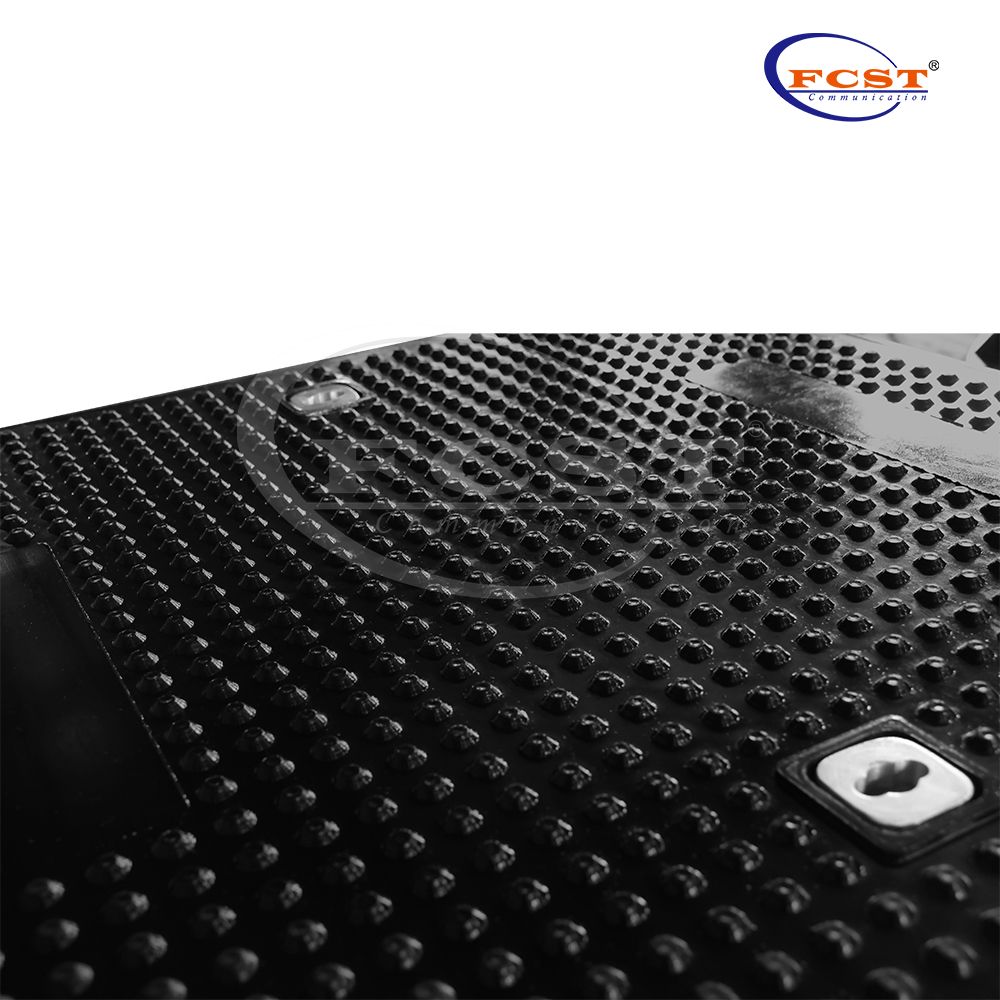

FCST02-D400-Φ600x600mm
FCST
FCST02-D400-Φ600x600mm
100
Product Overview

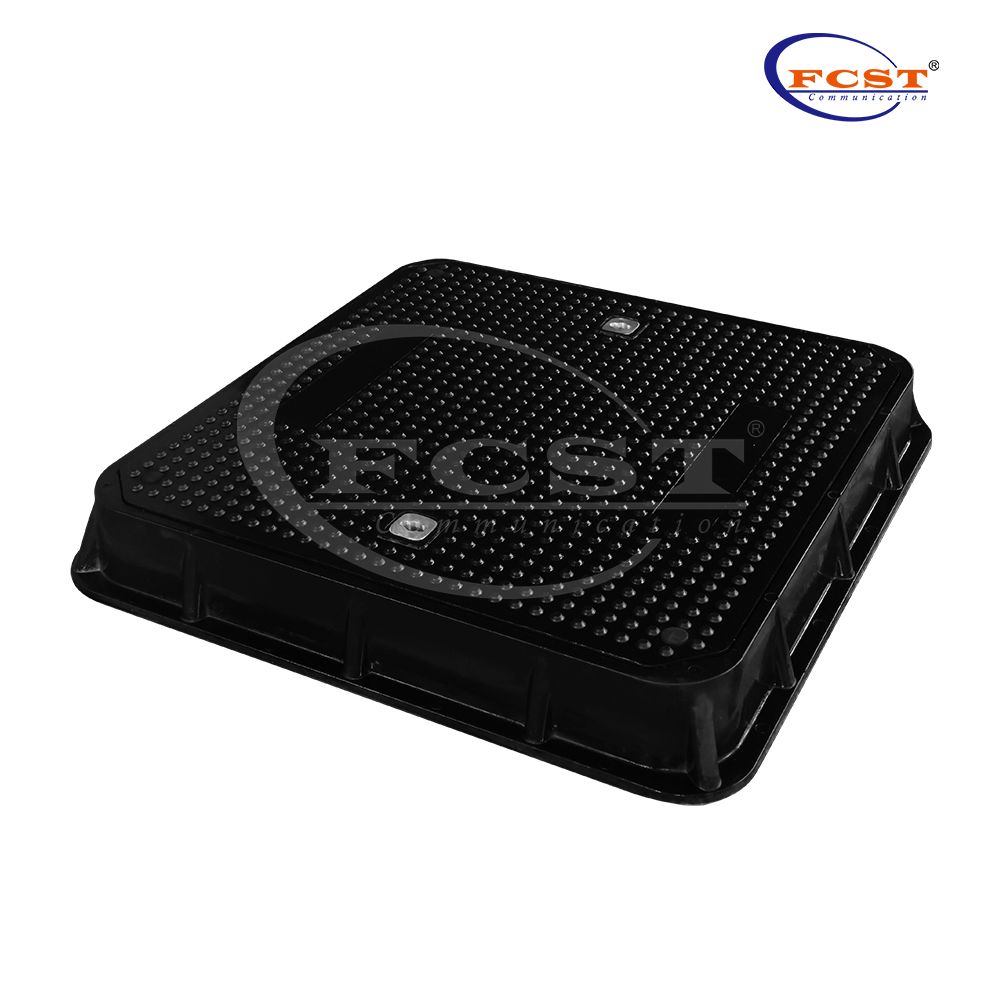

FCST02-D400-Φ600x600mm SMC Square Manhole Cover & Frame standard EN124:1994 bearing level;the manhole seat and the manhole cover consist of SMC composite materials,it can be applied to roads and places where heavy vehicles travel frequently, such as motor vehicle driving roads and parking lots, freight stations, and docks.
Product Advantages
- Customized services.
- Optional SMC, BMC materials.
- 603x603mm (23.74") clear opening.
- Manufactured to BS: EN124 Class B125,D400.
- Lightweight & Easy Installation: Save labor and install quickly on site.
Product Specifications
Construction | Description |
Material | SMC |
Total Weight | 52kg |
UV Resistance | Yes |
Color | Black / Grey (Customizable) |
Cover | |
Load Rating | D400 |
Cover Dimension (L*W*H) | 650*650*50mm丨25.591*25.591*1.969in |
Cover Diameter (L*W) | 650*650mm丨25.591*25.591in |
Frame | |
Frame Dimension (L*W*H) | 750*750*100mm丨29.528*29.528*3.937in |
Frame Outer Diameter (L*W) | 750*750mm丨29.528*29.528in |
Clear Opening | 603mm丨23.740in |
Product Size

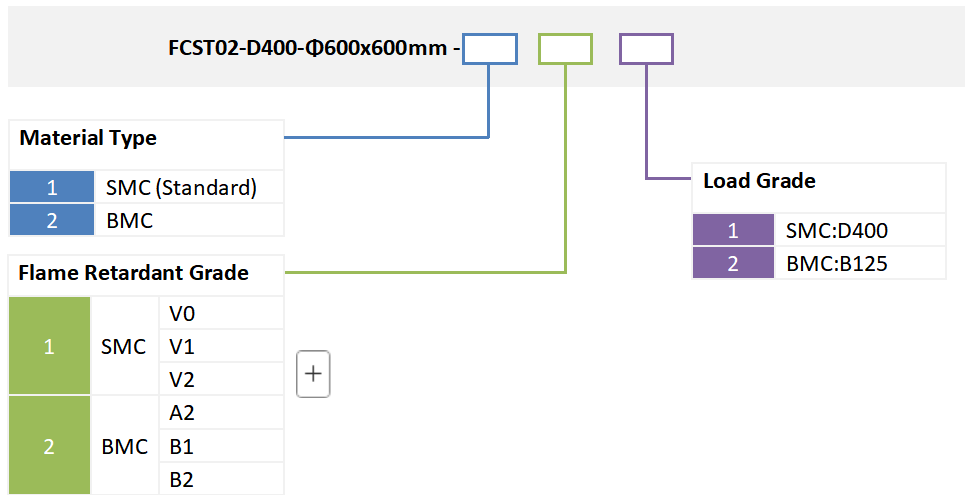

Ordering Information
