FCST022110
FCST
Product Overview

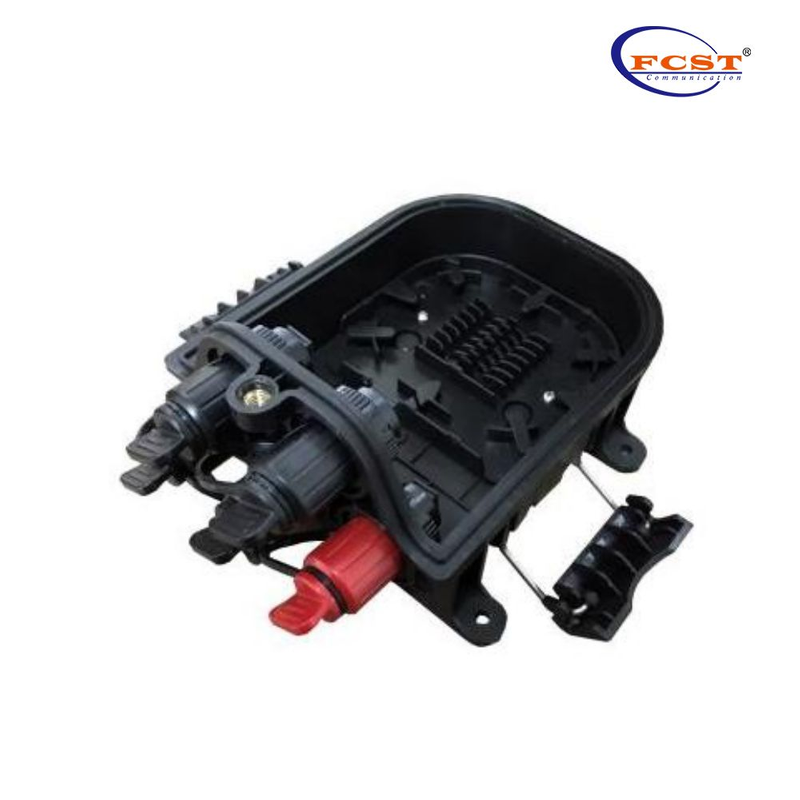

FCST022110 Pre-connected Fiber Access Terminal as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Product Advantages
Pre-connecterized FAT protection level up to IP68.
5 pre-connected adapters, 1 for input,4 for output.
Moisture proof, waterproof, dust-proof, anti-aging.
Advanced structure design, easy operation and reasonable routing.
Installation method: pole-mounted, aerial-mounted, wall-mounted, handhole, manhole.
Product Specifications
Construction | Description |
Max. Capacity | 4 Cores |
Material | PP/PC+ABS |
Inlets/Outlets | 1/4 |
Installation | Pole mounting,Aerial mounted ,Wall-mounting |
Protection Level | IP68 |
Splitter Type | 1x2 PLC Splitter 1x4 PLC Splitter |
Length | 168mm丨6.614in |
Width | 138mm丨5.433in |
Height | 78mm丨3.071in |
Weight | 400 g |
Storage Temperature | -45℃~+75℃ |
Note:Use HUAWEI Hardened adapter,The Seal adapter of FCST022110 Fiber Access Terminal is used in conjunction with FastConnect Distribution Cable.
Product Size
Product Structure
Ordering Information
Splicing Tray& Splitter Tray
Product Installation
Configuration
Main Parts
No. | Part Name | Unit | Quantity | Remark |
1 | Box Bottom | PCS | 1 | |
2 | Box Cover | PCS | 1 | |
3 | Splicing Tray | PCS | 1 | |
4 | Pre-connected Adapter | PCS | 5 | 1 red+4 black |
Packing Information
Construction | Description |
Outside Dimension (L*W*H) mm | 200*145*105 |
Weight/PC (kgs) | 0.45 |
Carton Size (L*W*H) mm | 420*310*560 |
Qty/CTN (pcs) | 20 |
Weight/CTN (kgs) | 9 |
Design And Customization Services
lProvide service with whole process from blueprint to product to the customer.
lMeet customer’s requirement to customize logo in suitable place for existing product.
lMeet customer’s requirement to make reasonable modify and customization for existing product.
lProvide free design according to the requirement of customer after signed cooperative agreement.
