Product Overview
FCST-D400-SMC SMC Round Composite Manhole Cover & Frame,standard EN124:1994 bearing level;the manhole seat and the manhole cover consist of SMC composite materials,the sealing and locking structure consists of 304 stainless steel and corrosive rubber.Widely used in the roads and venues of frequent driving of heavy vehicles such as car gas stations, freight stations, docks.
Product Advantages
l Rubber ring waterproof.
l Support customization.
l High corrosion resistance.
l With 350m small cover, can be opened.
Other Applicable Industries
Product Specifications

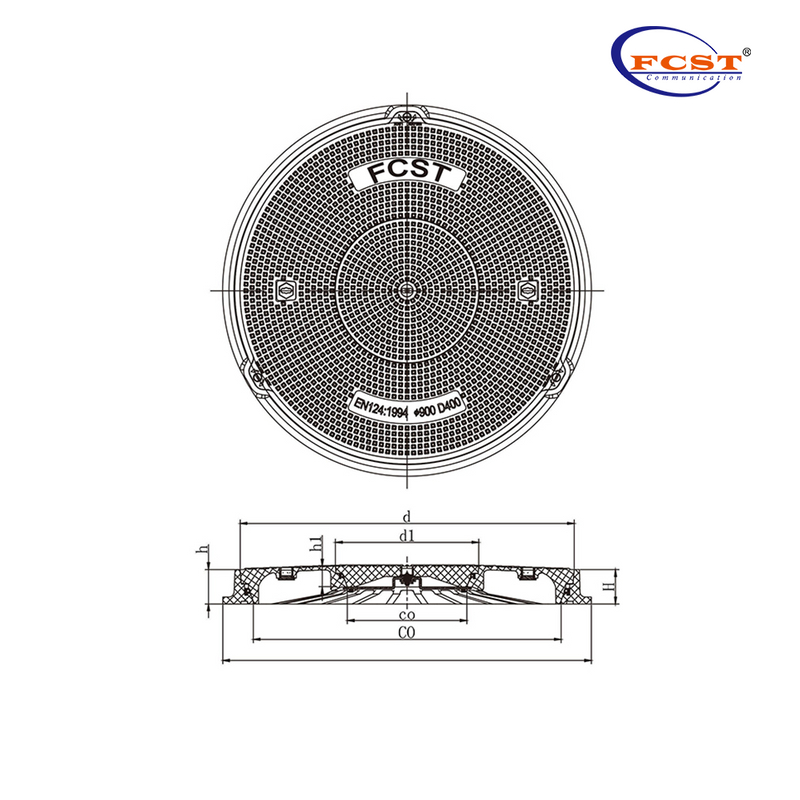

Construction | Description |
Cover | |
Load Rating | FCST-D400-SMC01:D400 FCST-D400-SMC02:C250/D400 |
Cover Dimension (mm) | FCST-D400-SMC01:Φ1008*115 FCST-D400-SMC02:Φ977*55 |
Depth of Insertion (h) | FCST-D400-SMC01:100 m FCST-D400-SMC02:30 m |
Diameter of Sealing Ring (d1) | FCST-D400-SMC01: / FCST-D400-SMC02:Φ977mm |
Cover Diameter (d₂) | FCST-D400-SMC01:Φ980mm FCST-D400-SMC02:Φ966mm |
Weight (kg) | FCST-D400-SMC01:50 FCST-D400-SMC02:49 |
Frame | |
Frame Dimension (mm) | FCST-D400-SMC01:Φ1080*100 FCST-D400-SMC02:Φ1074*100 |
Frame Depth(H) | FCST-D400-SMC01:100mm FCST-D400-SMC02:100mm |
Frame Outer Diameter (D) | FCST-D400-SMC01:Φ1080mm FCST-D400-SMC02:Φ1074mm |
Net Opening (CO) | FCST-D400-SMC01:900mm FCST-D400-SMC02:900mm |
Weight (kg) | FCST-D400-SMC01:21 FCST-D400-SMC02:19 |
Central Cover | |
Central Cover Dimension (mm) | FCST-D400-SMC01:Φ420*60 FCST-D400-SMC02: / |
Depth of Insertion(h₁) | FCST-D400-SMC01:60mm FCST-D400-SMC02: / |
Cover Diameter (d₁) | FCST-D400-SMC01:Φ420mm FCST-D400-SMC02: / |
Central Cover Clean Opening (co) | FCST-D400-SMC01:350mm FCST-D400-SMC02: / |
Weight (kg) | FCST-D400-SMC01:10.5 FCST-D400-SMC02:/ |
Fastener and Corrosion Resistant Rubber Operating Temperature Range(℃) | -40~100 |
