FCST-FMC17
FCST
FCST-FMC17
20
Product Overview
The FCST-FMC17 SC Waterproof Field Assembly Fast Connector is a high-performance, field-installable connector. It designed for rapid deployment in fiber optic networks. It supports single-mode (SM) and multimode (MM) fiber applications, offer a plug-and-play solution for telecommunications, data centers, and enterprise networks.
Product Advantages
Low insertion loss and high return loss.
Cost effective solution for outdoor termination.
Mechanical performance: IEC 61754-4 standard.
IP68 water proof, dust proof and corrosion resistant.
Applicable cable diameter: 2.0*3.0mm FTTH Drop Cable.
Product Specifications
Construction | Description |
Fiber Cable | 2.0*3.0mm rubber-insulated optical cable |
Fiber Type | G.652D, G.657A2 |
Mode | SM&MM |
Fiber Diameter | 125um |
Coating Diameter | 250um |
Waterproof Rating | IP68 |
Length | 130mm丨5.118in |
Diameter | 20mm丨0.787in |
Operation Time | About 50(no fiber cut) |
Insertion Loss | Averagely:≤0.3dB, Max.:≤0.5dB |
Return Loss | UPC≥50, APC≥55 |
Reusable Times | ≥10 times |
Tensile Strength | >45N |
Temperature | -40~+85C |
On-line Tensile Strength Test (20 N) | ΔIL≤0.3dB |
Mechanical Durability(500 times) | ΔIL≤0.3dB |
Drop-off test (drop-off height4m, once per direction, totally 3 times) | ΔIL≤0.3dB |

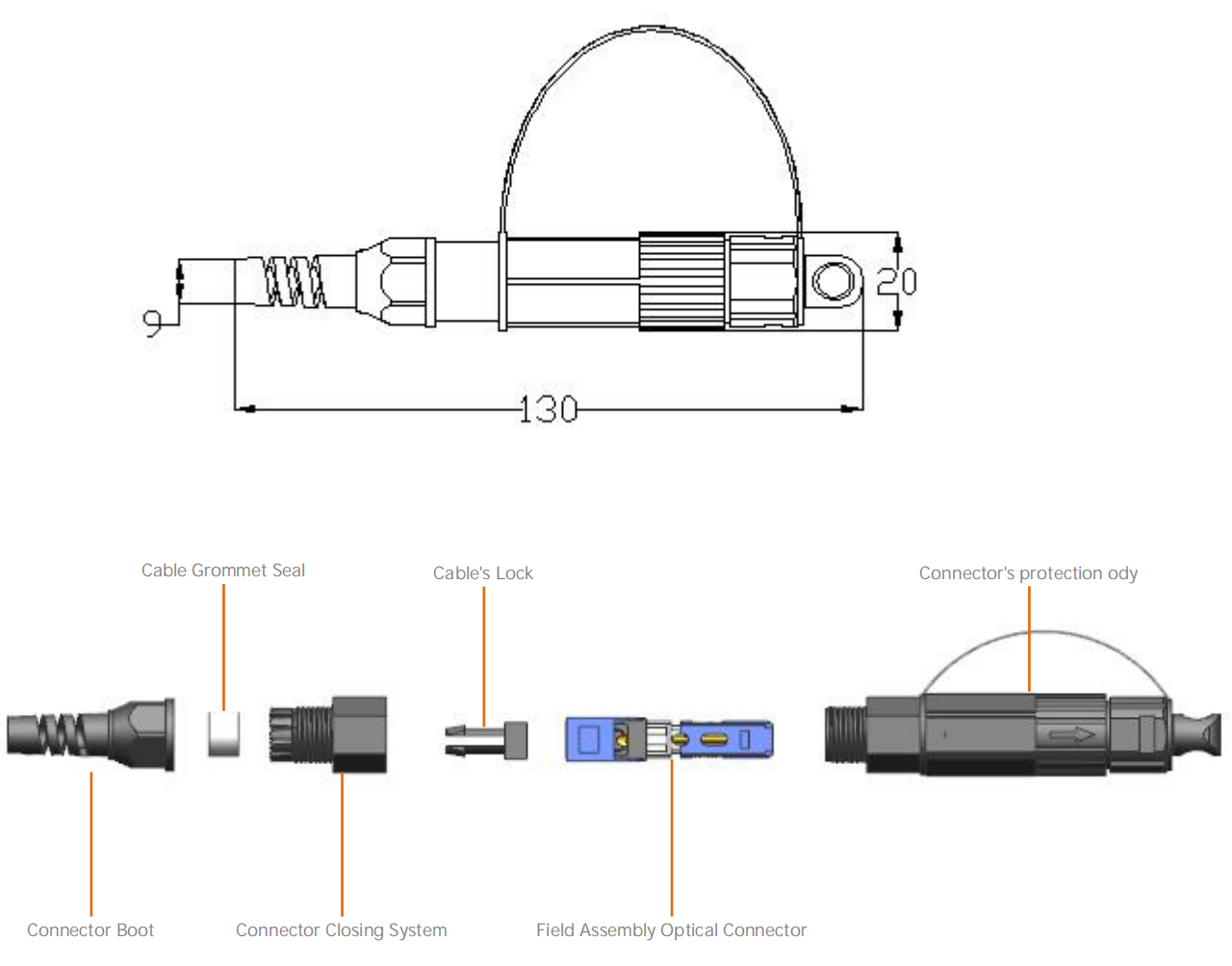

Product Structure
