Product Overview

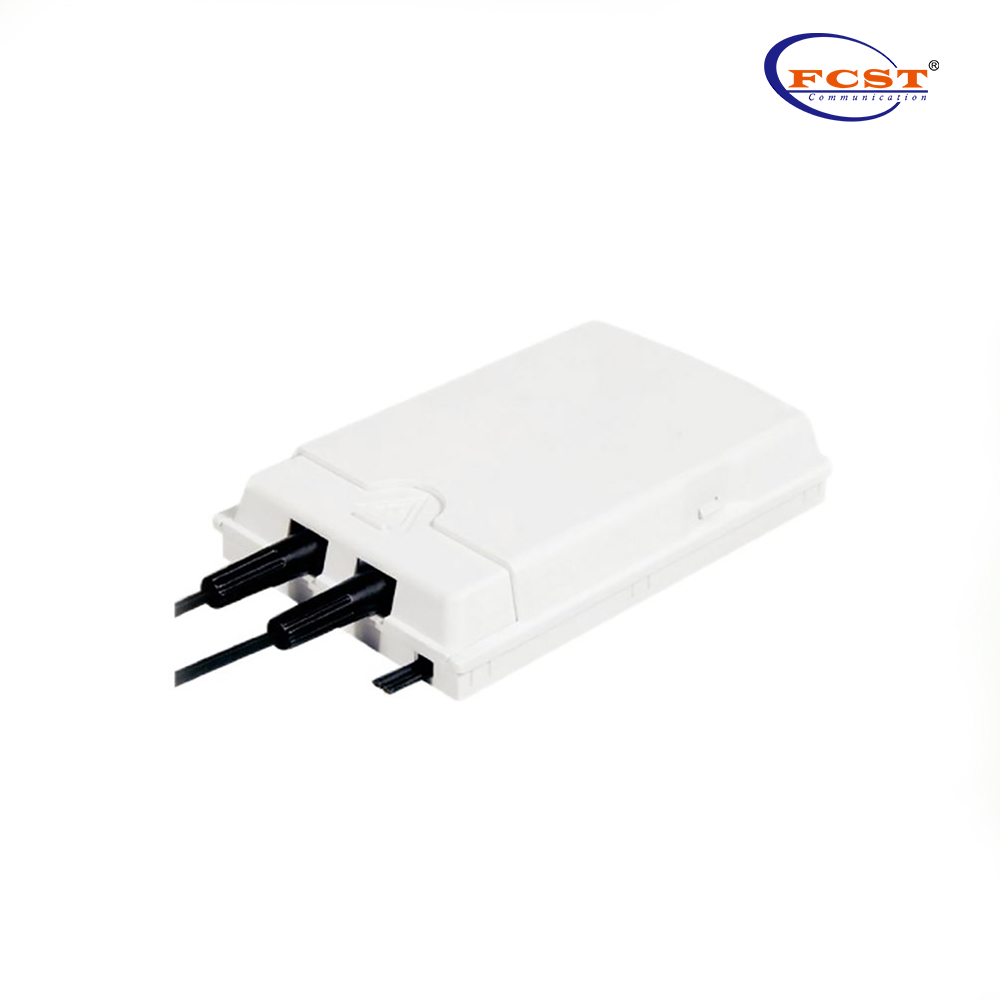

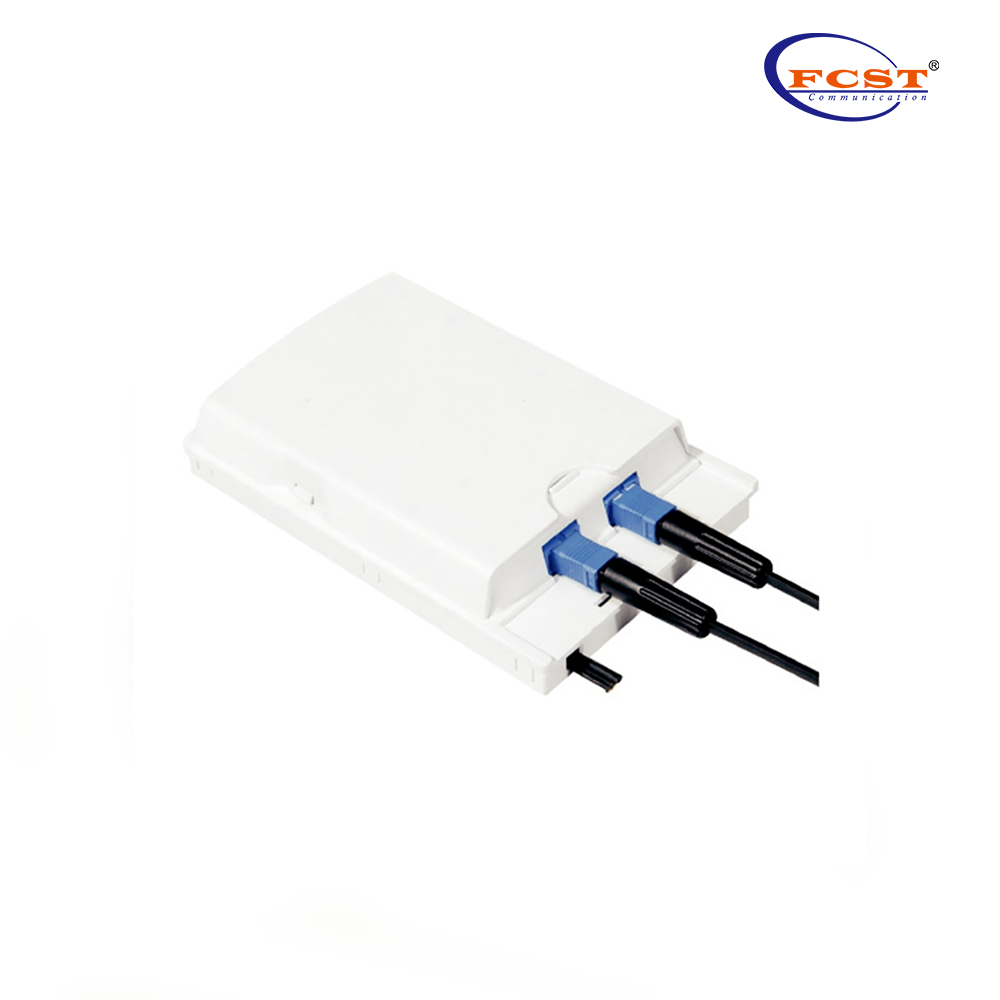

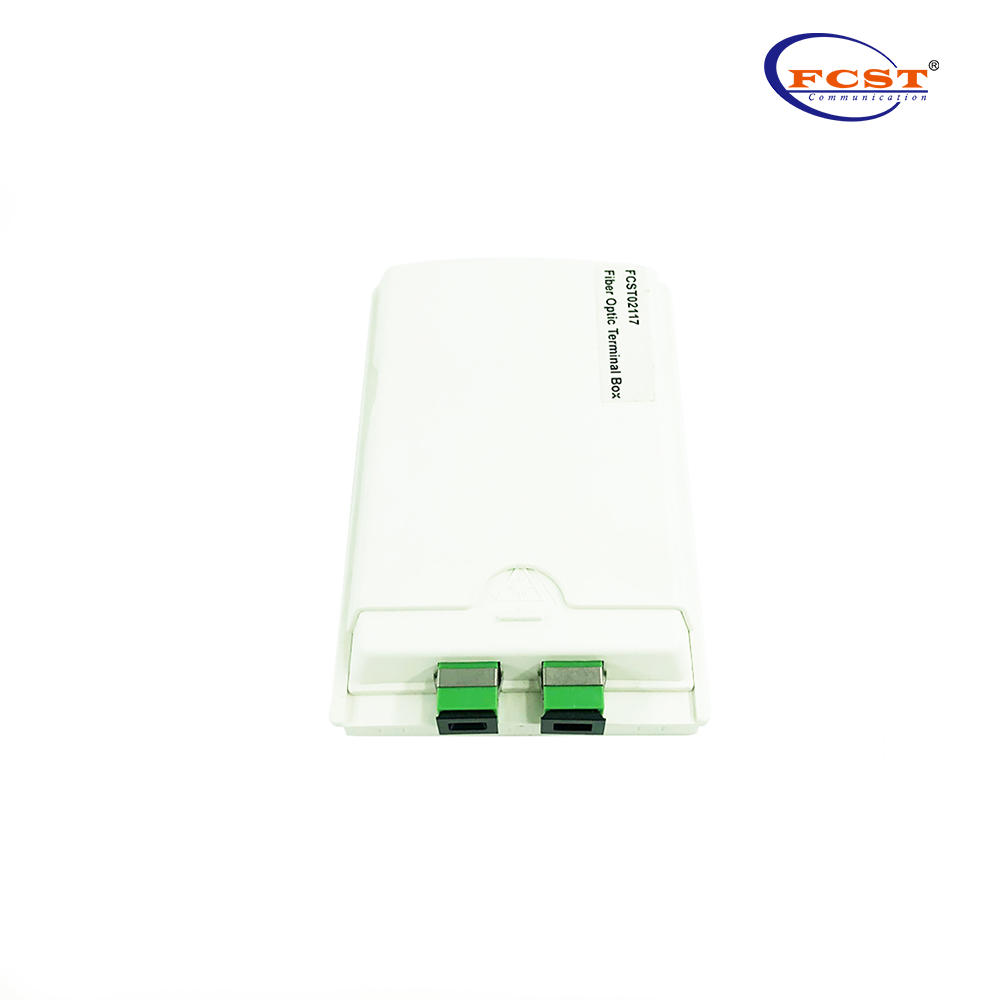

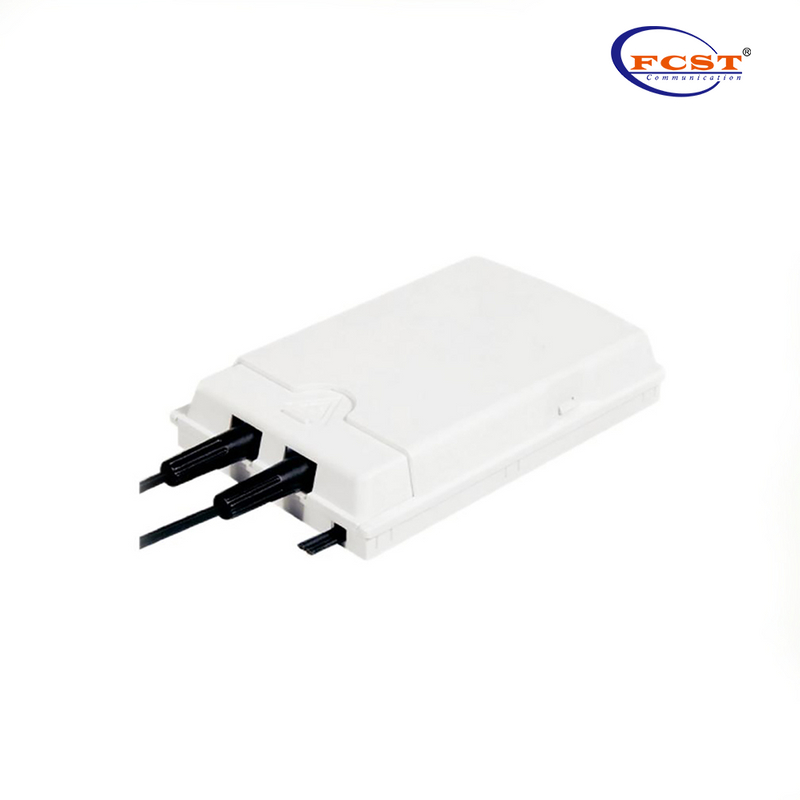

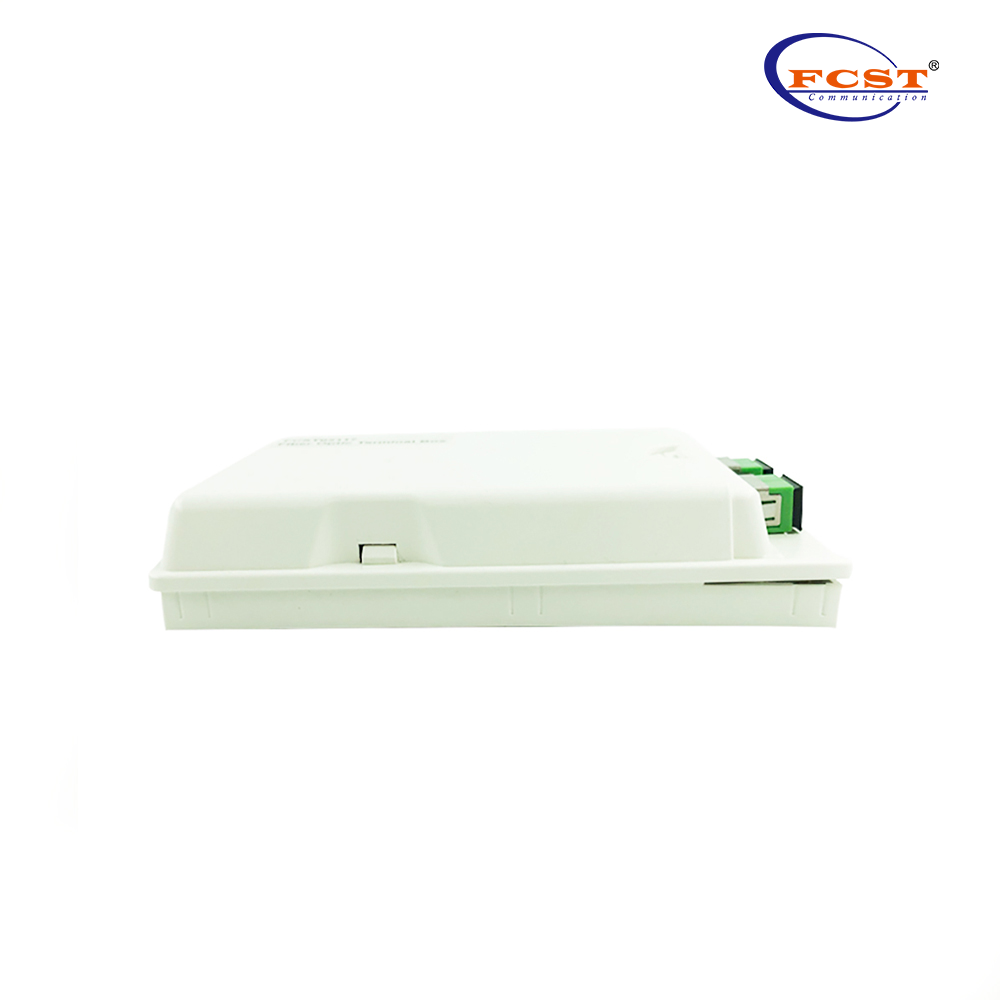

FCST02117 fiber rossette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Product Advantages
l Dust-proof design with IP-45 Protection level.

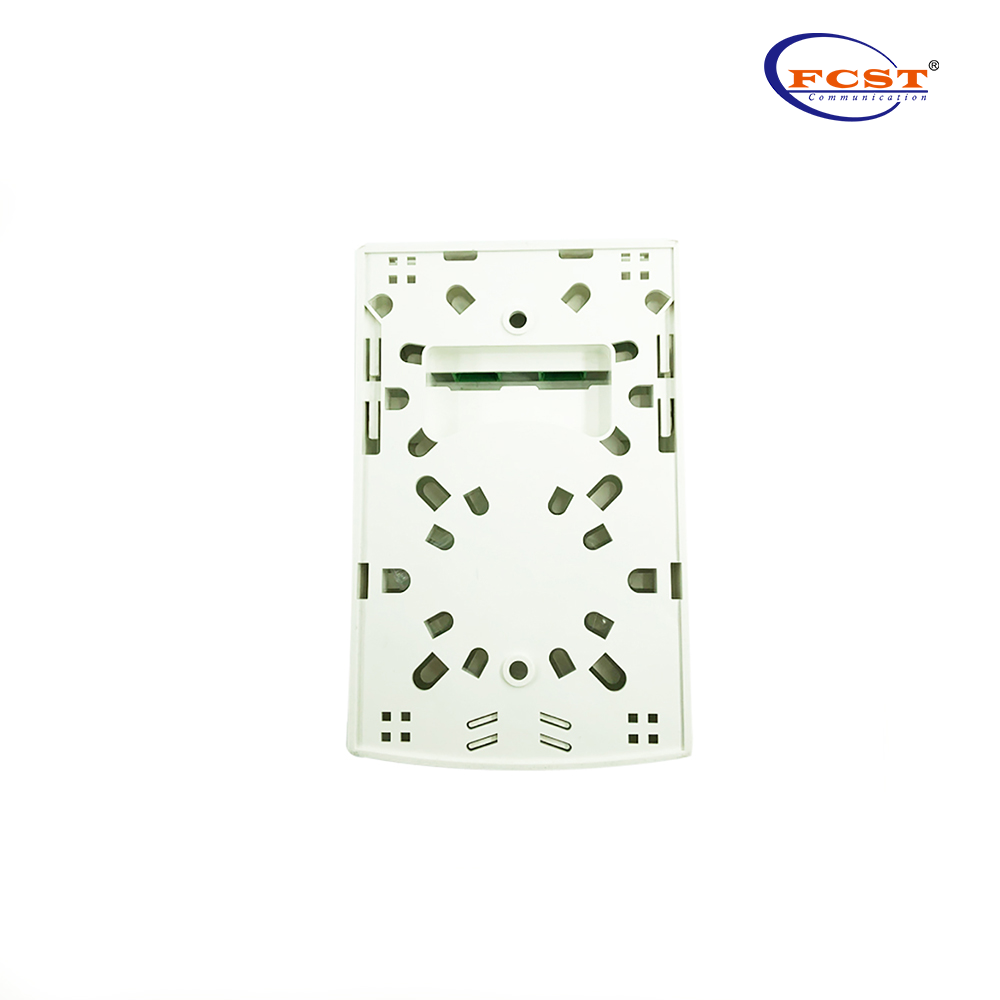

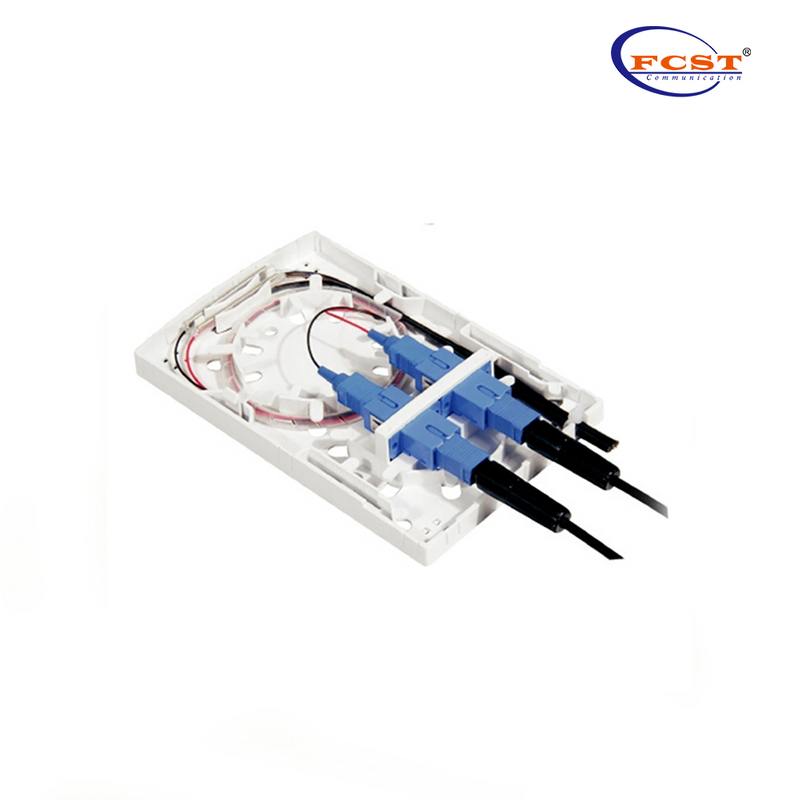

l Integrated with splice cassette and cable management rods.
l Manage fibers in a reasonable fiber radius condition.
l Easy to maintain and extend the capacity.
l Suitable for the fusion splice or mechanical splice.
l Embedded type surface, easy for installation and removal.
l 2 ports cable entrance for patch cable.
Product Specifications
Item | Parameters |
Scope of application | 3.0x2.0mm drop cable or indoor cable |
Fiber cladding diameter | 125um(G652&G657) |
Fiber diameter | 250um&900um |
Fiber type | SM＆MM |
Tensile strength | > 50 N |
Operating temperature | -40 ~ +85 C |
Connecting adapter | SC & LC |
Insertion loss | <0.2dB |
Return loss | >50dB(UPC),>60dB(APC) |
Configuration
Material | Size | Max Capacity | Mounting Way | Weight | Color | |
PC +ABS | A*B*C(mm) 130*84*24 | SC 2 Ports | LC 4 Ports | Wall Mounting | 0.3kg | White |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
