FCST012109
FCST
FCST012109
Product Overview

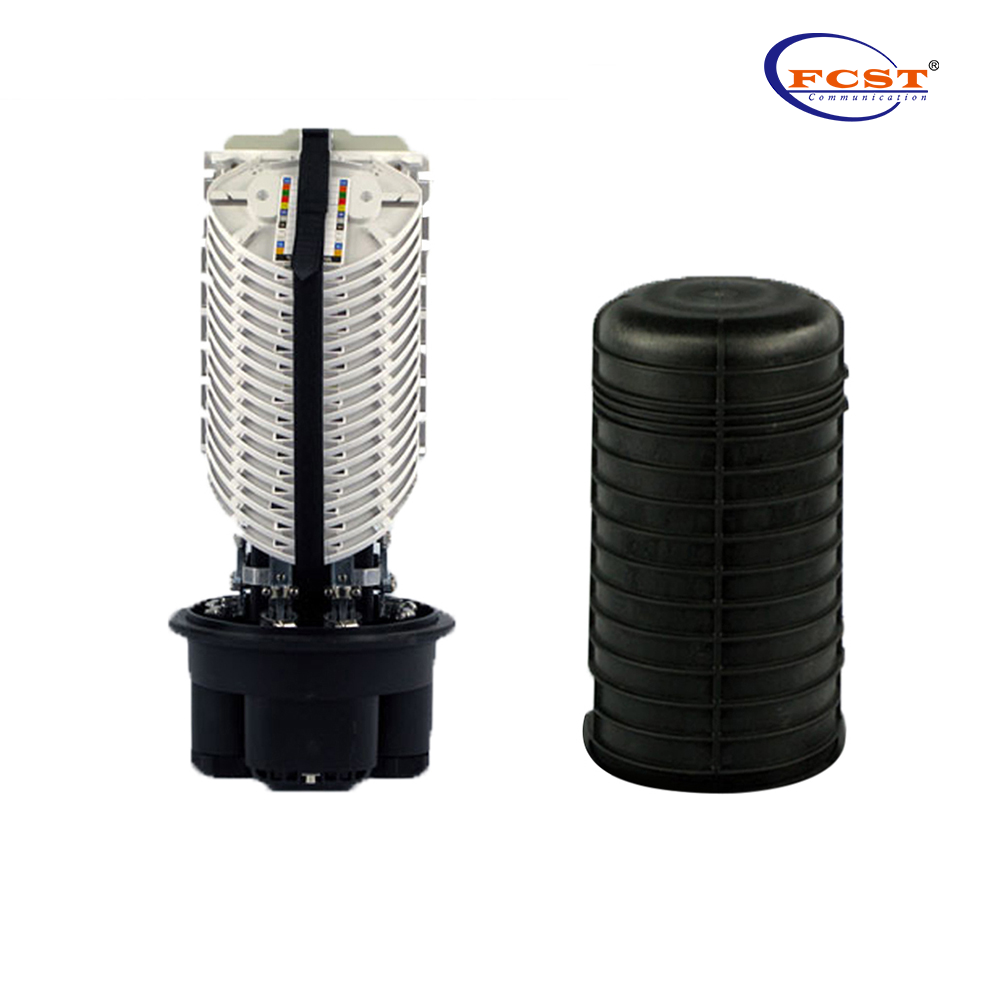

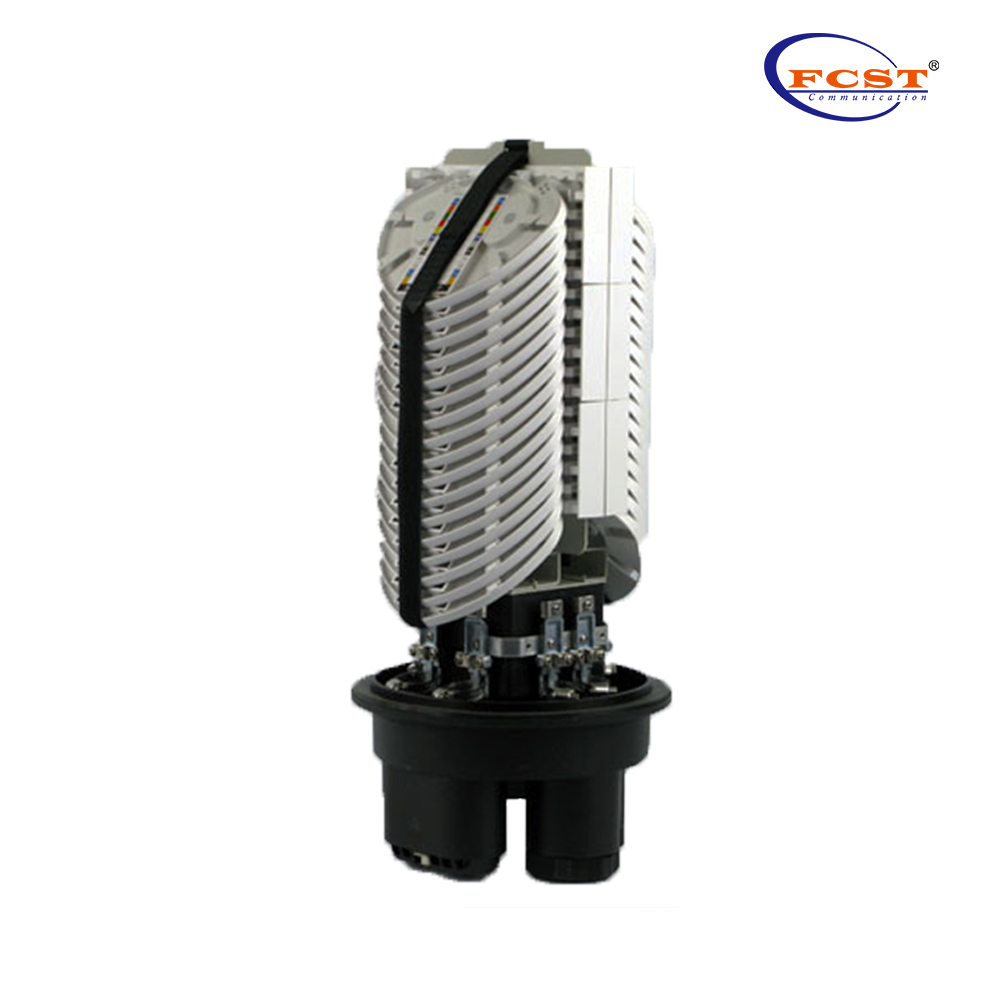

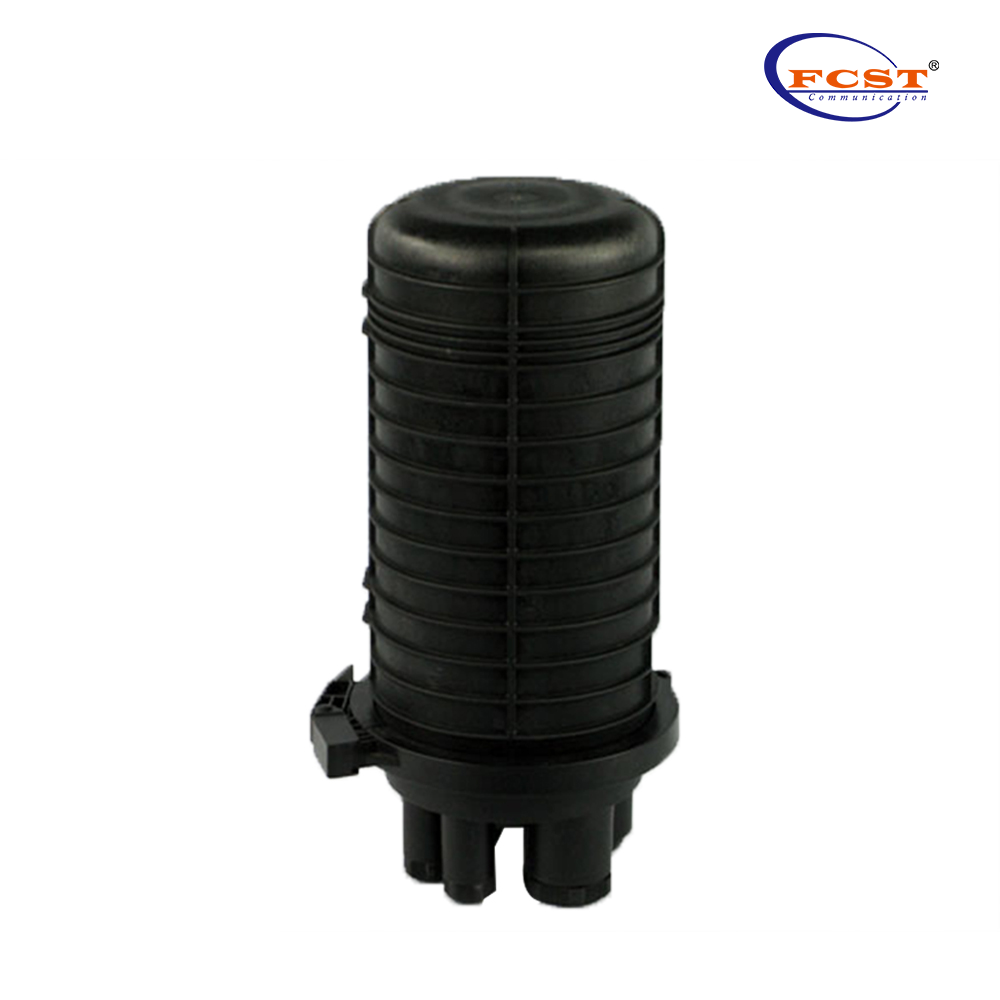

FCST012109 Fiber Optic Splice Closure is a dome type with big capacity, which supports cable link, branch, distribution and storage. It has 7 cable ports, suitable for different methods of branch cable connection. The closure has goods sealing performance, convenient to operate and wide range of applications, It's suitable for wall-mounting, aerial, pole-mounting, and ground buried.
Product Specifications
Construction | Description |
Max. Capacity | Single:408Cores |
Material | PP+GF |
Dimension (mm) | 396*200*126 |
Inlets/Outlets | 5 |
Installation | wall-mounting, aerial, pole-mounting, and ground buried |
Net Weight（g） | 5950 |
Protection Level | IP68 |

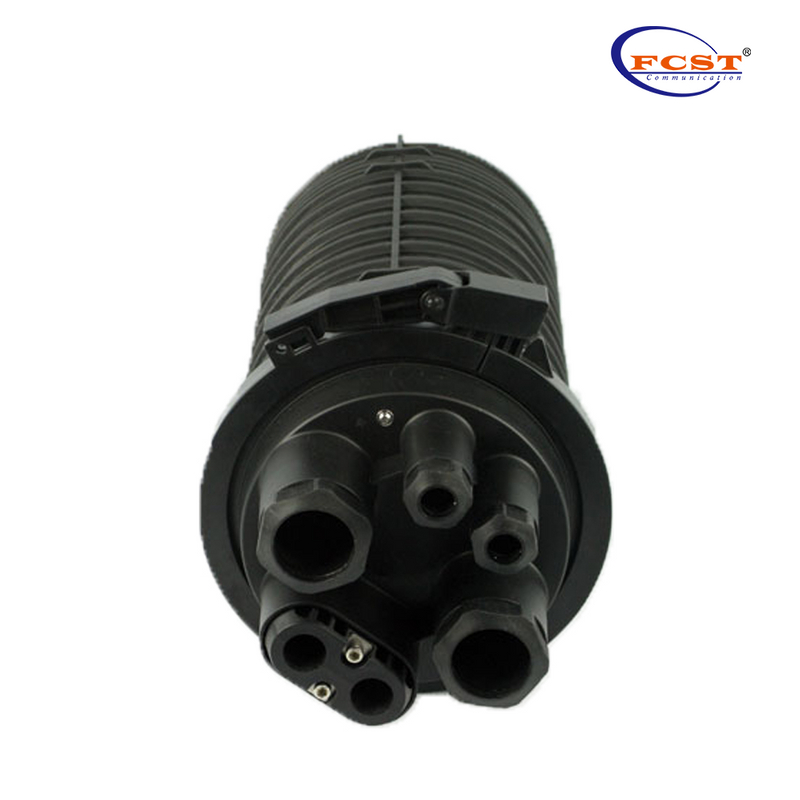

Diameter Of Fiber Cable | Oval port: 1(Φ10～17.5mm) Two big round port(Support 2 Φ8～17.5mm optical cables) Two small round port(Φ8～17.5mm) |
Sealing Mode | Mechanical |
Number Of Trays | 34 |
Capacity Of Tray | 12F |

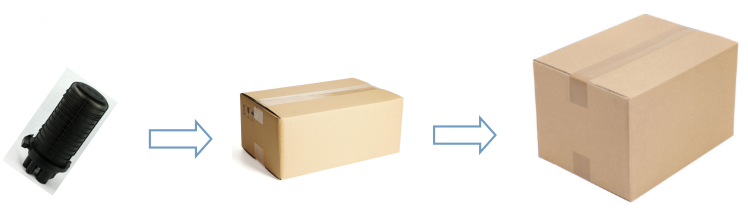

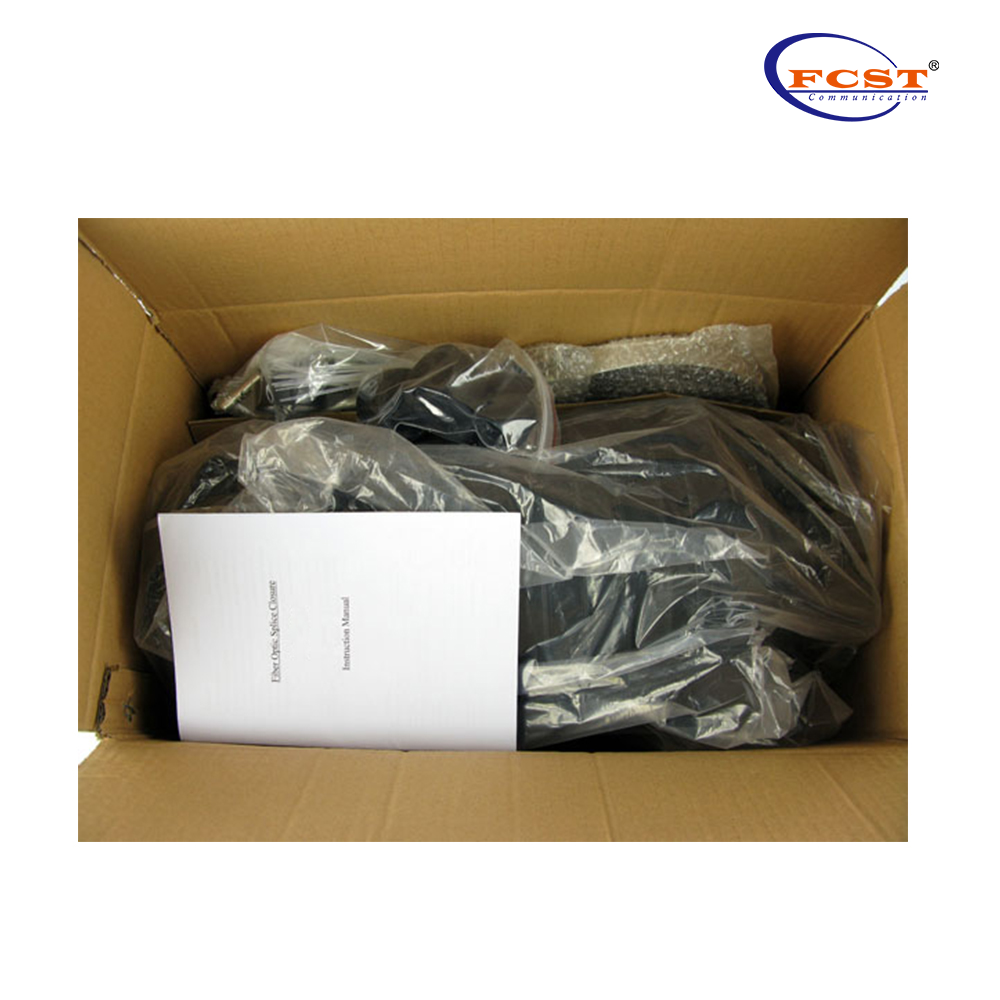

Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | - |
Weight/PC（kgs） | 6.5 |
Carton size（L*W*H）mm | 570*500*540 |
Qty/CTN（pcs） | 4 |
Weight/CTN（kgs） | 27.8 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
