FCST-MB66.35kHz
FCST
FCST-MB66.35kHz
10000
Product Overview

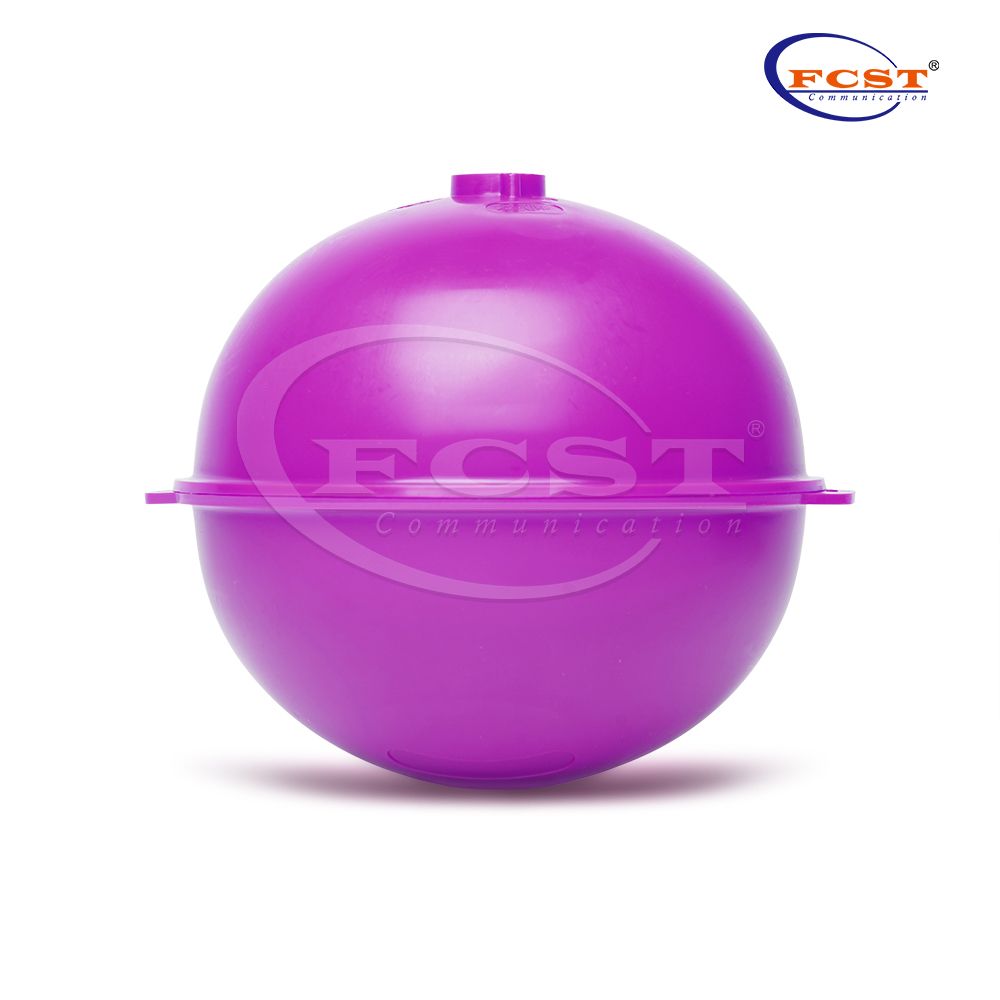

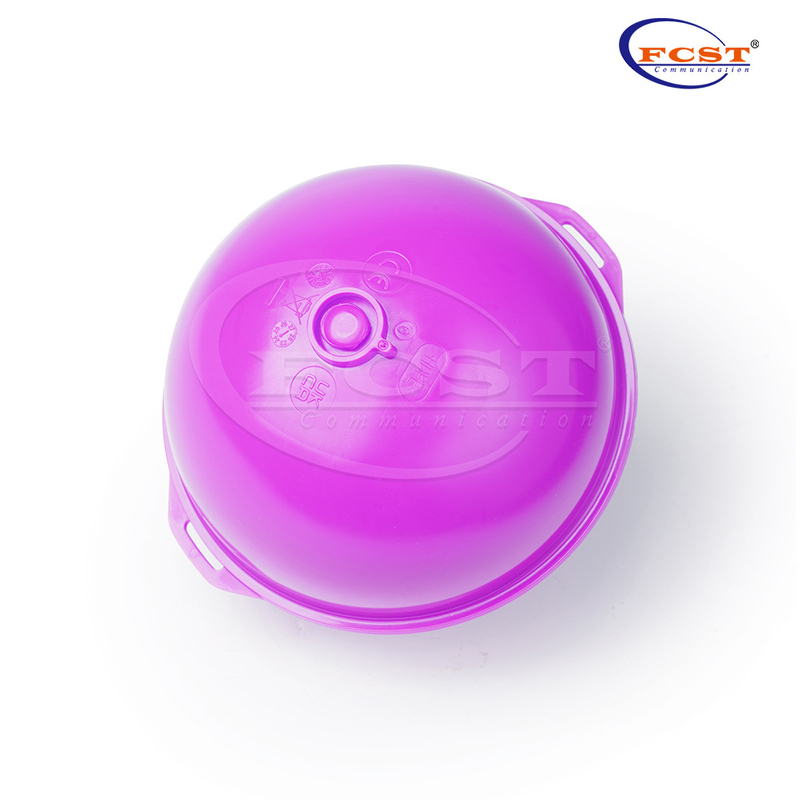

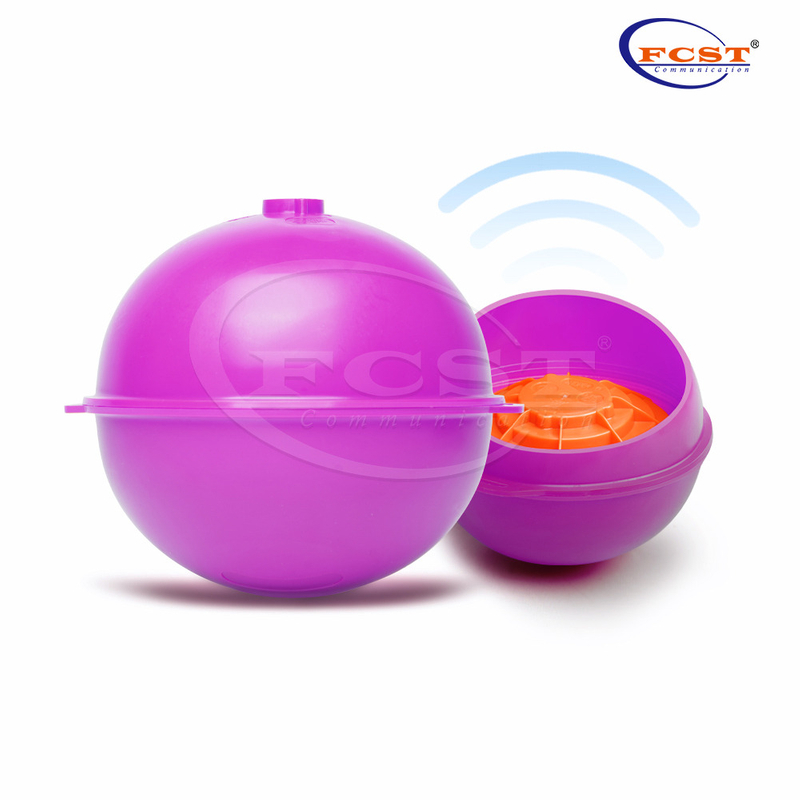

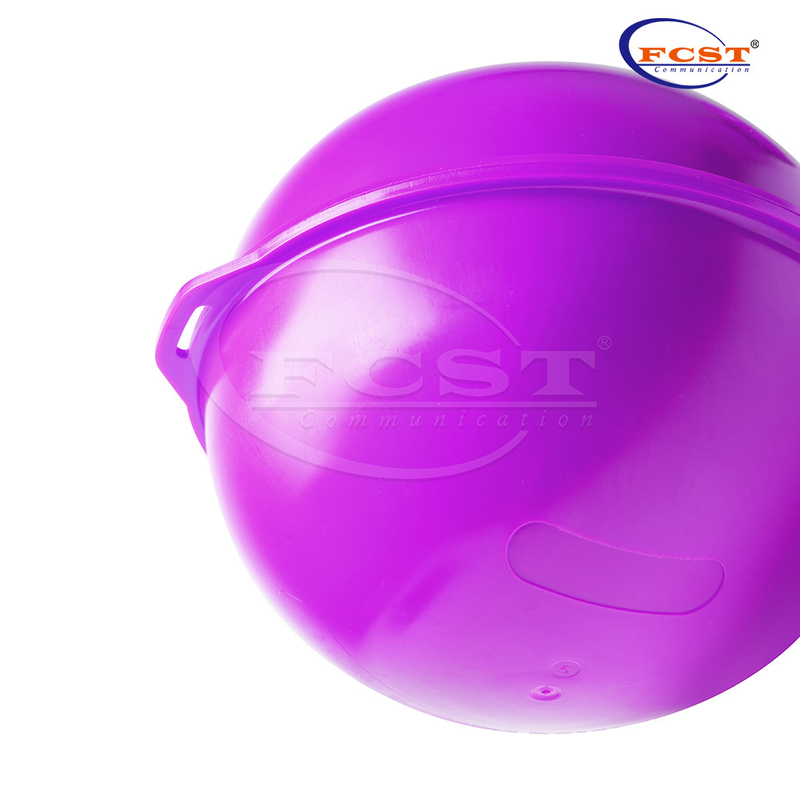

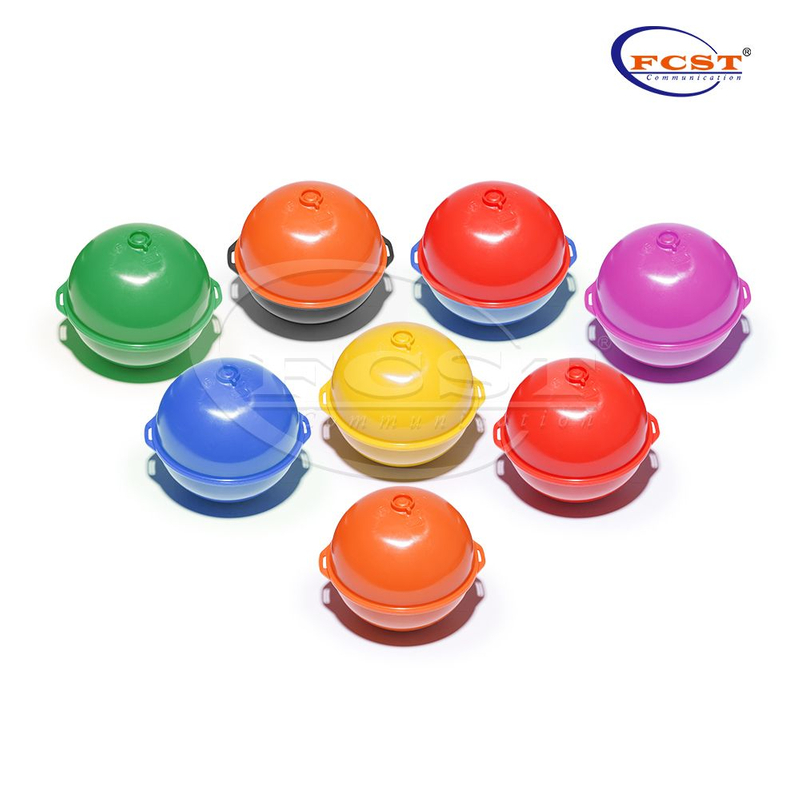

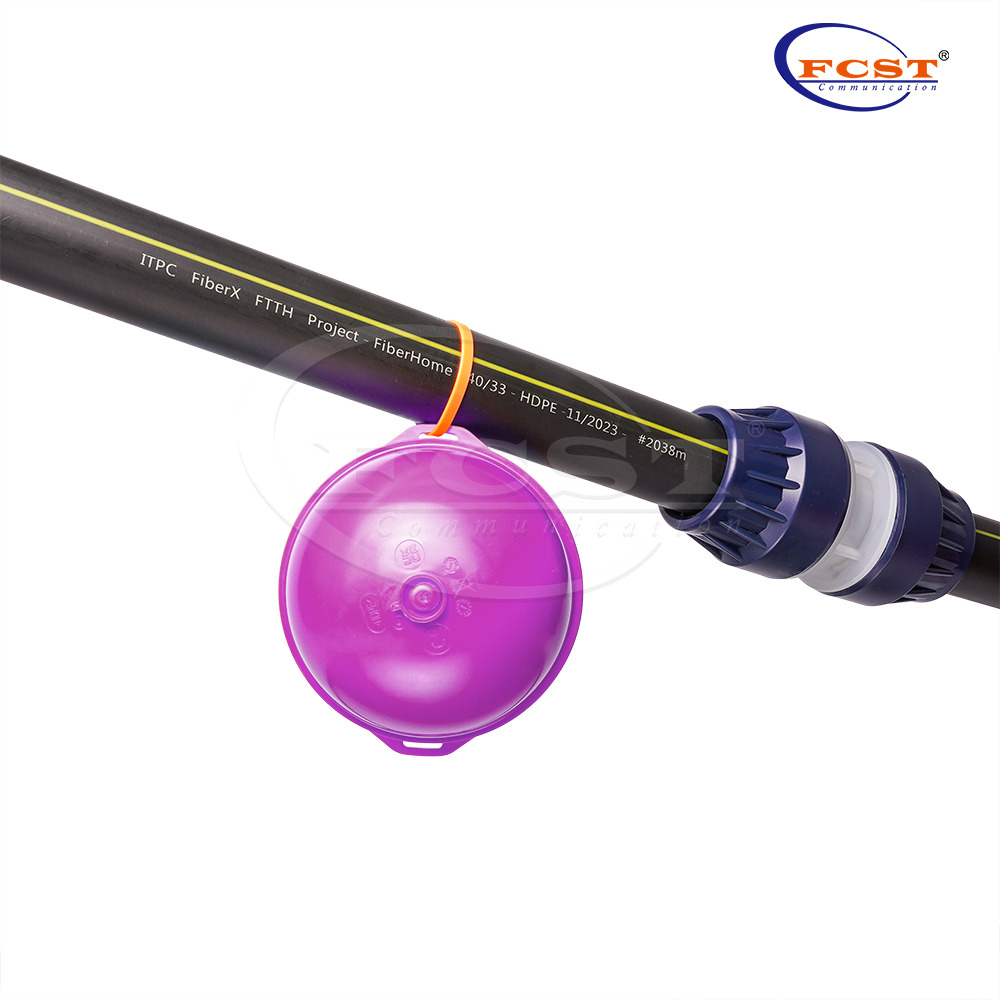

The FCST-MB66.35kHz Marker Ball uses HDPE packaging and has the characteristics of chemical corrosion resistance and pressure resistance. It supports multiple industry applications and multiple working frequency options, such as: Non-Potable Water (66.35kHz) etc.
Product Specifications
Construction | Description |
Product Type | EX.ID version |
Frequency | 66.35kHZ |
Identification Depth | 1.5m |
Maximum Detectable Depth | 1.5 m (EX.ID version) |
Service life | 50 years |
Diameter | Φ120mm丨4.724in |
Height | 115mm丨4.528in |
Material | HDPE |
Weight | 0.4kg(±20g) |
Protection Level | IP68 |
Storage Temperature | -40℃ to +70 ℃ |
Operating Temperature | -40℃ to +60 ℃ |
| Marker Ball Distance | Maximum distance 50m |
Drop Test | Can withstand a 1.5m drop to the concrete floor |
Stress Resistance | Withstands 400Kg pressure, the ball has no permanent damage, no cracks and leaks, and no damage to its electronic tag function |
Detector Compatibility | ED8000 or other detectors with the same frequency (for example: 3M Dynatel series) can read |

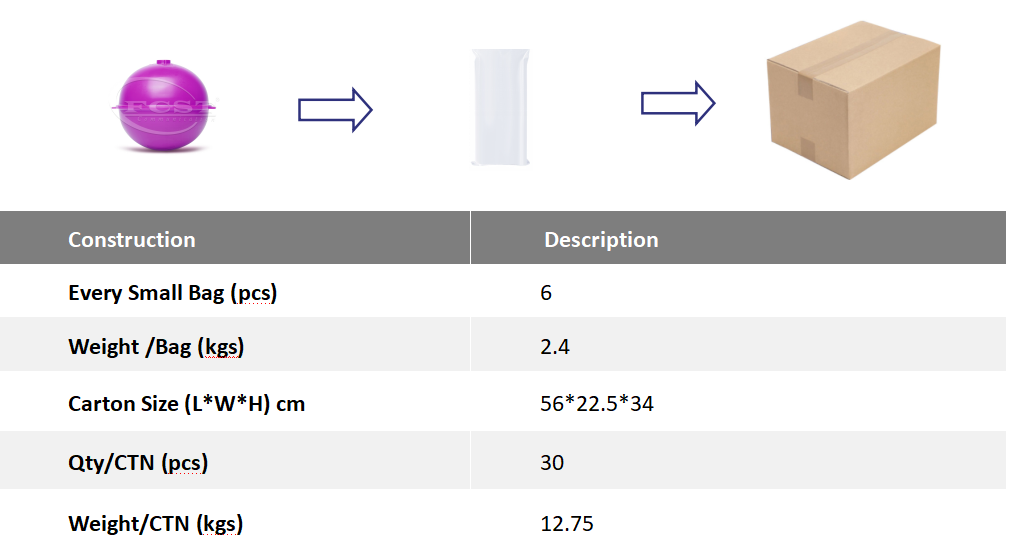

| Packaging Info | 30pcs/cnt 12.75kg 0.043cbm(560*225*340mm） 18cnt/pallet 247kg 2.016cbm(2100*800*1200mm） |

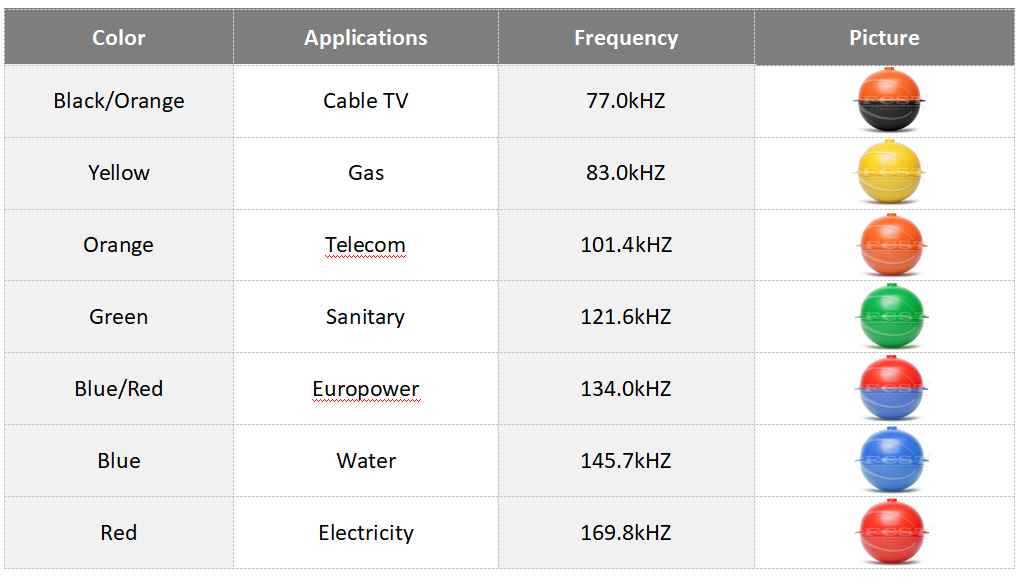

Ordering Information

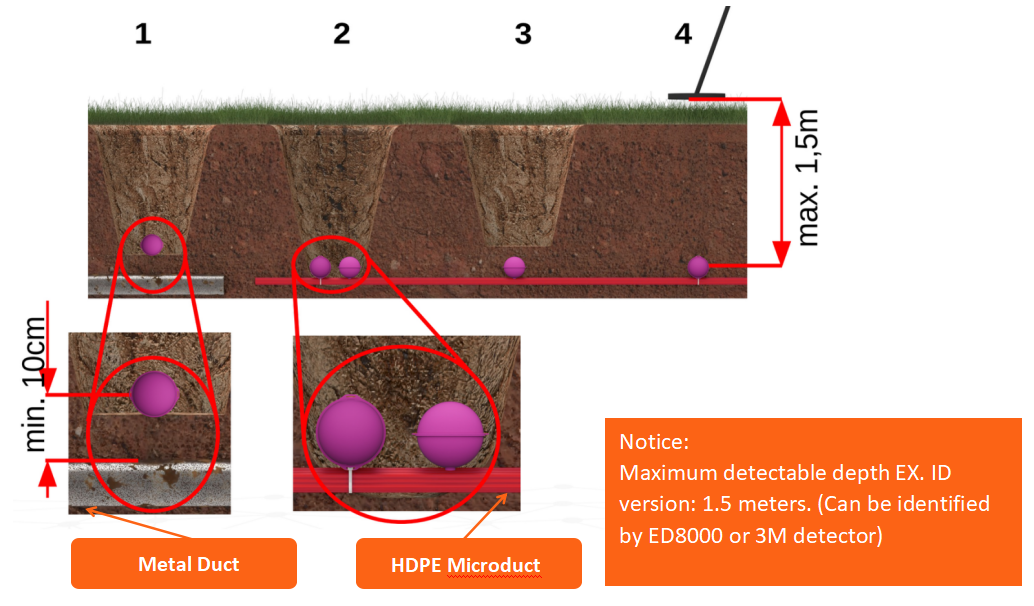

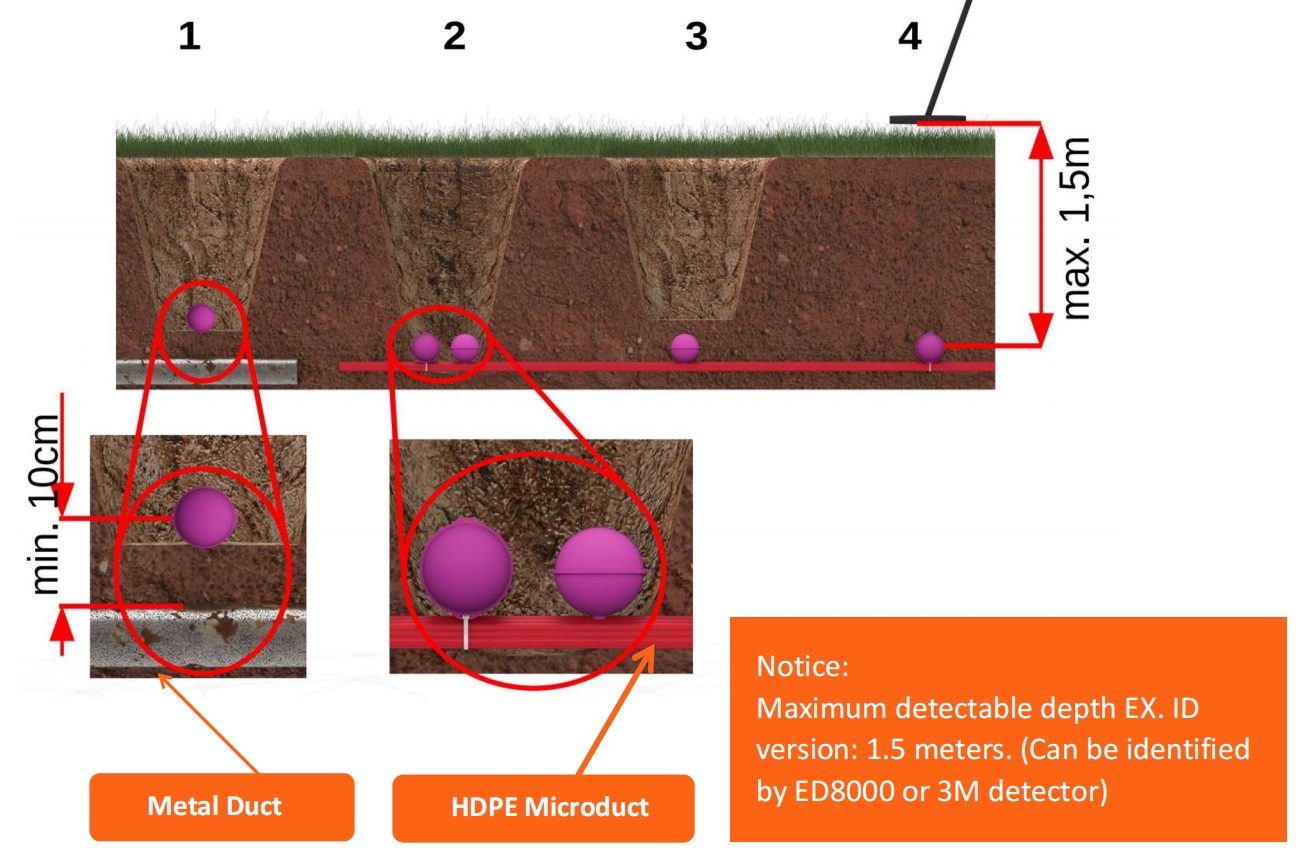

Product Applications
