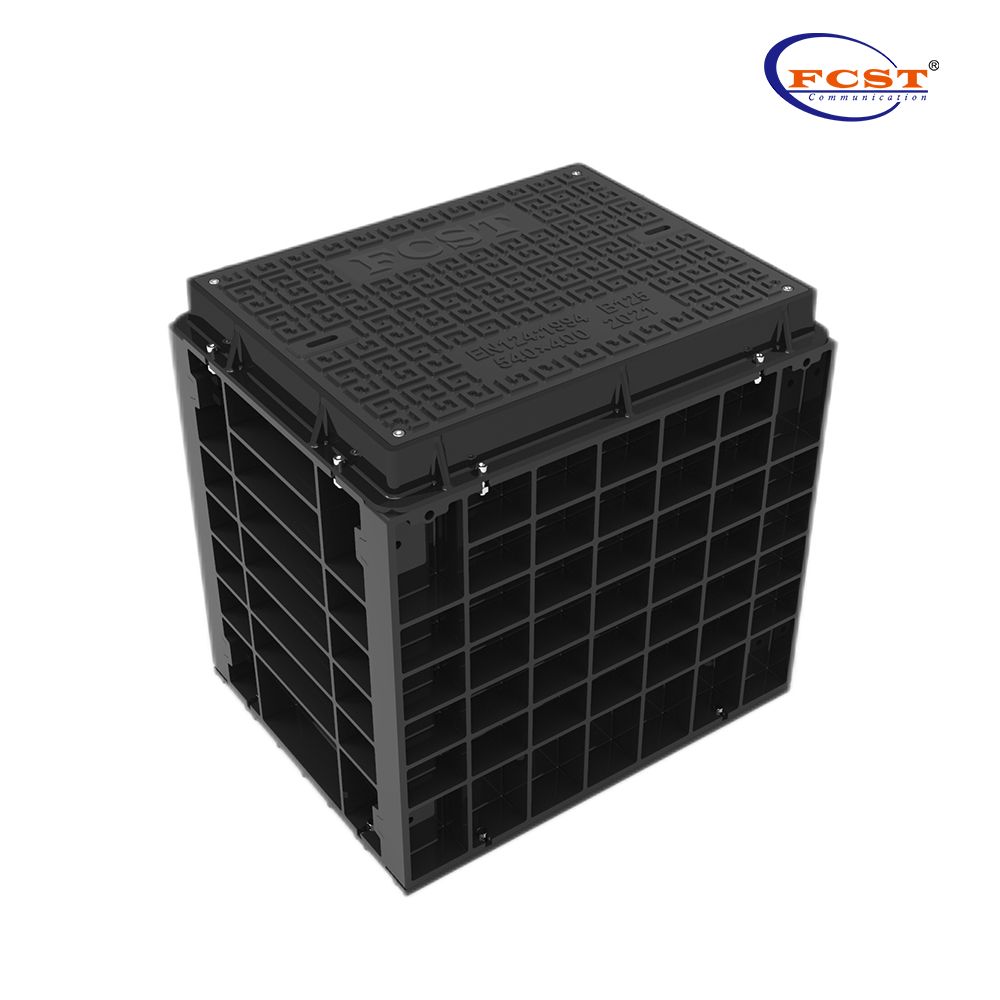

FCST-TH-SMC01
FCST
Application Of SMC Telecommuncation Manhole In ODN
ODN architecture (Optical Distribution Network), optical distribution network is an FTTH optical cable network based on PON equipment. Its role is to provide an optical transmission channel between the OLT and the ONU.

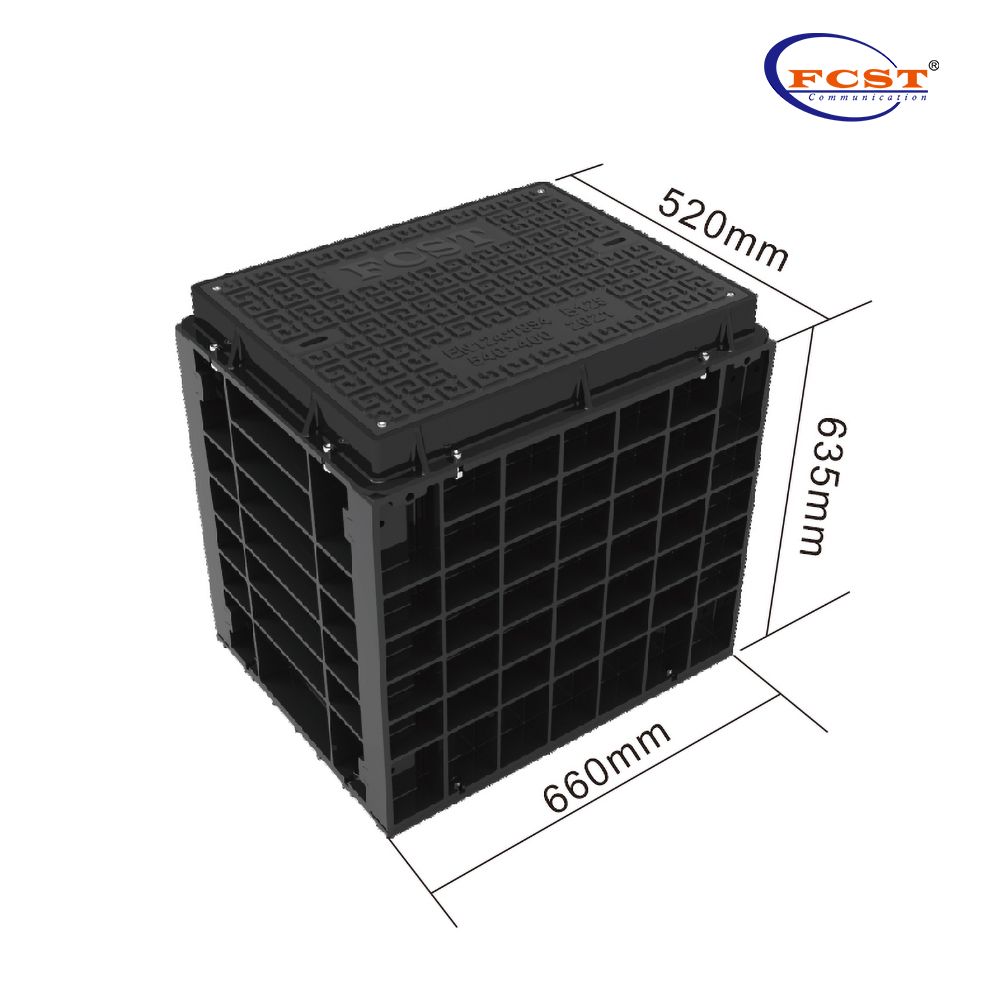

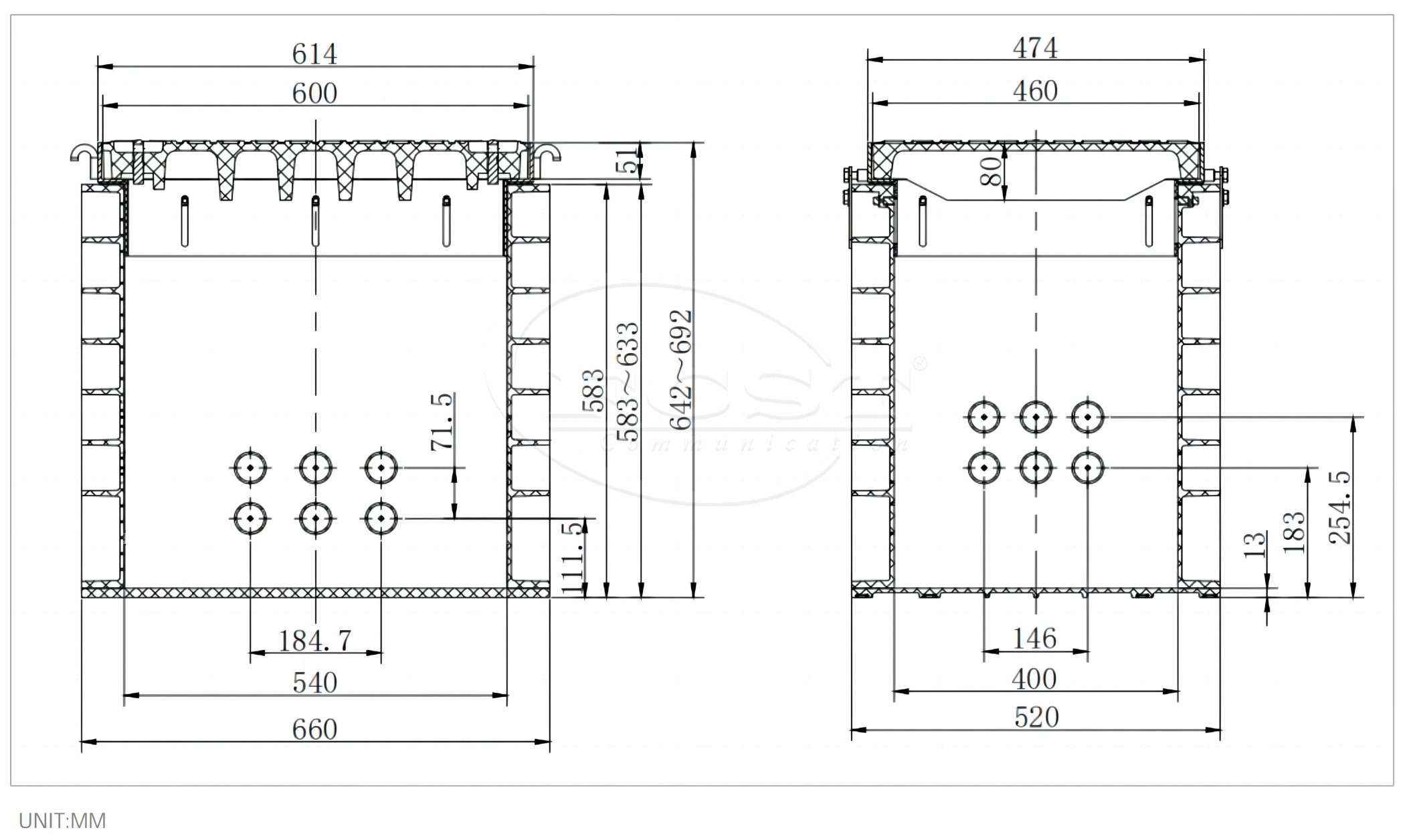

Product Size
Enclosure Model | Enclosure Size | Manhole Cover Size | Maximum Error | Manhole Cover Load Grade | |||||||||
L | I | W | w | H | h | C | D | E | A | B | |||
FCST-TH-SMC01 | 540 | 660 | 400 | 520 | 583 | 682 | 387.5 | 71.5 | Φ45 | 600 | 460 | ±3 | B125(12.5T) applies to sidewalk, bicyclelane,small car parks and underground parking. |
Product Advantages
lStrong bearing capacity
The manufacturing materials mainly use high-strength and high-modulus thermosetting SMC composite materials. The axial load can reach 100KN, and the lateral load can reach 40KN.
lStrong corrosion resistance
SMC has good chemical corrosion resistance (acid,alkali, salt, organic solvent, etc.), long-term use in the underground environment will not cause changes in the internal structure and performance of the material.
lGood wave permeability
SMC material has strong electromagnetic wave penetration, which is conducive to the signal transmission of various equipment and can receive large Part of the satellite signal, high reliability.
lGood resistance to high and low temperature
The heat distortion temperature of SMC material is extremely high, and it can maintain good performance at low temperature. The product can be used for a long time in the range of -40~100℃.
lEasy installation
The installation process is simple, the zero-based construction staff can start the installation after briefly reading the manual. Product installation is not affected by any climate and environment, construction at any time.
lConvenient transportation and cost reduction
The enclosure has a simple structure and is assembled from scattered parts. which is suitable for long-distance transportation and reduces costs.
lLong service life
SMC composite material has excellent comprehensive properties such as high and low temperature resistance,chemical corrosion resistance, providing basic guarantee for buried service life of more than 30 years.
lLow life cycle cost
During the life of the ducting access box, the inside of the enclosure is cleaned, the maintenance is small, and the cost is low.
lHeight adjustable
The draw pit chamber has an adjustment function. The adjusting baffle and the adjusting accessories bolt work together to adjust the height of the manhole cover according to the actual construction site ground conditions, the maximum adjustment height of the manhole cover is 50mm.

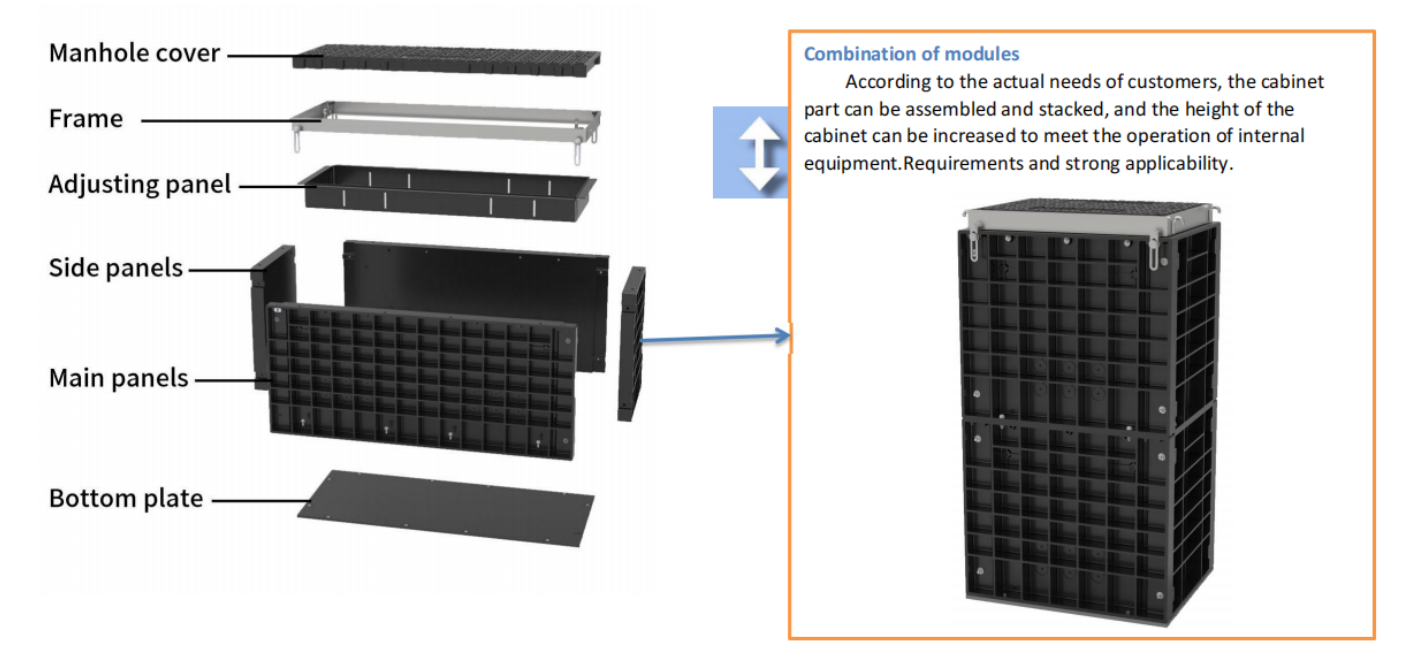

Product Structure
Product Specifications
All products comply with EN124:1994 standards.
Chemical Resistance Performance
Chemicals | Concentrated Sulfuric Acid | Sodium Hydroxide | Sodium Chloride |
Test Conditions | Soaked in the specified solution for 48h | ||
Test results | No obvious corrosion on the surface, qualityloss <1% | ||
Mechanical Performance
Items | Standard No. | Requirements | Test Results |
Tensile Strength | GB/T1447-2005 | ≥100MPa | 105MPa |
Tensile Modulus | GB/T1447-2005 | ≥10GPa | 11.8GPa |
Bending Strength | GB/T1449-2005 | ≥200MPa | 213MPa |
Flexural Modulus | GB/T1449-2005 | ≥10GPa | 11.3GPa |
Impact Toughness | GB/T1451-2005 | ≥80KJ/㎡ | 90.8KJ/㎡ |
Barr's Hardness | GB/T3854-2005 | ≥50 | 56 |
Chamber Load
Chamber Type | FCST-TH-SMC01 | FCST-TH-SMC02 | FCST-TH-SMC03 |
Axial Test Load | 100KN | 100KN | 100KN |
Lateral Test Load | 40KN | 40KN | 40KN |
Thermal Performance
Items | Standard No. | Test Results |
Heat Distortion Temperature | GB/T1634.2-2004 | > 200℃ |
Bending Strength | GB/T9979- 2005(-40°C) | 265MPa |
Flexural modulus | GB/T9979- 2005(-40°C) | 1.43x10^(4)MPa |
Bending strength retention rate | GB/T9979- 2005(-40°C) | 124% |
Flexural modulus retention rate | GB/T9979- 2005(-40°C) | 11.16% |
Linear expansion coefficient | B/T2572-205(26℃~100℃) | 1.66x10^(-5) |

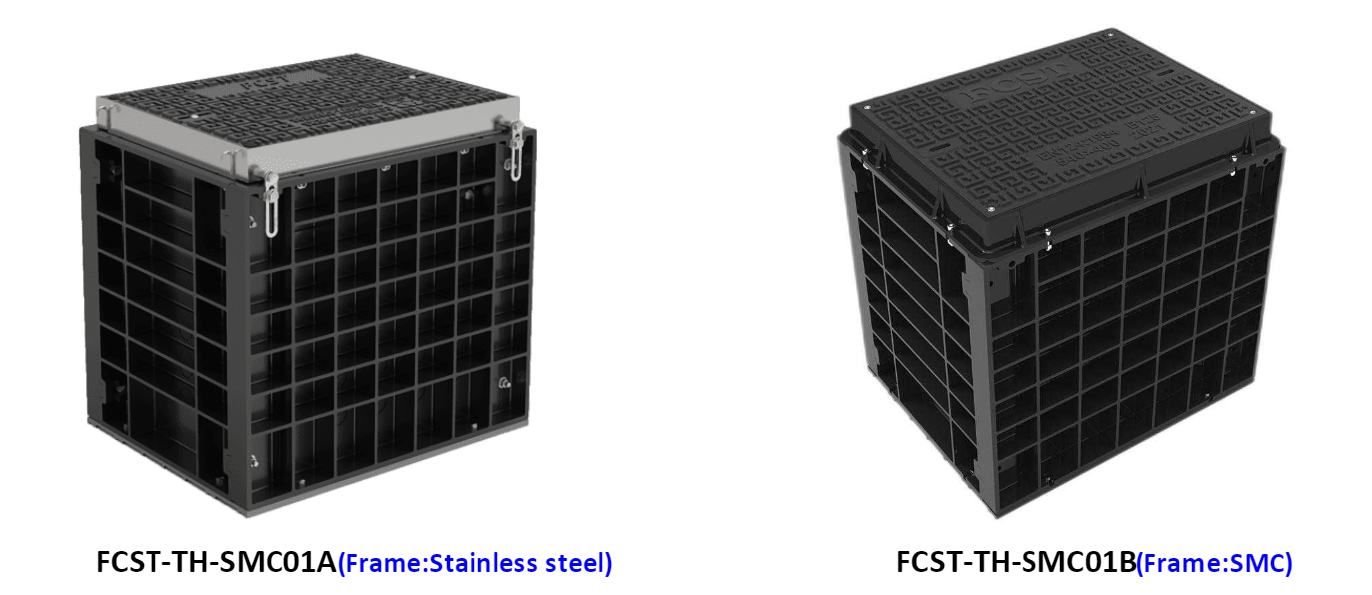

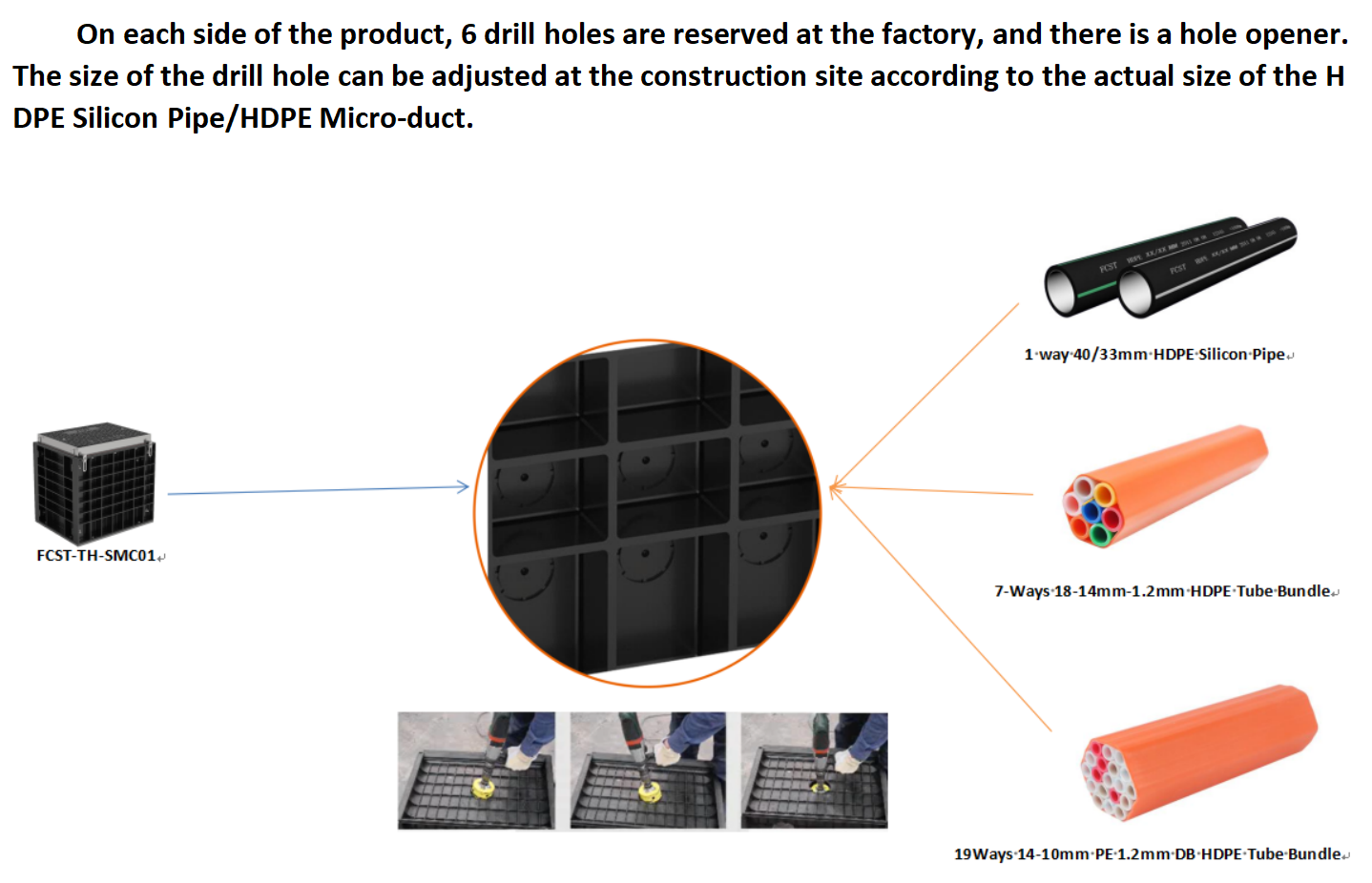

Product Detail
Comprehensive Performance Comparison
Comparison Category | Items | Manual Stacking Manhole | SMC Telecommuncation Manhole | Comparative Analysis |
Engineering Performance Comparison | Craftsmanship | Hand-made on site, uncontrollable quality | Macromolecule resin is used as raw material, factory prefabricated production, one-time injection molding, stable and controllable quality. | The production process of SMC Manhole is more advanced, and the quality is more stable and reliable. |
Construction Conditions | Artificial brickwork, affected by climate and environment Construction period (as rain, high temperature, severe cold) | Not affected by any climate or environment | SMC Manhole can be constructed all day | |
Material Performance | Not resistant to acid and alkali corrosion | Resistant to acid and alkali corrosion | SMC material has better resistance to acid, alkali and salt. | |
Connection Method | Rigid connection, easy to fall off and leak. | Flexible connection, uniform settlement with the pipeline. | The SMC Manhole connection method is more conducive to keeping the well room clean and not easy to leak. | |
Maintain | Irregular maintenance and frequent blockage. | Simple maintenance | The SMC Manhole is easy to maintain, no need to clean up brittle stones, bricks, debris, etc. | |
Service Life | Average service life 5-10 years | Not easy to collapse, construction is safe, and the service life is at least 30 years | The life of SMC material itself is ≥30 years | |
Economic Performance Comparison (take 10 wells as an example) | Number of construction workers | 20 | 2 | SMC Manhole saves labor |
Days spent | 2 days | half of the day | SMC Manhole saves time | |
Comprehensive cost | High | Low | The construction period of the SMC Manhole is short, which saves a lot of labor | |
Prospect | resource utilization | Consuming resources, water resources, and fertile land polluting the environment | Environmental protection and energy saving, land saving, water saving, material saving, recyclable | SMC Manhole energy saving and environmental protection |
development trend | Destroy the environment, waste resources, exit the market | The state focuses on promoting new energy-saving and environmentally-friendly building materials | SMC Manhole conforms to the country's sustainable development | |
Overview | The construction of SMC buried manual wells is flexible and efficient, with simple construction technology, environmental protection and energy saving, low cost and long service life. | |||
Packing And Transportation
Packing description
Due to the structural characteristics of the product, the factory packaging can be selected according to the actual needs of customers,transportation distances, and transportation routes.
Disassembly and transportation
The structure of the telecom inspection chamber is simple and easy to disassemble, and all the components can be split into discrete parts, which are stacked and bundled flat. It occupies small space, low transportation cost, ,disassembly and bundling are more conducive to product stability, it is convenient to transport and goods damage is small.

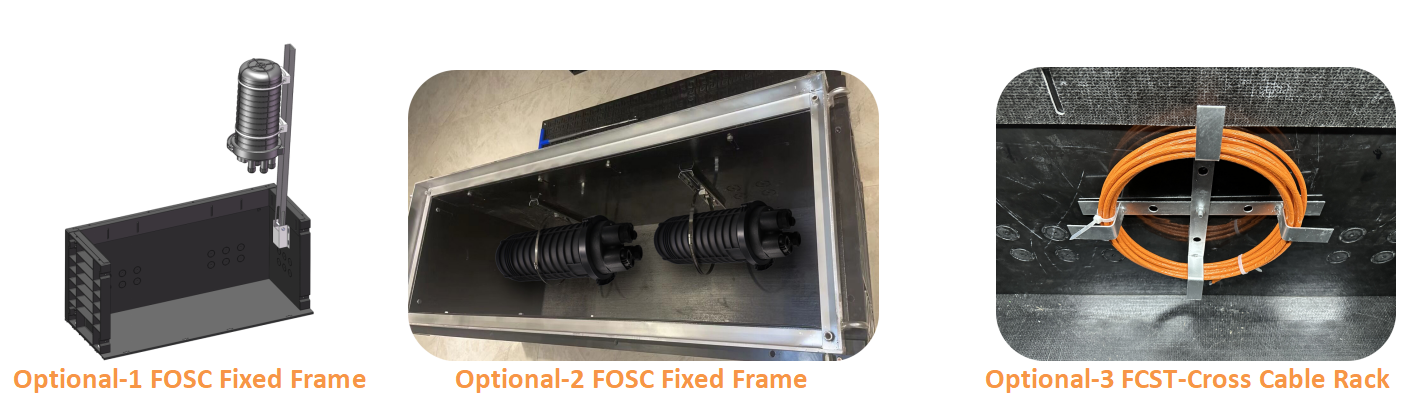

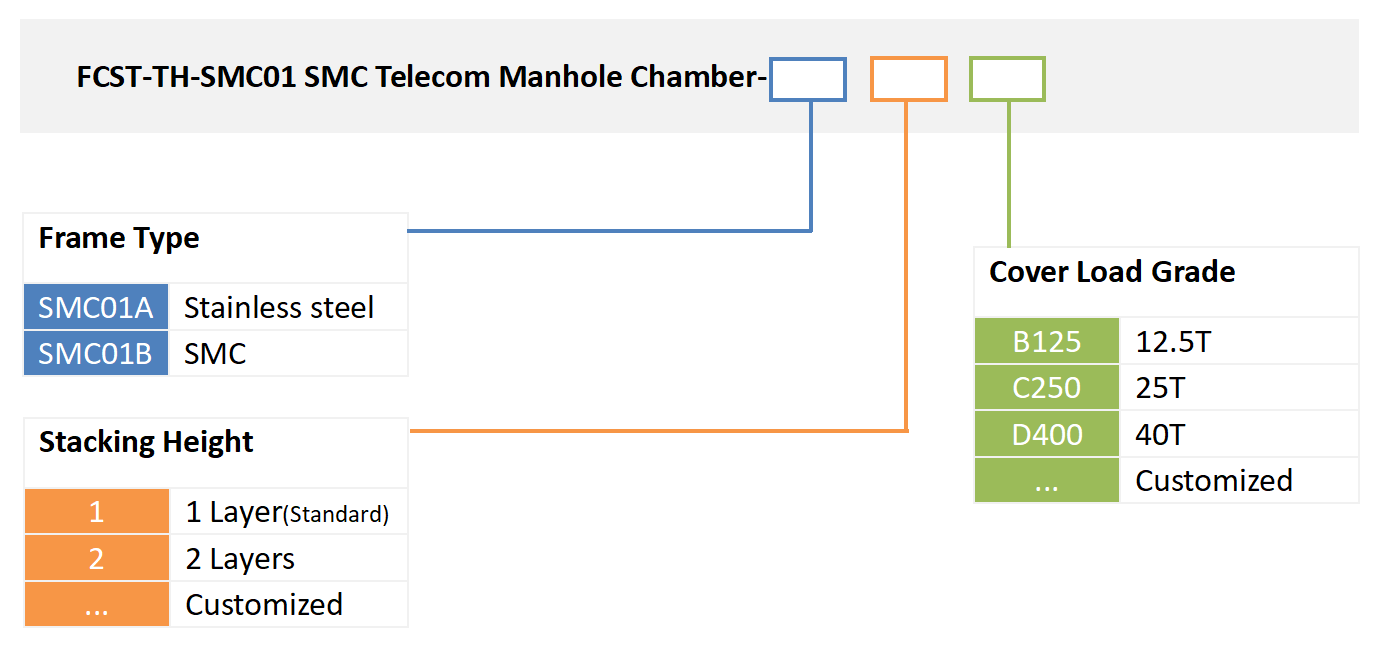

Configuration Selection
