FCST-DB-EC
FCST
FCST-DB-EC
300
Product Overview
FCST-DB-EC Microduct End Caps are used as a dust or dirt cover, protecting entry by any foreign objects. They also protect the inner contents from disturbance. For use on ducts of 5mm up to 20mm.
Product Advantages
Excellent stay ability.
Soft material cushions cable ends.
Resistant to acids, alkalis and salts.
For use on ducts of 5mm up to 20mm.
Flexible, easily adaptable, does not crack.
Flexible nature allows for easy installation.
Short-term resistance to thermal shock up to 120℃.
Product Specifications
Construction | Description |
Tube To Connector | HDPE Microduct ( DB | DI | TW ) |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Estimated Life | 25 years |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar during 168 hours |
Installation Temperature | -45°C to +50°C |
Operation Temperature | -40°C to +70°C |
Transport and Storage Temperature | -40°C to +70°C |
Insertion Force | Size≤12mm,≤ 50 N | Size≥14mm,≤ 120 N |
Impact Resistance | 1.5J |
According To Standards | CEI EN 50411-2-8,EN 50411-2-5,EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
Product Material
Ordering Information
Model | D (mm) | A (mm) | L (mm) | Weight(g) |
FCST-DB-EC3 | 3 | 11.0±0.2 | 16.2±0.5 | 1.66±0.1 |
FCST-DB-EC4 | 4 | 11.0±0.2 | 16.2±0.5 | 1.66±0.1 |
FCST-DB-EC5 | 5 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
FCST-DB-EC6 | 6 | 13.5±0.2 | 14.3±0.5 | 1.86±0.1 |
FCST-DB-EC7 | 7 | 15.2±0.2 | 19.2±0.5 | 2.6±0.1 |
FCST-DB-EC8 | 8 | 15.2±0.2 | 19.2±0.5 | 2.4±0.1 |
FCST-DB-EC10 | 10 | 17.5±0.2 | 20.4±0.5 | 3.3±0.1 |
FCST-DB-EC12 | 12 | 21.5±0.2 | 23.5±0.5 | 5.85±0.1 |
FCST-DB-EC1/2"(12.7) | 1/2"(12.7) | 21.5±0.2 | 23.5±0.5 | 5.85±0.1 |
FCST-DB-EC14 | 14 | 23.5±0.2 | 24.5±0.5 | 6.70±0.1 |
FCST-DB-EC15 | 15 | 25.3±0.2 | 25.8±0.5 | 7.80±0.1 |
FCST-DB-EC16 | 16 | 25.3±0.2 | 25.8±0.5 | 7.80±0.1 |
FCST-DB-EC18 | 18 | 32.7±0.3 | 27.8±0.5 | 15.05±0.2 |
FCST-DB-EC20 | 20 | 32.7±0.3 | 27.8±0.5 | 14.85±0.2 |
FCST-DB-EC22 | 22 | 40.0±0.3 | 36.5±0.5 | 25.00±0.2 |
FCST-DB-EC25 | 25 | 40.0±0.3 | 36.5±0.5 | 25.00±0.2 |
FCST-DB-EC3/4"(27) | 3/4"(27) | 46.5±0.3 | 40.3±1.0 | 38.00±0.2 |
Ordering Information
Q&A
1.What is the production capacity of 1/2" transparent microduct connector?
14/10mm
Daily production capacity: 23,000 pcs.
Monthly production capacity: 780,000 pcs.
2.How many production facilities and employees does FCST have?
1.Factory area: 12,000 square meters.
2.Number of employees: 150 people.
3.High-speed punching machines: 10 sets.
4.Plastic injection molding machines: 43 sets.
5.Sealing ring compression molding machines: 4 sets.
6.CNC machine tools: 60 sets.
7.Automated parts assembly production lines: 40 sets.
8.Manual assembly presses: 20 sets.
9.Semi-automated Microduct Connector assembly machines: 2 sets.
10.Product testing equipment: 10 sets.

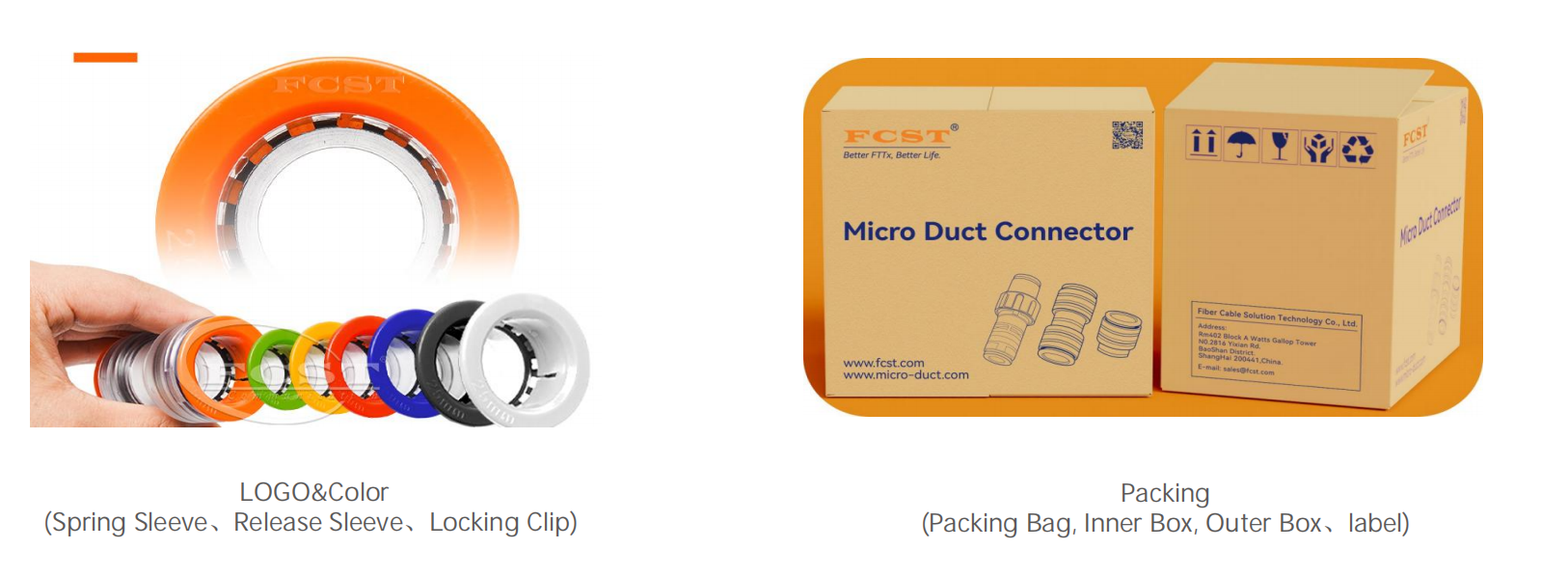

3.Which parts of 3/8" Microduct endstop connector can be customized in color?
Customizable Parts:Retaining Ring,Spring Sleeve,Release Sleeve,Locking Clip
Customizable Color: The colors can refer to RAL color card and PANTONE color card.
4.What processes are required for customizing HDPE Microduct End Stop?
5.What environmental certifications do micro end caps comply with?
Rhos、Reach
