MikroJet05
FCST
MikroJet05
Product Overview

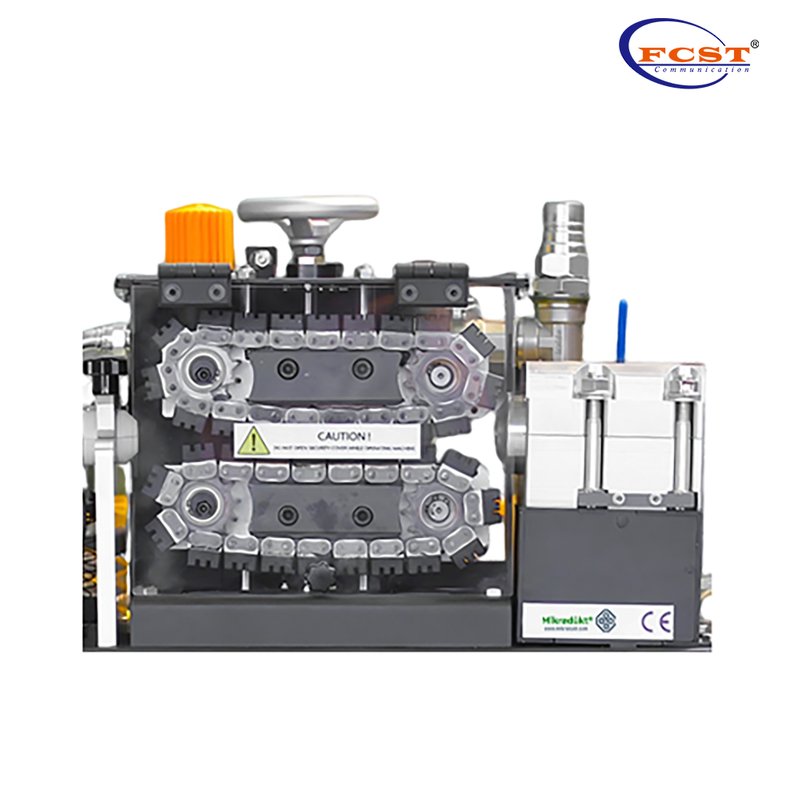

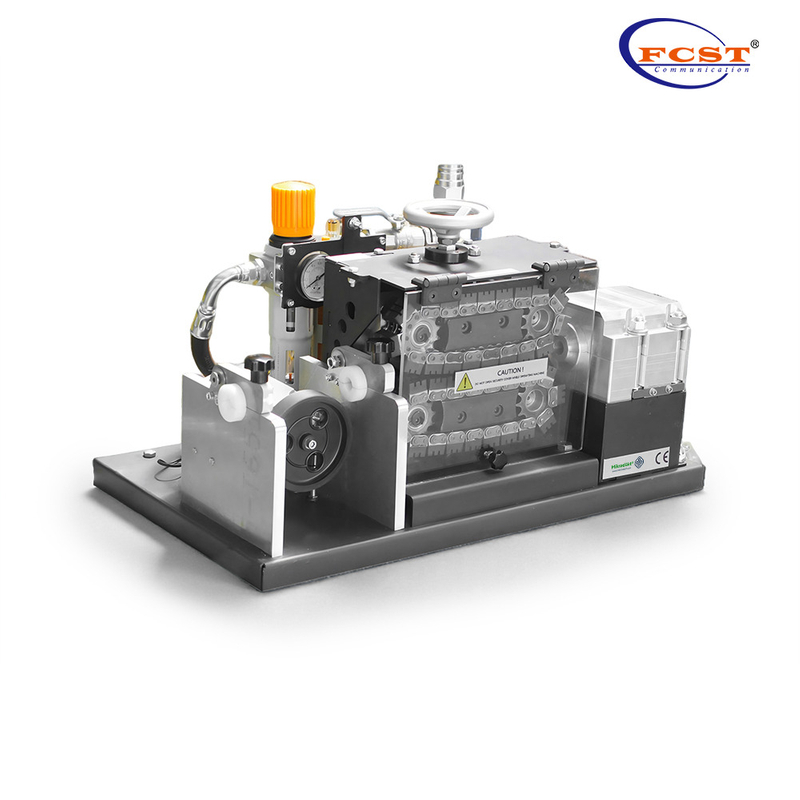

MikroJet05 Fiber Blowing Machine is a robust cable blowing system built to insert fiber optic cables into HDPE ducts using high-pressure compressed air. At its core are two high-efficiency pneumatic motors that generate strong, stable propulsion—powered only by an air compressor. No electrical supply needed, no complicated setup.
Product Features
Compatible with fiber cables from 6 mm to 24 mm.
Supportingduct size: 12~63mm.

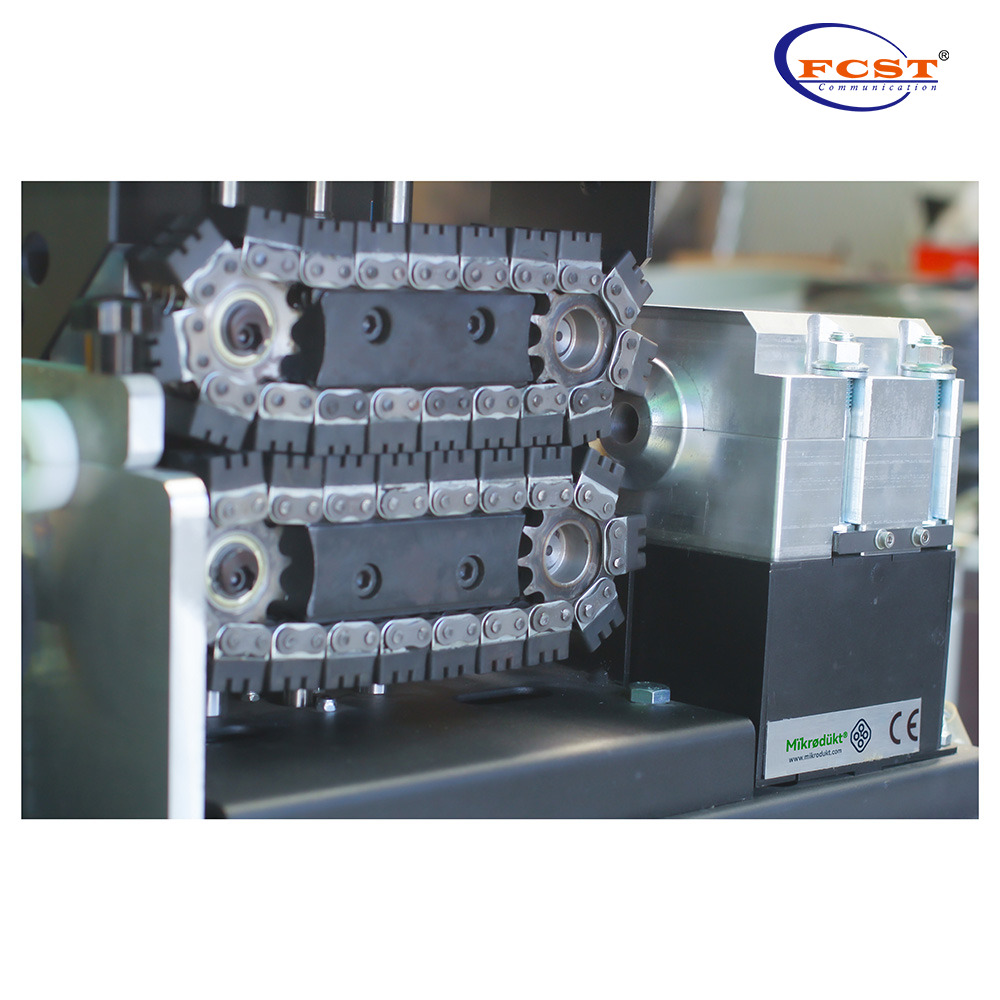

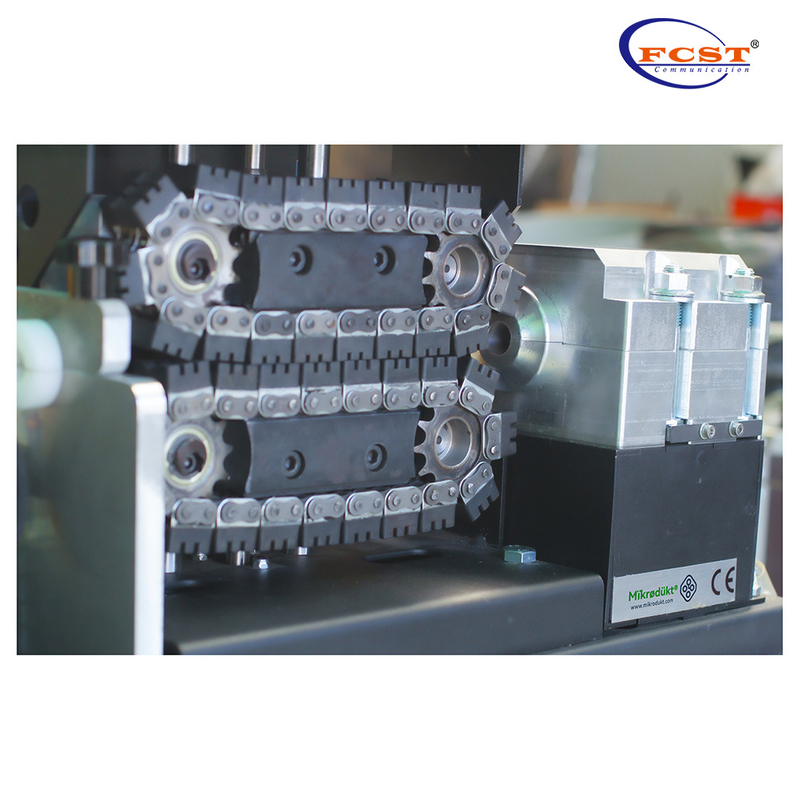

Dual pneumatic cable pushers for stable propulsion.

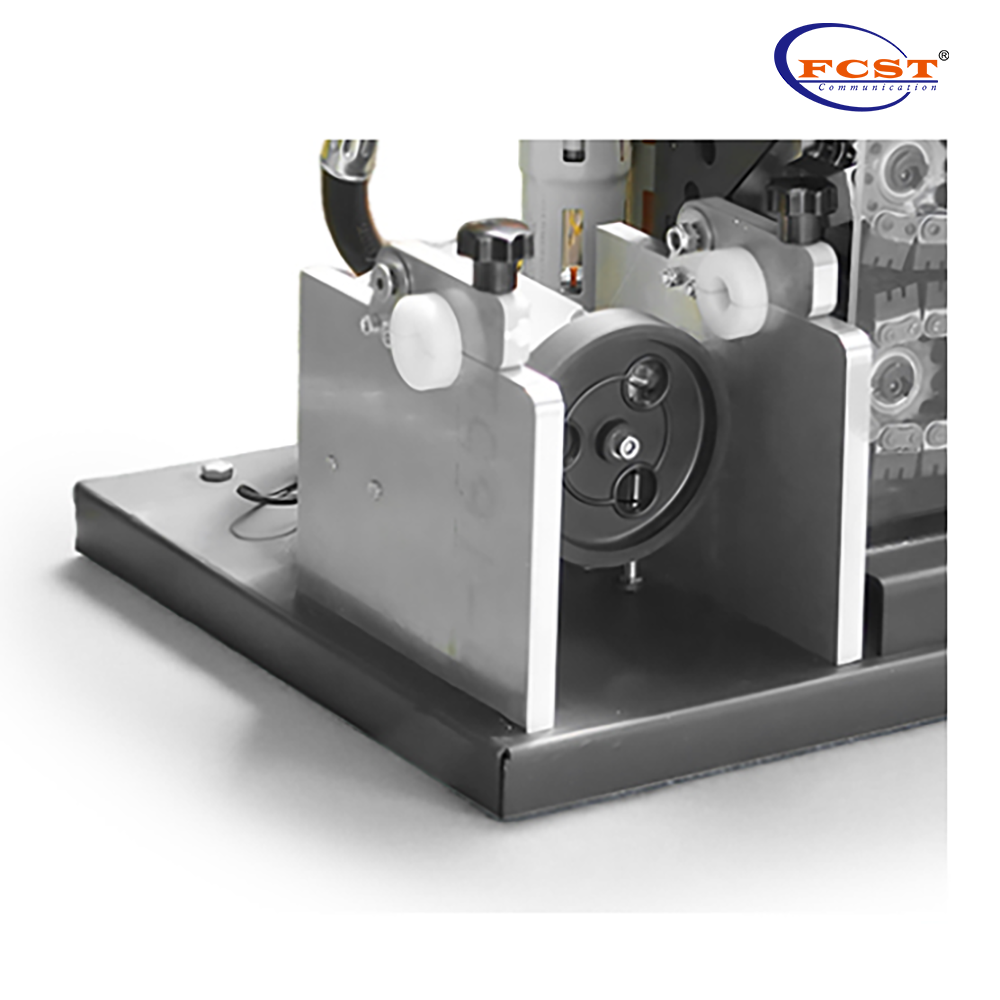

Weather-resistant mechanical meter for accurate length tracking.
Forward and reverse cable feeding function.

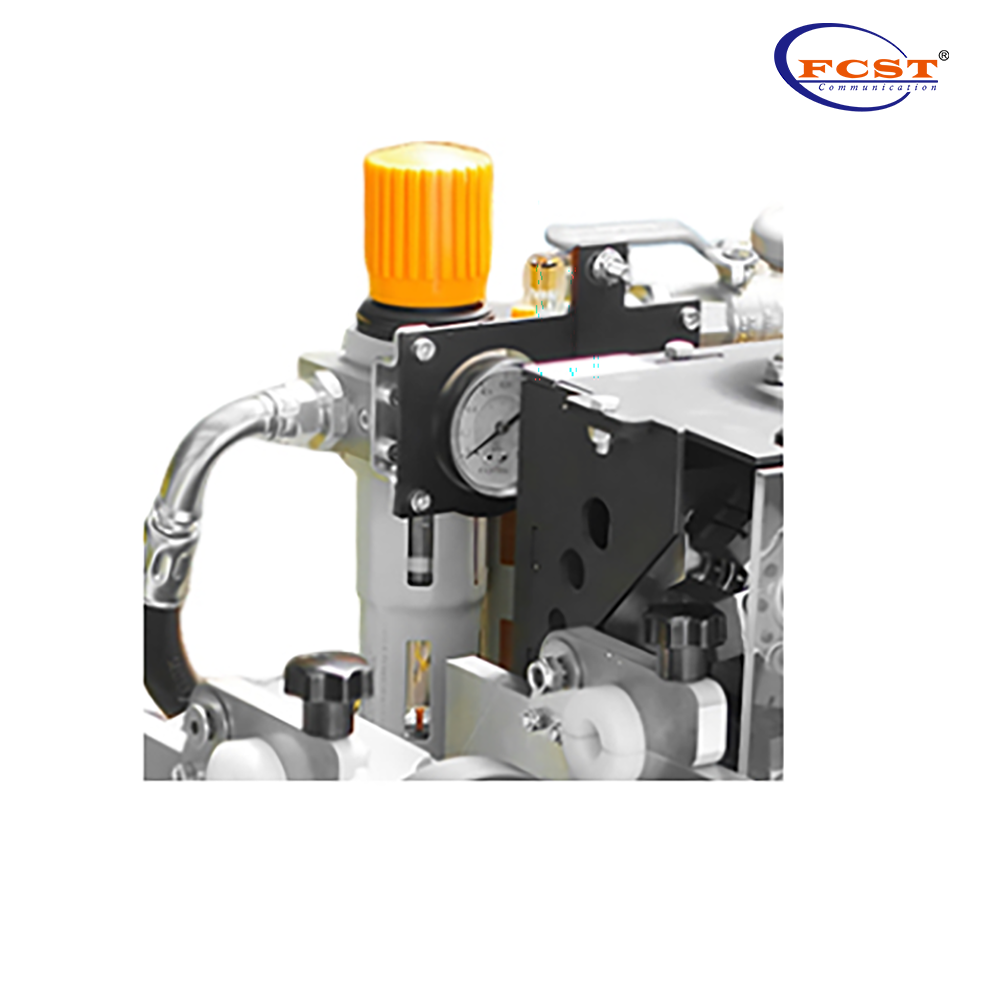

Plug-and-play compressor connection kit included.
Multiple special chain sets for various cable ranges.
Semi-automatic cable axer adaptable to multiple diameters.
Built from high-grade components for long-lasting durability.
2-year service warranty and 10-year spare parts warranty.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ6~24mm |
| Micro Tube Diameter | φ12~63mm(12/14/16/20/25/32/40/50/63mm) |
| Blowing Distance / Max | 3000m |
| Blowing Speed / Max | 150 m/min |
| Pushing Force | 0~120kg |
| Work Pressure / Max | 15 bar |
| Dimensions (L*W*H) | 200*350*300mm | 7.87*13.78*11.81in |
| Weight (approx.) | 40kg |
| Power Source | Air (Double Air Motor) |
| Pusher | Rubber Chain |
| Warranty Period | 48months |
| Chain Sets(mm) | 6.0~8.0mm/9~13mm/14~18mm/19~24mm |
| Applications | FTTH/FTTx, micro cable networks,backbone |
| Minimum Air Consumption(at 12 bar) | 0~25mm :4m³/min 150 CFM 26~30mm :5m³/min 185 CFM 31~35mm :7m³/min 250 CFM 36~40mm :10m³/min 375 CFM 41~44mm :12m³/min 450 CFM |
Standard Accessories
Chain sets for selected cable sizes.
Pipe adapters matching your project specs.
Compressor couplings and fittings.
Nutrings, pads, and seals for safe blowing.
Allen keys and setup tools.

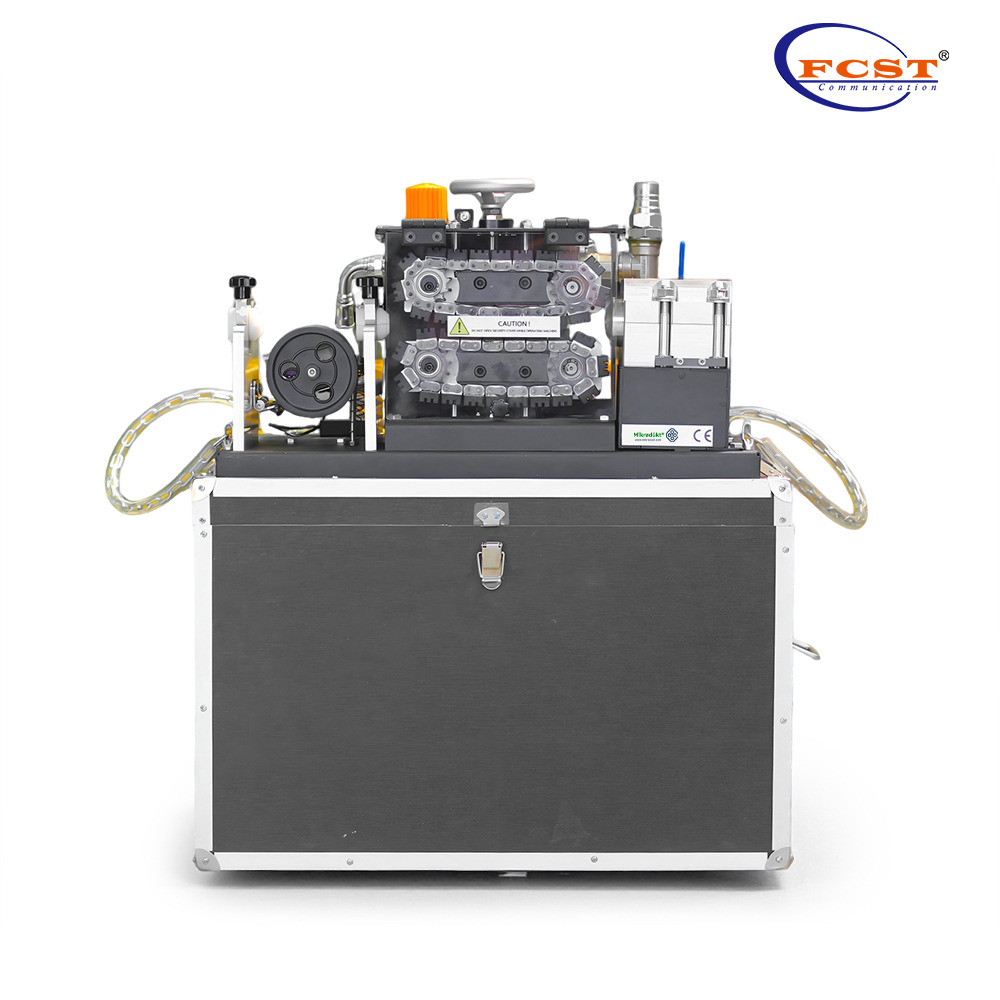

Heavy-duty transport case.
