Product Overview
FCST-ERS Push Fit Duct Coupler,Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design.Simply push the duct ends into the coupler for a locked and air-sealed assembly. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
Product Advantages
Pre-lubricated O-ring is water-tight and air-tight.
Suitable for both cable pulling & jetting applications.
Compatible with 25/30/32/40/42.2/46/50/60/63mm pipes.
Simple, one person "push-on"assembly lowers installation costs.
Self-locking ring design assembles in seconds and is re-enterable.
High strength molded plastic body is ideal for buried duct applications.
Product Specifications
Construction | Description |
Material | Body:ABS Sealing Ring:NBR |
Reference Standard | JT/T496-2018、Q/KL020-2005 |
Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
Tensile Resistance(Under Tightened State) | ≥4300N(32mm) |
Weight(g) | 102.3g(32mm) |
High Temperature Resistance | -40℃~+60℃ |
High Pressure Resistance | 20Bar |
Service Life | 20Years |

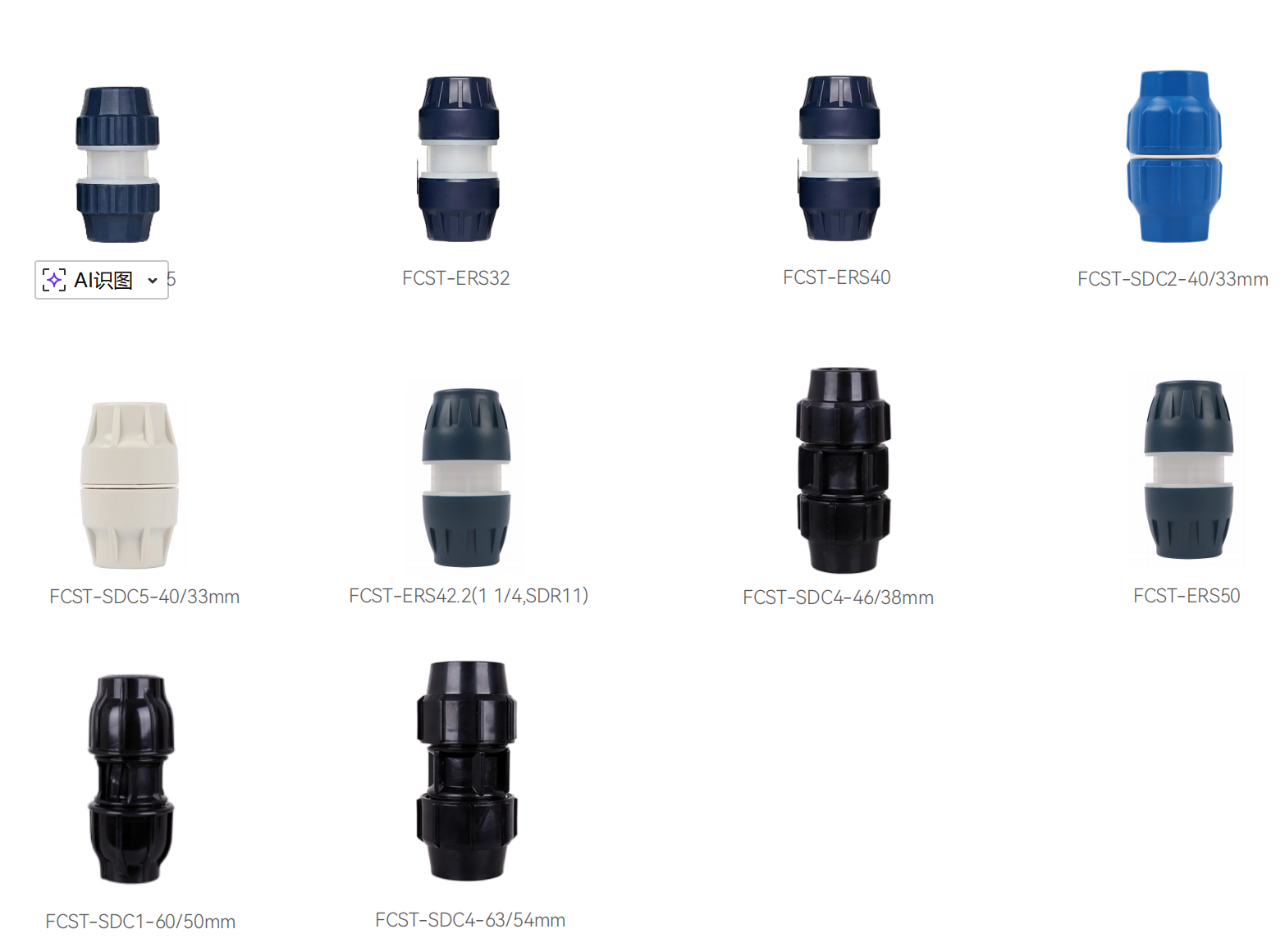

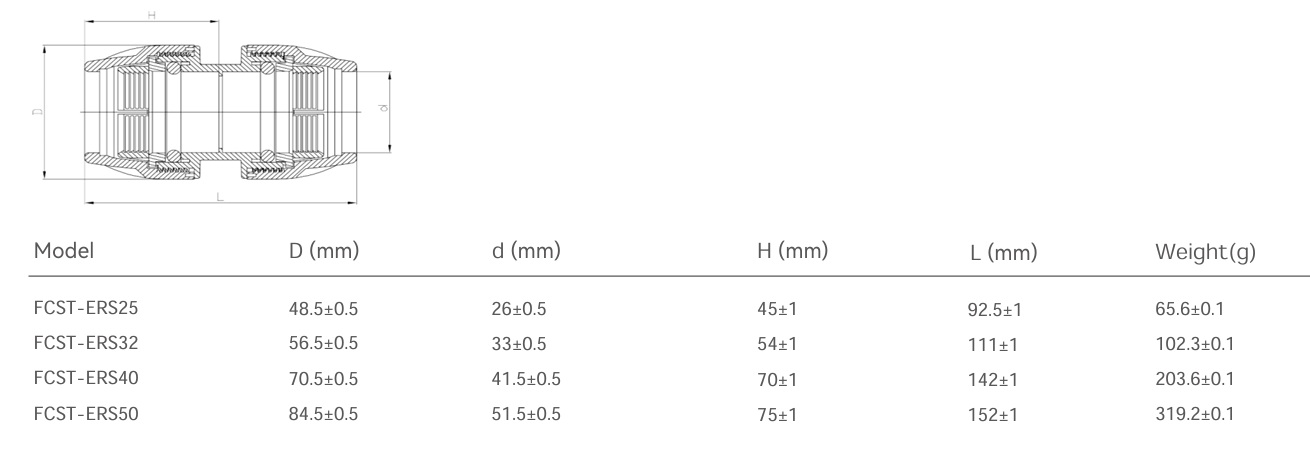

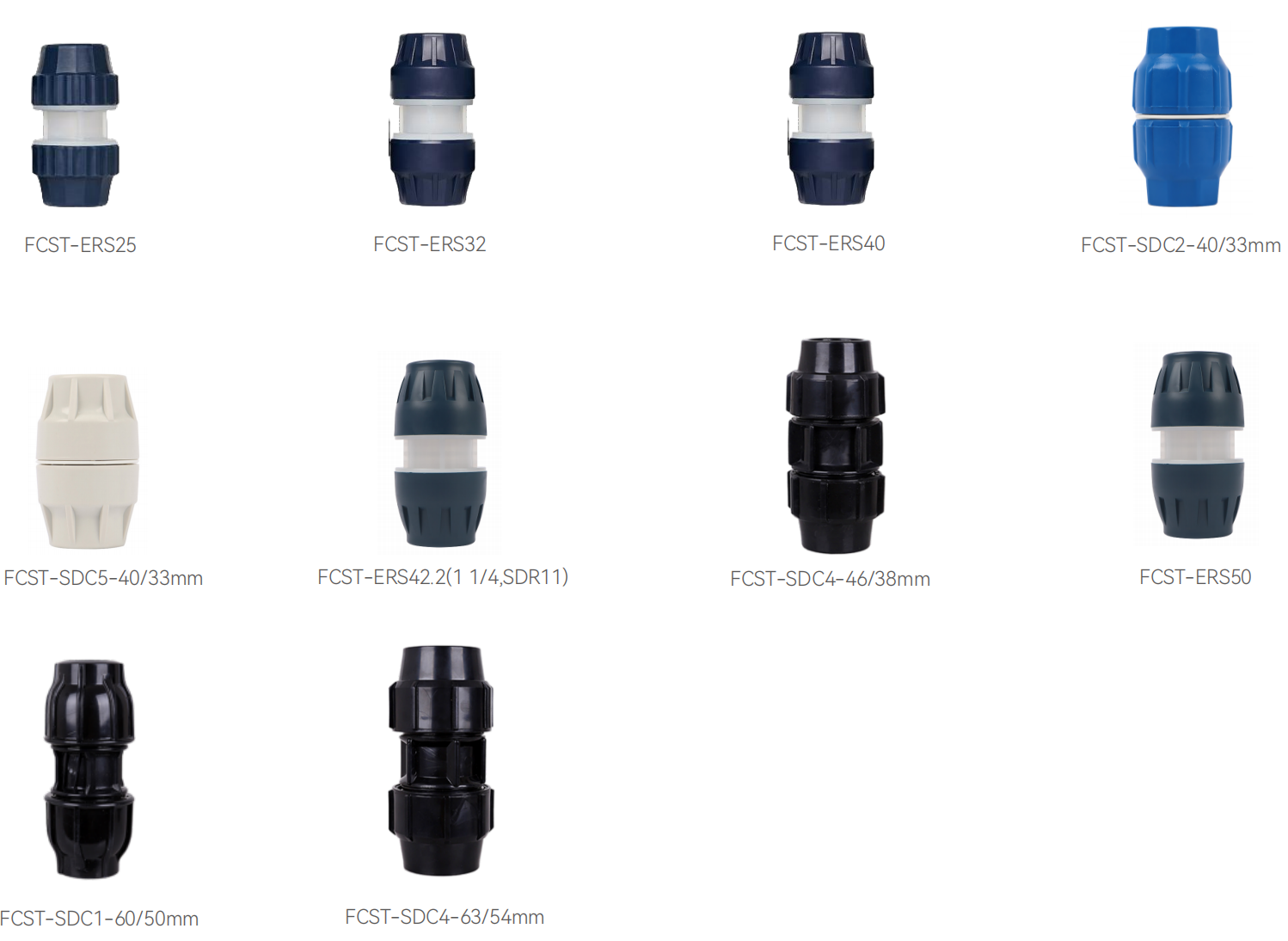

Ordering Information

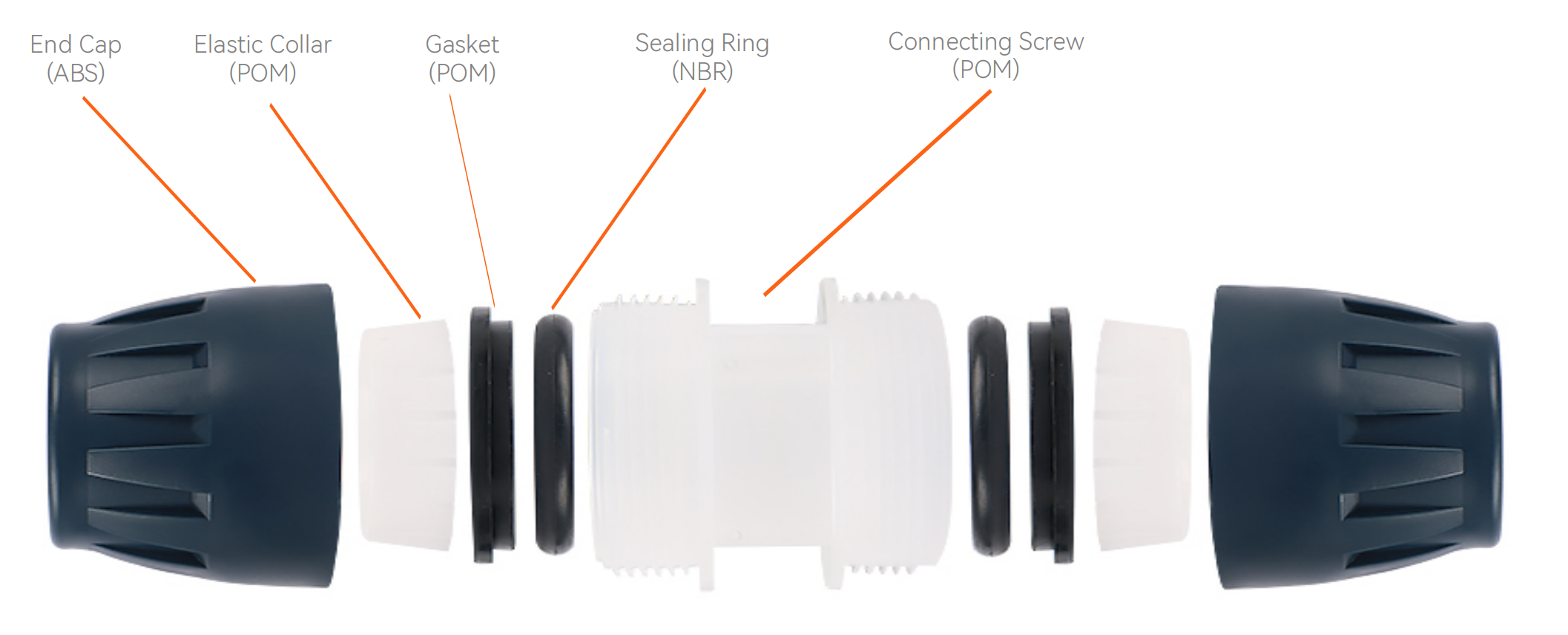

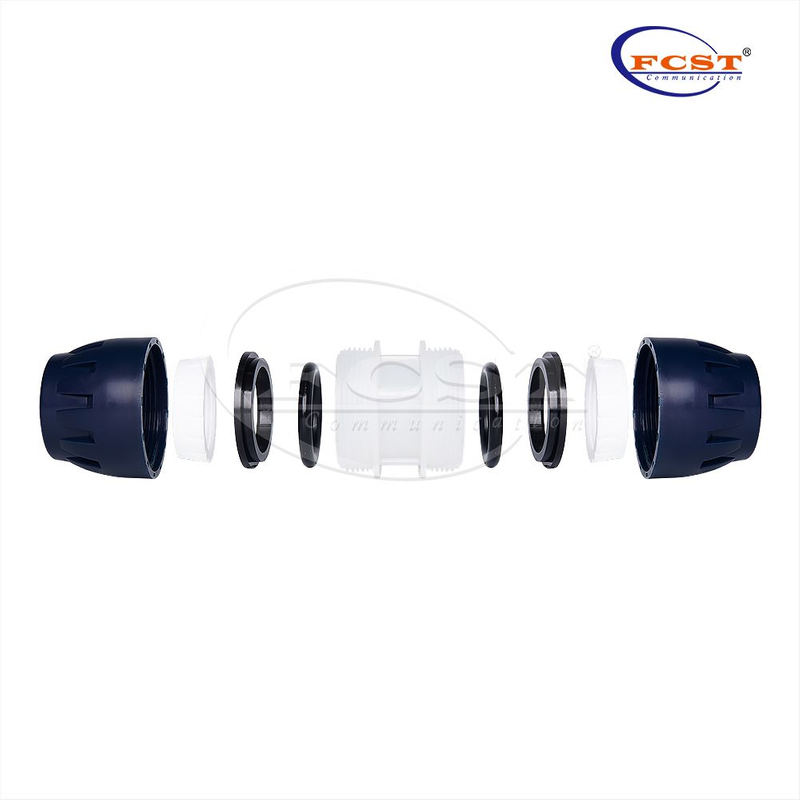

Product Structure
Installation
1.Cut both ends of the silicon core tube flat and clean;
2.Assemble the connection in the order of connection;
3.Tighten with the special tools provided with this product to ensure that the assembly sequence is correct, and when the tightening is in place (Note:No need to use after burning tools in the tightening process), the joint sealing performance reaches a good condition;
4.The connector can be disassembled and assembled many times. After a long time use, disassemble the joint and reinstall it, please carefully check the effectiveness of the sealing ring Sex. If damage is found, it should be replaced.
Q&A
1.What is the production capacity of micro duct coupler?
14/10mm
Daily production capacity: 23,000 pcs.
Monthly production capacity: 780,000 pcs.
2.How many production facilities and employees does FCST have?
1.Factory area: 12,000 square meters.
2.Number of employees: 150 people.
3.High-speed punching machines: 10 sets.
4.Plastic injection molding machines: 43 sets.
5.Sealing ring compression molding machines: 4 sets.
6.CNC machine tools: 60 sets.
7.Automated parts assembly production lines: 40 sets.
8.Manual assembly presses: 20 sets.
9.Semi-automated Microduct Connector assembly machines: 2 sets.
10.Product testing equipment: 10 sets.
3.Which parts of coupling for hdpe pipe can be customized in color?
Customizable Parts:Retaining Ring,Spring Sleeve,Release Sleeve,Locking Clip
Customizable Color: The colors can refer to RAL color card and PANTONE color card.
4.What processes are required for customizing Clear-Lock coupler?
5.What environmental certifications do Push Lock Couplers comply with?
Rhos、Reach
