FCST-15JDB-SC
FCST
FCST-15JDB-SC
Product Overview
A Straight Connector Built for Direct Burial. No Rust. No Leaks. No Rethink.
Underground microduct networks face a simple but costly reality: the weakest connection determines the lifespan of the entire link. Water ingress, corrosion, impact damage from backfill, or a failed seal—any of these can turn a routine splice into an expensive excavation.

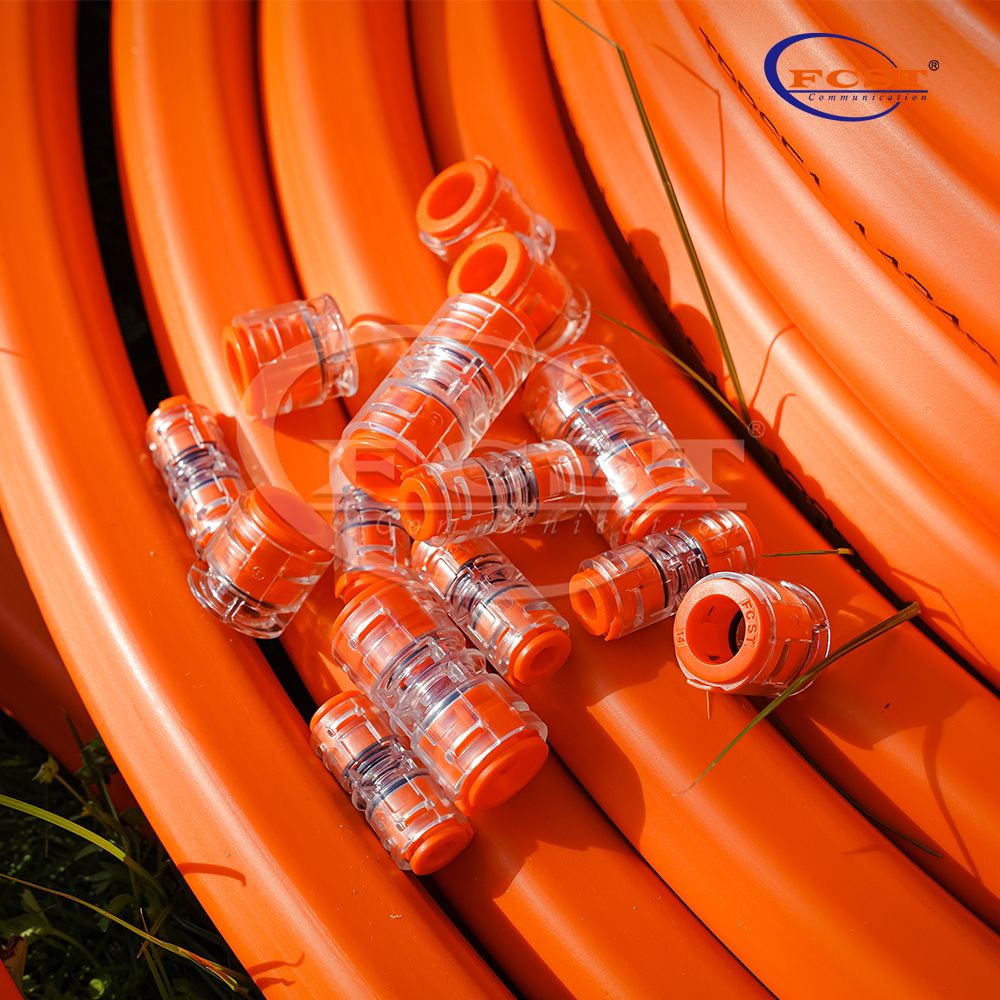

FCST-15JDB-SC Microduct Straight Connector is a metal-free, push-fit microduct straight connector engineered specifically for direct burial (DB) and direct installation (DI) environments. It combines a crystal-clear, impact-resistant body with IP68-rated sealing and a pre-assembled safety locking clip—giving you a connection you can install quickly and forget for decades.
- Pre-assembled safety locking clip.
- Certified for 15 J impact resistance.
- Universal bore design reduces the number of connector variants customers need to stock and manage.

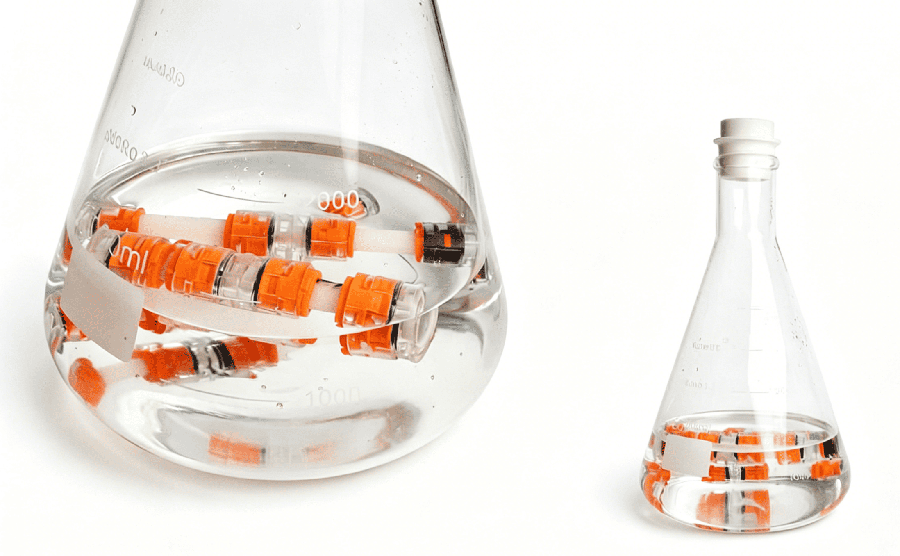

- Anti-sediment design; chemically resistant.
- All-plastic, metal-free design eliminates the risk of rust.
- For 7-16 mm microducts; OEM customization is available.

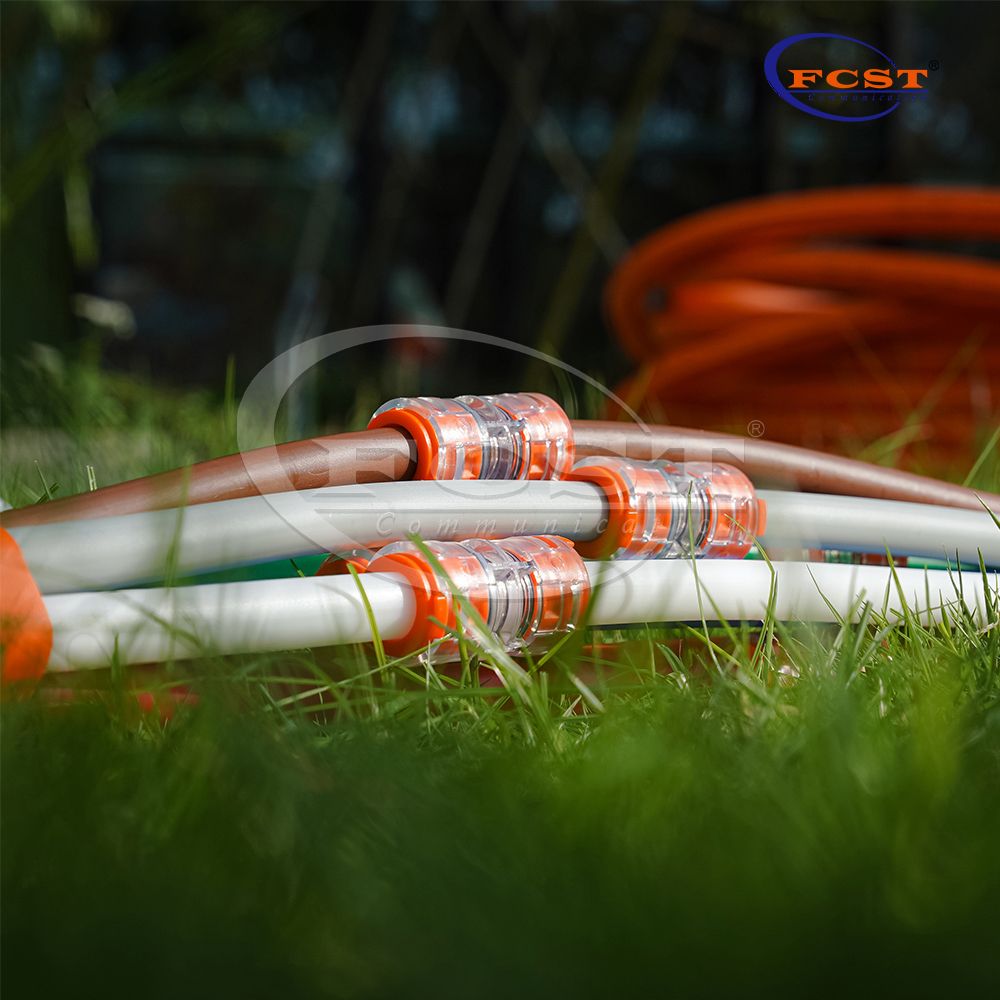

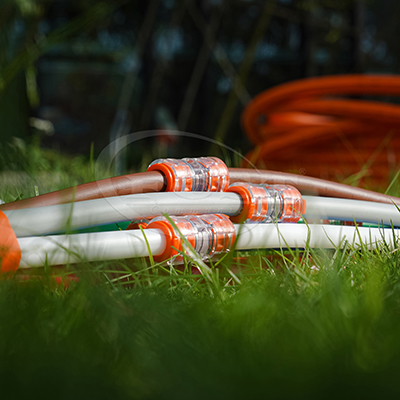

- Suitable for direct-burial (DB) applications.
- Easy push-in installation; crystal-clear transparent body.
- Components are made of recyclable materials to reduce CO2 emissions.

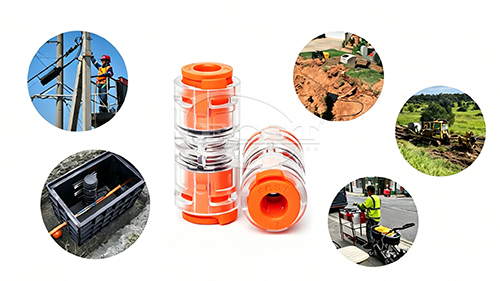

Application And Test Scenarios
Product Specifications
Construction | Description |
Tube To Connector | HDPE microduct (DB / DI / TW) |
Fluid | Compressed air for cable-blowing systems |
Working Pressure | 20 bar |
Burst Pressure | 25 bar |
Design life | 25 years under specified operating conditions |
Protection Class | IP68 |
Water Ingress Test | 0.5 bar for 168 h |
Installation Temperature | -15°C to +50°C |
Operating temperature (after blowing) | -20°C to +70°C |
Transport and Storage Temperature | -15°C to +45°C |
Insertion Force | Size ≤ 12 mm: ≤ 50 N | Size ≥ 14 mm: ≤ 120 N |
Impact Resistance | 15J |
standard |
EN 60529: IP68 |
EN 61300-2-26: Salt Mist |
EN 61300-2-33: Re-entries |
lEC 60794-1-24,E4: 15 Joules |
EN 61300-2-10: Crush Resistance |
EN 61300-3-1: Visual Appearance |
EN 61300-2-4: Microduct Retention |
EN 61300- 2-34: Chemical Resistance |
EN 50411-2-8, Annex E — Insertion force |
EN 61386-22 — Glow-wire test at 750 °C |
EN 50411-2-8:Annex D:Installation Test |
EN 61300-2-22: Change of Temperature |
IEC 60794-1-2, Method E1 — Tensile performance |
EN 61300-2-38: 2006,Method B:Pressure Loss |
EN 50411-2-8:Annex C: High Pressure Resistance |
EN 61300-2-23:1997, Method 2 — Water immersion |
EN 61386-24: Conduit Systems Buried Underground |
EN 61300-2-38:2006, Method B — Pressure loss |

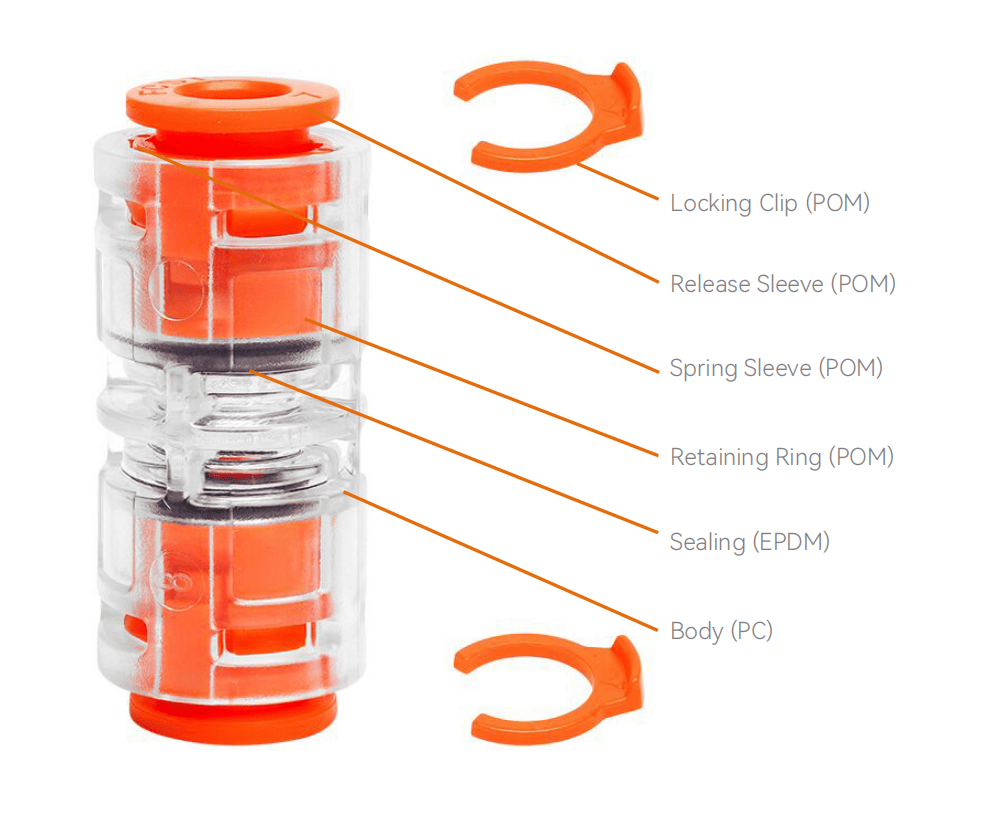

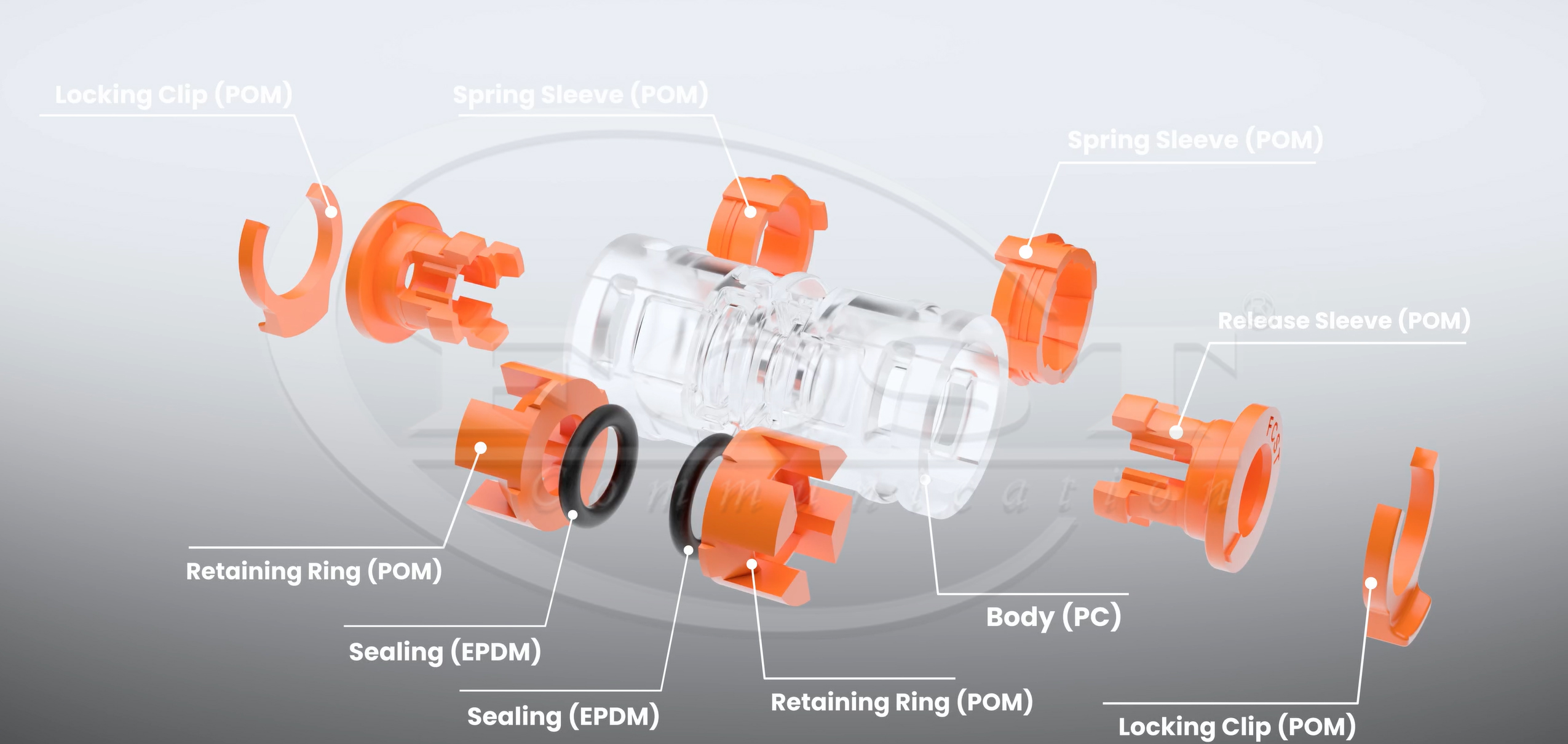

Product Material
Ordering Information

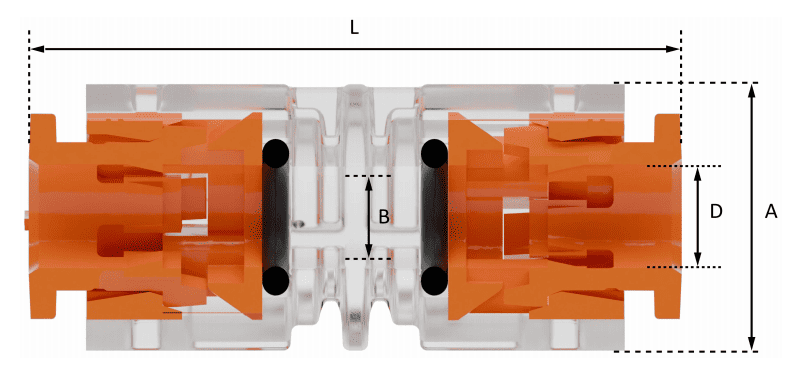

| Model | D (mm) | A (mm) | B (mm) | L (mm) | Weight (g) |
| FCST-15JDB-SC7 | 7 +0.4/−0.0 | 18.8+0.2/−0.0 | 6.10±0.2 | 45.2±0.2 | 9-9.8 |
| FCST-15JDB-SC10 | 10+0.4/−0.0 | 21.8+0.2/−0.0 | 9.1±0.2 | 46.6±0.2 | 13-15 |
| FCST-15JDB-SC12 | 12+0.4/−0.0 | 24.7+0.2/−0.0 | 11.1±0.2 | 54.5±0.2 | 18-22 |
| FCST-15JDB-SC14 | 14+0.4/−0.0 | 26.7+0.2/−0.0 | 13.0±0.2 | 54.9±0.2 | 15-17.3 |
| FCST-15JDB-SC16 | 16+0.4/−0.0 | 28.7+0.2/−0.0 | 15.1±0.2 | 56.4±0.2 | 21-25 |
*Note: For other sizes, please contact the sales department.
Q&A
1.What is the production capacity for push-in microduct connectors?
14/10 mm
Daily production capacity: 23,000 pcs.
Monthly production capacity: 780,000 pcs.
2.How many production facilities and employees does FCST have?
1.Factory area: 12,000 square meters.
2.Employees: 150
3.High-speed punching machines: 10 sets.
4.Plastic injection molding machines: 43 sets.
5.Sealing ring compression molding machines: 4 sets.
6.CNC machine tools: 60 sets.
7.Automated parts assembly production lines: 40 sets.
8.Manual assembly presses: 20 sets.
9.Semi-automated microduct connector assembly machines: 2 sets.
10.Product testing equipment: 10 sets.

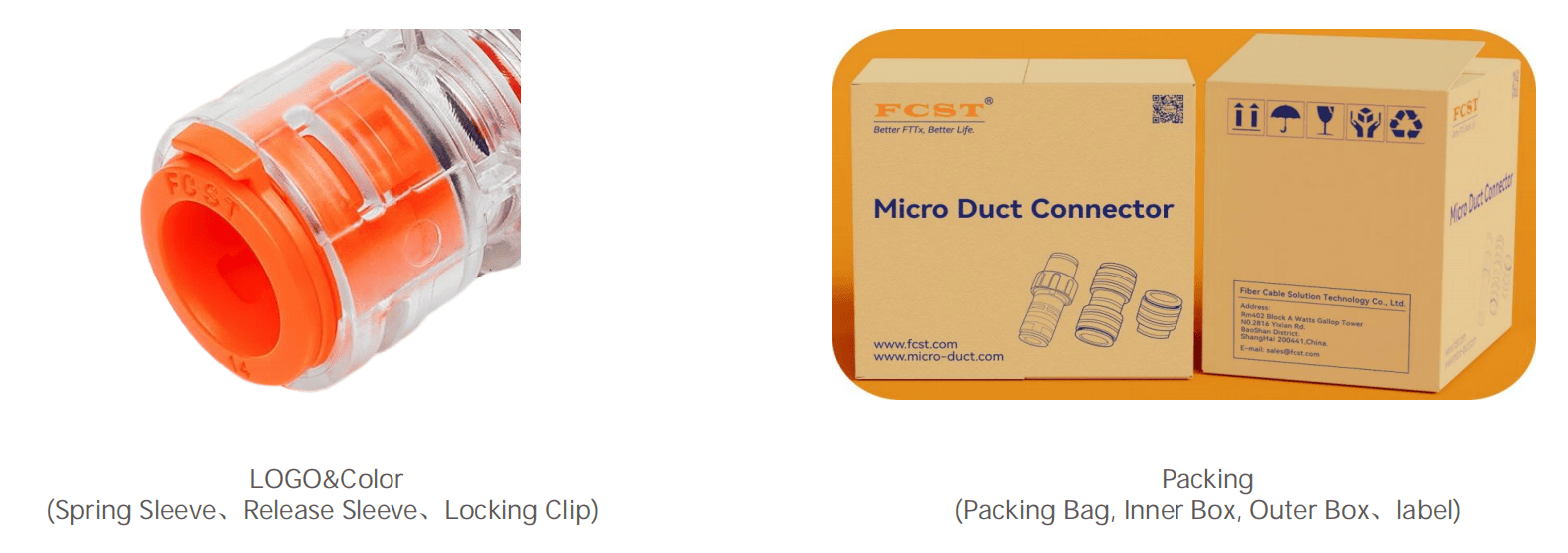

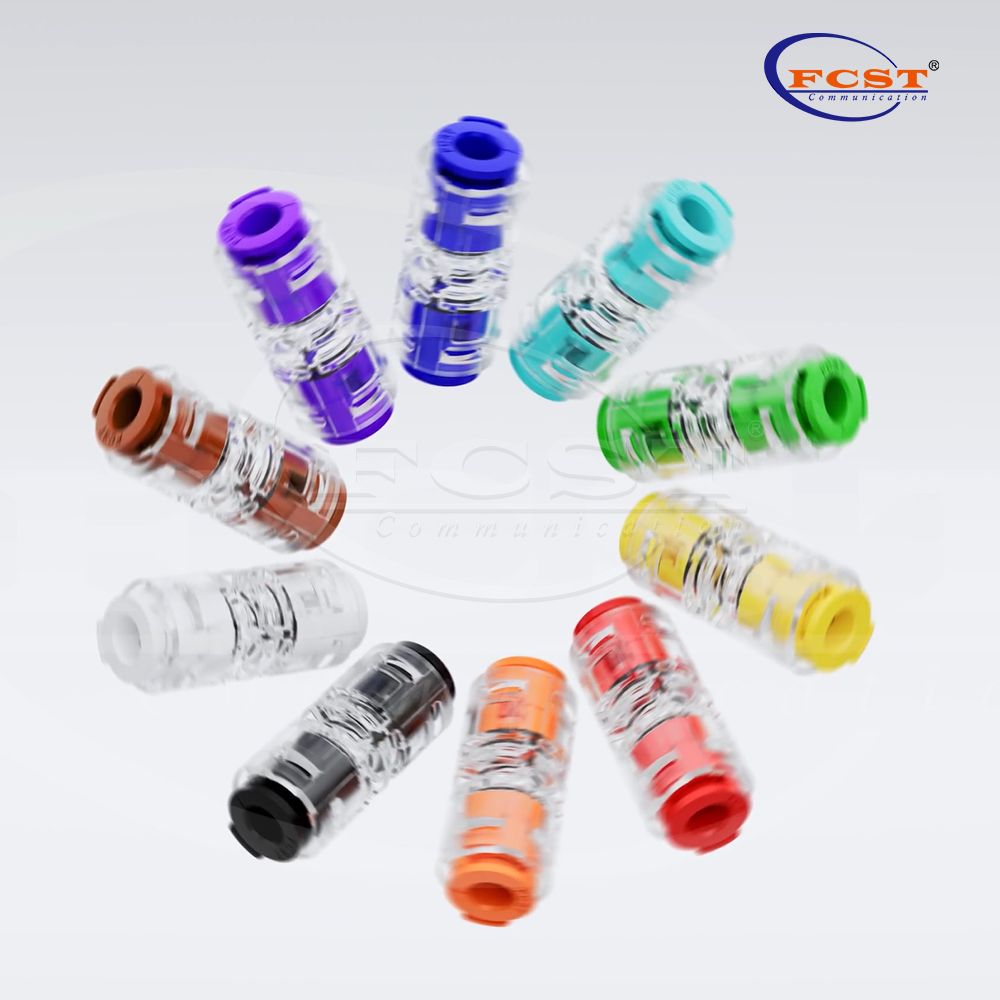

3.Which parts of 3/8" transparent body microduct coupler can be customized in color?
Customizable parts: retaining ring, spring sleeve, release sleeve, and locking clip.
Customizable Color: Colors can be matched to RAL or PANTONE color references.
4.What processes are required for customizing DB push-fit microduct fittings?
5.Which environmental regulations do the air-blown microduct connectors comply with?
RoHS and REACH
