FCST-CR50-IRS90 50mm 90° Fiber Raceway Upward Bend

Product Overview

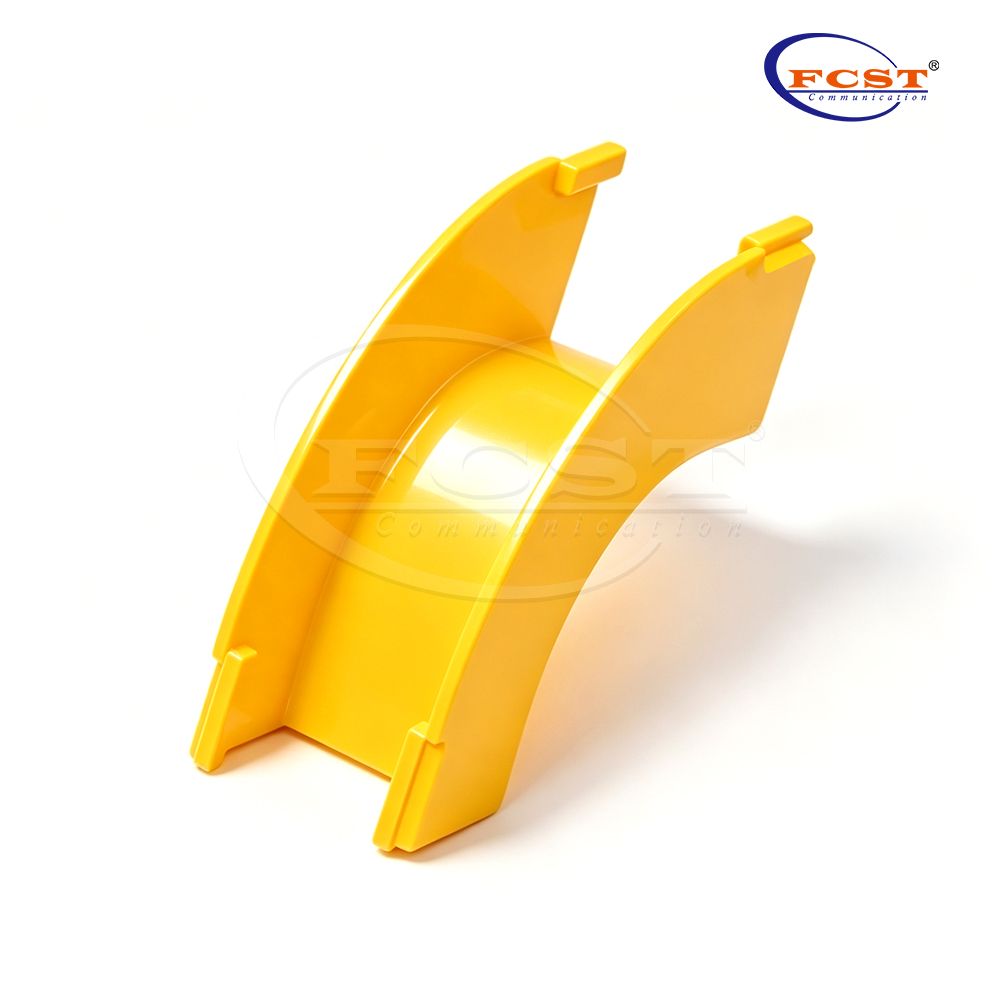

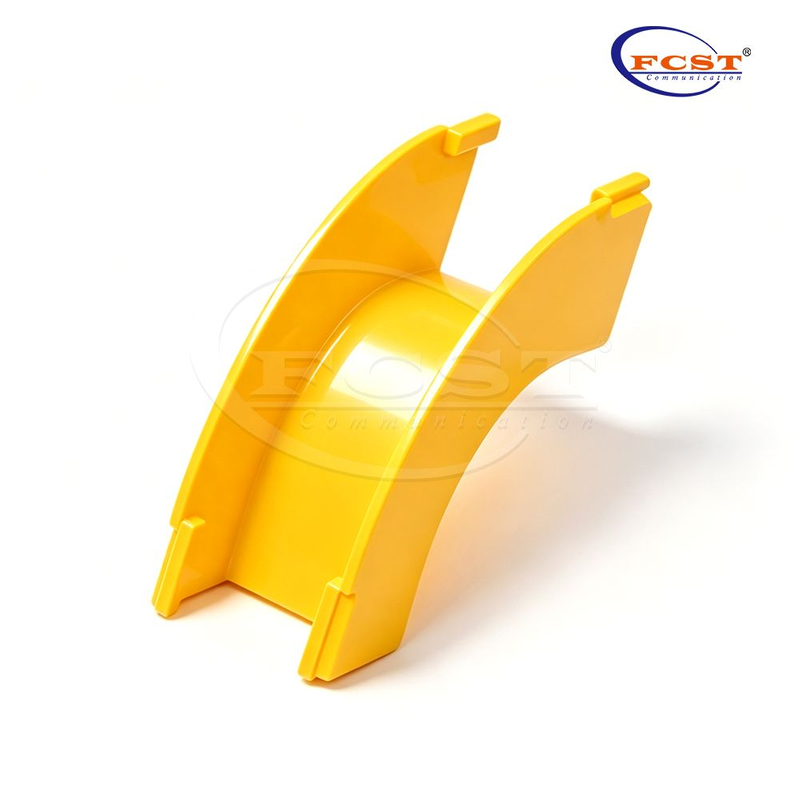

The FCST-CR50-IRS90 is a 90° upward bend for 50mm fiber optic raceway systems. It connects a horizontal routing path to a vertical or upward-inclined path, enabling a smooth transition from horizontal to upward vertical direction. It is used when routing optical cables from overhead cable trays into cabinet row-end cabinets or when navigating around obstacles in equipment rooms. The bend is made of ABS and meets UL94-V0 flame-retardant requirements.

Key Features

• 90° upward transition – Connects a horizontal raceway path to a vertical or upward-inclined path.

• Overhead-to-cabinet routing – Designed for routing cables from overhead cable trays into cabinet row-end cabinets.

• Obstacle navigation – Supports routing around obstacles within equipment rooms.

• Flexible installation and high compatibility – Specification states flexible installation and high compatibility.

• UL94-V0 flame-retardant ABS – Suitable for equipment room and data center environments.

Product Specifications

Applications

• Connecting horizontal raceway to vertical or upward-inclined routing paths

• Routing fiber cables from overhead cable trays into cabinet row-end cabinets

• Navigating around obstacles within equipment rooms

• 90° upward bend connections in 50mm fiber optic raceway systems

• Data center and equipment room multi-level fiber cable management

FAQ

Q1: What is the FCST-CR50-IRS90 used for?

A: It is a 90° upward bend used to connect a horizontal fiber raceway path to a vertical or upward-inclined path, enabling smooth routing between different levels.

Q2: Where is this upward bend typically installed?

A: It is used when routing optical cables from overhead cable trays into cabinet row-end cabinets, or when navigating around obstacles within equipment rooms.

Q3: What material is the bend made of?

A: It is made of ABS with a V0 flame-retardant rating.

Q4: How is it packaged?

A: The specified packaging is 60PCS/CNT 8.8KG. 60 × 145g matches the stated carton weight.
