Product Overview

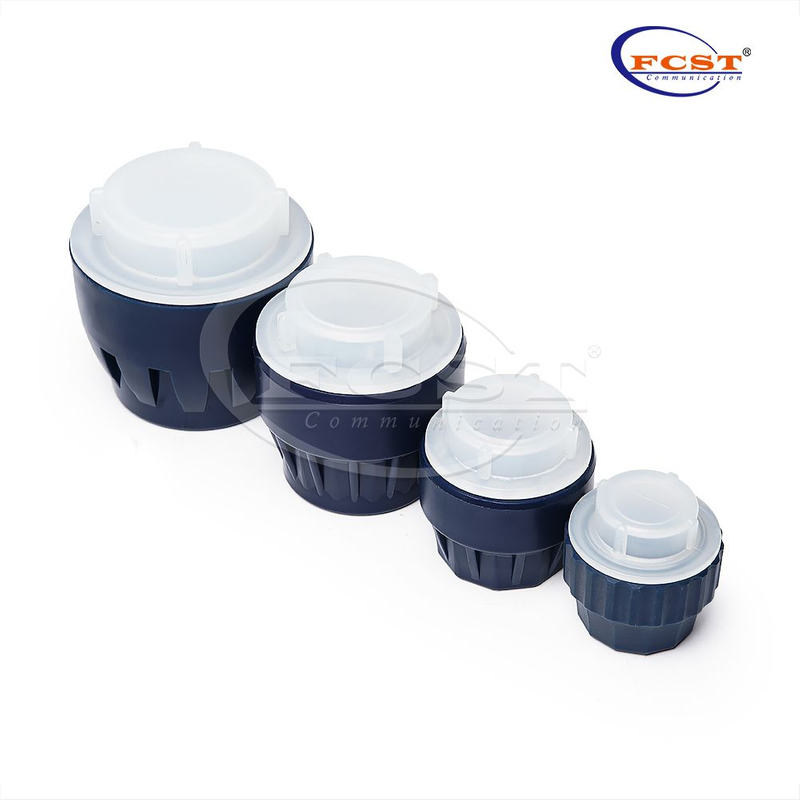

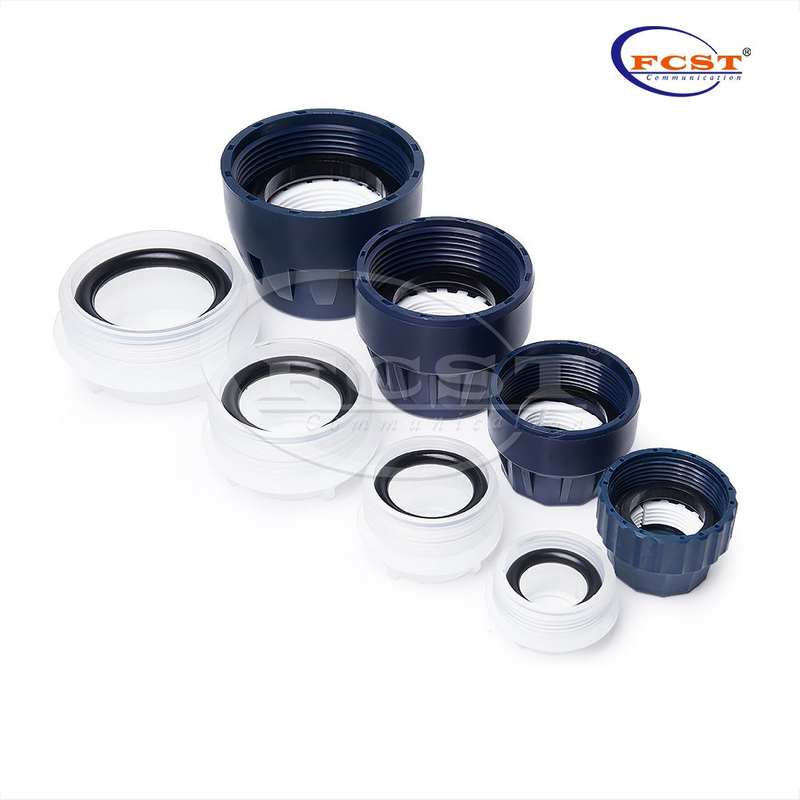

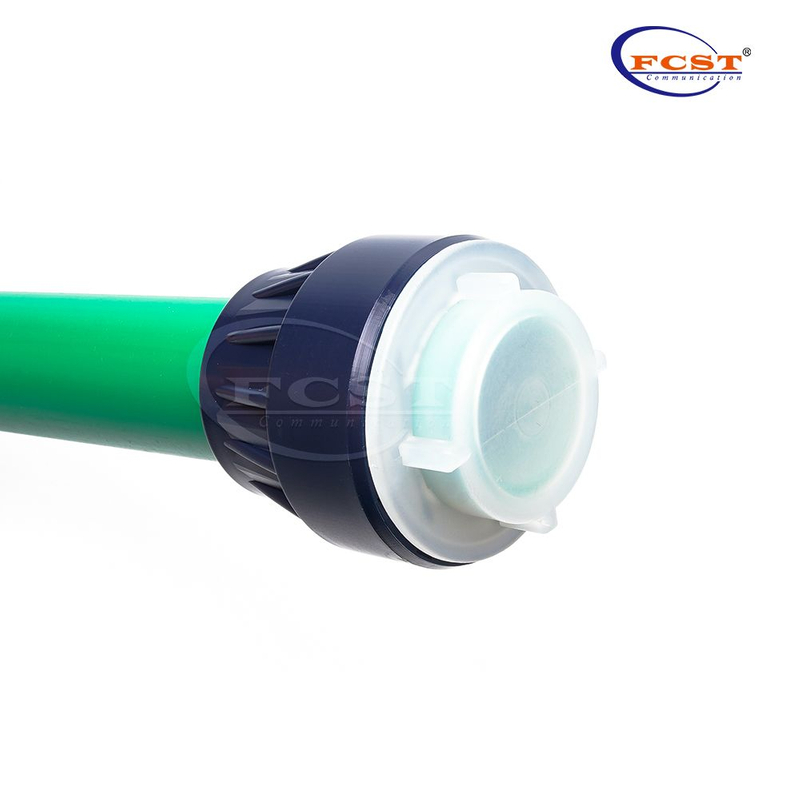

The FCST-ESRB Push Fit Duct End Caps, Experience the same fast and easy installation of our Push-Lock couplers now with a new, clear body design.Simply push the duct ends into the coupler for a locked and air-sealed assembly. The non-metallic construction provides excellent corrosion resistance in buried or encased applications and also has desirable dielectric properties.
Product Advantages
Compatible with 25/30/32/50mm pipes.
Pre-lubricated O-ring is water-tight and air-tight.
Suitable for both cable pulling & jetting applications.

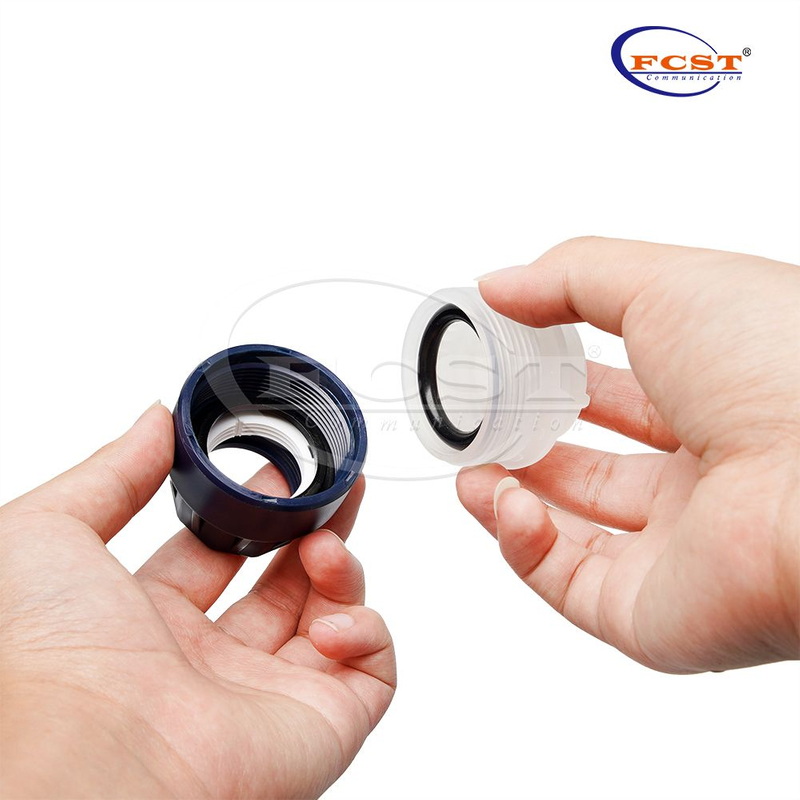

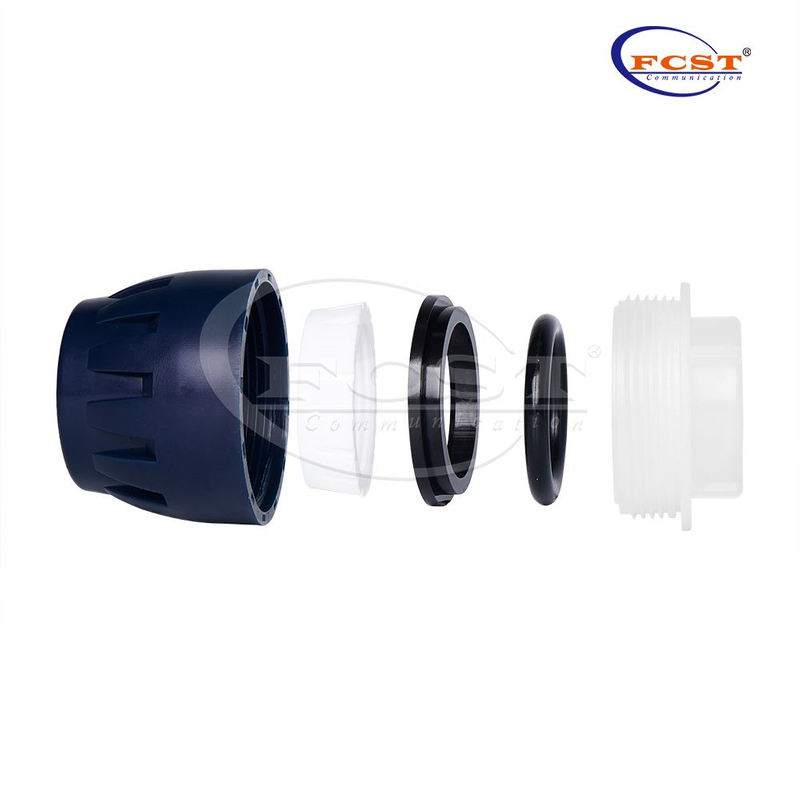

Self-locking ring design assembles in seconds and is re-enterable.
Simple, one person 'push-on' assembly lowers installation costs.
High strength molded plastic body is ideal for buried duct applications.
The visual confirmation of the pipe within the coupler ensures that it has been properly seated at the center stop.

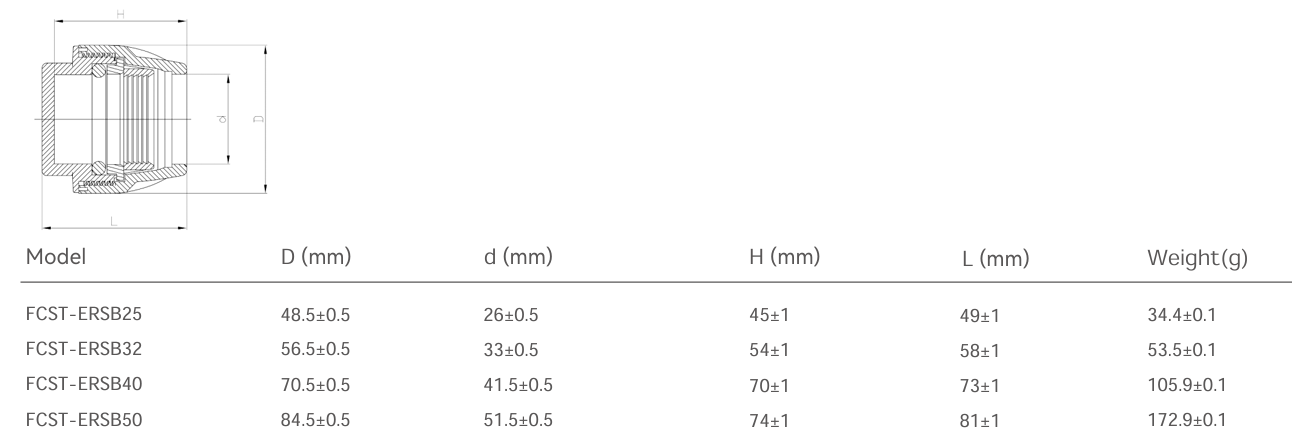

Product Specifications
| Construction | Description |
| Material | PP |
| Reference Standard | JT/T496-2004、Q/KL020-2005 |
| Appearance | Surface gloss, no impurities, no flash, no bubbles, no cracks, complete thread. |
| Tensile Resistance(Under Tightened State) | ≥4300N |
| Weight(g) | 53.5g(32mm) |
| High Temperature Resistance | -40℃~+65℃ |
Ordering Information
