FCST012105 Fiber Optical Splice Closure

  • It applies to the seal demand of Φ8~18 cable.
  • Multiple seal accessories of soft cable are applicable.
  • Each tray also can be installed with 6 pieces of 1:8 micro splitters.
  • The port of discontinuous cable adopts spinning mechanical seal, and the port of uncut cable adopts direct pressure mechanical seal.
  • FOBshanghai Price:form 39.04usd/set
Availability:
Quantity:
  • FCST012105
  • FCST
  • FCST012105

Product Overview

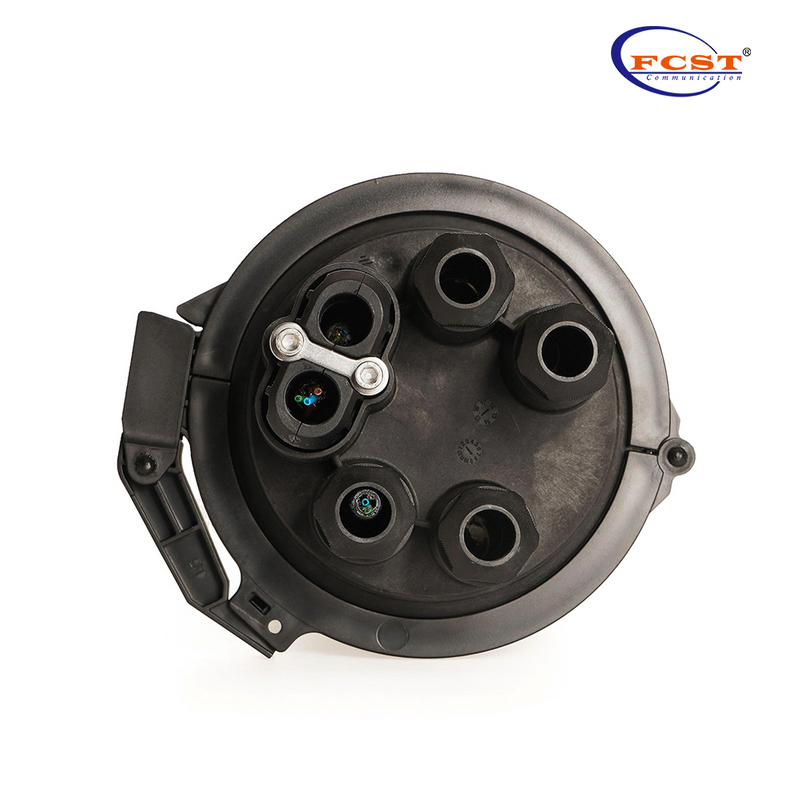

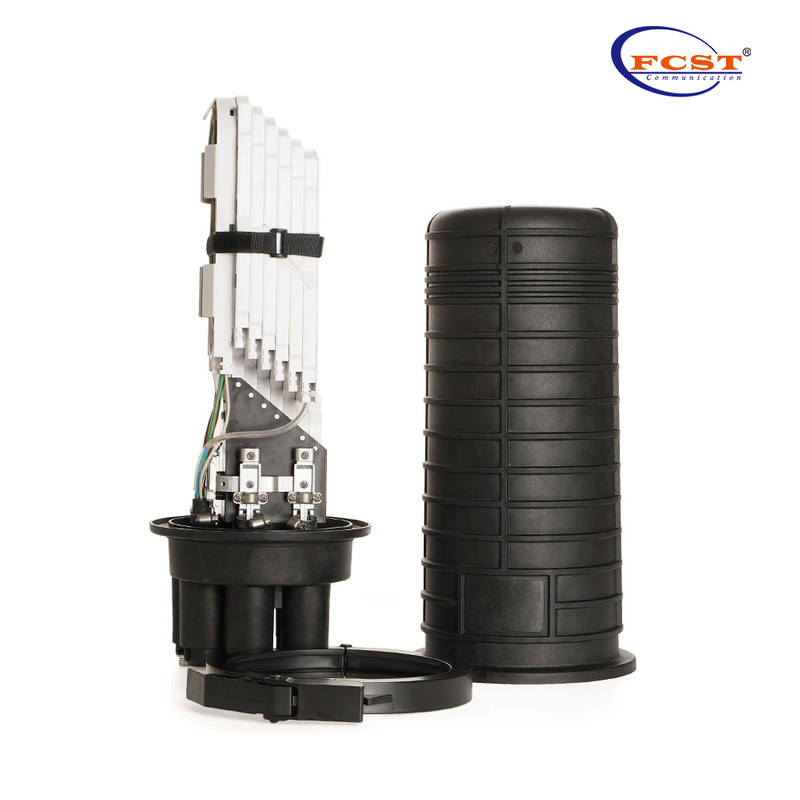

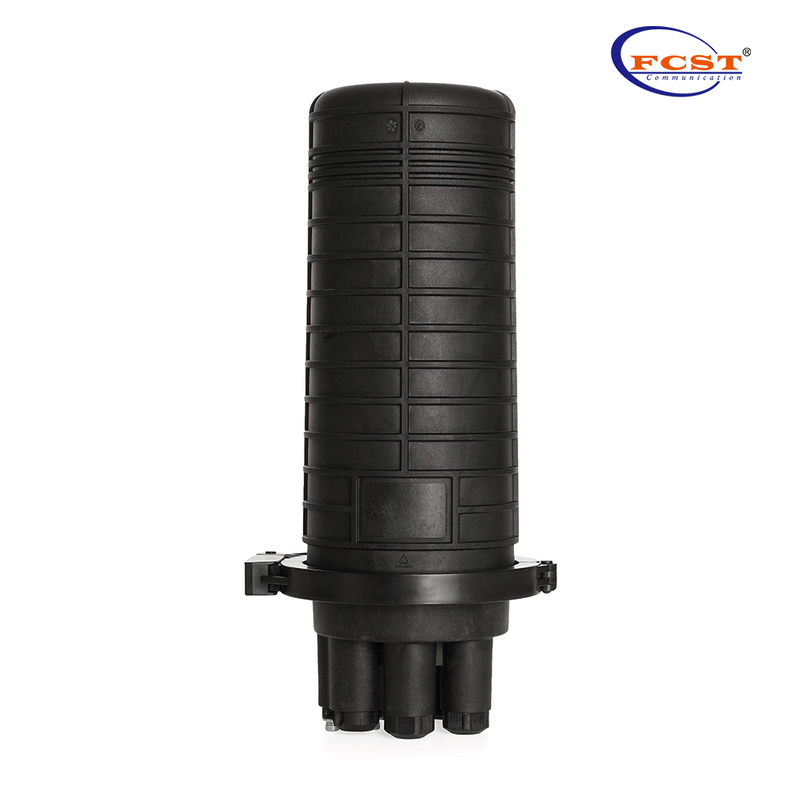

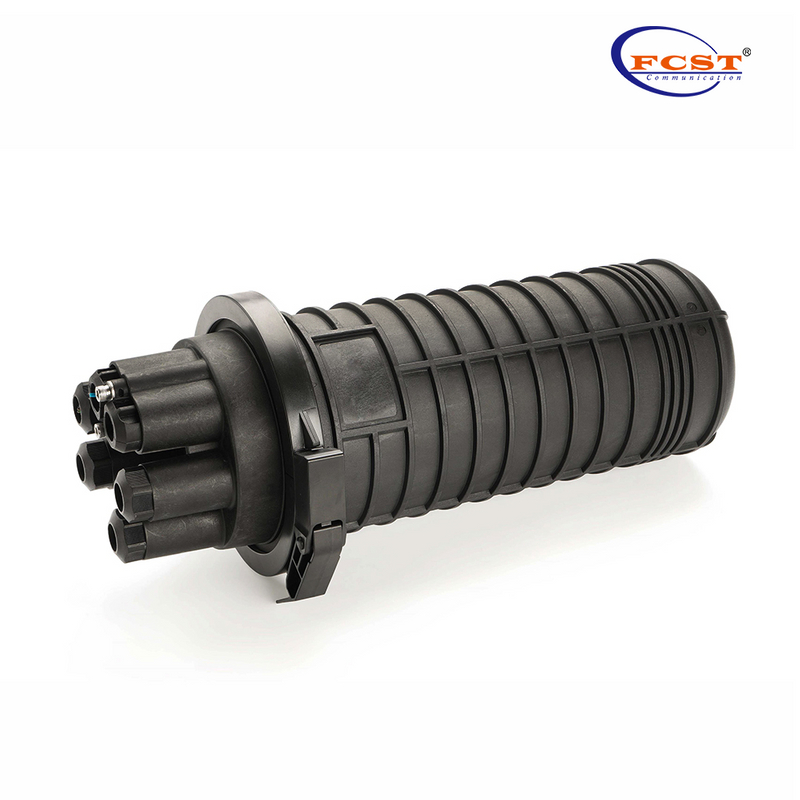

FCST012105 type of Fiber Optic Splice Closure (FOSC) is a member in dome series of optical fiber cable splice closures. This model has four small circular cable entry ports plus one big circular port for express (looped) cable.  The sealing component is made from silicon. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop.  This model is suitable for different methods of branch connection, including branching and splicing of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground applications. This model is excellent in sealing performance, easy for installation, wide applications and is prior choice of fiber connection equipment.

Product Specifications

Construction

Description

Max. Capacity

Single:144Cores

Ribbon:432/576Cores

Material

PP+GF

Dimension (mm)

460xФ225

Inlets/Outlets

1/4

Installation

Pole/Aerial/Manhole

Net Weightg

4500

Protection Level

IP68

Diameter Of Fiber Cable

Oval port: 1(Φ818mm)

Round port(Φ818mm)

Sealing Mode

Mechanical

Number Of Trays

Single:6

Ribbon:6/8

Capacity Of Tray

Single:24F

Ribbon:6/12F

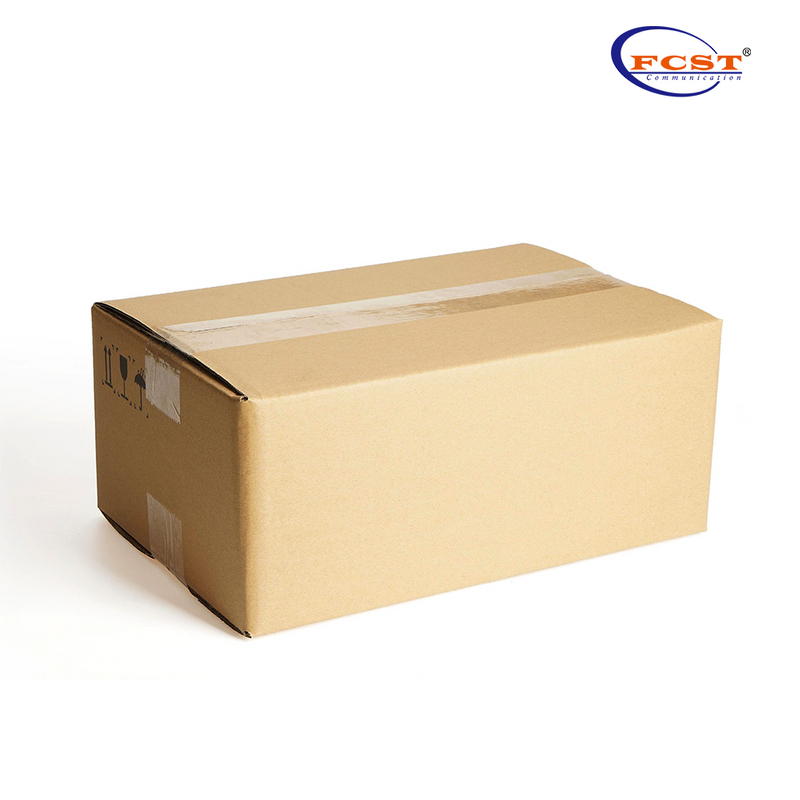

Packing Information

GGMFGTMYOIQHEHU_JTE(F

Construction

Description

Outside DimensionL*W*Hmm

400*200*140

Weight/PCkgs

3.2

Carton sizeL*W*Hmm

740*200*140

Qty/CTNpcs

10

Weight/CTNkgs

34.1

Design And Customization Services

Provide service with whole process from blueprint to product to the customer.

Meet customers requirement to customize logo in suitable place for existing product.

Meet customers requirement to make reasonable modify and customization for existing product.

Provide free design according to the requirement of customer after signed cooperative agreement.
