FCST012104
FCST
FCST012104
Product Overview

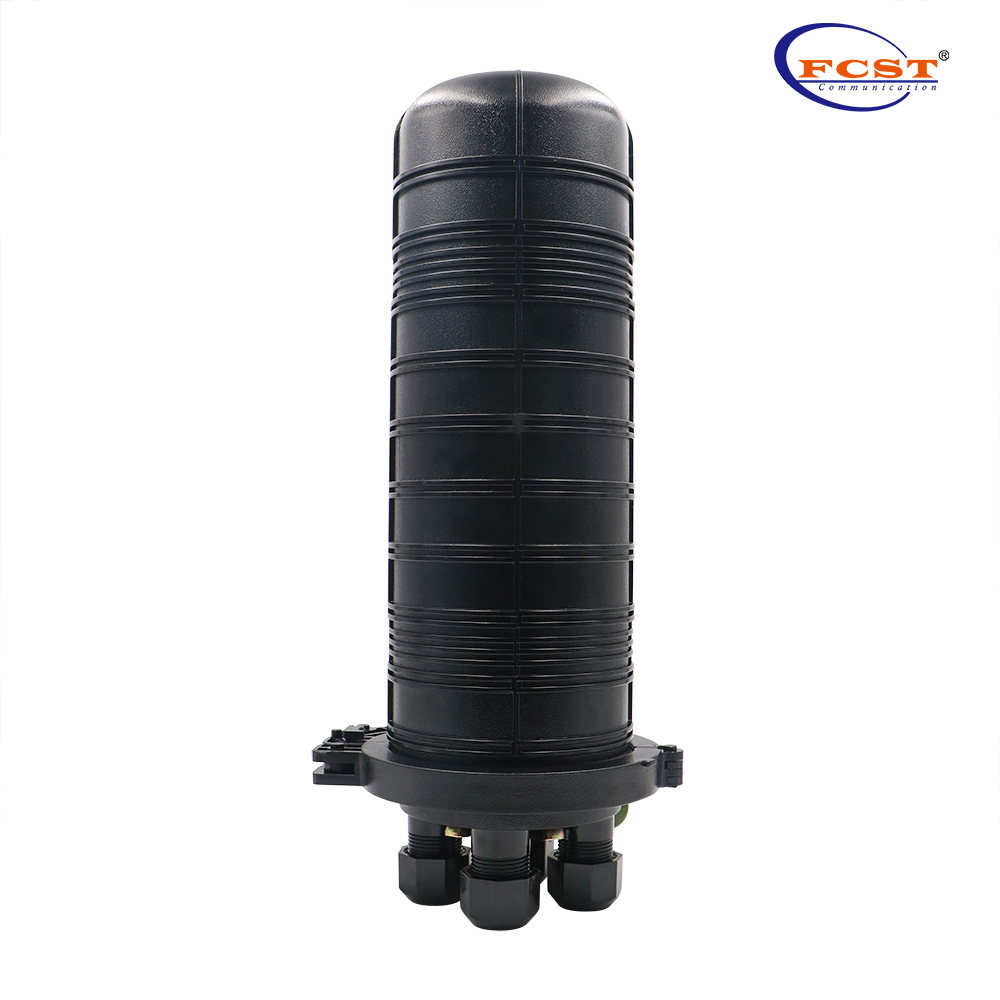

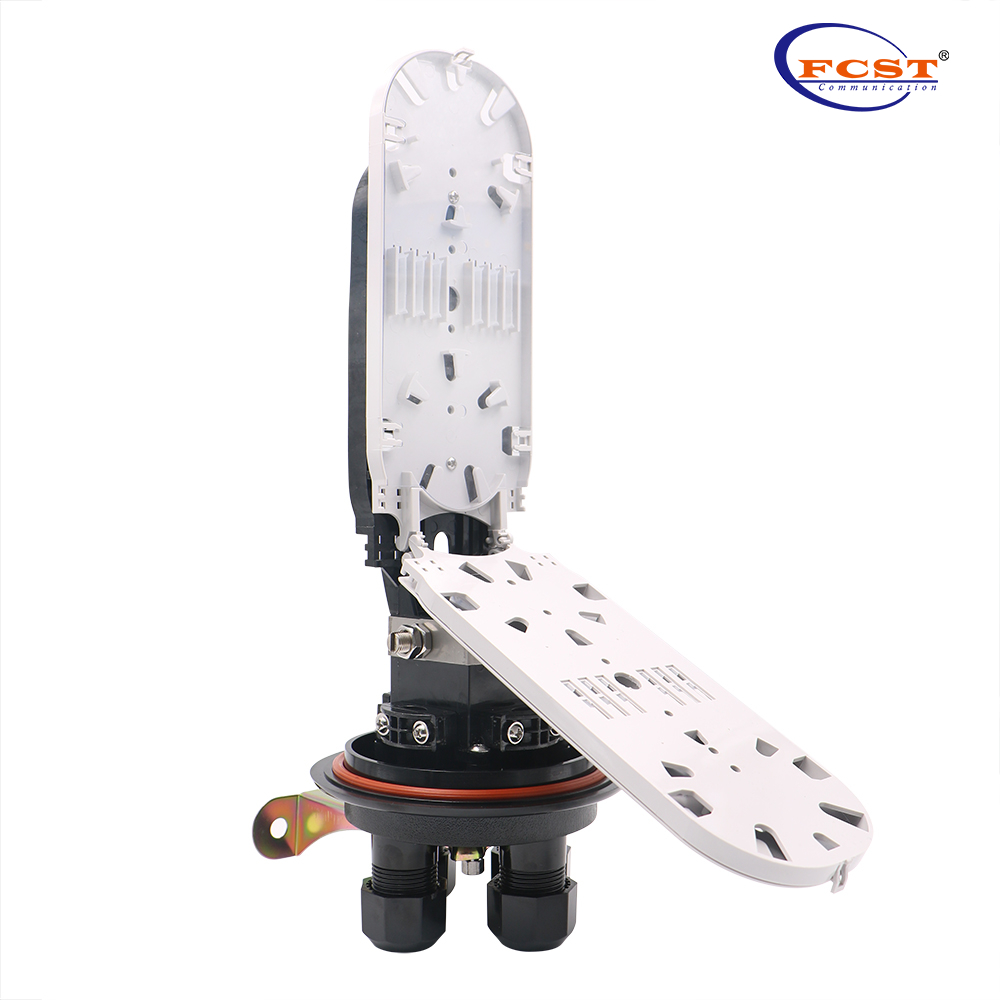

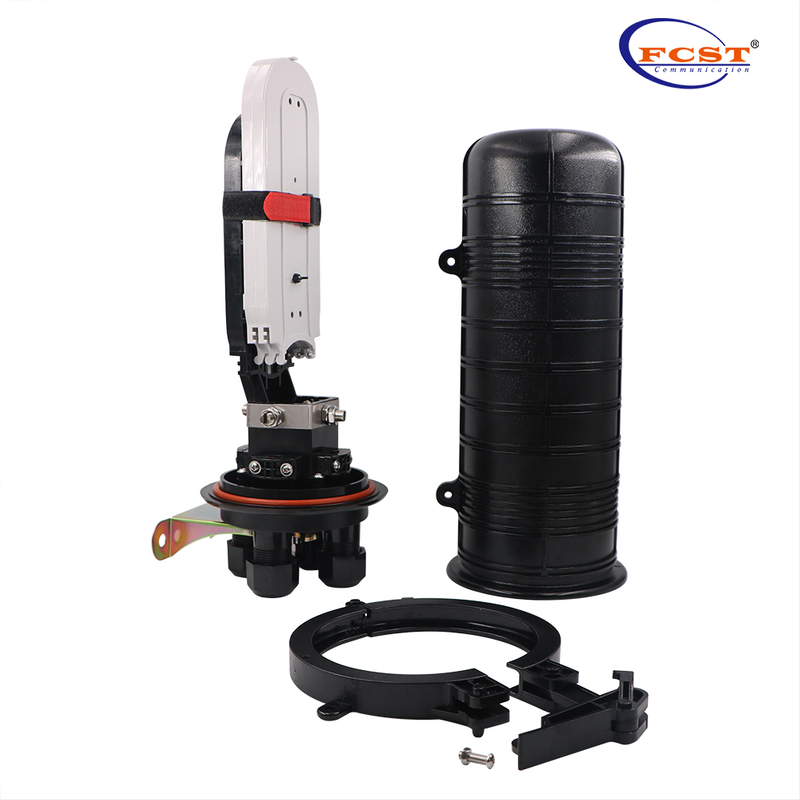

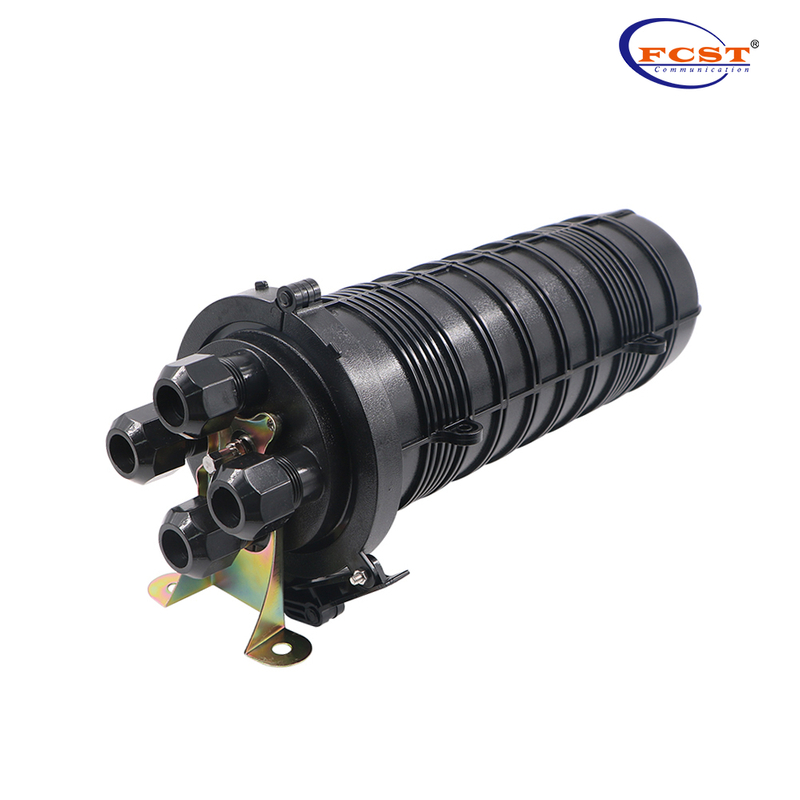

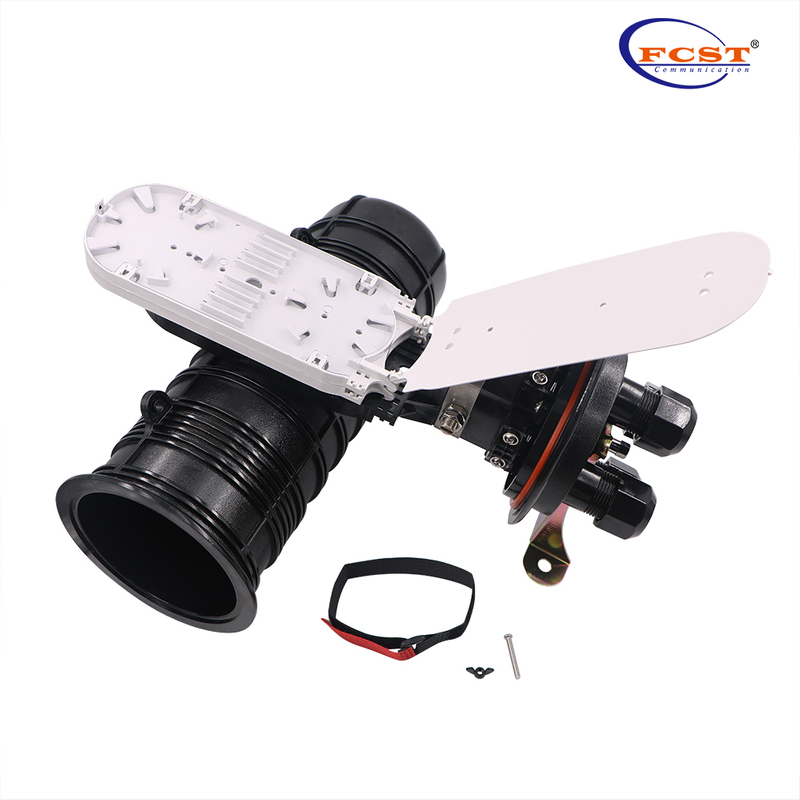

FCST012104 Optic Fiber Splice Closures can be used in outside plant, underground, aerial, wall-mounting, duct-mounting and handhole- mounting. The ambient temperature ranges from -40 to 65℃.
Product Specifications
Construction | Description |
Max. Capacity | Bunchy: 12-96 (cores) Ribbon: up to 288 (cores) |
Material | PP+GF |
Dimension (mm) | 430xФ190 |
Inlets/Outlets | 4 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 2100 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Φ18mm |
Sealing Mode | Mechanical |
Number Of Trays | - |
Capacity Of Tray | - |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
