FCST012108
FCST
FCST012108

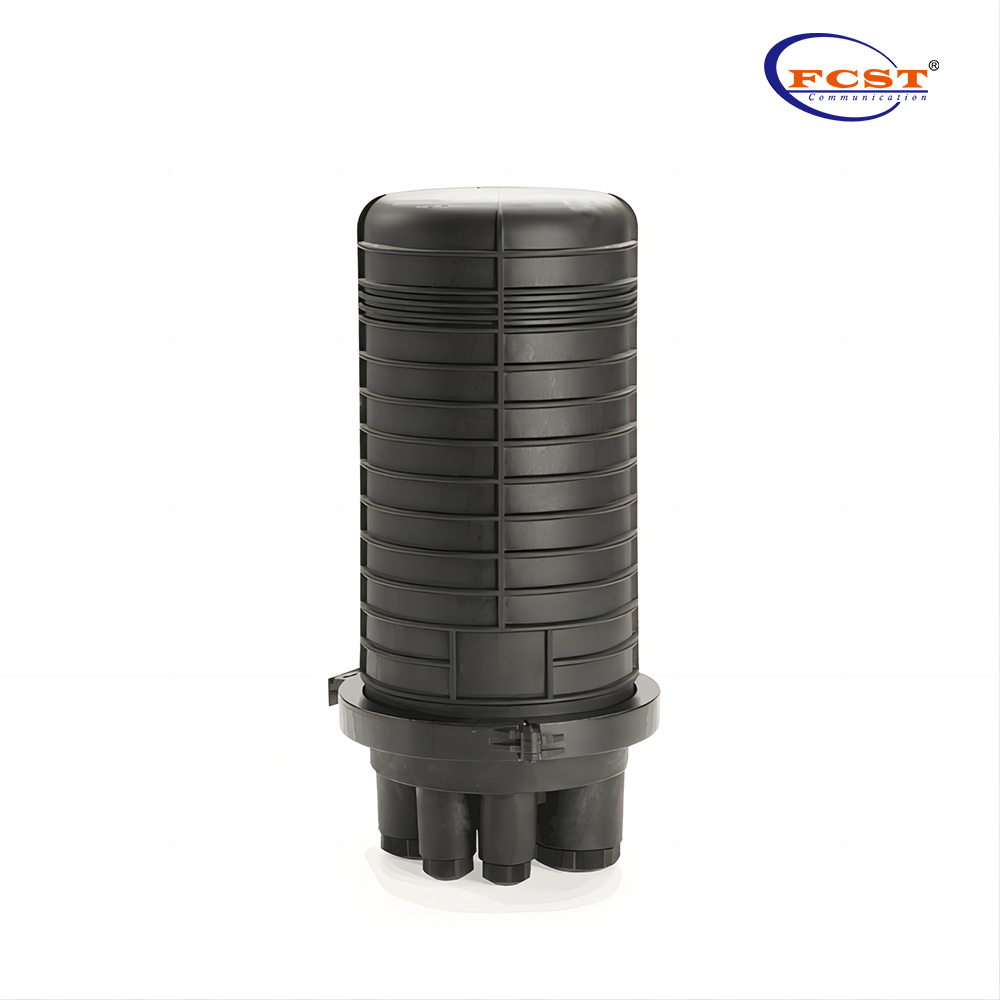

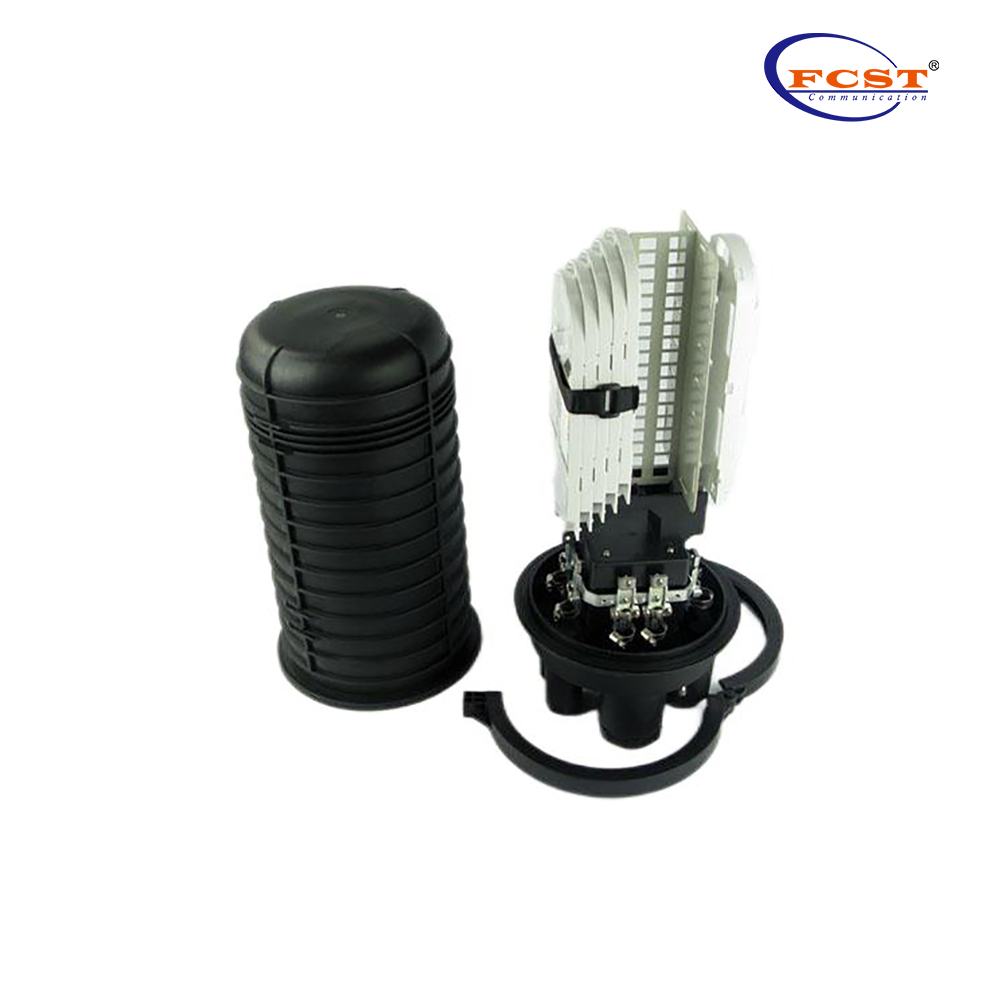

Product Overview

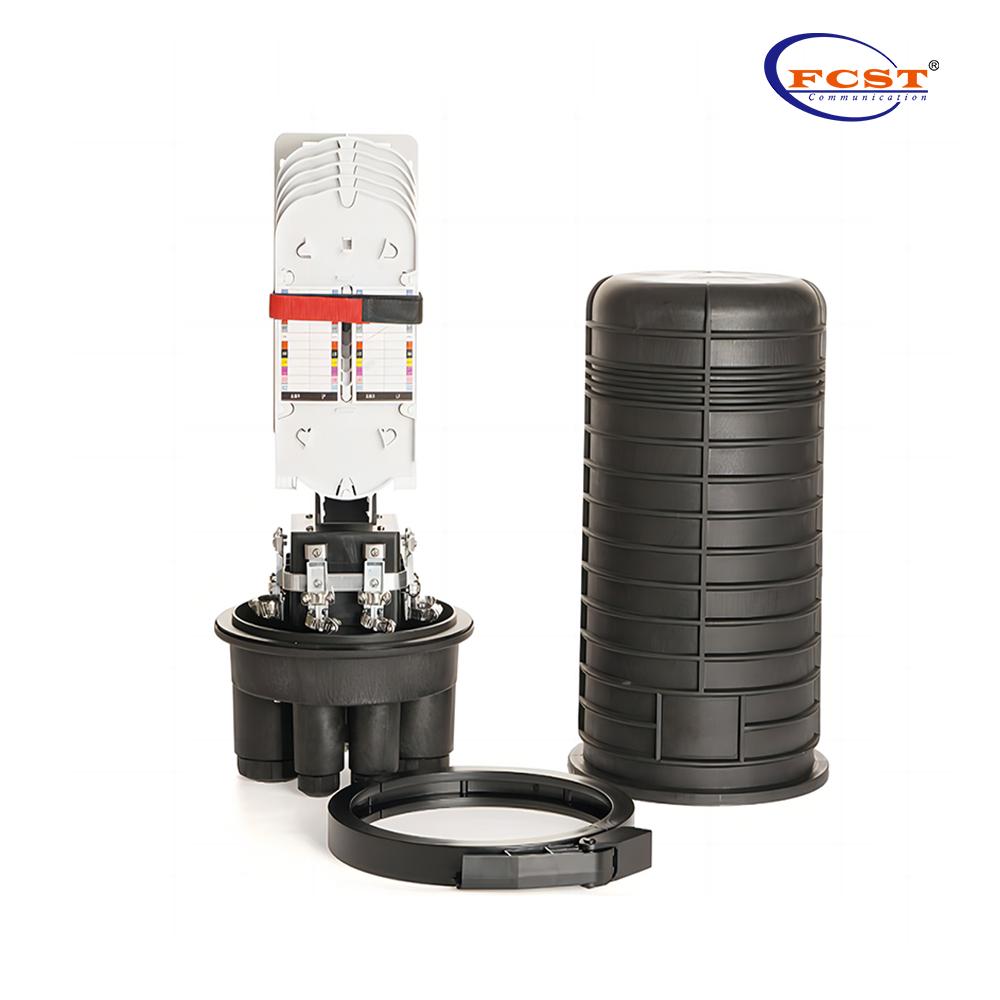

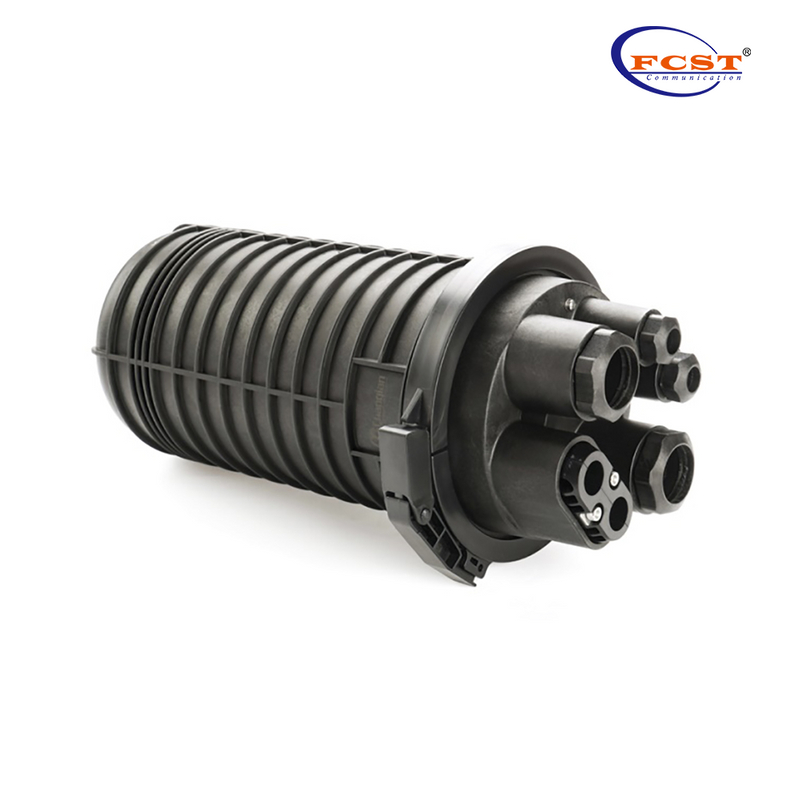

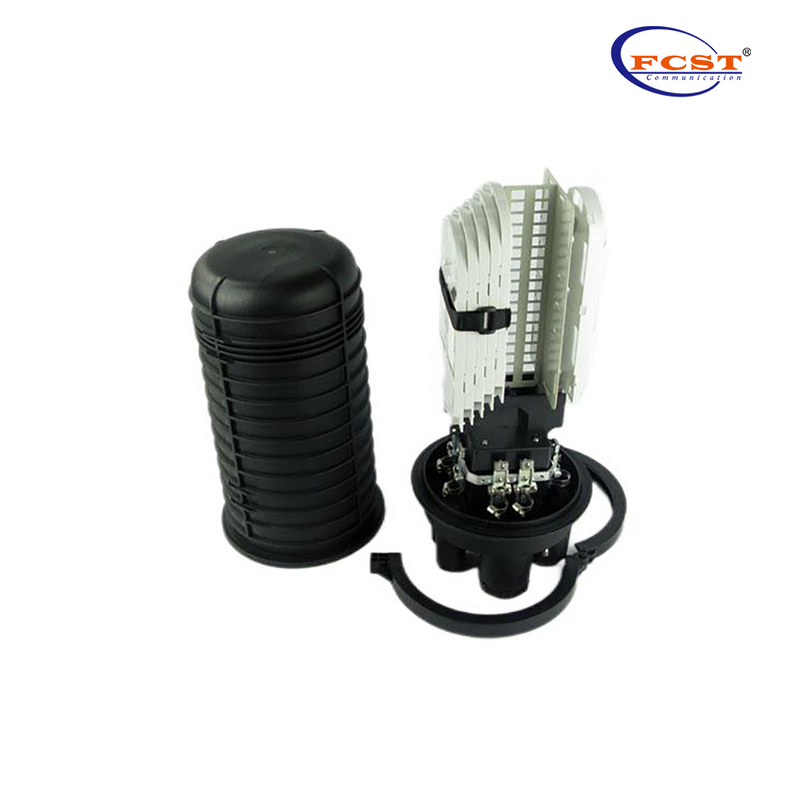

FCST012108 has a feature for accommodating adapters, allowing max 36pc adapters and 1pc 1：32 PLC splitter to be assembled in the closure. Robust dome and base provide practicability, which is resistant to chemicals and corrosive atmosphere. The unit is specially used in FTTH application.
Product Advantages
l Made of modified engineering plastic with high strength, anti impact and anti corrosion.
l Cable diameter: 1 uncut port support φ8～22mm cable; 2 big branch ports support φ6～14mm cable; 2 small branch ports support φ8～18mm cable
l Capacity: max capacity is up to 120f, the splice tray can support 1:32 box splitter. The closure also can accommodate 36 pcs SC adapters.
l Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
l Sealing: mechanical seal is adopted for box body and cable mouth, with protection grade of IP68.
Product Specifications
Construction | Description |
Capacity | Single fiber：120F |
Material | PP+GF |
Dimension (mm) | 480*Φ260 |

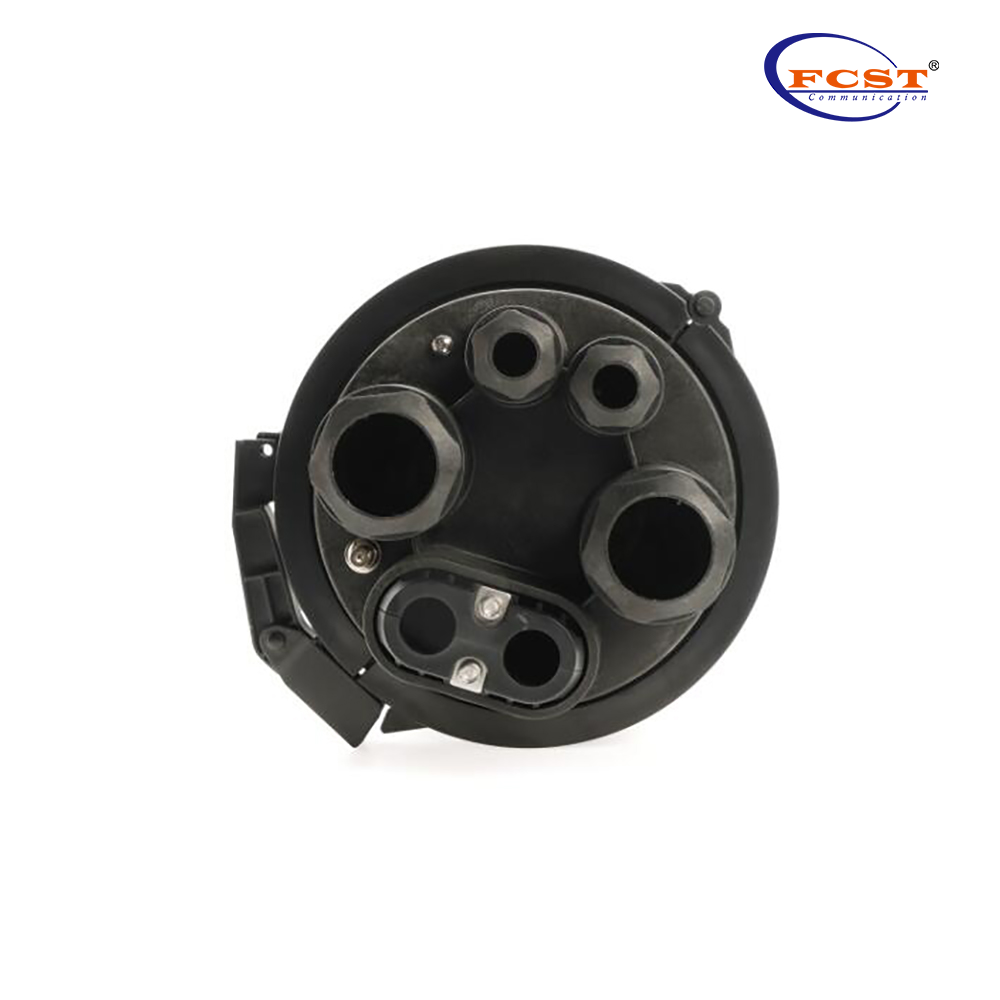

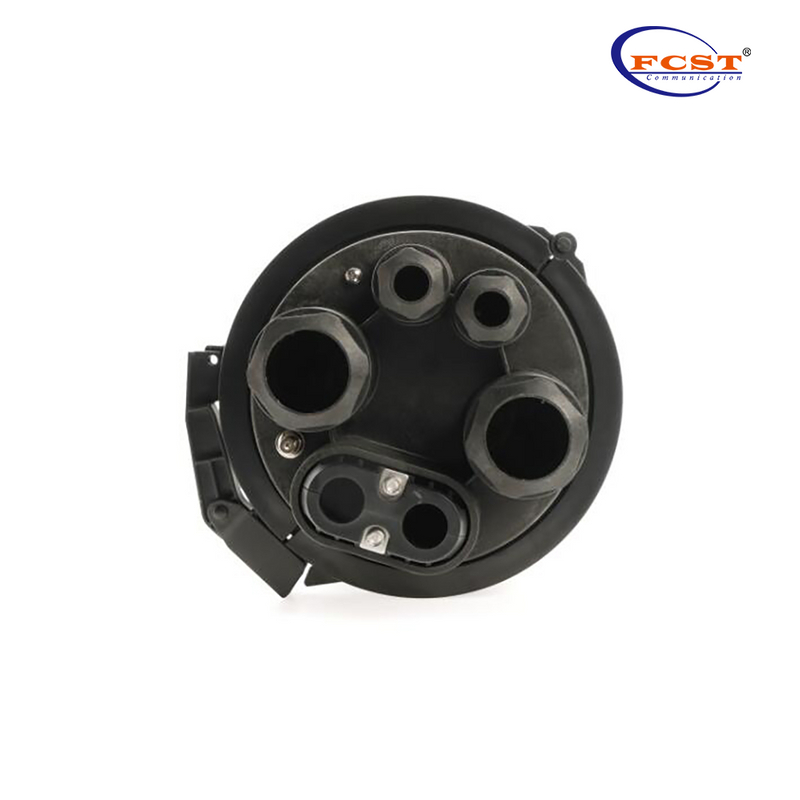

Cable Ports | Oval port：1，Φ8~Φ22 mm Big branch port：2，Φ6~Φ14 mm Small branch port：2，Φ8~Φ18 mm |
Installation | Aerial, wall, pole, manhole etc. |
Net Weight（g） | 5100 |
Protection Level | IP68 |
Sealing Mode | Mechanical Seal |
Splice Tray Capacity | Single fiber：24F |
Max No. Tray Installed | 5pc |
Adapter | SC，36pc |
PLC Splitter | 1pc 1:32 box splitter |

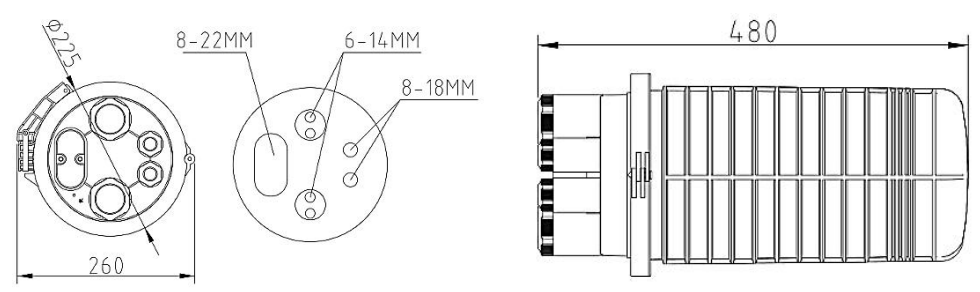

Structure Drawing

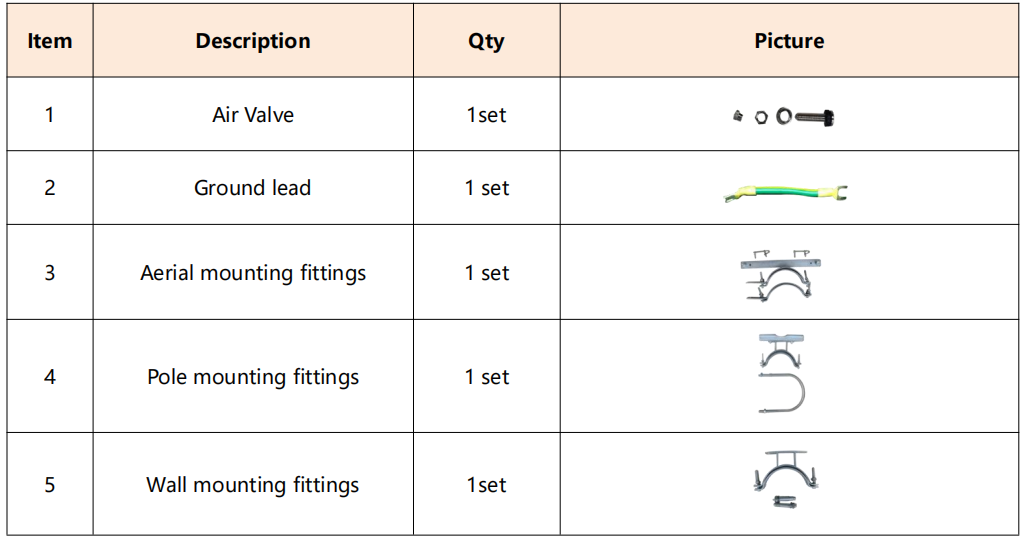

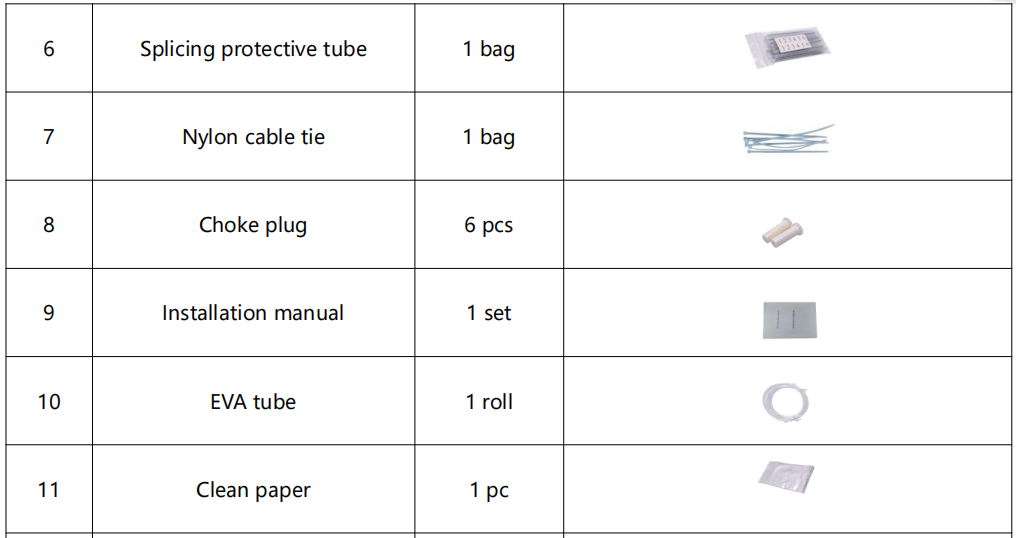

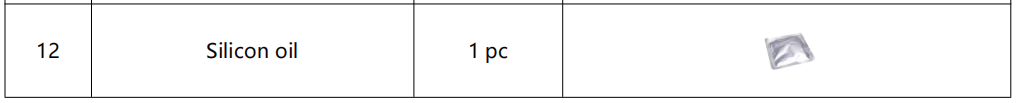

Standard Accessories(Picture only for refer)

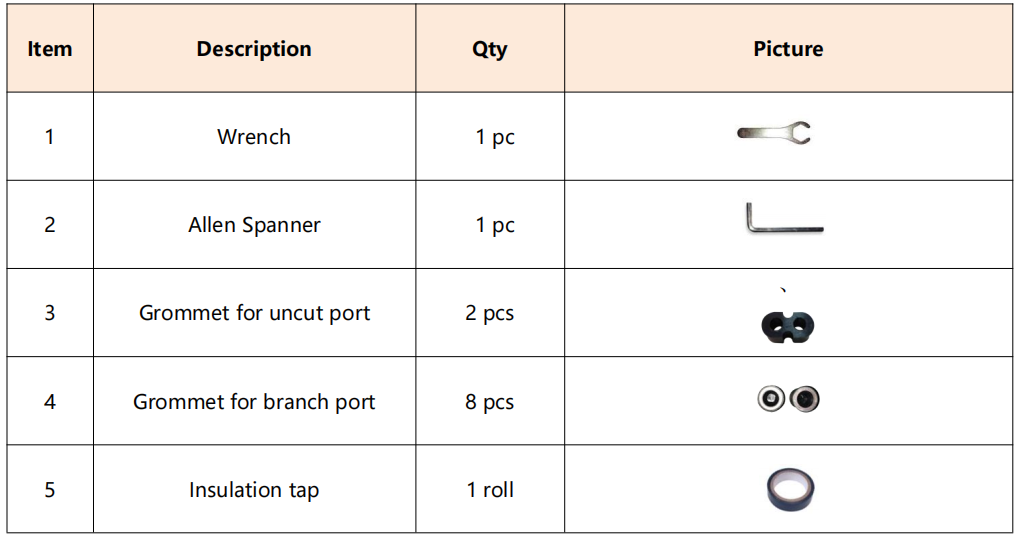

Optional Accessory
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | 480*275*245 |
Weight/PC（kgs） | 5.5 |
Carton size（L*W*H）mm | 570*500*540 |
Qty/CTN（pcs） | 4 |
Weight/CTN（kgs） | 23.2 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
