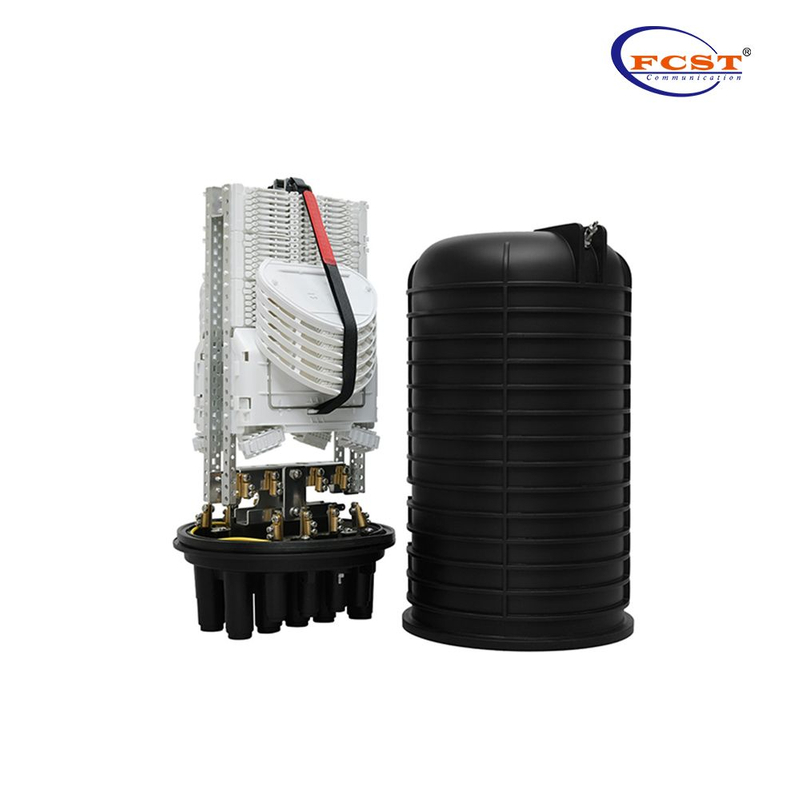

FCST012216
FCST
FCST012216
Product Overview

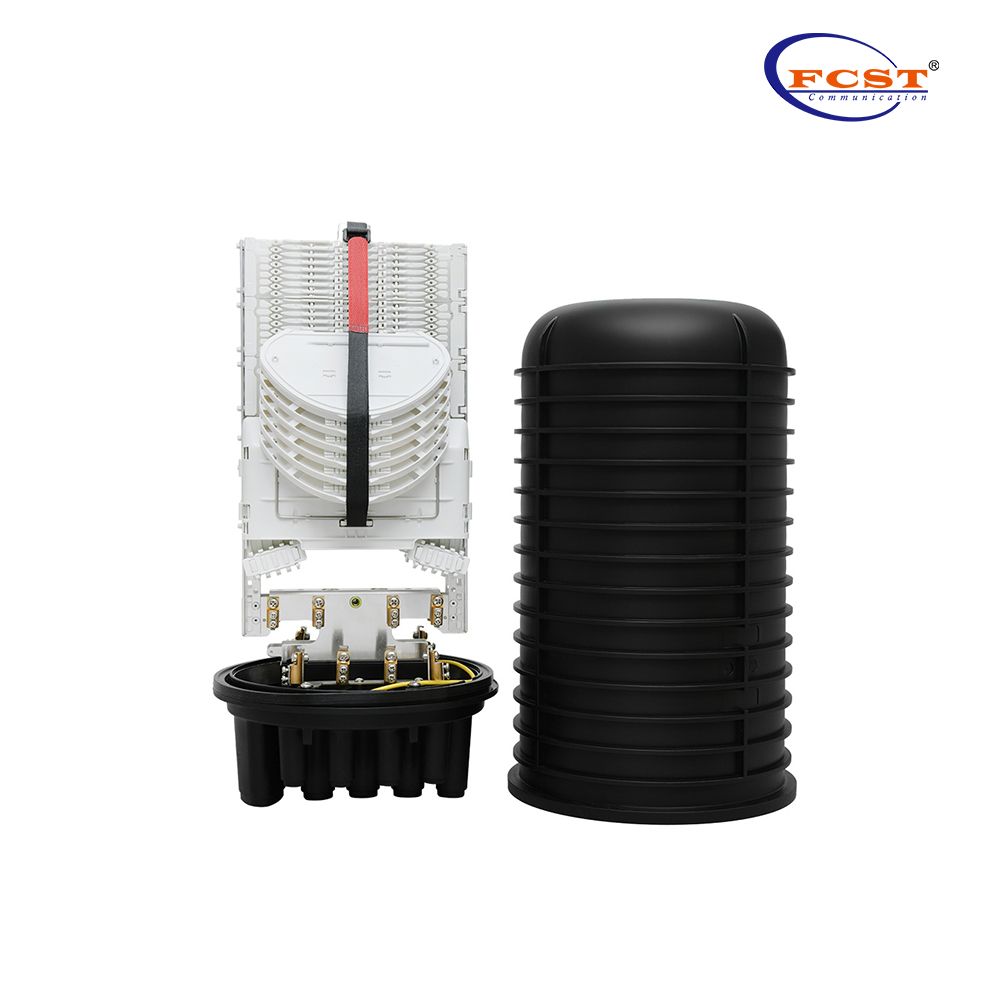

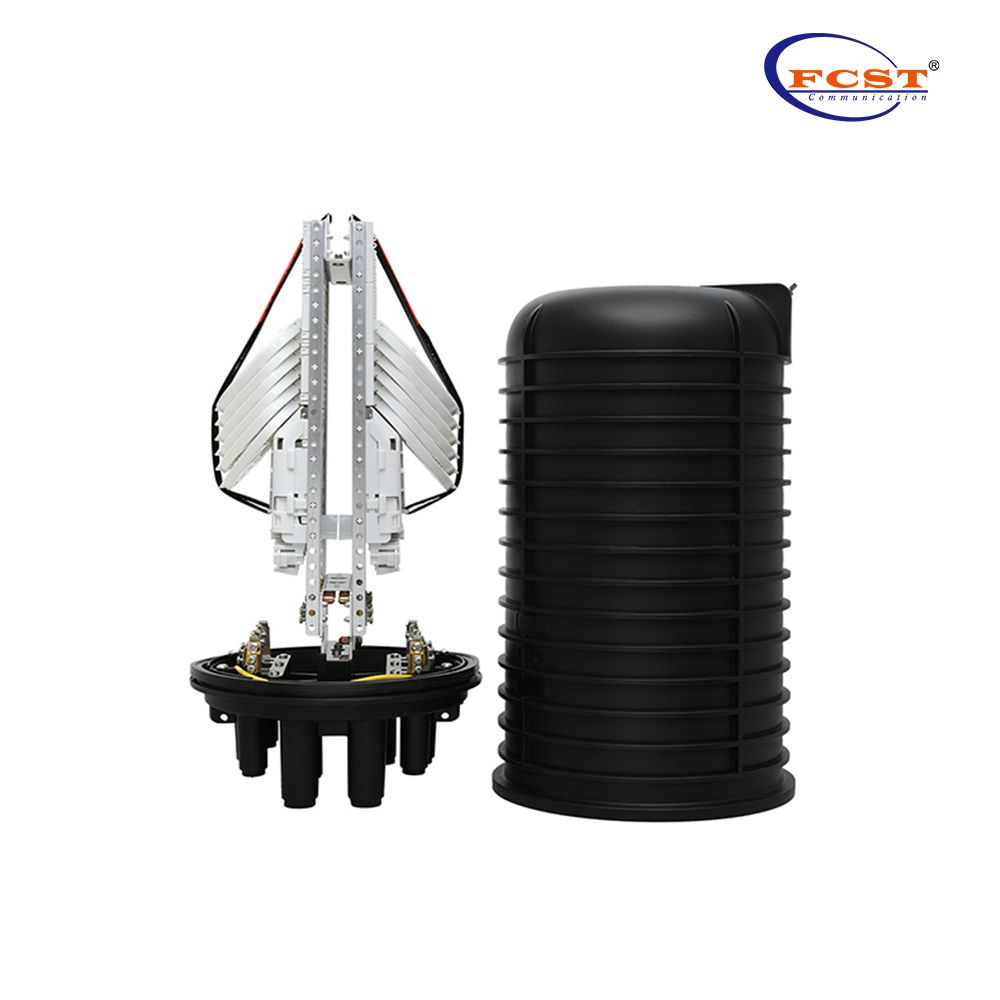

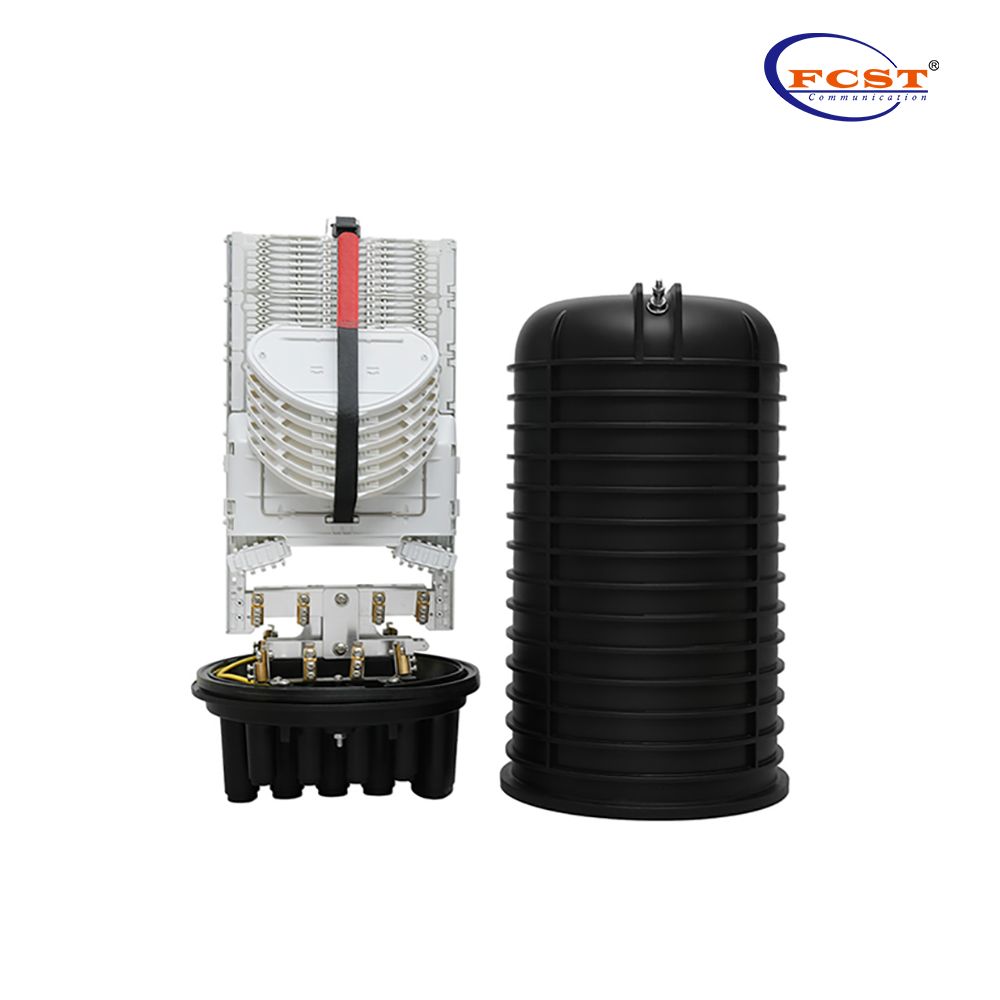

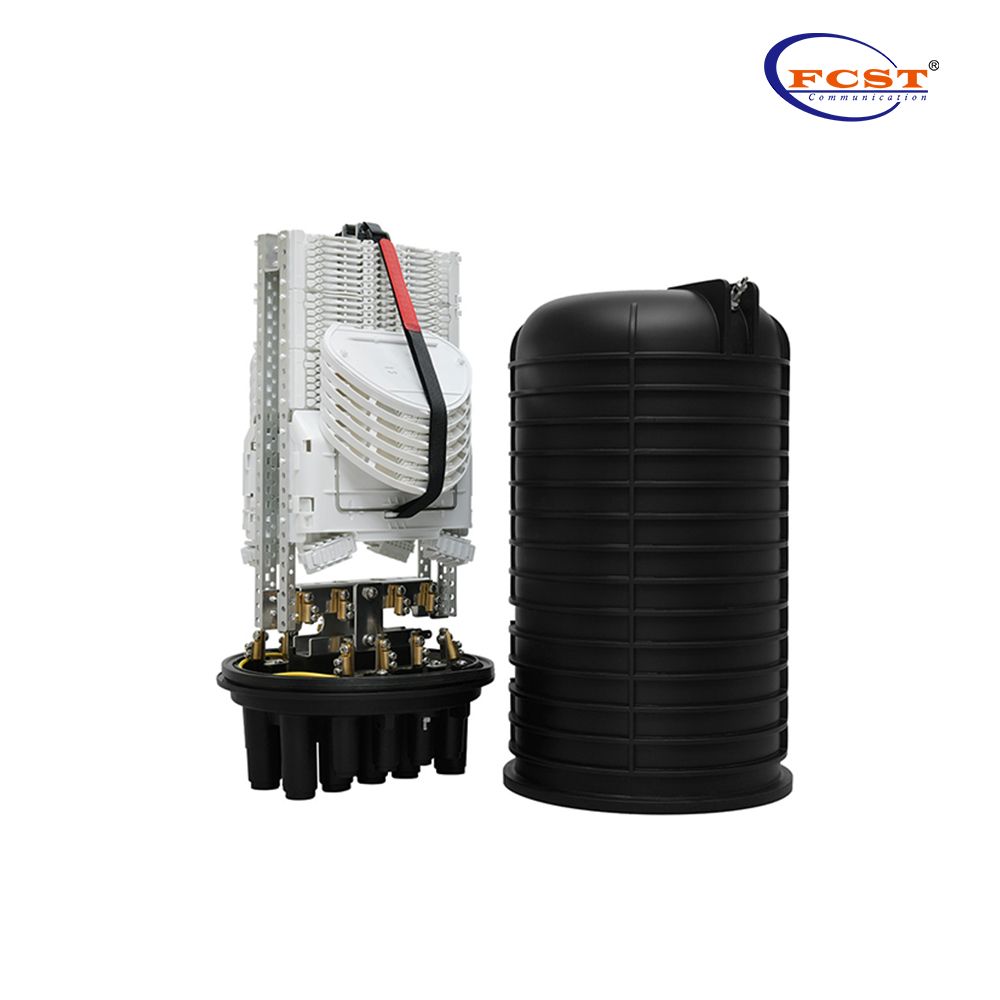

FCST012216 Fiber Optical Splice Closure is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.Dome-to-base design; sealed with clamp and O-ring system. With two types of optional trays can hinge for access of any splice, without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.
Product Specifications
Construction | Description |
Max. Capacity | 288F ( if with 12F tray, total 24 pcs) 192F ( if with 4F tray, total 48 pcs) |
Material | Dome, Base:modified PP Clamp:Nylon +GF Tray: ABS Metal Parts:Stainless steel |
Height | 508.9mm丨20.035in |
Diameter | 310.3mm丨12.217in |
Protection Level | IP68 |
Inlets/Outlets | 1/16 |
Installation | Aerial, Pole mounting, directly buried, Wall mounting |

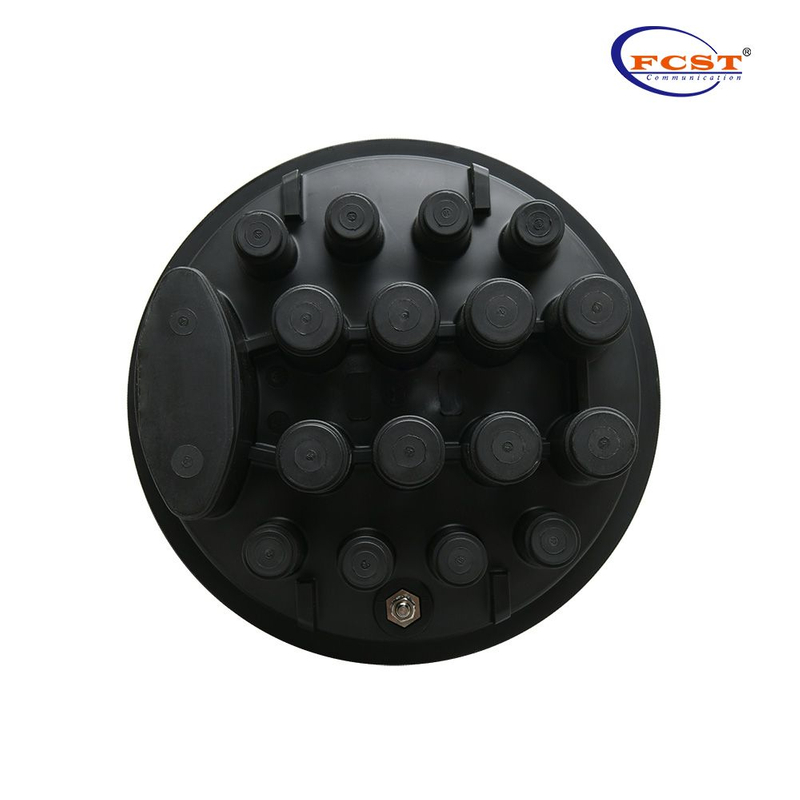

Diameter Of Fiber Cable | 1 oval port for 2 pcs 10~30mm cable 8 middle round ports each for 1 pcs 6~21mm cable 8 small round ports each for 1 pcs 6~16mm cable. |
Sealing Mode | Heat-shrink |

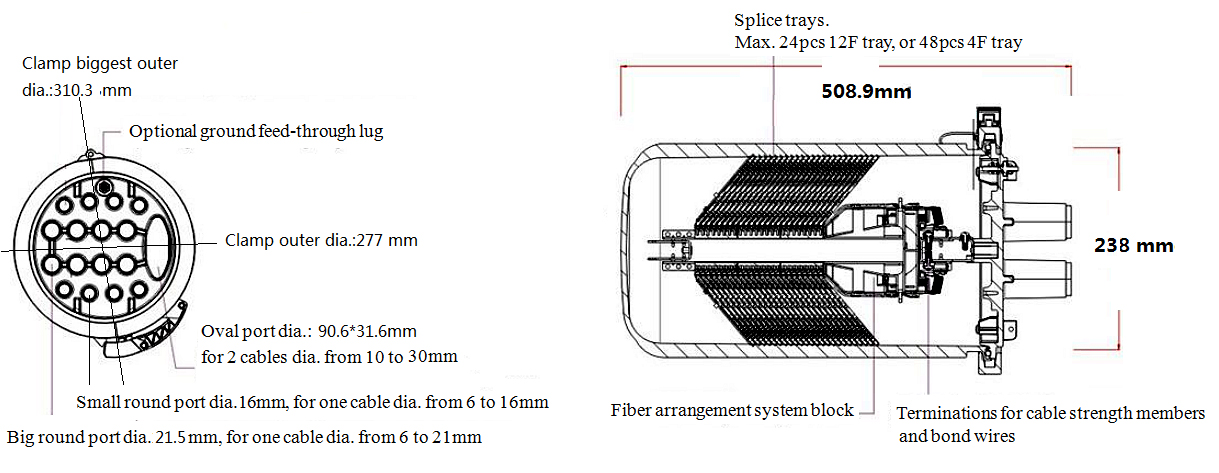

Product Structure

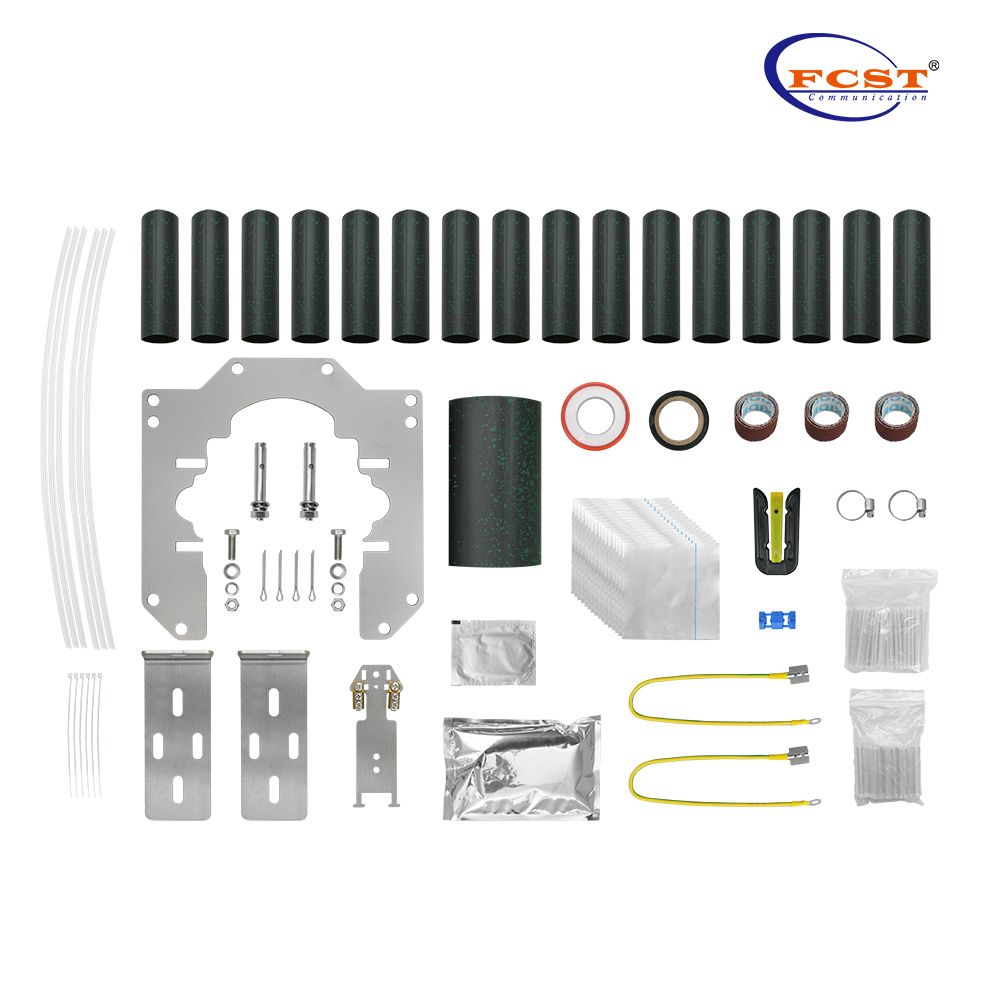

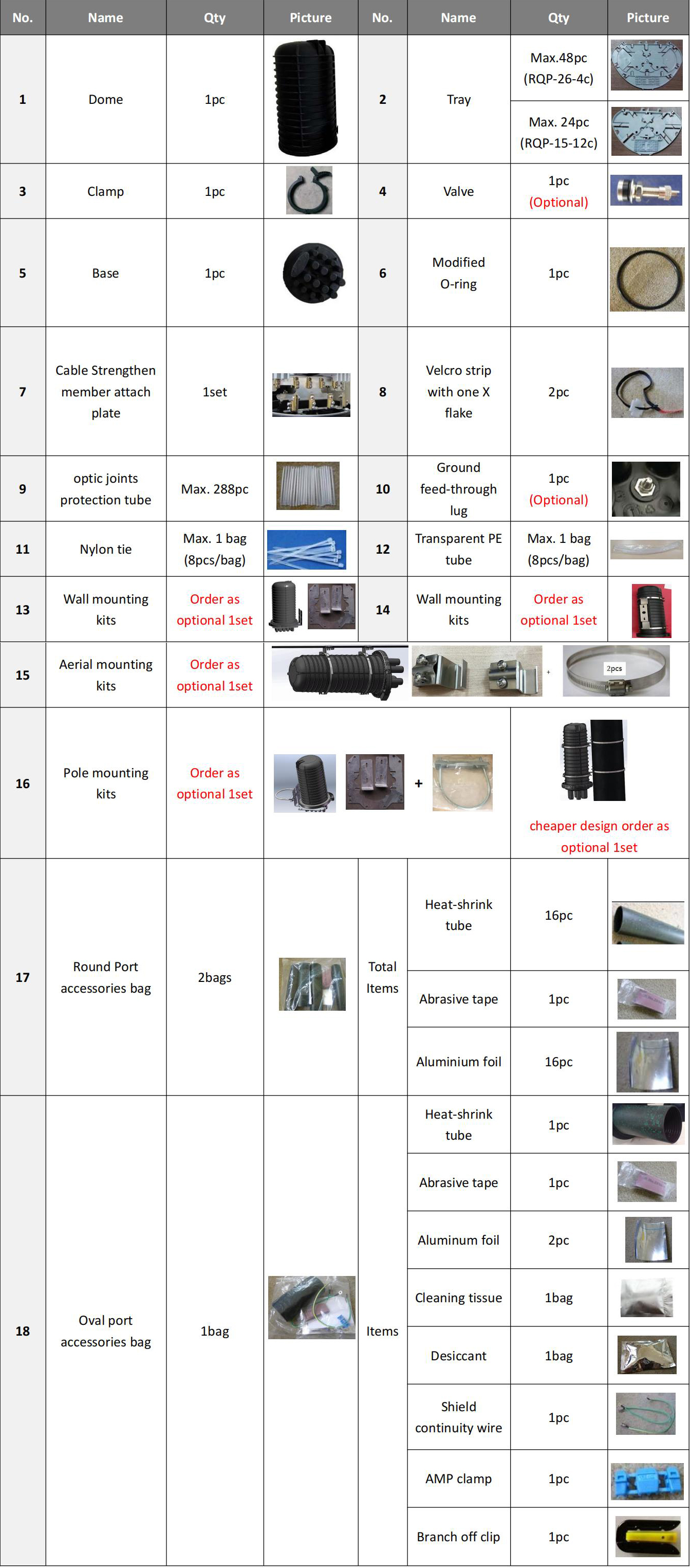

Main Components
Design And Customization Services
l Provide service with whole process form blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
