FCST-TH-SMC11-500
FCST
FCST-TH-SMC11-500
Product Overview

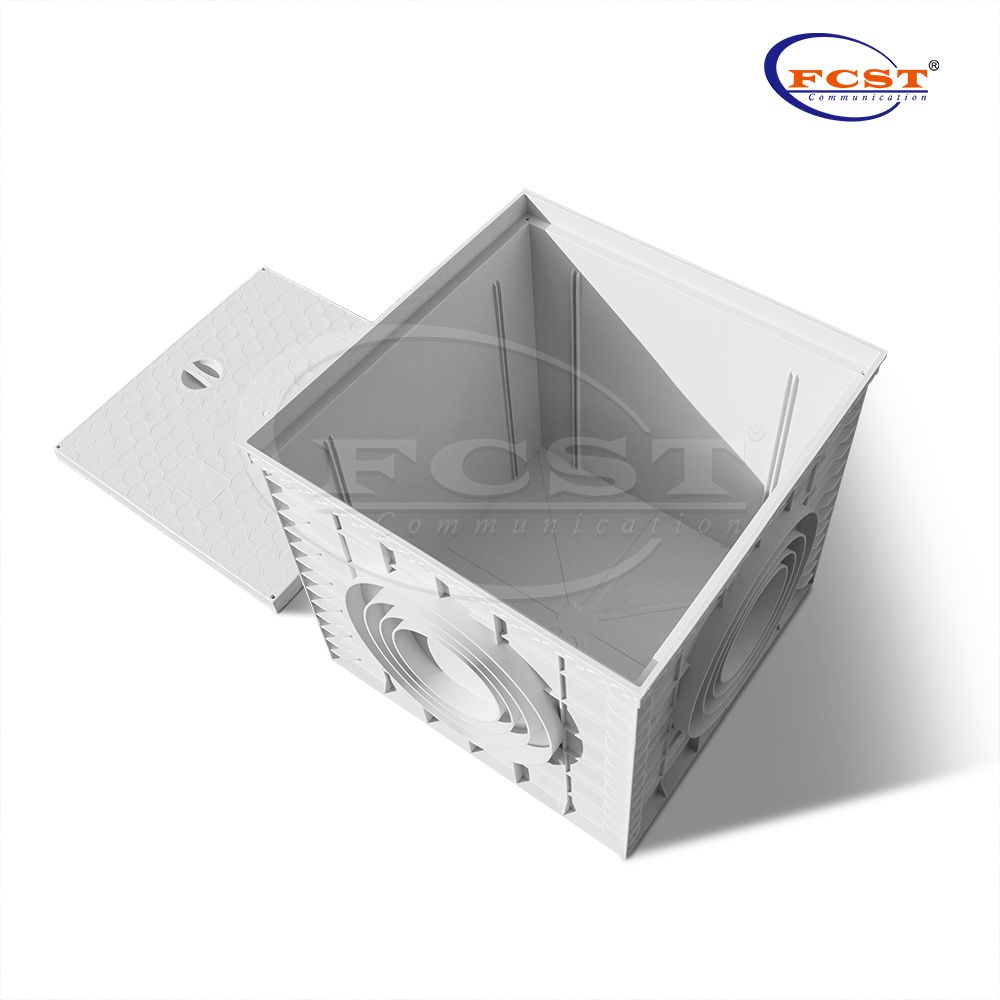

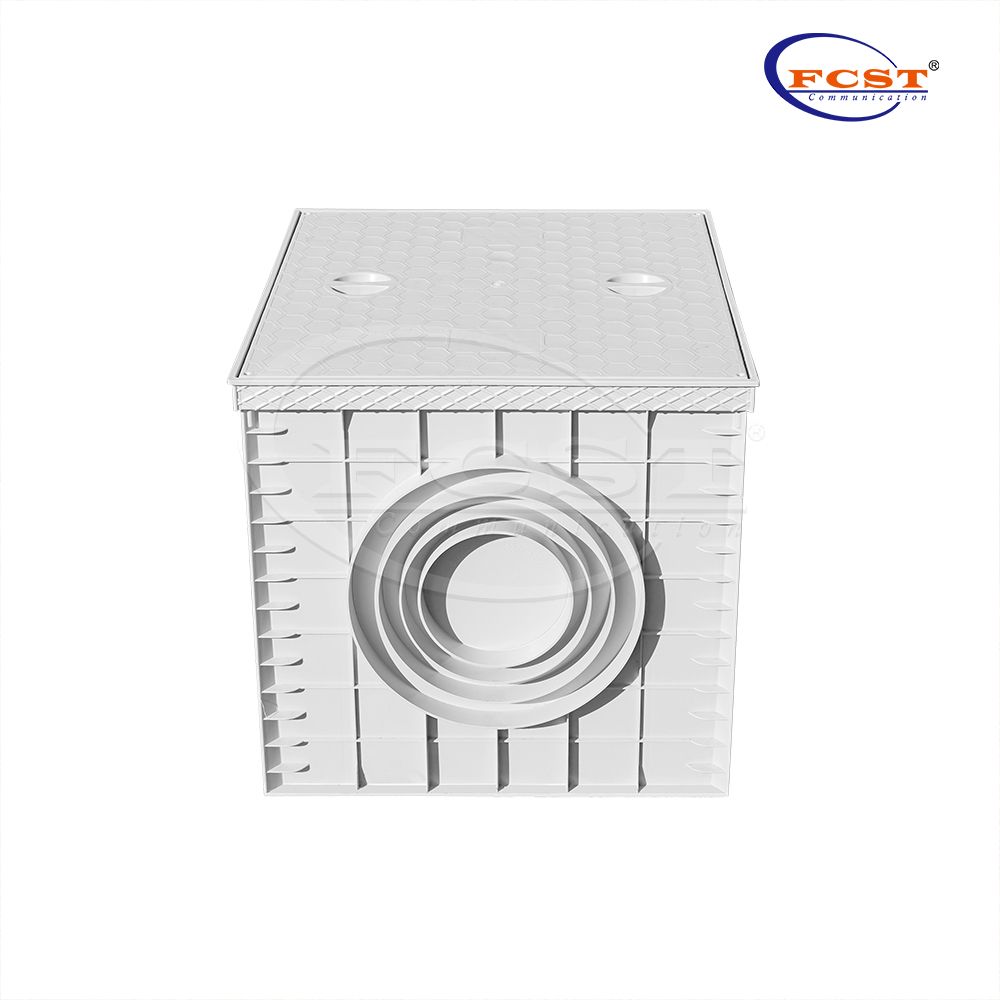

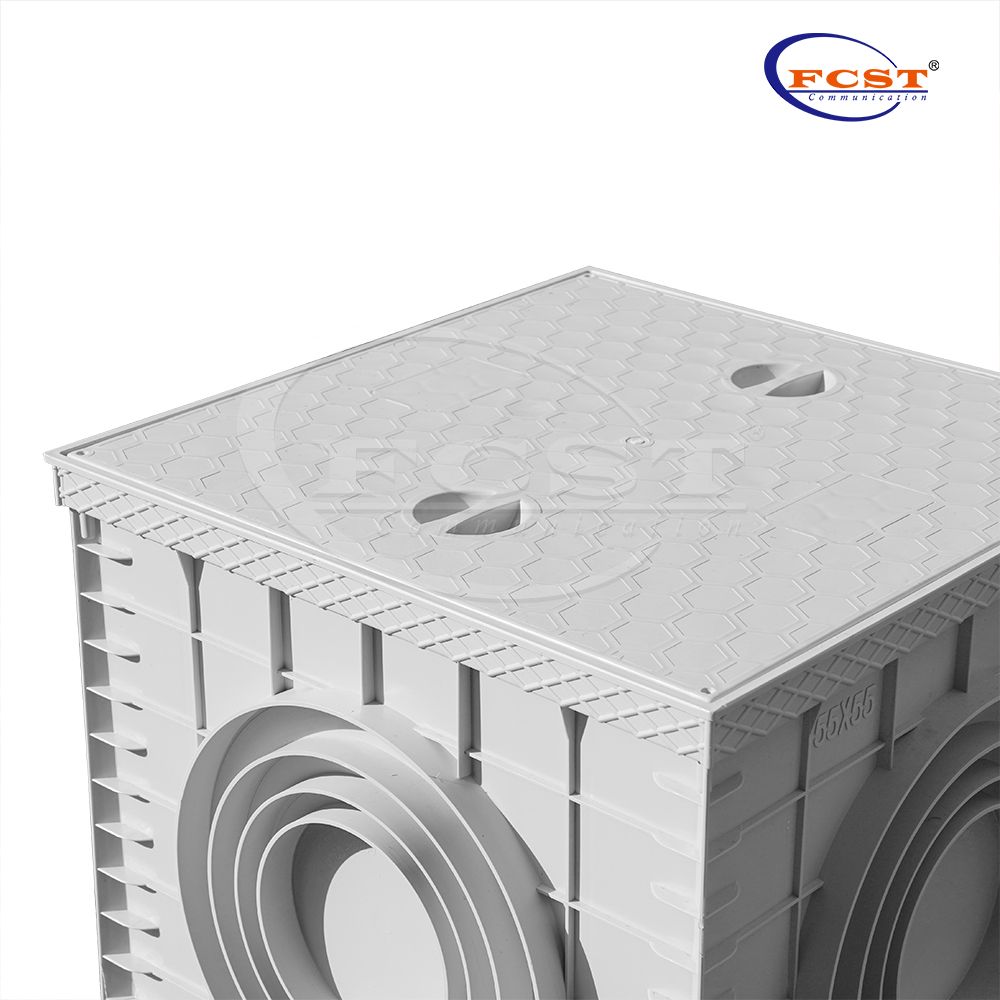

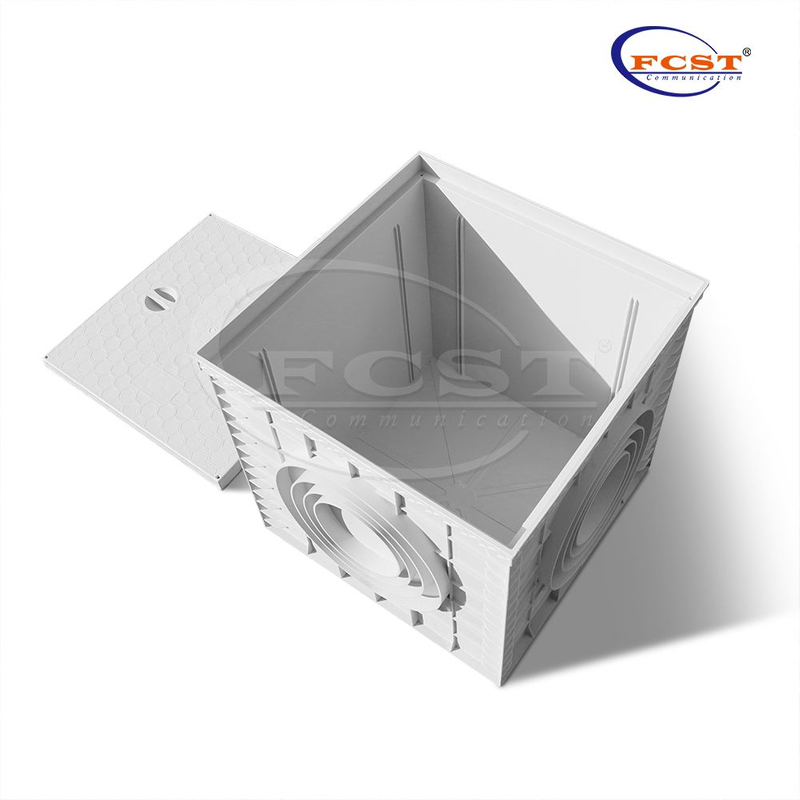

FCST-TH-SMC11 Series Square Acces Chamber for floor installation. It has a blind cover and four punched holes for the connection of pipes. Ideal for water drainage, both indoors and outdoors. Material of excellent quality and very robust.
Product Advantages
The load capacity is up to 1.5 tons.
Internal dimensions: 500*500*516 mm.

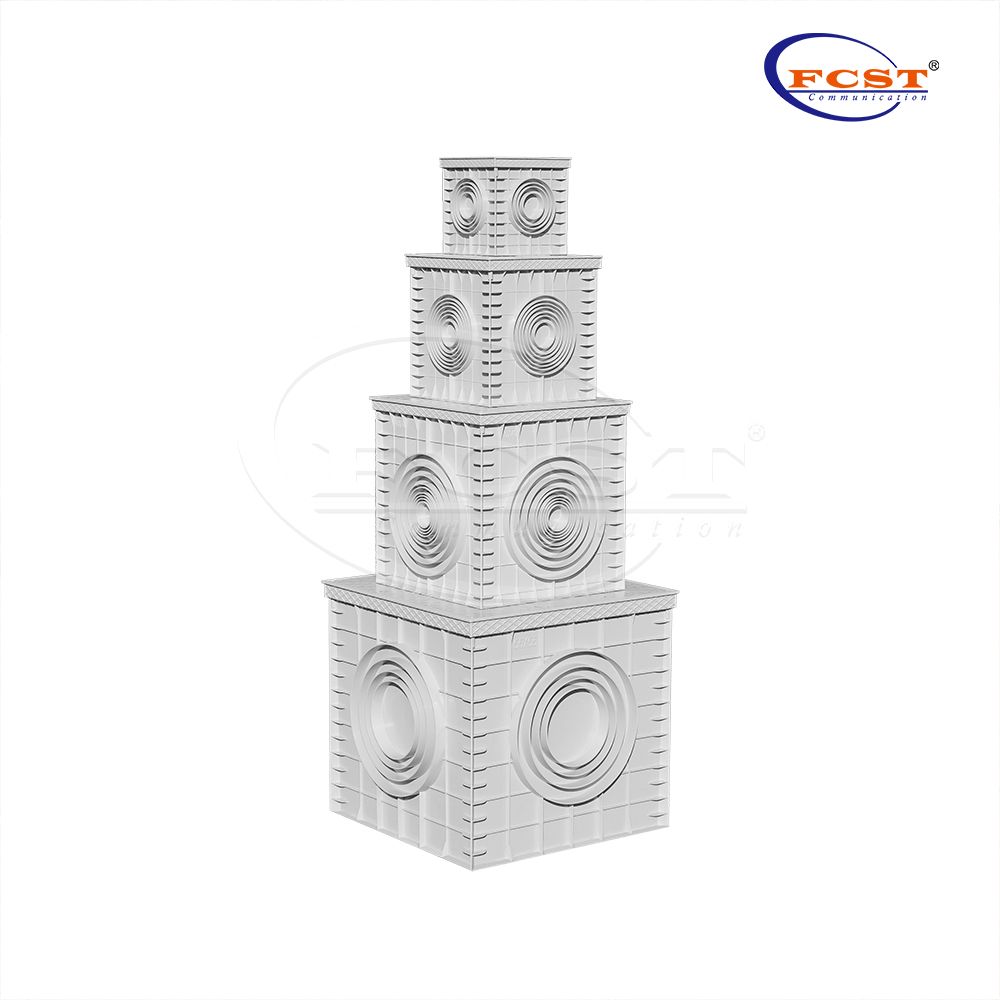

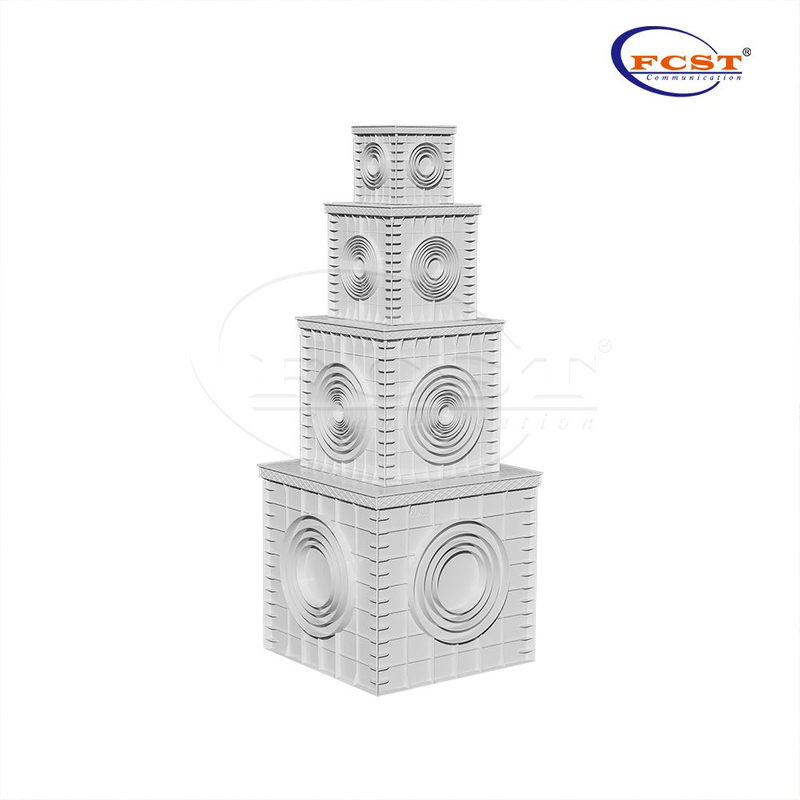

Depth can be stacked according to requirements.
Made of high quality and resistant gray PP plastic.
Prefabricated structure reduces on-site construction costs.
Four pre-drilled holes are provided on each side.(160/200/250/315mm)
Suitable for multiple industries (Water, Drainage, Electricity, Electric power, Municipal administration)
Product Specifications
Construction | Description |
Material | PP |
Manhole Cover Load Grade | 0.5T/1.5T |
Lengt | 500.00mm丨19.69in |
Width | 500.00mm丨19.69in |
Depth | 516.00mm丨20.31in |
Weight | 10.71kg |
Reserved Hole | 160/200/250/315mm |

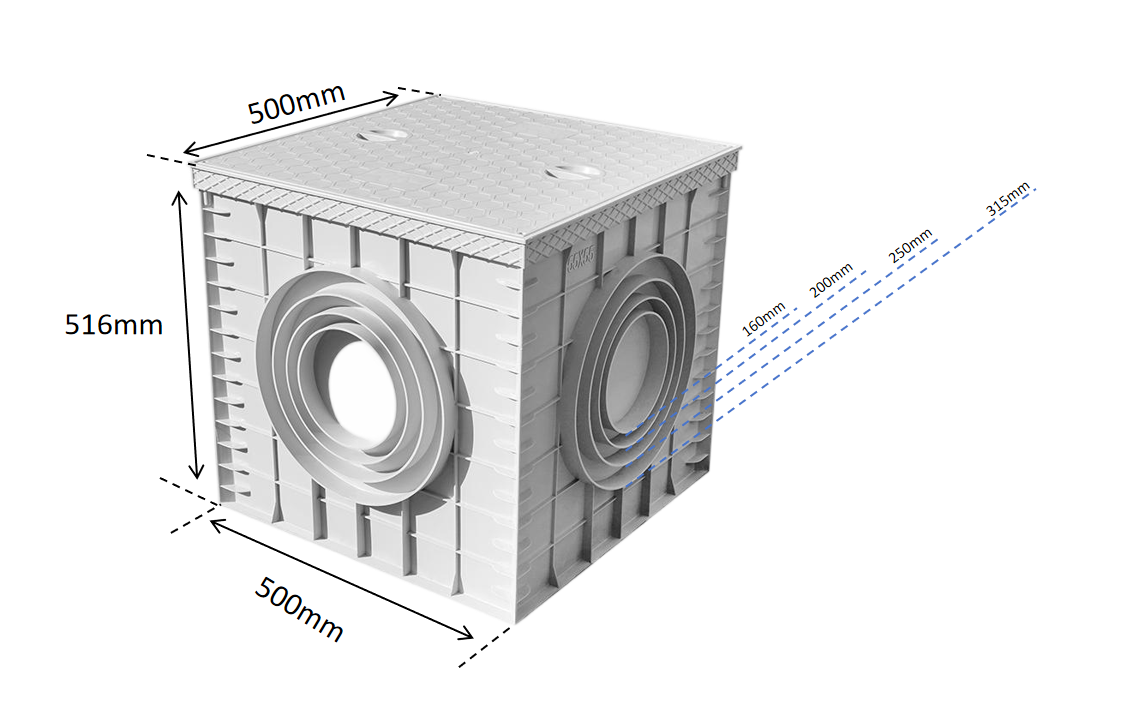

Product Size
| External Size(L*W*D) | Internal Dimensions(L*W*D) | Manhole Cover Load Grade |
| 550*550*516mm (21.65"x21.65"x20.31") | 500*500*516mm (19.69"x19.69"x20.31") | 0.5T/1.5T |

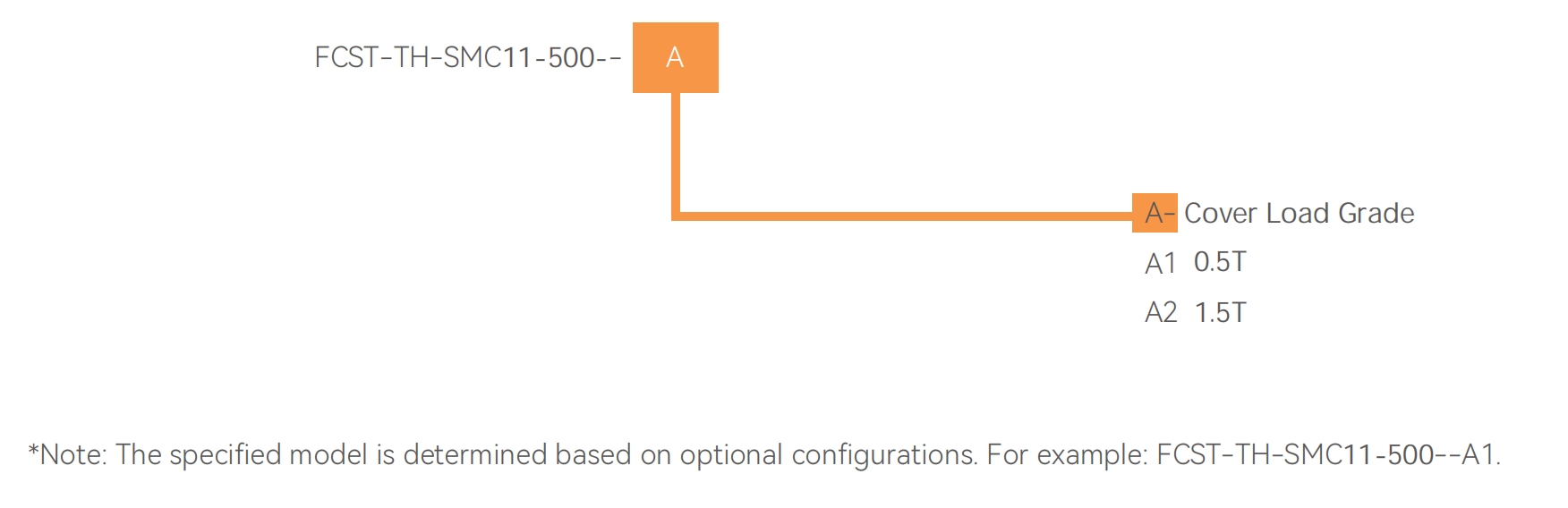

Ordering Information
Note：The practical application of this Composite Manhole Chamber, covering many fields such as municipal administration, electric power,electricity, water , road administration,and drainage. On each side of the product. The size of the drill hole can be adjusted at the construction site according to the actual size of the HDPE Silicon Pipe/HDPE Micro-duct.
