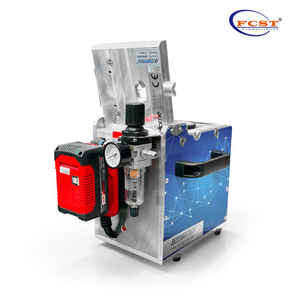

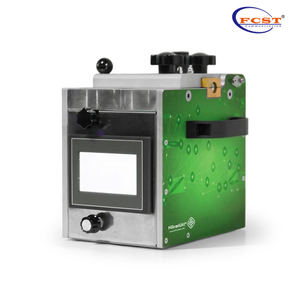

MikroJet 01 Fiber Blowing Machine
Product Overview
MikroJet 01 Micro Fiber Jetting machine is a machine used to blow fiber optic cables into HDPE pipes.MikroJet 01 cable blowing machine performs blowing of fiber cables between 1mm and 6mm . You can blow your fiber optic cables up to 100 meters per minute into microduct pipes. It works with an electric motor.Generates engine power with 220V standart EU electricity.
Product Specifications
| Construction | Description |
| Micro Cable Diameter | φ1~6mm |
| Micro Tube Diameter | φ 5,7,10,12,14,16 mm |
| Blowing Distance / Max | 700m |
| Blowing Speed / Max | 100 m/min |
| Pushing Force | 0~12kg |
| Work Pressure / Max | 15 bar |
| Dimensions (L*W*H) | 250*180*160mm | 9.84*7.09*6.3in |
| Weight (approx.) | 8kg |
| Power Source | Electric (Servo Motor) |
| Drive System | Dual belt feed |
| Operation Type | Automatic control |
| Warranty Period | 48months |
| Applications | FTTH, micro cable networks,indoor installations |
| Required Compressor's Efficiency | micro ducts up till 8mm:0.8m³/min micro ducts between 8-12mm:1.0m³/min micro ducts between 12-15mm:1.5m³/min |
Standard Accessories
10x nutrings from requested cable diameter.
O-rings for pipe adapter sets.
Compressor hose coupler.
Allen set
