Drainage Design in Fiber Optic Manholes: Why It Matters

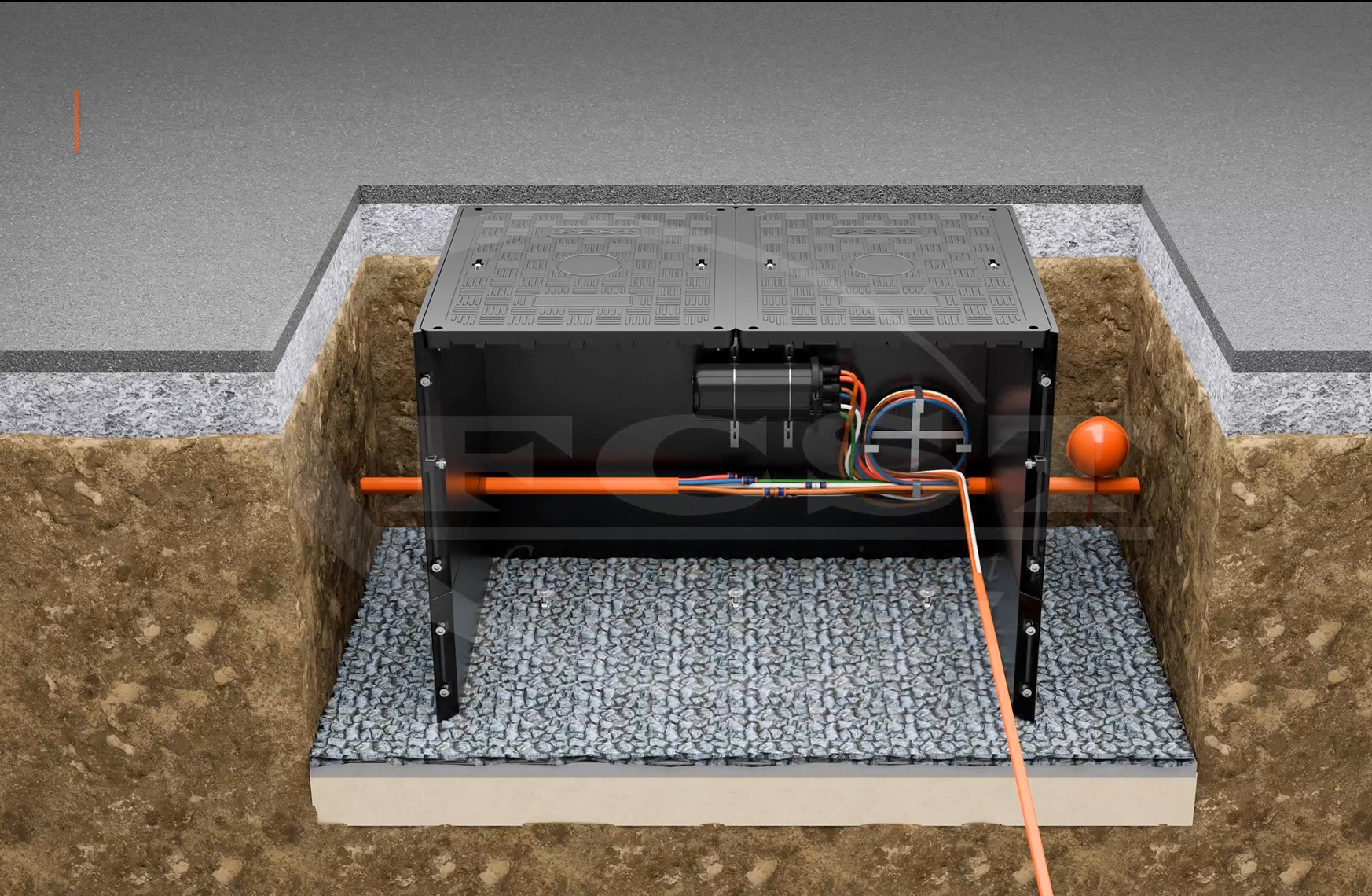

In the hyper-competitive world of underground infrastructure, a Pipe & Precast Factory is often judged on the compressive strength of its concrete or the durability of its composites. However, for Tier-1 telecommunications providers like AT&T, Verizon, or China Telecom, the "Internal Environment" of a manhole is more critical than its external shell.

1. The Chemistry of Failure: Hydrogen Aging and Signal Attenuation

The most persistent myth in the utility industry is that fiber optic cables are "immune" to water. While the glass core doesn't "rust," it suffers from a phenomenon known as Hydrogen Aging (Hydrogen Dimming).

The Technical Reality

When a manhole chamber is flooded, the stagnant water interacts with metallic components (like galvanized cable racks or rebar) or organic debris. This creates a chemical environment that releases hydrogen molecules (H₂). These molecules are small enough to diffuse through the polyethylene (PE) or PVC cable jackets and enter the silica glass fiber.

The Consequence: Hydrogen ions create an absorption band at the 1383nm and 1550nm wavelengths—the exact frequencies used for long-haul data transmission.

The Data: Research by Prysmian Group suggests that prolonged exposure to high-hydrogen environments can increase attenuation by as much 0.05dB/km to 0.1dB/km, effectively shortening the reach of a transponder and requiring expensive signal regenerators.

Factory Solution

By designing manholes with a 1% to 2% floor gradient leading to a sump, factories ensure that water never stays still long enough to foster the anaerobic conditions required for significant hydrogen generation.

2. Structural Integrity: Managing Hydrostatic Pressure and "Buoyancy"

An inspection chamber isn't just a container; it's a structure fighting against the Earth. When drainage fails, the physics of the soil changes, often with catastrophic results.

The "Boat" Effect (Buoyancy)

In areas with high water tables, a sealed, water-filled manhole becomes heavy, but an empty, poorly drained manhole in saturated soil becomes a buoyant vessel. According to [Archimedes' Principle], if the weight of the water displaced by the manhole is greater than the weight of the manhole itself, the structure will "heave" or float upward.

Infrastructure Damage: Even a 5cm} shift in a manhole's position can shear the rigid conduits entering the walls, snapping the fiber optic cables inside.

The Data: According to the National Precast Concrete Association (NPCA), buoyancy is the leading cause of underground vault failure in coastal and flood-prone regions.

Advanced Design Feature: Weep Holes and Scupper Drains

Modern factories should offer Hydrostatic Relief Valves. These one-way valves allow groundwater to enter the manhole when external pressure is too high (preventing the vault from "popping" out of the ground) while a primary drainage system (connected to a storm sewer) removes the water internally.

3. The Freeze-Thaw Cycle: Protecting the Splice Closure

In Northern latitudes, drainage is the difference between a functional network and a total blackout.

The Expansion Problem

Water expands by approximately 9% when it turns to ice. In a flooded manhole, this ice exerts 30,000psi of pressure.

Splice Closures: Most fiber splice closures are rated for [IP68] (submersible), but they are not rated for crushing forces. Ice expansion can crack the polymer casing of a splice box, allowing water to enter the delicate fusion-spliced fibers.

Micro-bending: If ice forms around the slack loops of a fiber cable, it causes "micro-bends." These bends disrupt the Total Internal Reflection of the light, causing immediate signal dropouts.

Industry Standards to Follow:

Telcordia GR-26-CORE: This standard defines the requirements for generic underground enclosures. It emphasizes that enclosures must minimize the accumulation of water to prevent ice-related damage to sensitive optical components.

4. Operational Efficiency: The MTTR (Mean Time To Repair) Metric

For your clients—the telecom operators—the biggest cost is not the manhole itself, but the labor required to maintain it.

The Cost of a "Wet Site"

If a fiber break occurs, a technician's first task is "Safe Entry." Per OSHA (Occupational Safety and Health Administration) Standard 1910.146, a flooded manhole is a "Permit-Required Confined Space."

Pumping Time: A standard flooded underground vaults can hold 3,000 to 5,000 liters of water. Pumping this out takes 45-90 minutes.

Contamination: If the water is contaminated with oil or sewage, it must be hauled away by a vacuum truck, costing $500-$1,500 per visit.

Design Innovation: The Sump Pit Template

A factory-integrated Sump Pit (a recessed area in the floor) allows a submersible pump to remove 99% of the water. Without a pit, pumps lose "prime" when there is still 5-10cm of water left, leaving the floor a muddy, hazardous mess for the technician.

5. Environmental and Safety Standards (The "Invisible" Risks)

Stagnant water in manholes is a breeding ground for biological hazards.

Vector Control: Flooded vaults are primary breeding sites for mosquitoes (West Nile/Zika). In urban areas, cities are increasingly penalizing utilities for poorly drained infrastructure.

Toxic Gases: Stagnant water facilitates the growth of anaerobic bacteria, which produce Hydrogen Sulfide (H₂S). This gas is not only lethal to humans but also corrosive to the copper grounding systems found in many electrical duct access chambers.

By referencing the International Telecommunication Union (ITU-T) Series L Recommendations, specifically L.11 (Construction of Underground Infrastructure), your factory can demonstrate that its drainage designs meet global safety and environmental sustainability goals.

Summary Checklist for the Modern Pipe Factory

To transition from a "commodity supplier" to a "strategic partner," your factory's technical data sheets should highlight:

Conclusion: Engineering the Future of Connectivity

The fiber optic manhole is no longer just a hole in the ground; it is a critical "data vault." As a Pipe & Precast Factory, your ability to provide a dry, stable, and accessible environment through superior drainage design is your strongest competitive advantage.

When you solve the drainage problem, you aren't just selling a precast product—you are selling network uptime.
